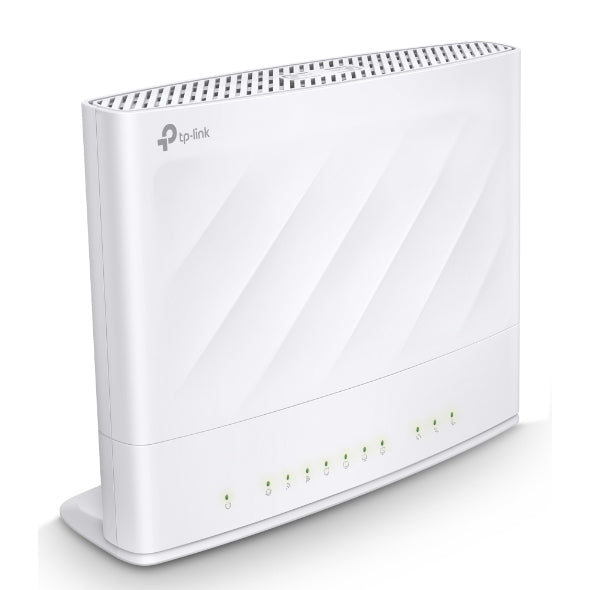

TP-LINK AX1800 Router

The TP-LINK AX1800 sits at the heart of your network: routing, security and central management in one compact unit.

Wi-Fi Router
TP-Link’s Wi-Fi routers are some of the most competitive CPEs on the market, known for their reliability and cost-effectiveness, Making use of various technologies such as Wi-Fi 6, and with support of dual band 5 GHz and 2.4 GHz wireless bands, these routers not only deliver faster than ever speed, but also provide a stable network environment to help ISPs to provide better user experience.

Multi-Application Scenario
Easily share files & media with networked devices. With FXS ports, users can make or receive phone calls over the Internet simply by connecting the devices to the existing telephone set.

Ultrafast Dual Band Wi-Fi
Provide ultrafast dual band Wi-Fi speed in both 2.4GHz and 5GHz band, ensuring high data transmission.

MU-MIMO and Beamforming for Better Performance
MU-MIMO technology serves multiple devices at once, reducing wait time, increasing Wi-Fi throughput for every device, and making each stream more efficient.
Beamforming technology detects the location of your connected devices and concentrates the Wi-Fi signal towards them to create stronger overall connections.

TR-069 Protocol Enables Easy Remote Management
TR-069 protocol enables operators to remotely configure and manage end-users’ devices.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	Yes
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	No
Security
VPN support	PPTP, OpenVPN, IPSec
Security algorithms	WPA, WPA2, WPA3
MAC address filtering	Yes
IP address filtering	Yes
Firewall	Yes
DoS attack prevention	Yes
Schedule access	Yes
Stateful Packet Inspection (SPI)	Yes
Performance
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	MacOS
WAN connection
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
USB sharing	Yes
Support Samba (storage)	Yes
Media server	Yes
Static route	Yes

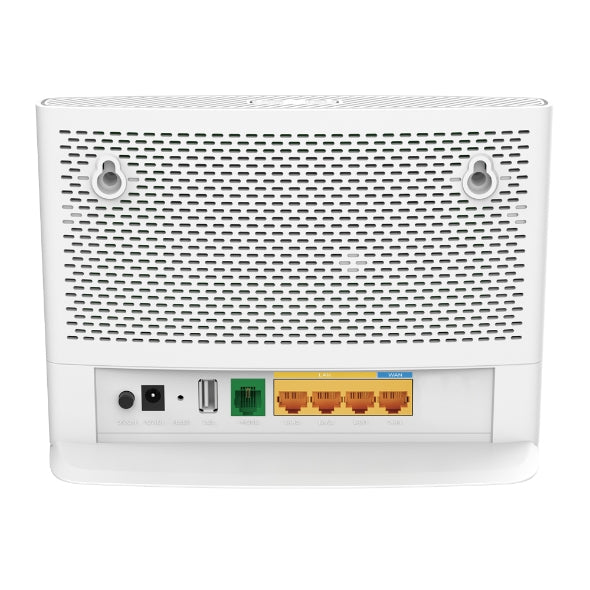

Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	3
Management features
WPS push button	Yes
Reset button	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Wireless statistics	Yes
Intelligent Mesh technology	Yes
MU-MIMO technology	Yes
Protocols
Supported network protocols	IPv4, IPv6
DHCP server	No
DHCP client	Yes
Design
Product type	Tabletop router
Wall mountable	Yes
On/off switch	Yes
LED indicators	Status
Product colour	White
Certificates
Certification	THIS
Packaging content
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna
Antenna design	Internal
Transmit power	23 dBmW
Power
Output voltage	12 V
Output current	1.5 A
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
System requirements
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Weight & dimensions
Width	148.6 mm
Height	67.5 mm
Depth	199.7 mm
