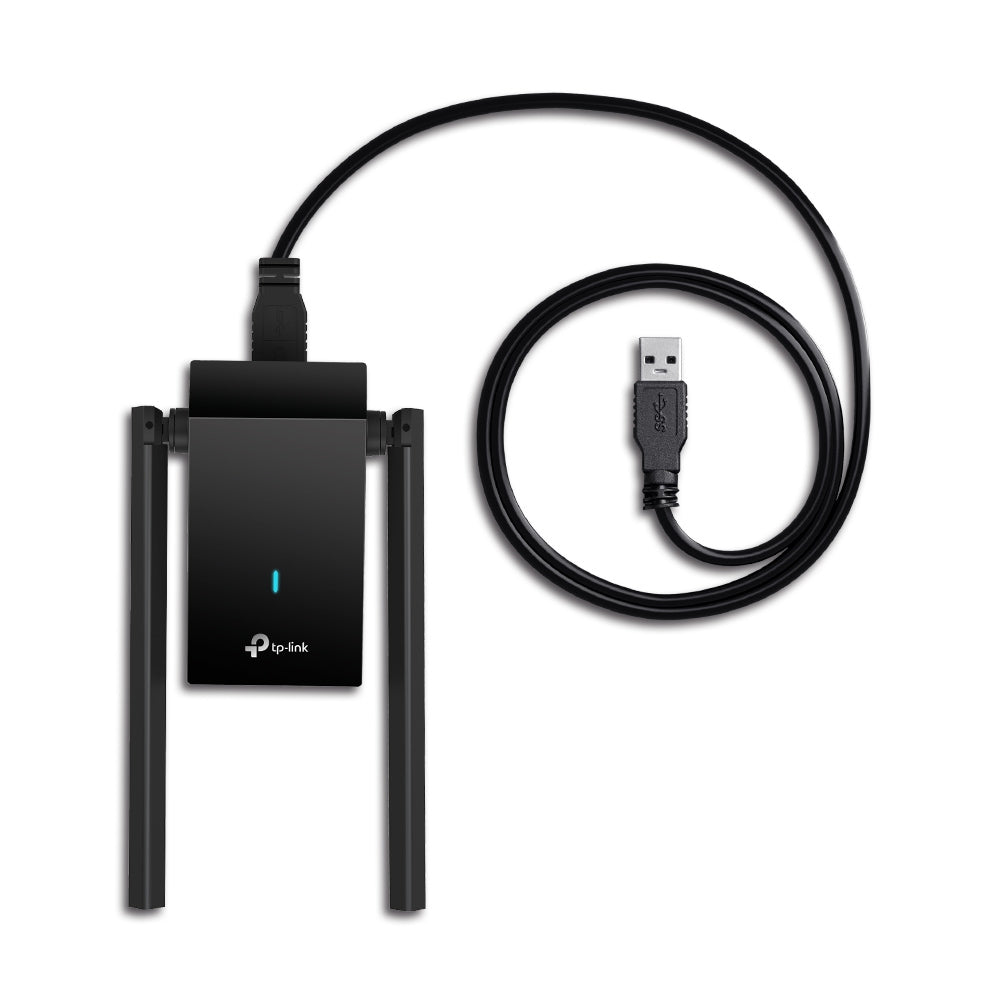

TP-LINK AX1800 Dual Antennas High Gain Wireless USB Adapter
TP-LINK AX1800 Dual Antennas High Gain Wireless USB Adapter
Regular price
£24.79 GBP
Regular price
Sale price
£24.79 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Upgrade your connectivity with the TP-LINK AX1800 Dual Antennas High — ports, speeds and interface details are in the spec table.
Level Up Your PC with WiFi 6High-Gain Wireless USB Adapter
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

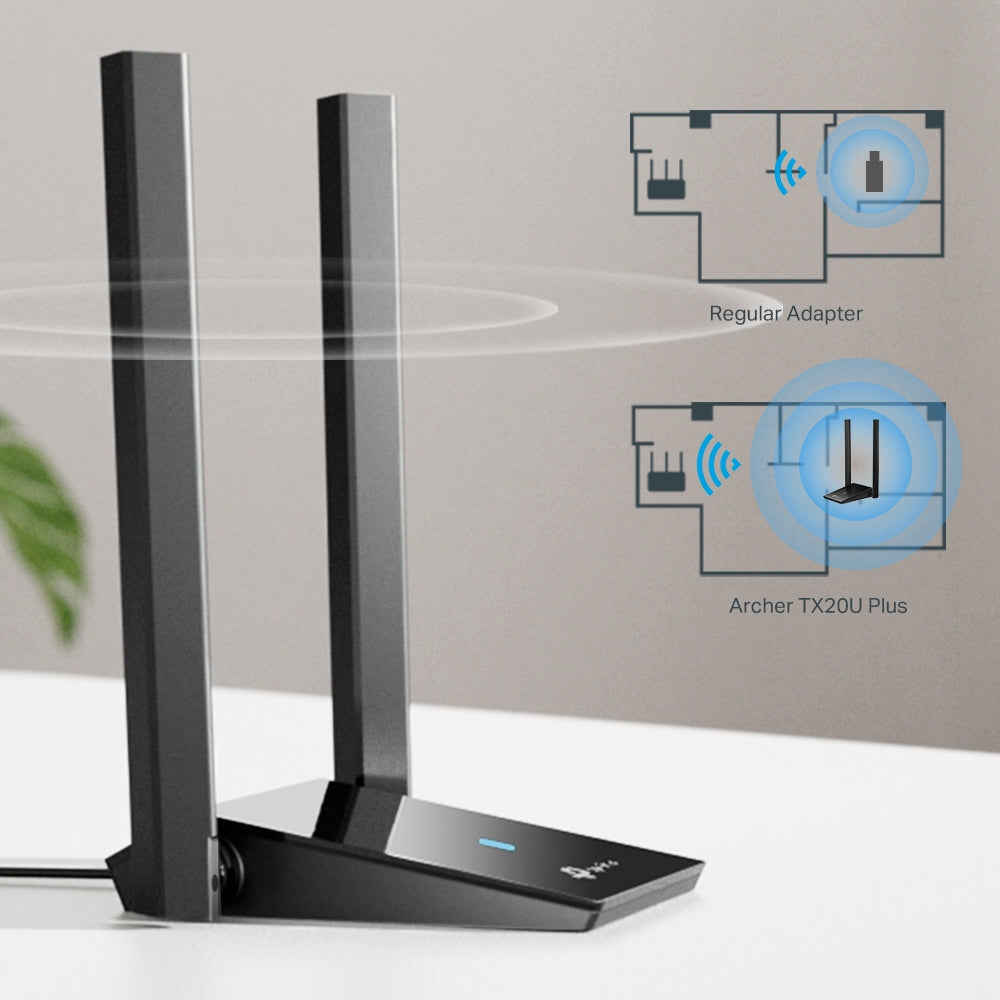

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

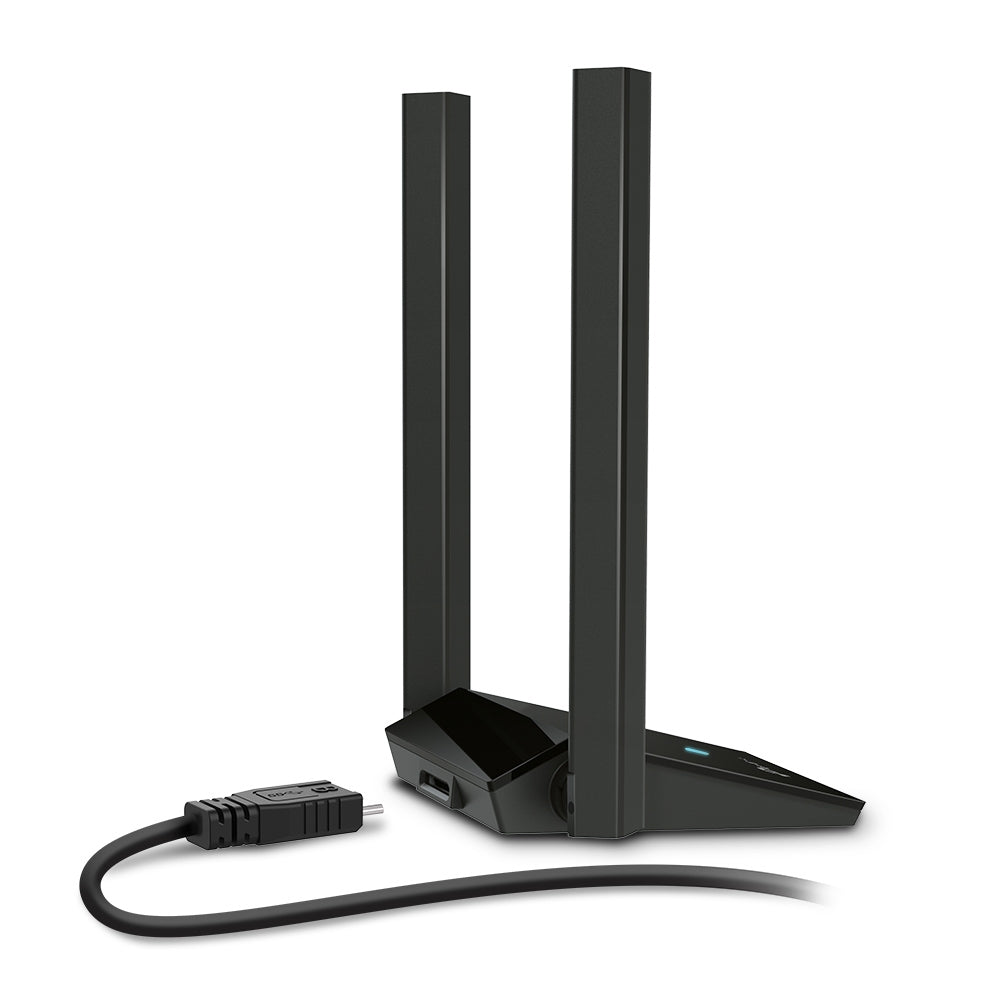

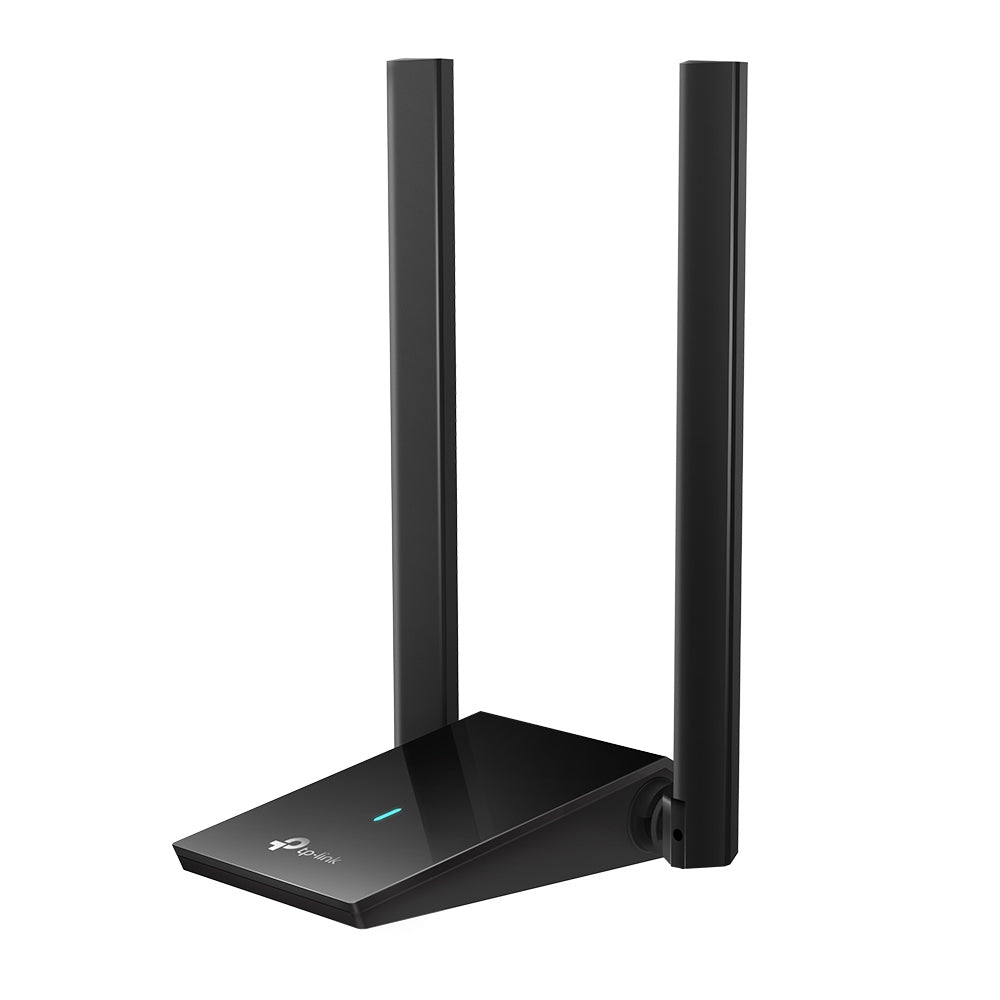

Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement
Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports | 0 |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 1800 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 11,54,300,400,574,867,1200 Mbit/s |
| Antenna | |
| Antennas quantity | 2 |
| Antenna type | External |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Network | |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MU-MIMO | Yes |
| Design | |
| LED indicators | Status |
| Transmitting power (CE) | 16 dBm |
| Transmitting power (FCC) | 19 dBm |
| Operating modes | Infrastructure mode |
| Component for | PC |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 84 mm |
| Depth | 156.3 mm |
| Height | 19.2 mm |
| Package width | 201.5 mm |
| Package depth | 153 mm |
| Package height | 46.5 mm |
| Package weight | 230 g |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB |
