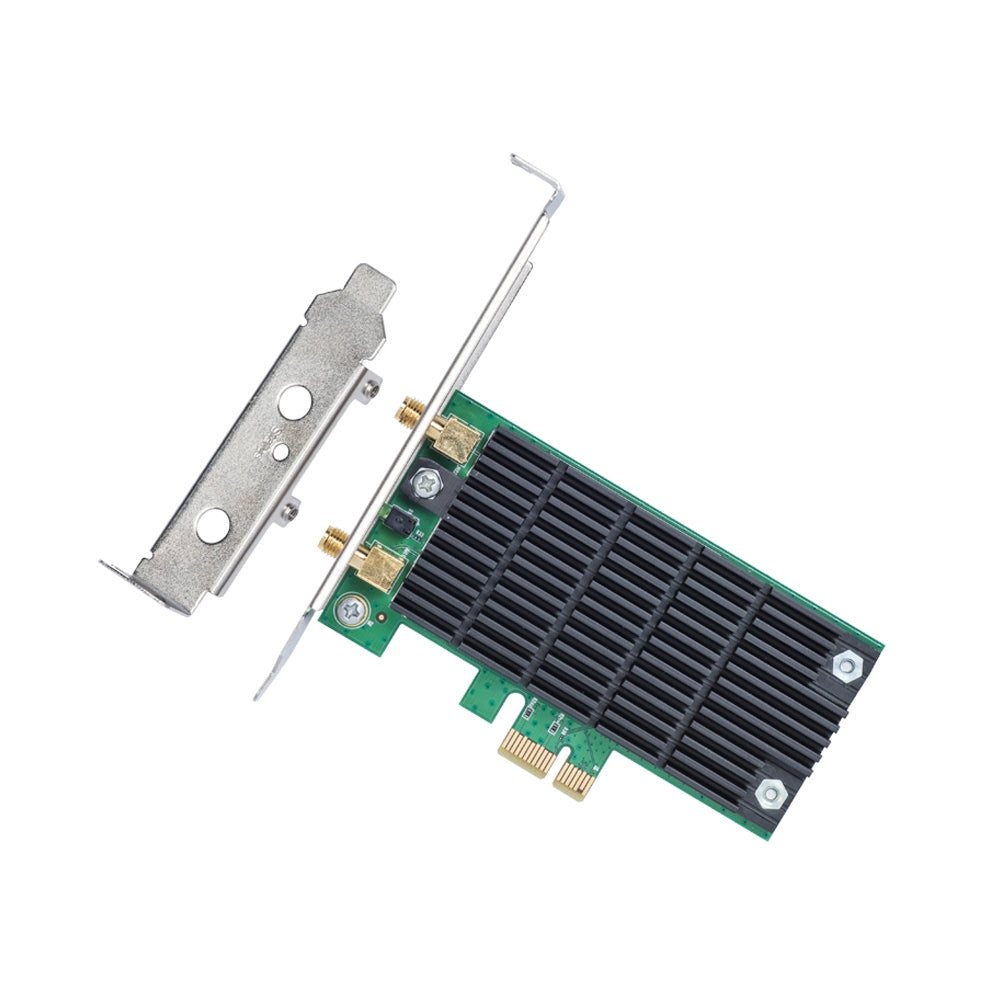

TP-LINK Archer T4E Internal WLAN 867 Mbit/s Network Adapter

Upgrade your connectivity with the TP-LINK Archer T4E Internal WLAN — ports, speeds and interface details are in the spec table.

802.11ac - Dual Band Wi-Fi for Faster Connections
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

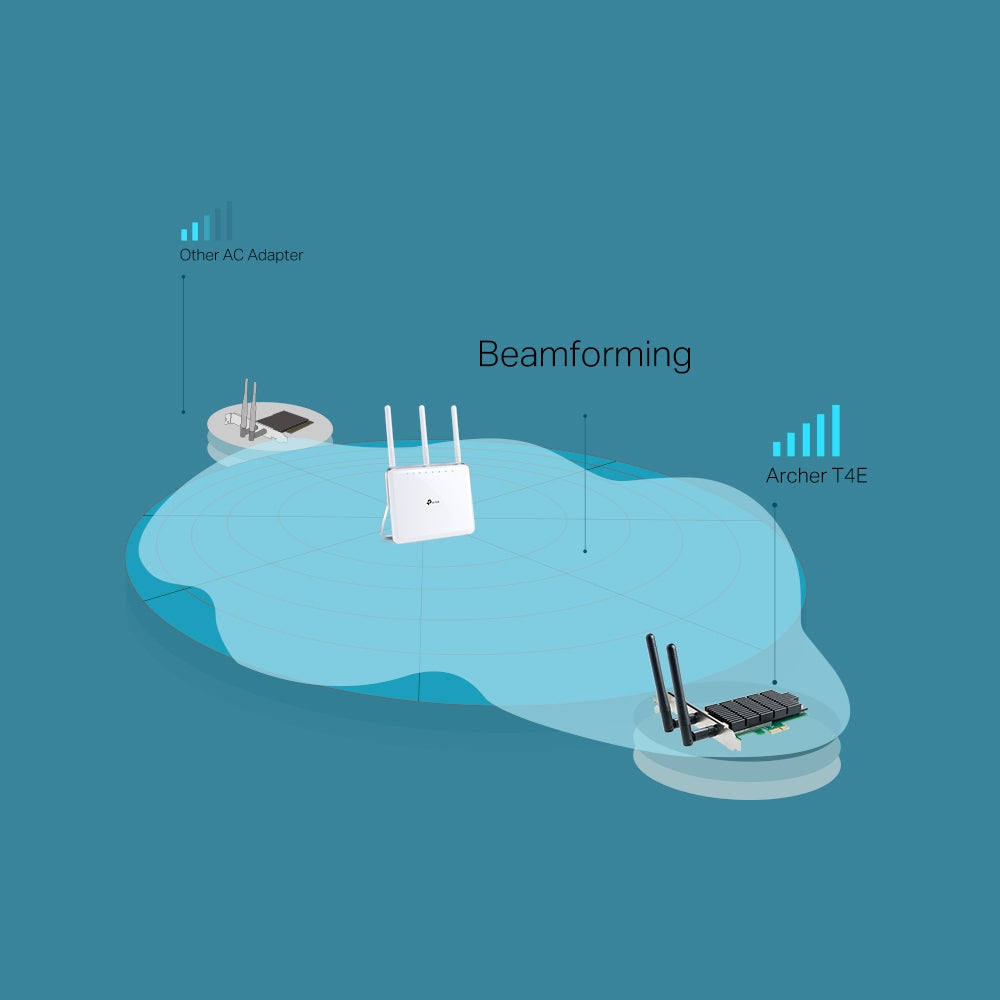

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

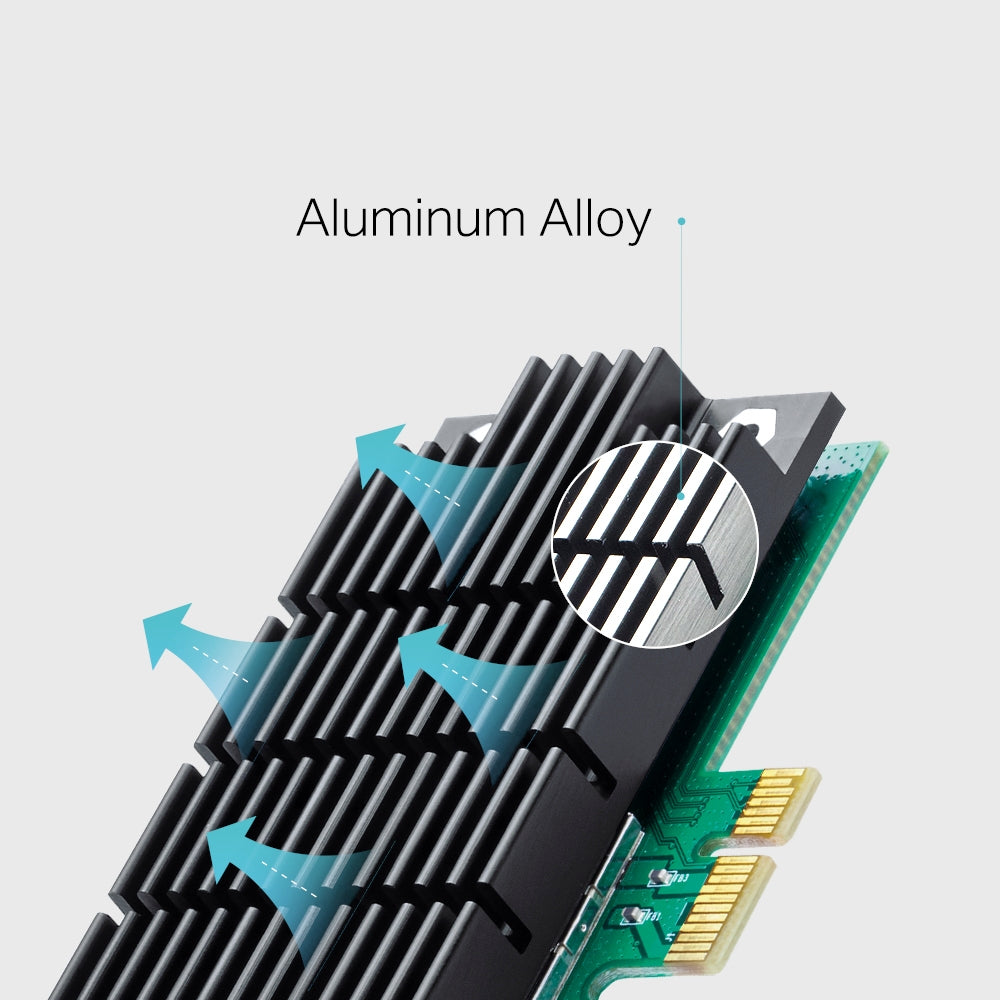

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

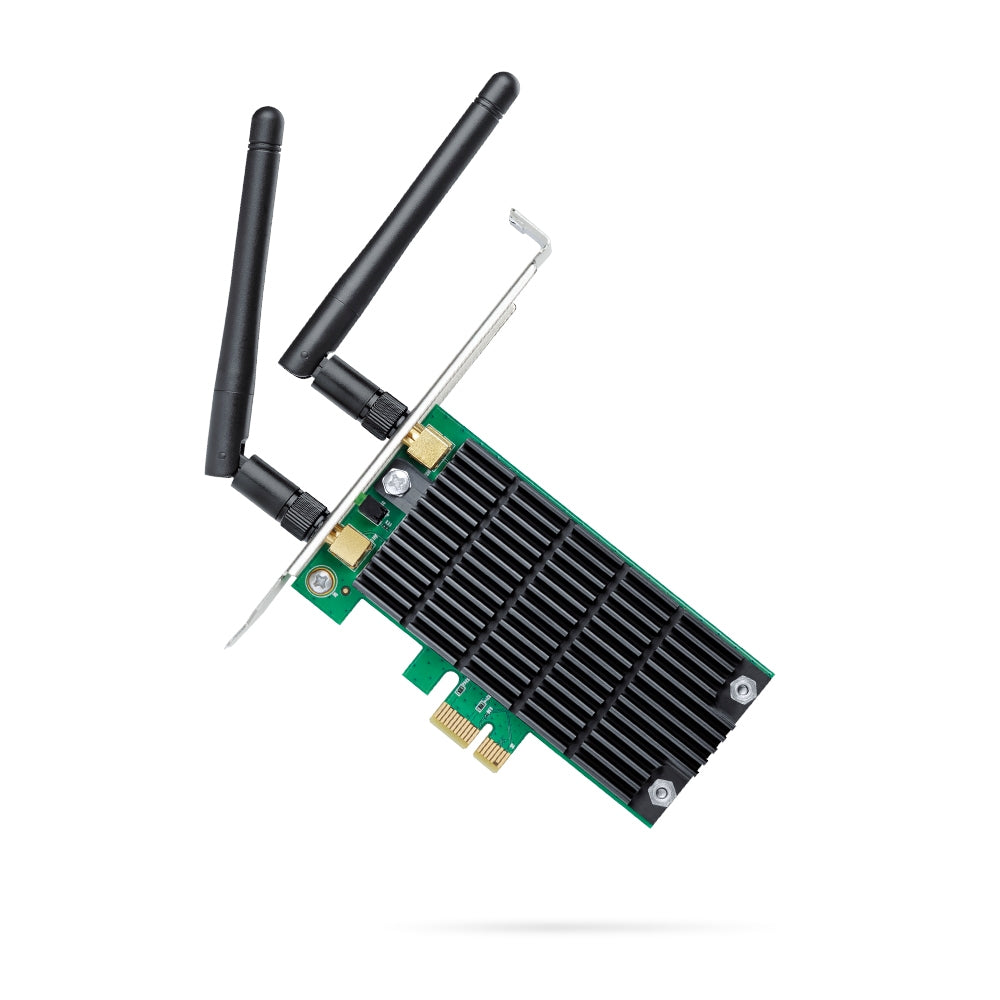

External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

Specifications

Ports & interfaces
Internal	Yes
PCI Card form factor	Half-height (low-profile)
Interface	WLAN
Host interface	PCI Express
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	867 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Bandwidth (second)	5 GHz
Bandwidth (first)	2.4 GHz
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,867 Mbit/s
Antenna
Antennas quantity	2
Antenna	Yes
Transmit power range	59.5 - 92 dBmW
Detachable antenna(s)	Yes
Technical details
Product colour	Black, Green
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Sustainability compliance	Yes
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Network
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Design
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	24 dBm
Operating modes	Infrastructure mode
Component for	PC
Antenna design	External
Conflict-Free	Yes
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	120.8 mm
Depth	115.2 mm
Height	21.5 mm
Package width	207 mm
Package depth	148 mm
Package height	42 mm
Package weight	300 g
Packaging data
Low-profile bracket	Yes
Package type	Box
Mounting brackets included	Yes
Quick installation guide	Yes
Packaging content
Resource CD	Yes
