TP-LINK Archer AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Upgrade your connectivity with the TP-LINK Archer AX3000 Wi-Fi 6 — ports, speeds and interface details are in the spec table.

Arm Your PC with Wi-Fi 6 and Bluetooth 5.2
AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Ultra-Fast Wi-Fi Experience
The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.

Keep Step Ahead
1024-QAM and a 160 MHz bandwidth deliver powerful, continuous Wi-Fi to fully unlock the potential of your Wi-Fi 6 router.
Achieving speeds 3× faster than standard AC Wi-Fi drives your PC to peak performance so your setup keeps pace with your jaw-dropping skills.

Immediate Response
Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.

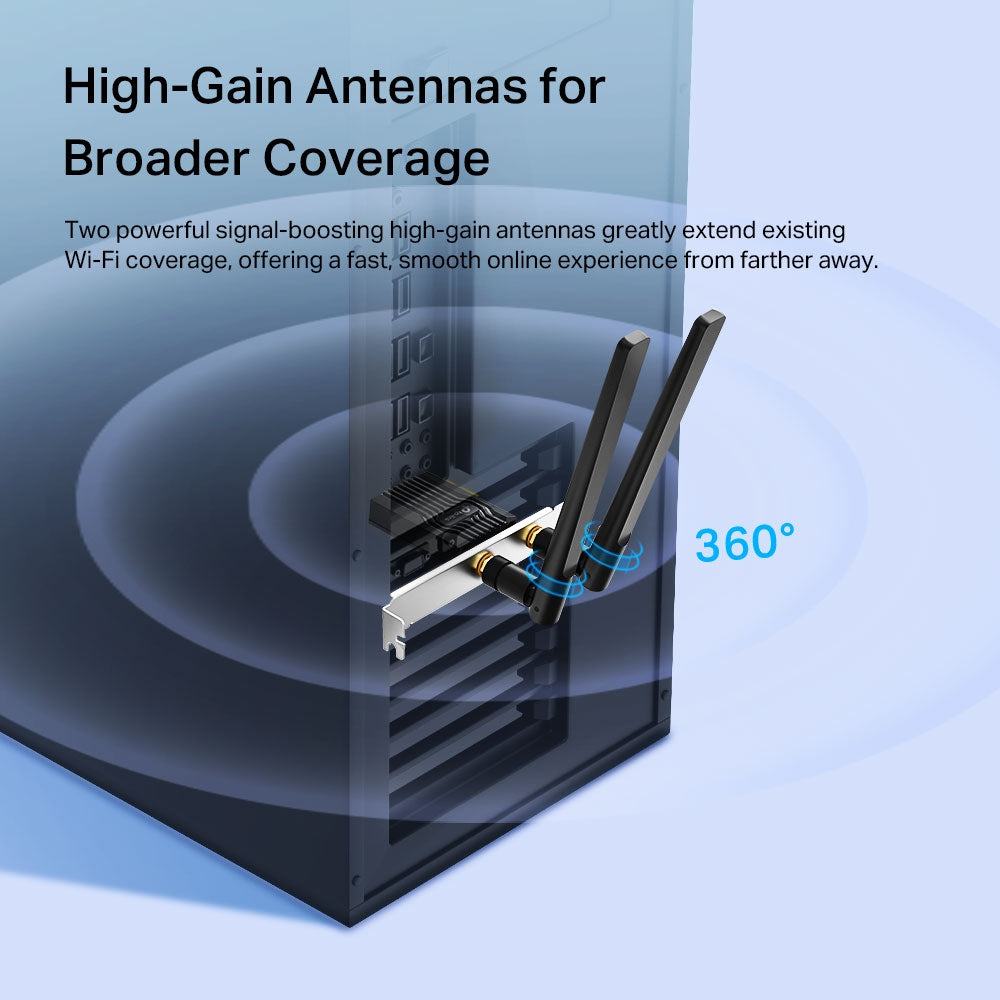

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking, and ensures your wireless connection is completely secure while surfing the web and shopping online.

More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

Ingenious Manufacturing for Perfect Performance
Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.

Specifications

Ports & interfaces
Internal	No
USB version	2.0
Interface	WLAN / Bluetooth
Host interface	PCI Express
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	2402 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,574,1733,2402 Mbit/s
Antenna
Antenna	Yes
Frequency range	2.4 - 5 GHz
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Network
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth version	5.2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DQPSK, OFDM
Bluetooth	Yes
Design
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	27 dBm
Operating modes	Infrastructure mode
Antenna design	External
Software
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	120 mm
Depth	78.5 mm
Height	21 mm
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	230 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Packaging content
Resource CD	Yes
Bluetooth header cable	Yes

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
