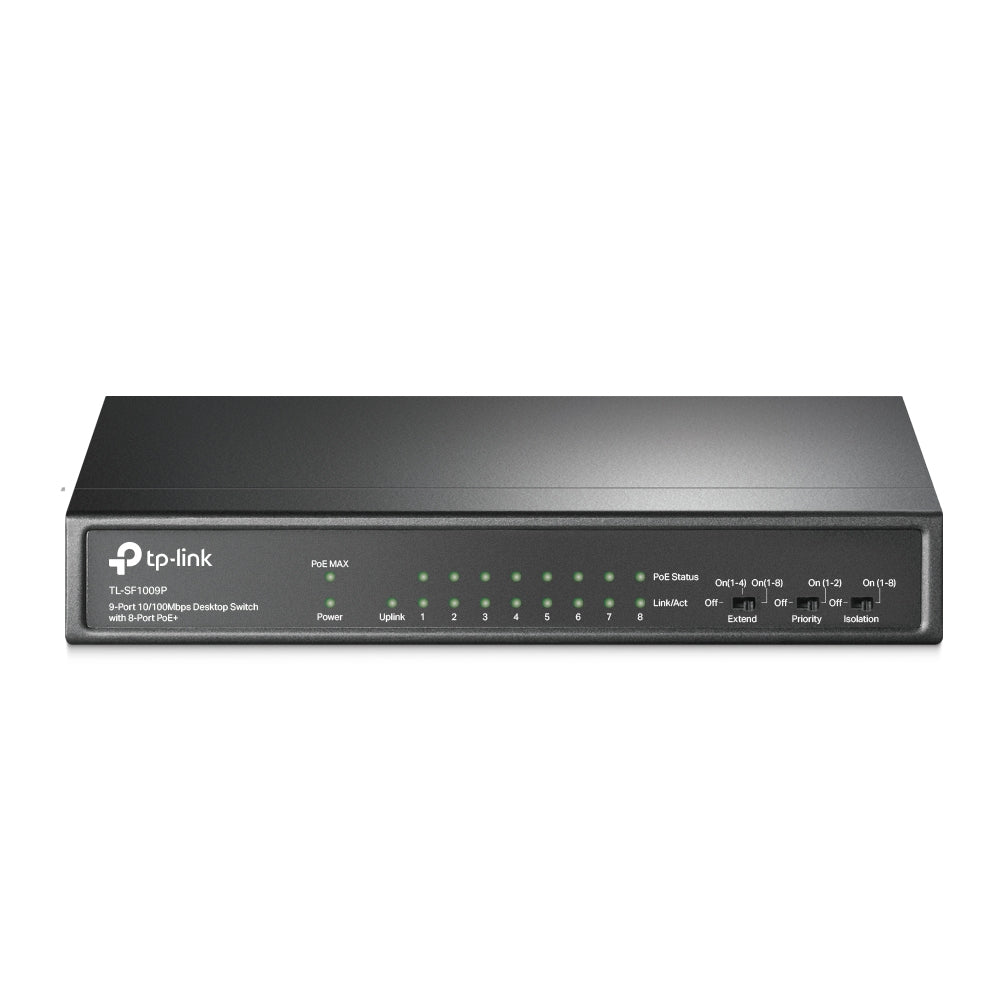

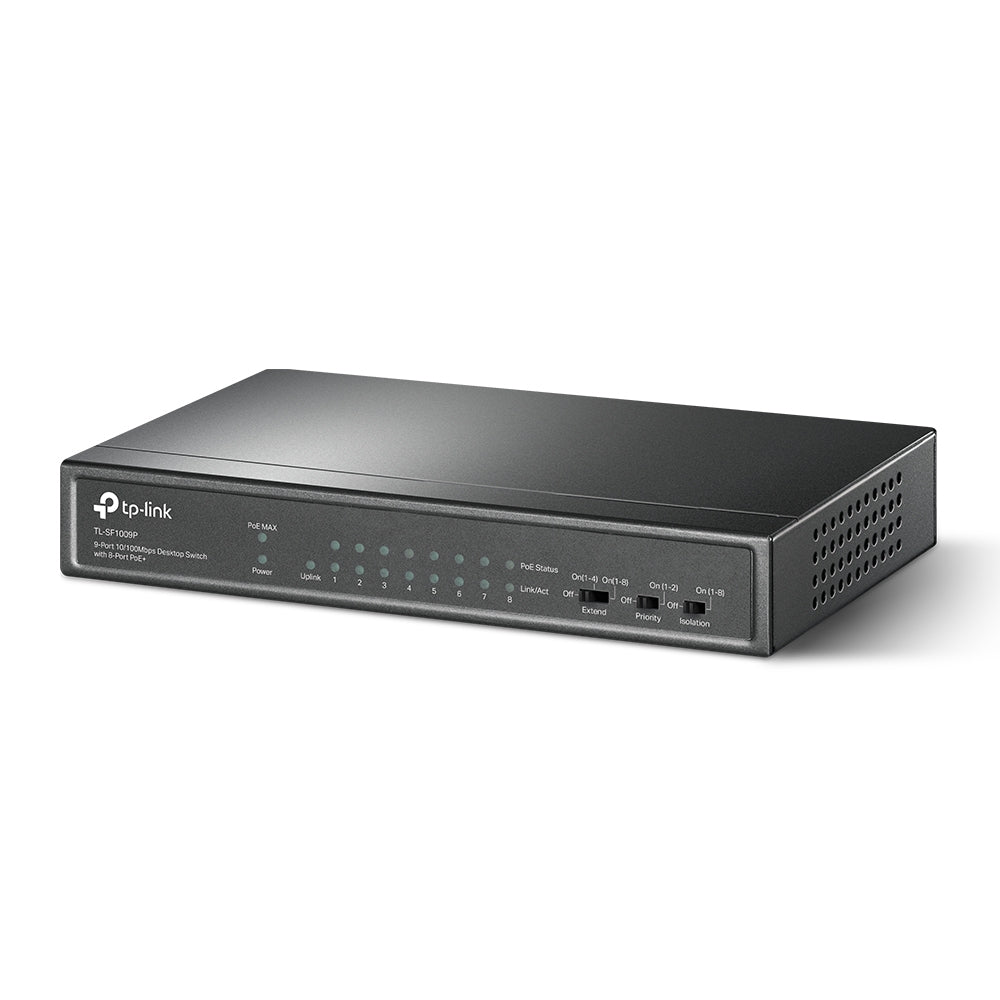

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

The TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ keeps your wired network organised with PoE power for APs and cameras.

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	9
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	1.6 Gbit/s
Store-and-forward	Yes
Forwarding rate	1.3392 Mpps
Design
Wall mountable	Yes
Product colour	Black
Stackable	No
LED indicators	Activity, Link, PoE, Power
Housing material	Metal
Rack mounting	No
Certification	FCC, CE, RoHS
Performance
Fanless	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	77.08 W
Power supply included	No
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.31 A
DC input voltage	53.5 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	65 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	262.84 BTU/h
Weight & dimensions
Width	171 mm
Depth	98 mm
Height	27 mm
Packaging content
User guide	Yes
AC adapter included	Yes
Packaging data
Package type	Box
Package width	223 mm
Package depth	280 mm
Package height	68 mm
Package weight	980 g
Sustainability
Sustainability compliance	Yes
Technical details
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
