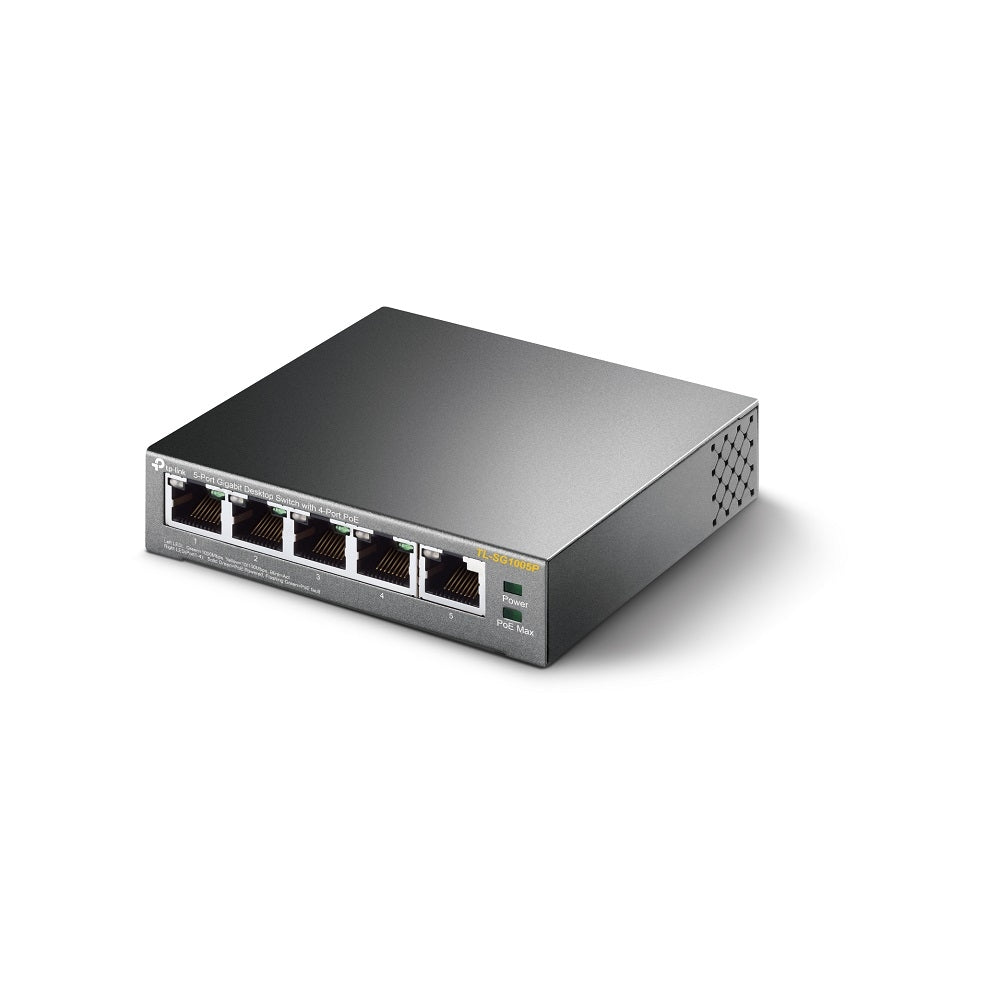

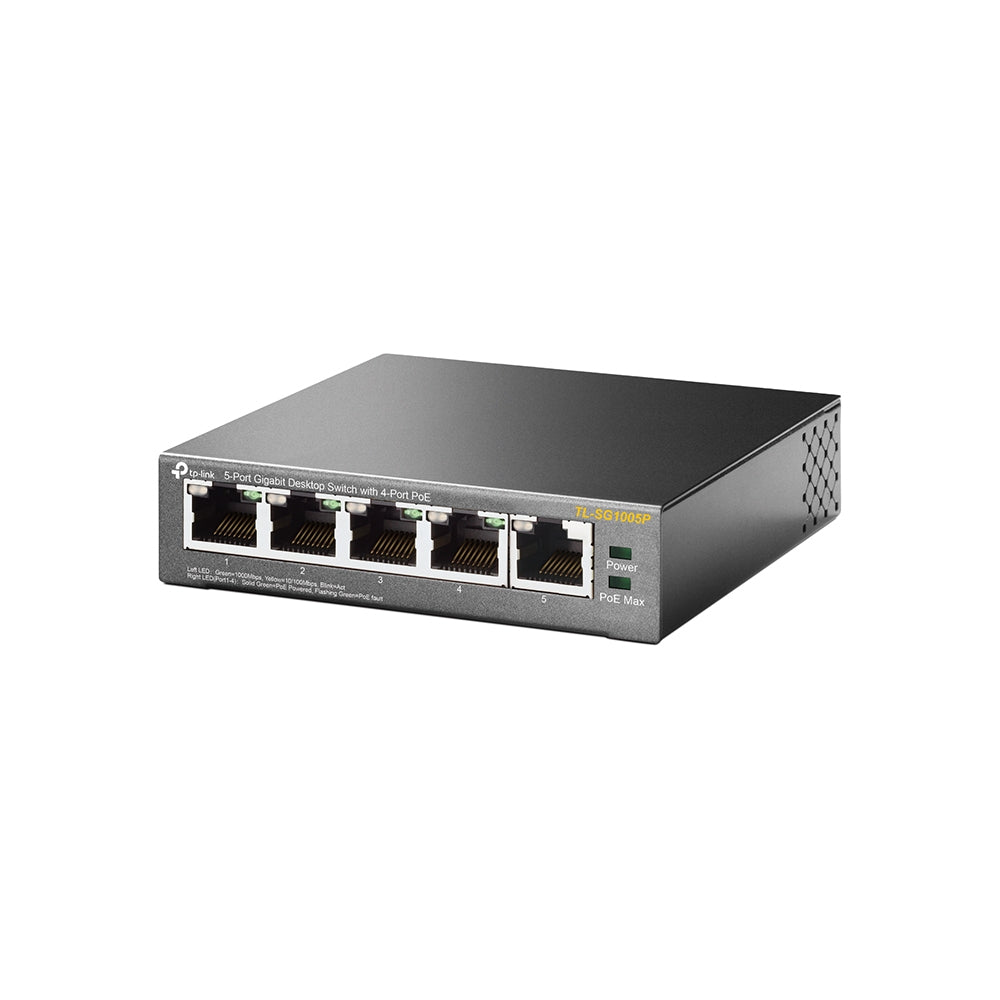

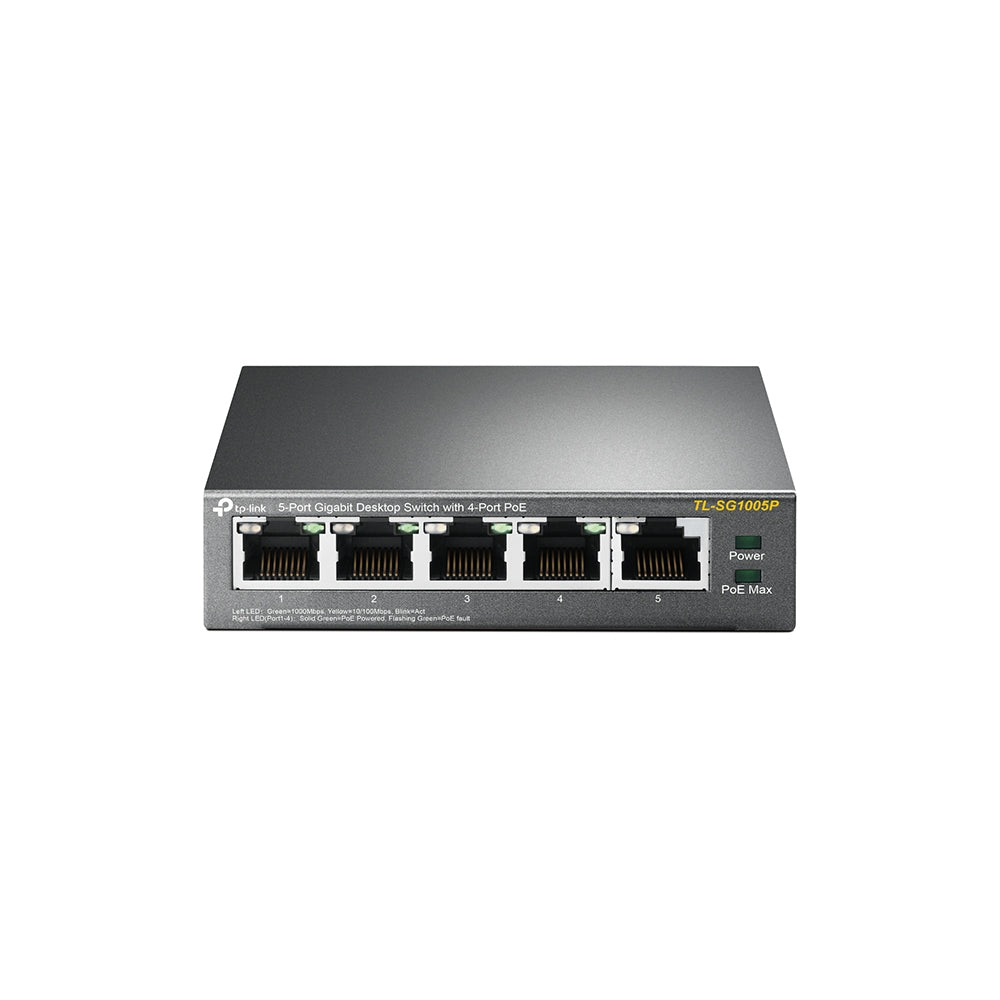

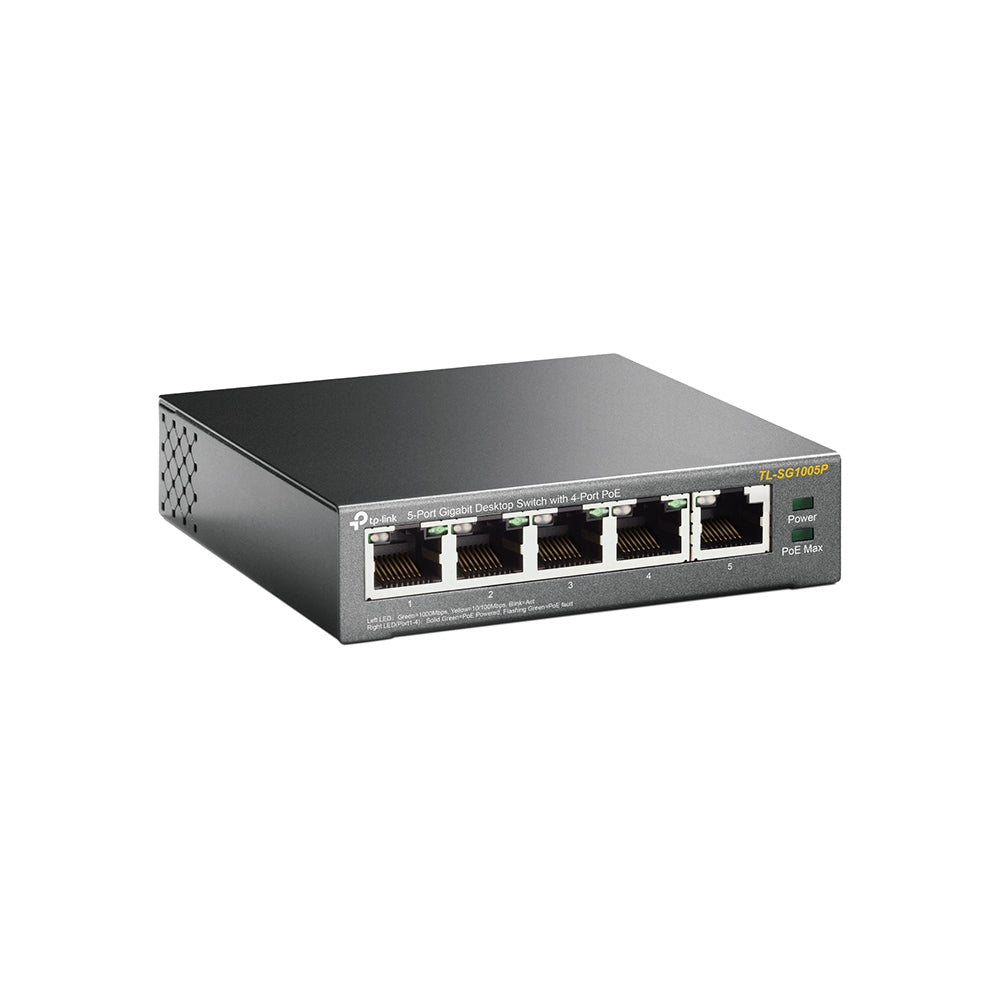

TP-LINK 5-Port Gigabit Desktop PoE Switch with 4-Port

The TP-LINK 5-Port Gigabit Desktop PoE Switch with 4-Port keeps your wired network organised with PoE power for APs and cameras.

PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Forwarding rate	7.44 Mpps
Design
Product colour	Black
Stackable	No
LED indicators	Yes
Rack mounting	No
Certification	FCC, CE, RoHS
Performance
Maximum cable length	100 m
Fanless	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	64.44 W
Power supply included	Yes
AC input voltage	100 - 220 V
AC input frequency	50 Hz
Input current	1.25 A
DC input voltage	48 V
Power source	DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	56 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	219.87 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
AC adapter included	Yes
Packaging data
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	761 g
Sustainability
Sustainability compliance	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
