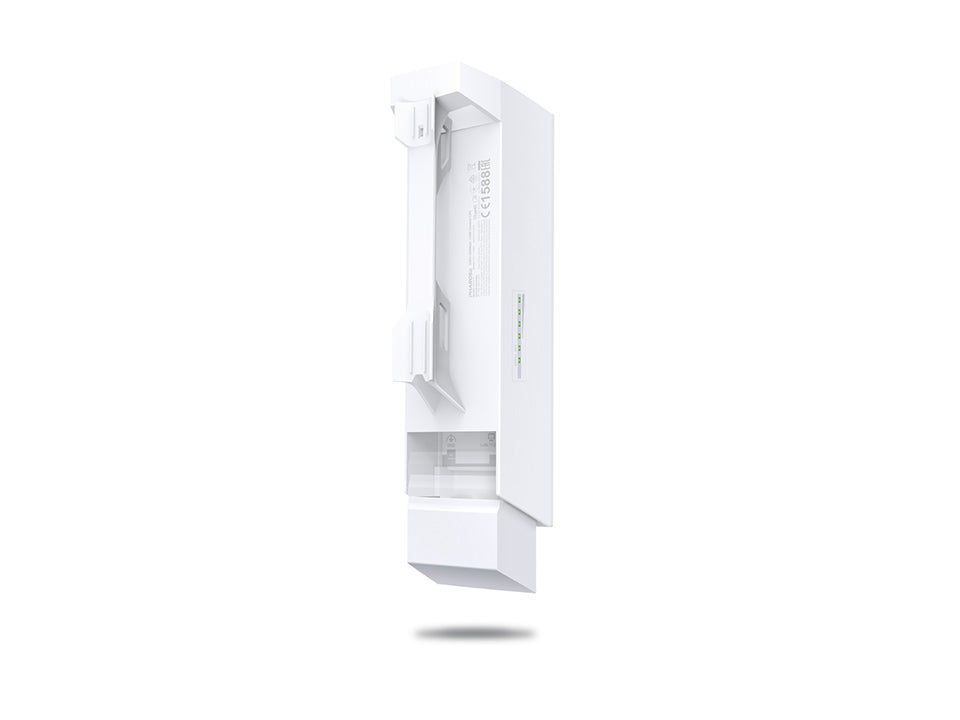

TP-LINK 2.4GHz 300Mbps 9dBi Outdoor CPE Networking

The TP-LINK 2.4GHz 300Mbps 9dBi Outdoor CPE is a dependable addition to any modern network installation.

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.

Specifications

Data transmission
Maximum data transfer rate	300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	No
Reset button	Yes
Bandwidth	2.4 GHz
Frequency band	2.4 - 2.483 GHz
Web-based management	Yes
Receiver sensitivity	802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum outdoor range	5000 m
Management platform	Pharos Control
Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	64 MB
Flash memory	8 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Features
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Protocols
Management protocols	TDMA
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	10.5 W
Output voltage	24 V
Output current	1 A
Power over Ethernet (PoE)	Yes
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Design
International Protection (IP) code	IPX5
Placement	Wall
Product colour	White
LED indicators	Yes
Antenna
Antenna type	Internal
Antennas quantity	1
Antenna gain level (max)	9 dBi
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	224 mm
Depth	79 mm
Height	60 mm
Packaging data
Mounting kit	Yes
Cables included	AC
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
