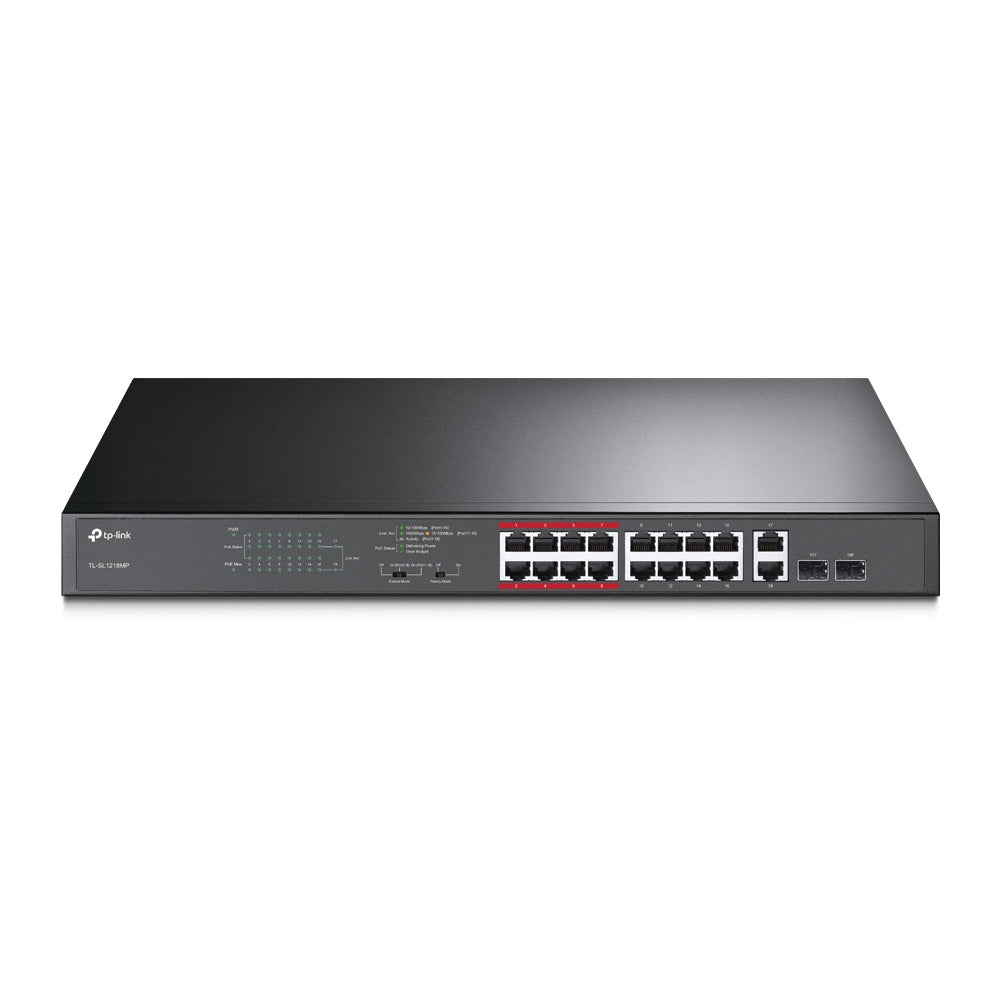

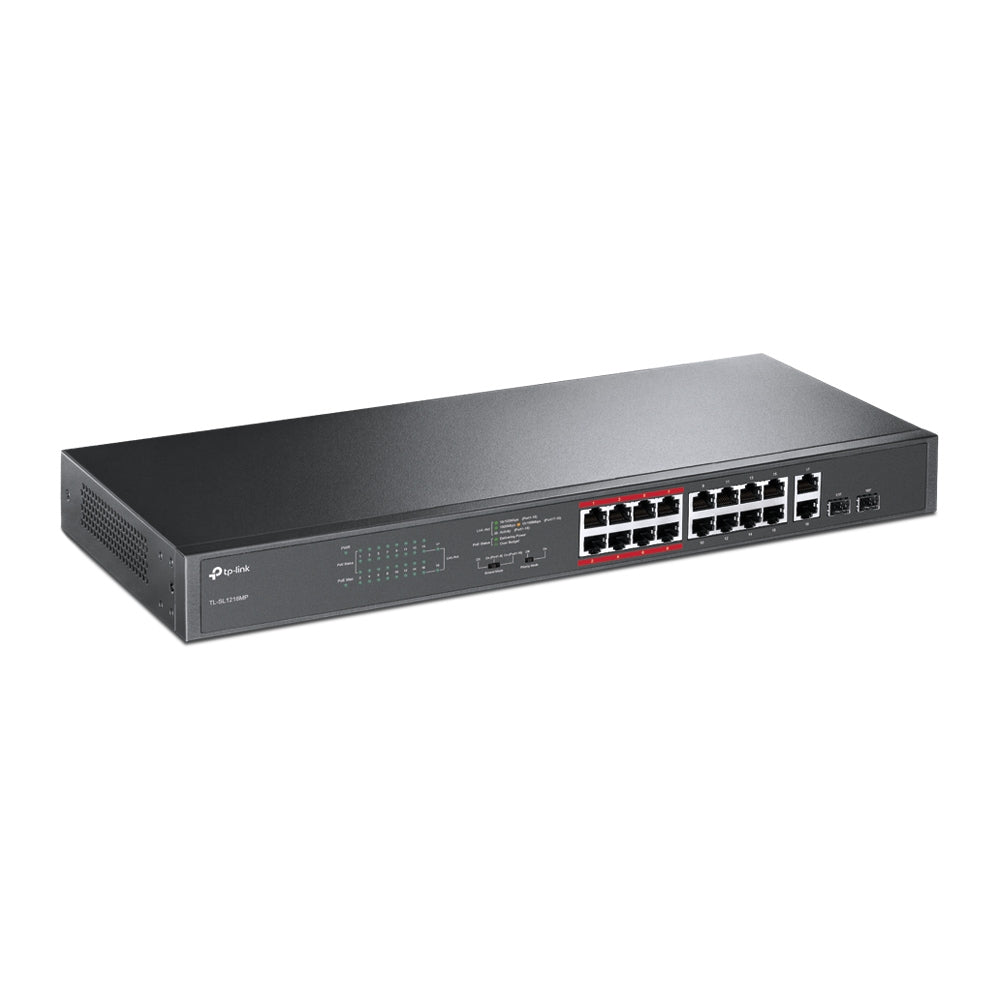

TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Switch PoE

The TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit keeps your wired network organised with PoE power for APs and cameras.

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Gigabit Ethernet (copper) ports quantity	2
Fast Ethernet (copper) ports quantity	16
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	10000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	7.2 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Security
MAC address filtering	Yes
Design
Product colour	Black
Stackable	No
LED indicators	LAN, PoE, Status
Rack mounting	Yes
Number of fans	2 fan(s)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	18.7 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	192 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	741.15 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	LAN (RJ-45)
Performance
Harmonized System (HS) code	85176990
