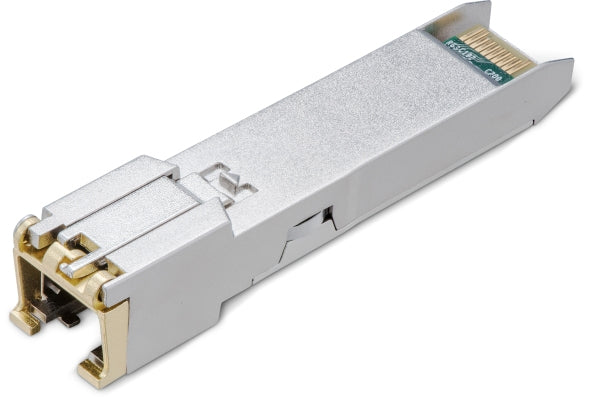

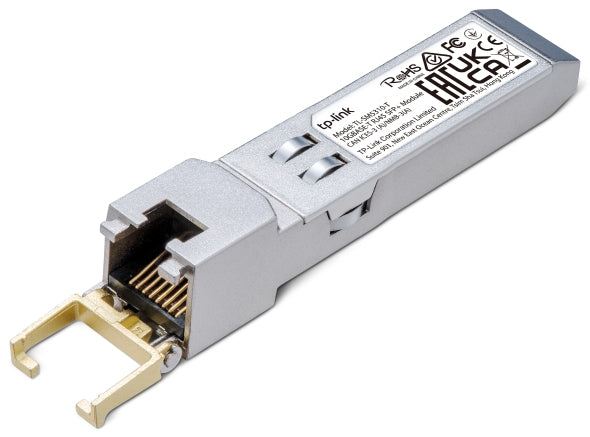

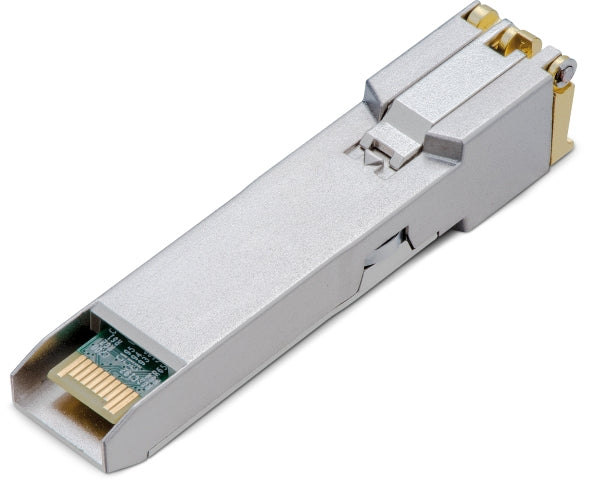

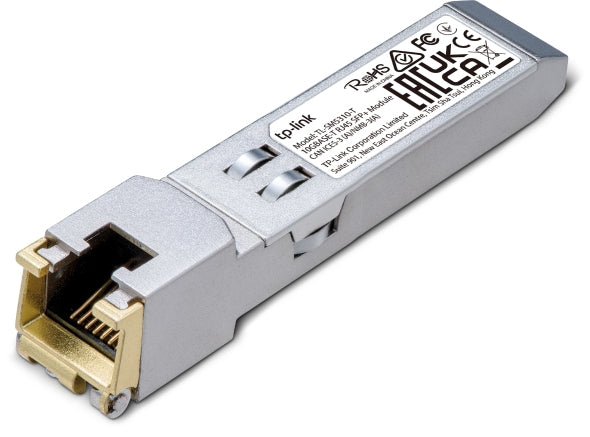

TP-LINK 10G BASE-T RJ45 SFP+ Module Networking

The TP-LINK 10G BASE-T RJ45 SFP+ Module is a dependable addition to any modern network installation.

What This Product Does
TL-SM5310-T provides superior 10G performance for an easy and quick connection between your SFP+ interface and RJ45 port. It covers up to 30m* at 10 Gbps (UTP cat.6a or above). A plug-and-play design makes for easy deployment, no technician needed. High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Maximum transfer distance	100 m
Maximum data transfer rate	10300 Mbit/s
Interface type	RJ-45
Ethernet interface type	10 Gigabit Ethernet
Copper ethernet cabling technology	10GBASE
Easy to install	Yes
Product colour	Silver
Housing material	Metal
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Form factor	SFP+
Power
Input voltage	3.3 V
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	81.5 mm
Package height	38.5 mm
Packaging data
Package depth	122.5 mm
Package weight	2.87 kg

Downloads

• Datasheet (PDF)
