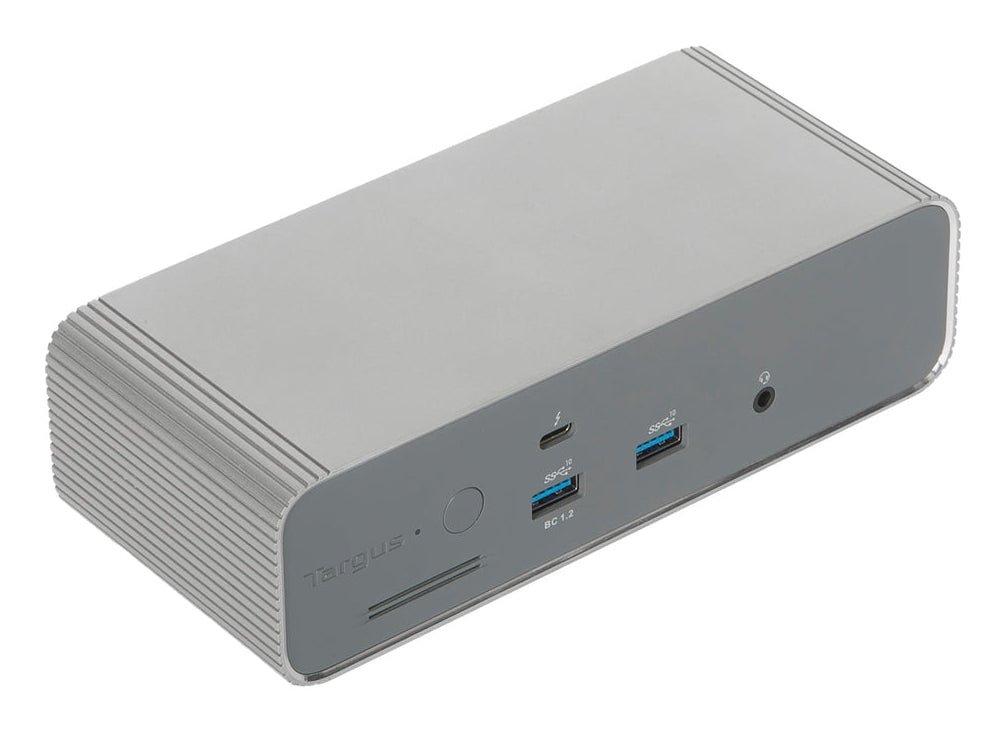

Targus DOCK230EUZ Thunderbolt 5 Docking Station 140W

One cable, full desk: the Targus DOCK230EUZ turns your laptop into a workstation with 140W charging over a single Thunderbolt 5 connection.

Give your workspace the ultimate boost with the Thunderbolt™ 5 Triple Video 8K EcoSmart™ Docking Station with 140W EPR. Whether you’re juggling a multi-monitor setup or need some serious charging power, this dock has it all. Zip through data transfers at a lightning-fast 80 Gbps and enjoy up to three video streams at 120 Gbps, all thanks to Thunderbolt 5 connectivity. Plus, enjoy ultra-fast network connections with 2.5G Ethernet, all while keeping it powered up with a robust 140W EPR.

In addition to being speedy, this dock lets you multitask like a pro with two laptops by incorporating Intel’s Thunderbolt Share™ technology for seamless sharing of displays and files with just one keyboard and mouse.

And while a true powerhouse on the inside, it’s designed with recycled materials on the outside, making it the sustainable choice for earth-conscious power users.

Unmatched Speeds
Move over Thunderbolt 4 and USB4 and make way for the unbeatable Thunderbolt™ 5 speeds. Experience the next generation of docking with up to 3x the bandwidth over TB4 and USB. But don’t worry. It’s fully compatible with both TB4 and USB4 – making it a true team player. Don’t forget, it also supports elevated network speeds with its 2.5G Ethernet port – perfect for those high-performance needs.

Triple Video Support
Maximize your productivity with the capability to connect up to three monitors. Our docking station transforms your workspace, allowing for effortless multitasking with single, dual even triple 8K resolution support.

Amped up Charging
Equip your high-performance laptop with equally impressive power. With up to 140W EPR, DOCK230 will keep your laptop and accessories charged and ready for action.

Ports for Peripherals
While stacked with Thunderbolt™ 5 ports, this dock also features four USB 3.2 Gen 2 Type-A ports for connecting those latest keyboards, exterior drives, and other peripherals needed to customize your workspace.

Eco-Friendly Exterior
Crafted with 75% recycled post-consumer plastics and aluminum, this dock combines outstanding performance with a commitment to sustainability, contributing to a greener future without compromising on speed or reliability.

Do More with Thunderbolt™ Share
Elevate your productivity and collaboration with Intel’s Thunderbolt™ Share. Effortlessly share screens, files, or peripherals between two PCs at lightning-fast Thunderbolt™ speeds. Unlock this seamless PC-to-PC connection by downloading the included Thunderbolt Share software. See our user guide for additional details.

Specifications

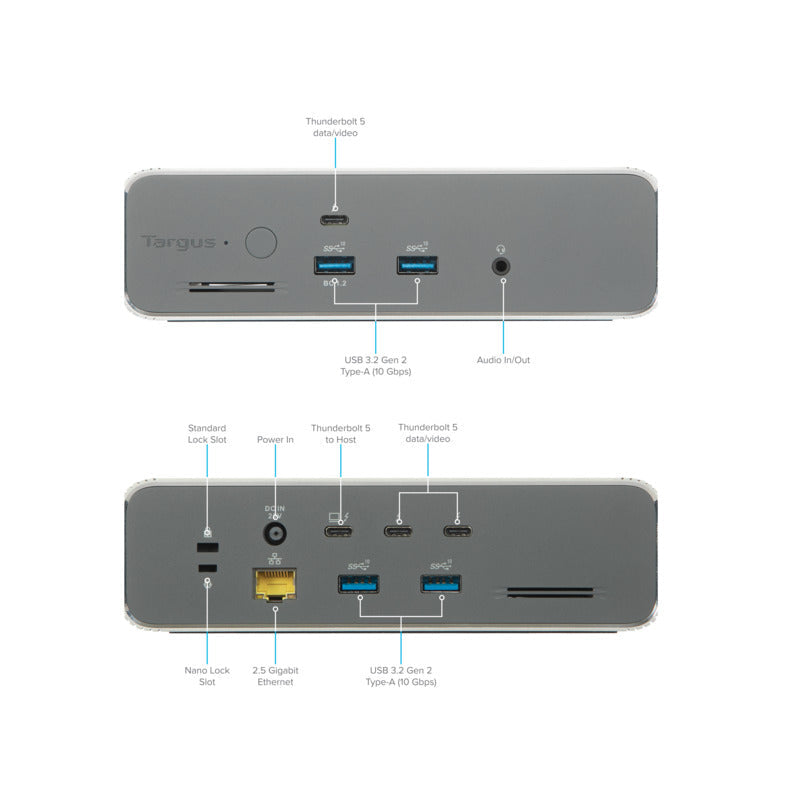

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
Thunderbolt ports quantity	4
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 5
Ethernet LAN (RJ-45) ports	1
Microphone in	No
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
Thunderbolt 5 ports quantity	4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Performance
Number of displays supported	3
Country of origin	Thailand
Product colour	Silver
Card reader integrated	No
Brand compatibility	Any brand
Cable lock slot	Yes
Data transfer rate	80 Gbit/s
Cable lock slot type	Nano, Targus
HD type	8K Ultra HD
Housing material	Aluminium, Plastic
Power
Power source type	AC, DC
Power plug type	Type A
Power cable length	1.8 m
Power supply	180 W
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Weight & dimensions
Weight	2.28 kg
Width	178 mm
Depth	78 mm
Height	50 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content

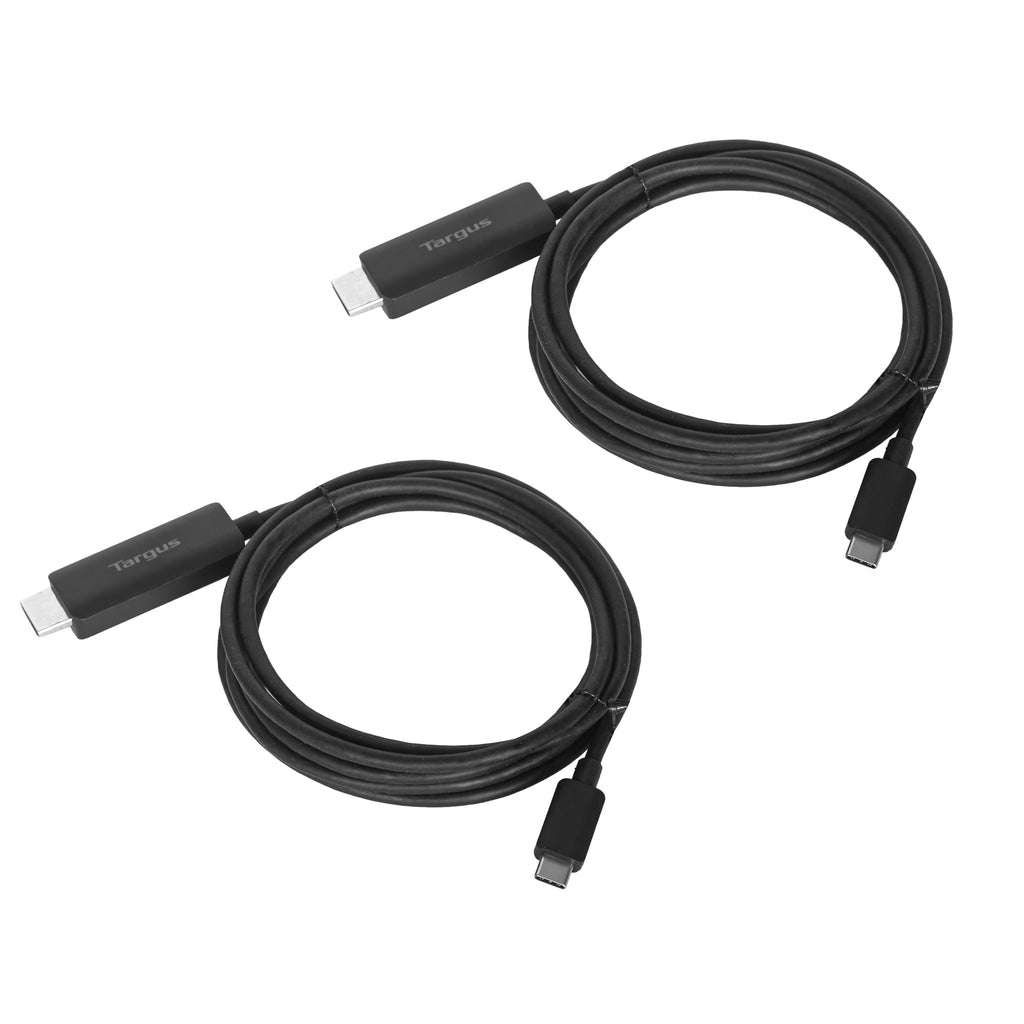

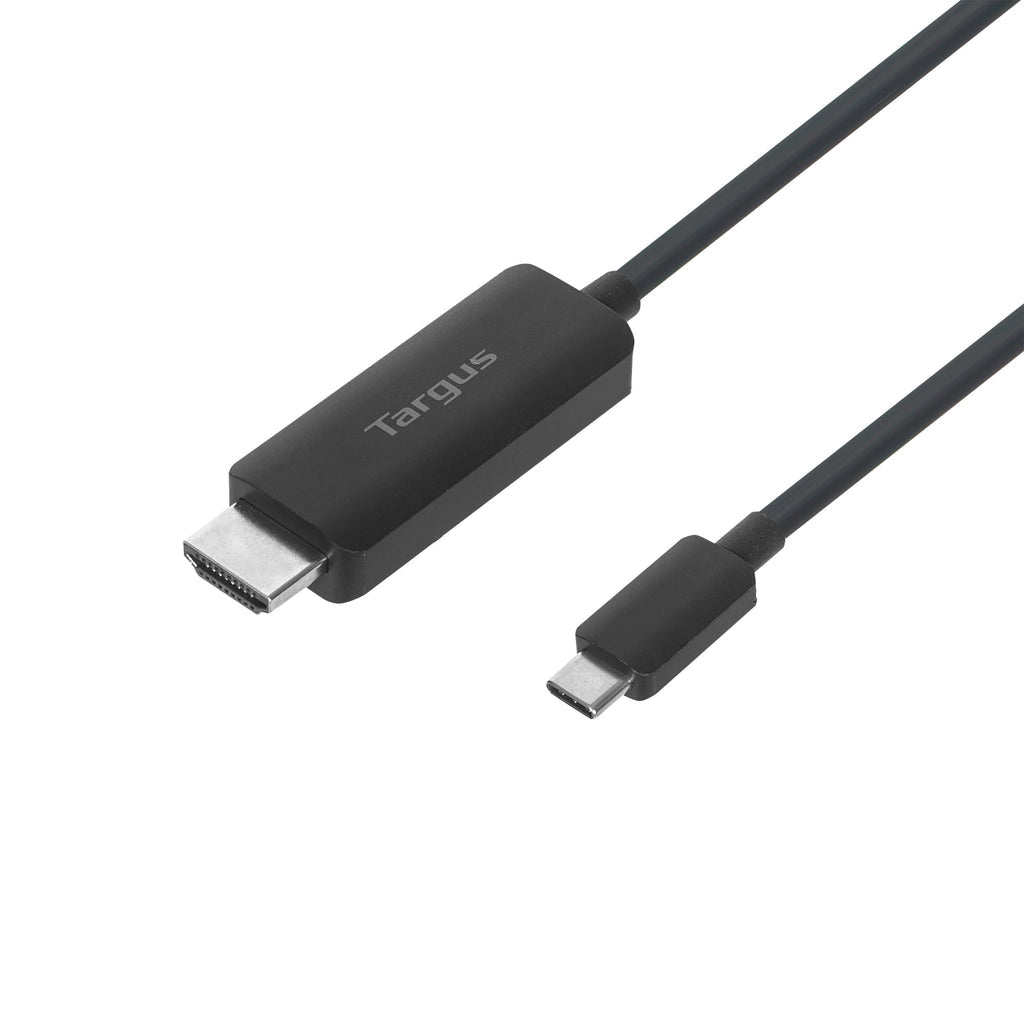

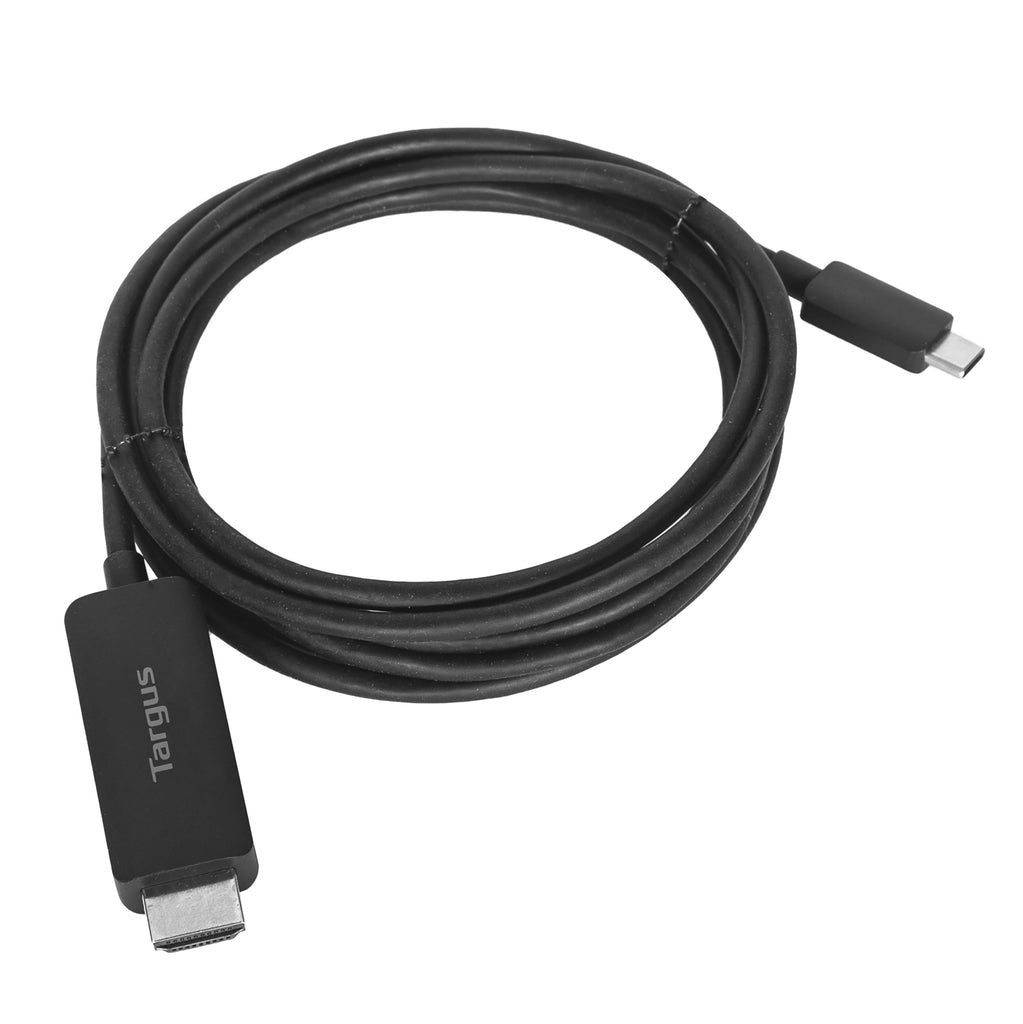

Cables included	Thunderbolt, USB Type-C to HDMI
