StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays
StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays
Regular price
£99.13 GBP
Regular price
Sale price
£99.13 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the StarTech.com VESA TV Wall Mount — VESA fit and load ratings are below.

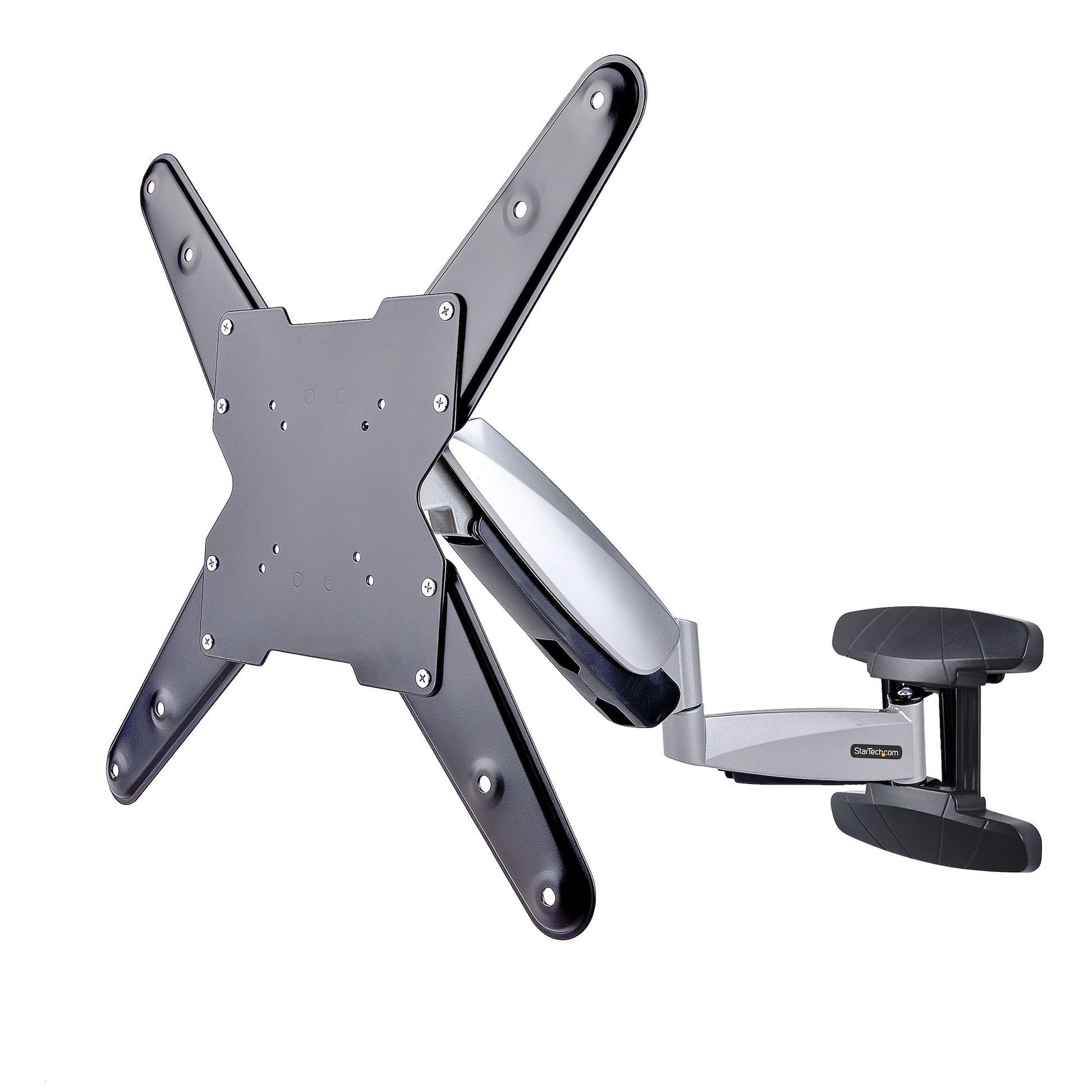

Mounting Hardware Included | One-touch Adjustments | Digital SignageThe steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.
Versatile TV Mounting

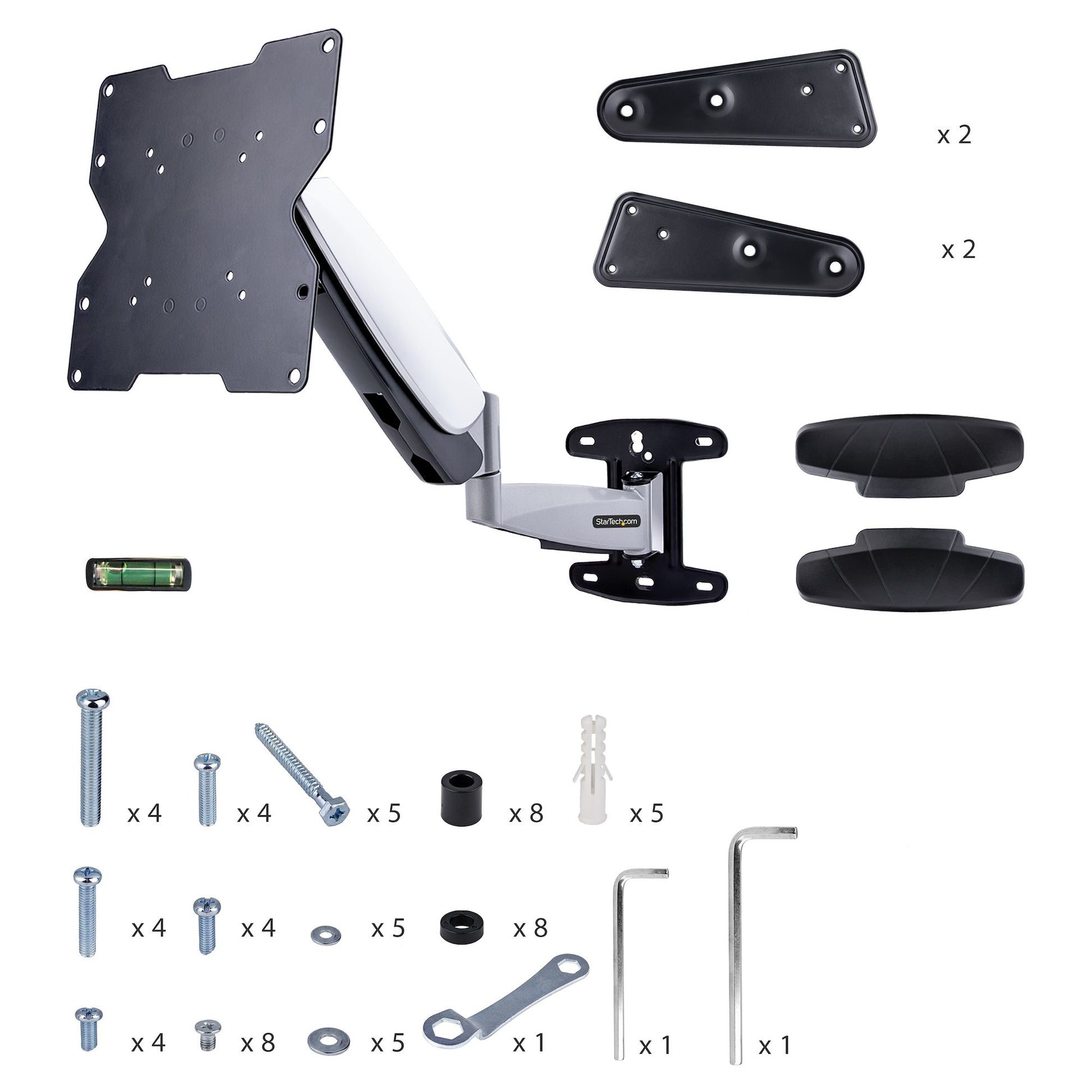

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.
Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.
Full-Motion Adjustment

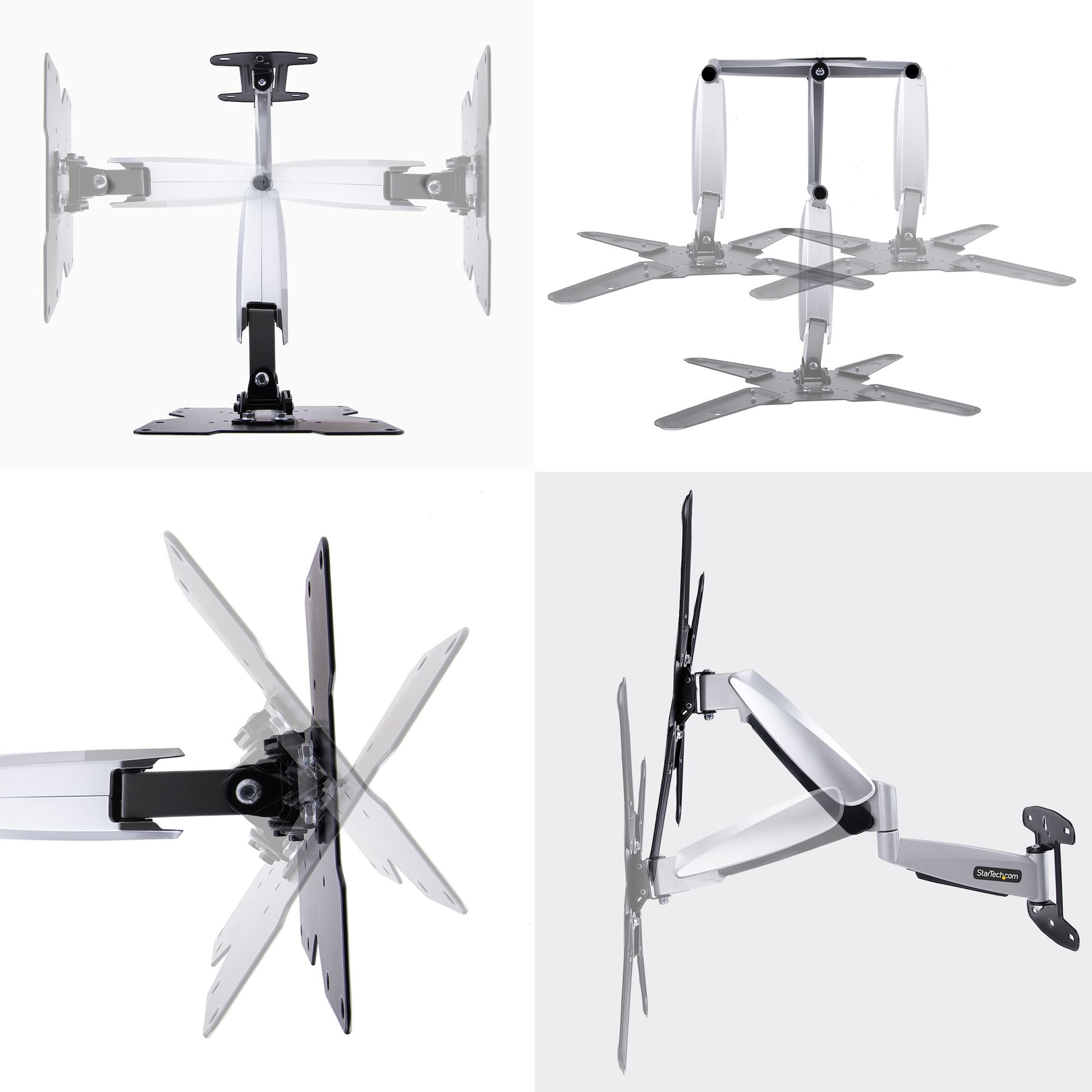

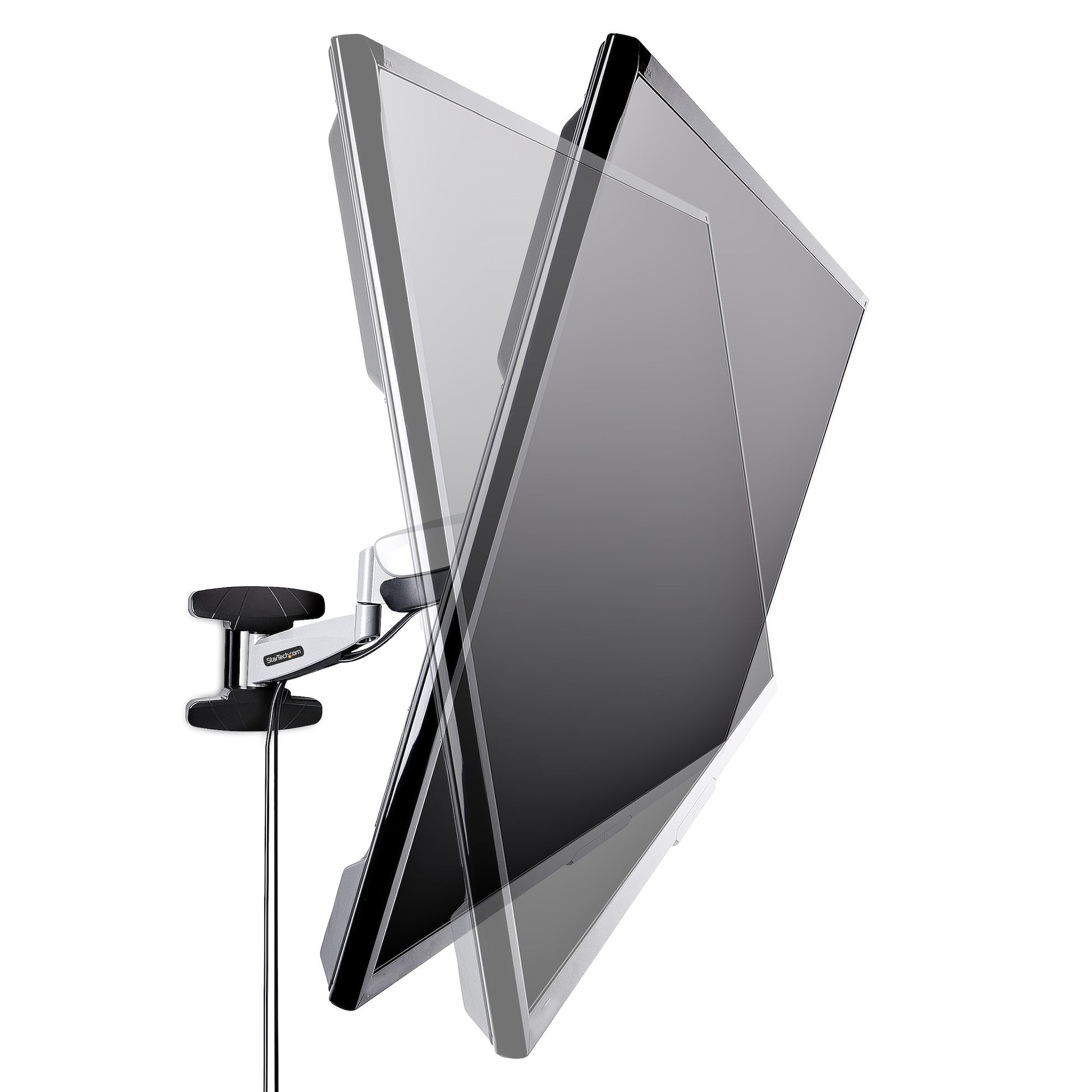

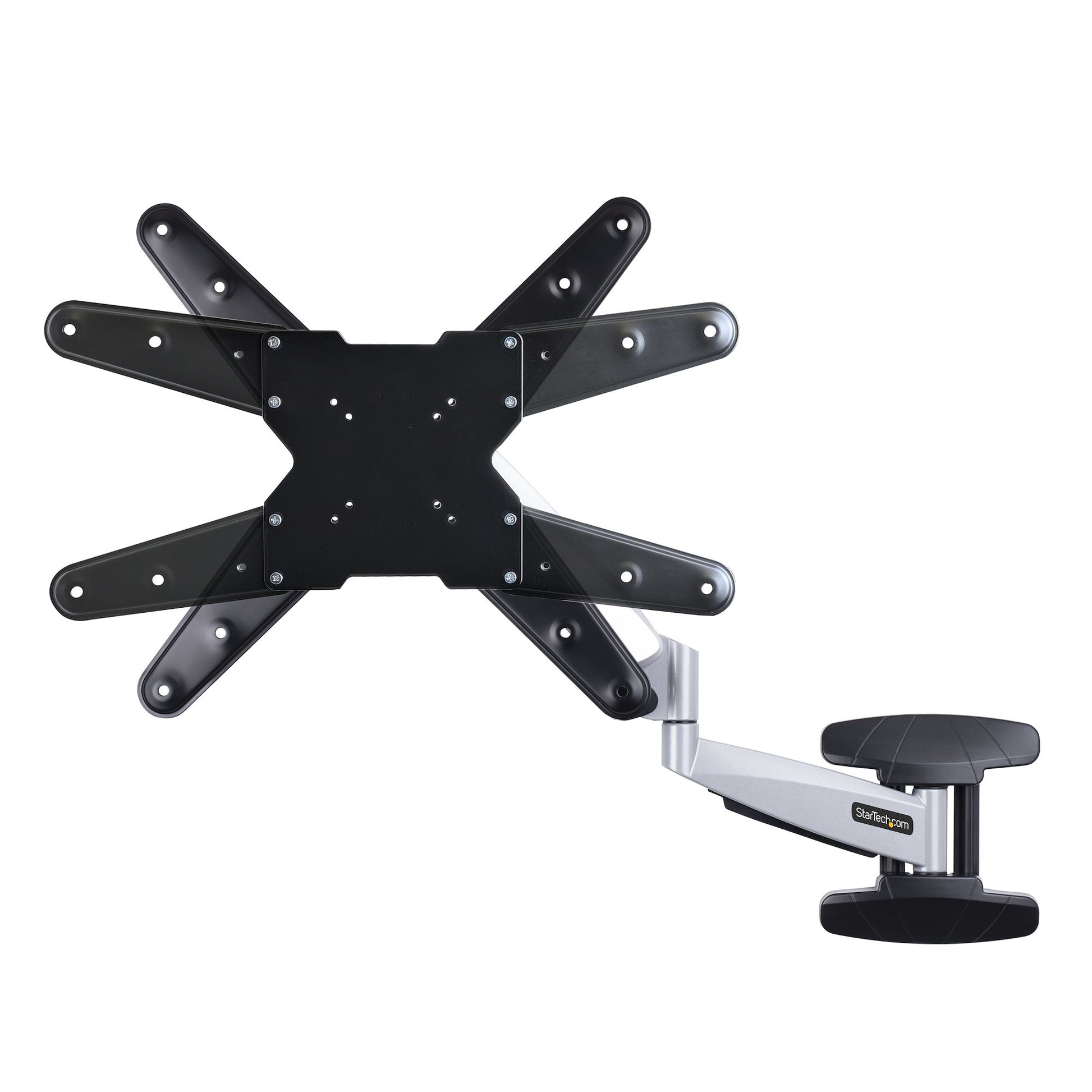

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction

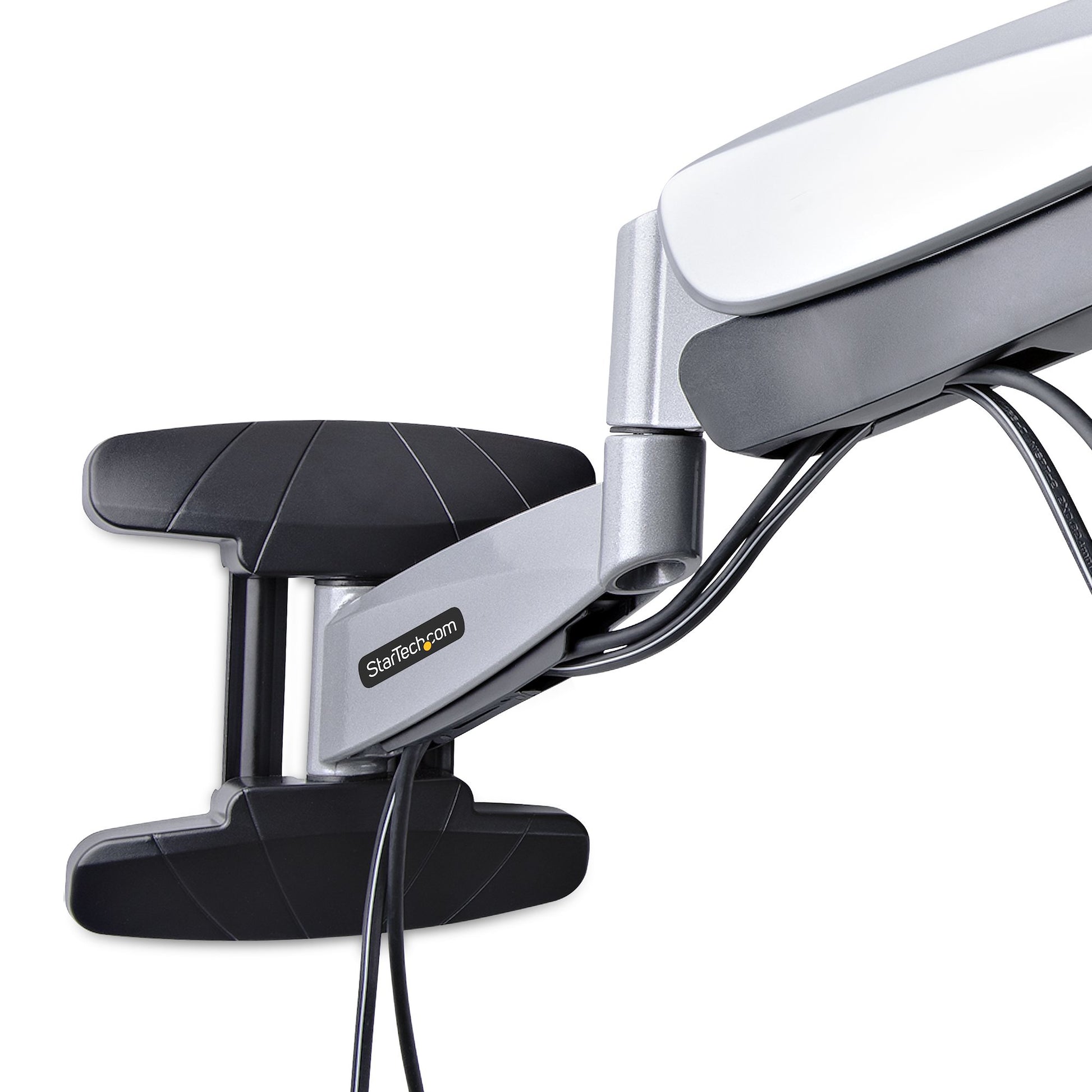

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 58.4 cm (23") |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 139.7 cm (55") |
| Maximum weight capacity | 30 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Cable management | Yes |
| Tilt angle range | -15 - 8° |
| Swivel angle | 180° |
| Angle of rotation | 3° |
| Distance to the wall (min) | 5.8 cm |
| Distance to the wall (max) | 59.5 cm |
| Rotating | Yes |
| Technical details | |
| Product colour | Black, Silver |
| Country of origin | China |
| VESA mount included | Yes |
| Design | |
| Anti-theft function | No |
| Housing material | Aluminium, Steel |
| Packaging content | |
| Screws included | Yes |
| Number of washers included | 13 |
| Number of spacers included | 16 |
| Number of screws | 33 |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Manual | Yes |
| Mounting plate included | Yes |
| Weight & dimensions | |
| Width | 450 mm |
| Depth | 595 mm |
| Height | 450 mm |
| Weight | 6 kg |
| Packaging data | |
| Package width | 637 mm |
| Package depth | 527 mm |
| Package height | 108 mm |
| Package weight | 6.1 kg |
| Logistics data | |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 630 mm |
| Master (outer) case height | 100 mm |
| Products per master (outer) case | 1 pc(s) |
