StarTech.com USB4 USB-C Docking Station 100W

One cable, full desk: the StarTech.com USB4 turns your laptop into a workstation with external displays, wired networking, 100W charging over a single USB-C connection.

Driverless Dual 4K on Mac without the Thunderbolt 4 cost

This universal USB4/Thunderbolt dock lets IT teams deploy high-performance dual-display workstations with secure networking and simple, driverless setup.

Standardize Your Docking Strategy

Simplify mixed-device environments with a single USB4 docking station that works seamlessly across Mac and Windows. Native USB4 support on the latest MacBook Pro, MacBook Air, and business laptops makes it easier than ever to consolidate and eliminate compatibility gaps.

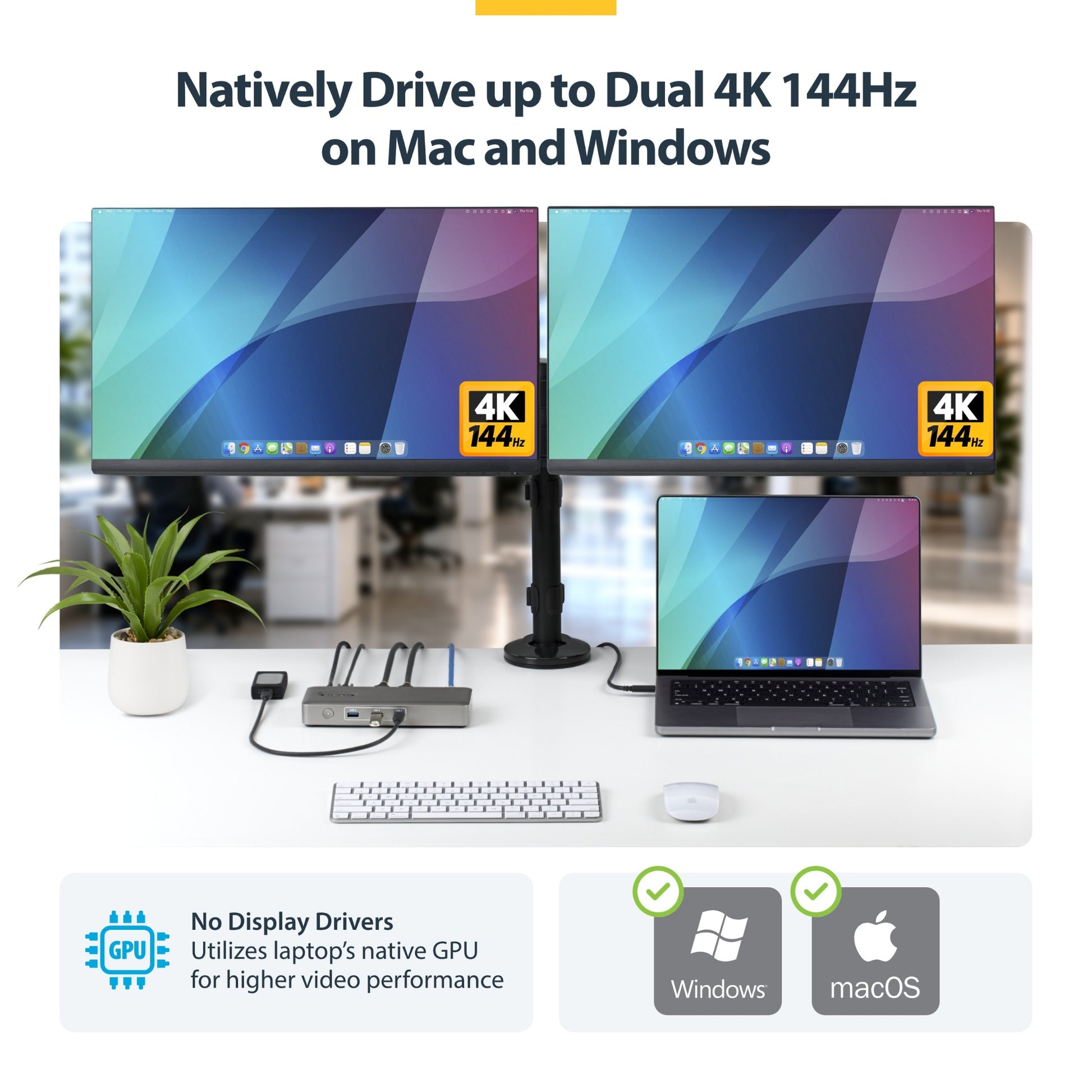

Dual 4K on Mac Without Compromise

Unlock true driverless dual 4K video on macOS without investing in costly Thunderbolt 4 docks. Deliver consistent multi-display performance across teams while maintaining the flexibility IT needs for modern deployments.

Built for Fast, Low-Touch Deployments

Reduce setup time and avoid OS-specific workarounds with plug-and-play performance. This dock helps minimize help desk tickets and ensures predictable behavior in hot-desking and shared workspace environments.

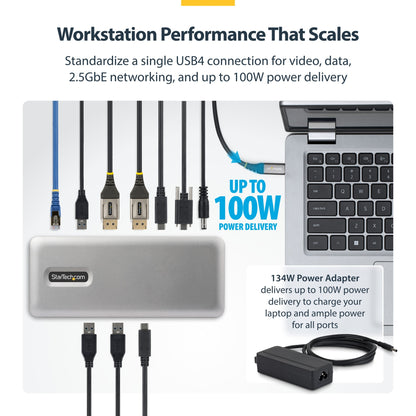

Performance That Scales With Your Workspace

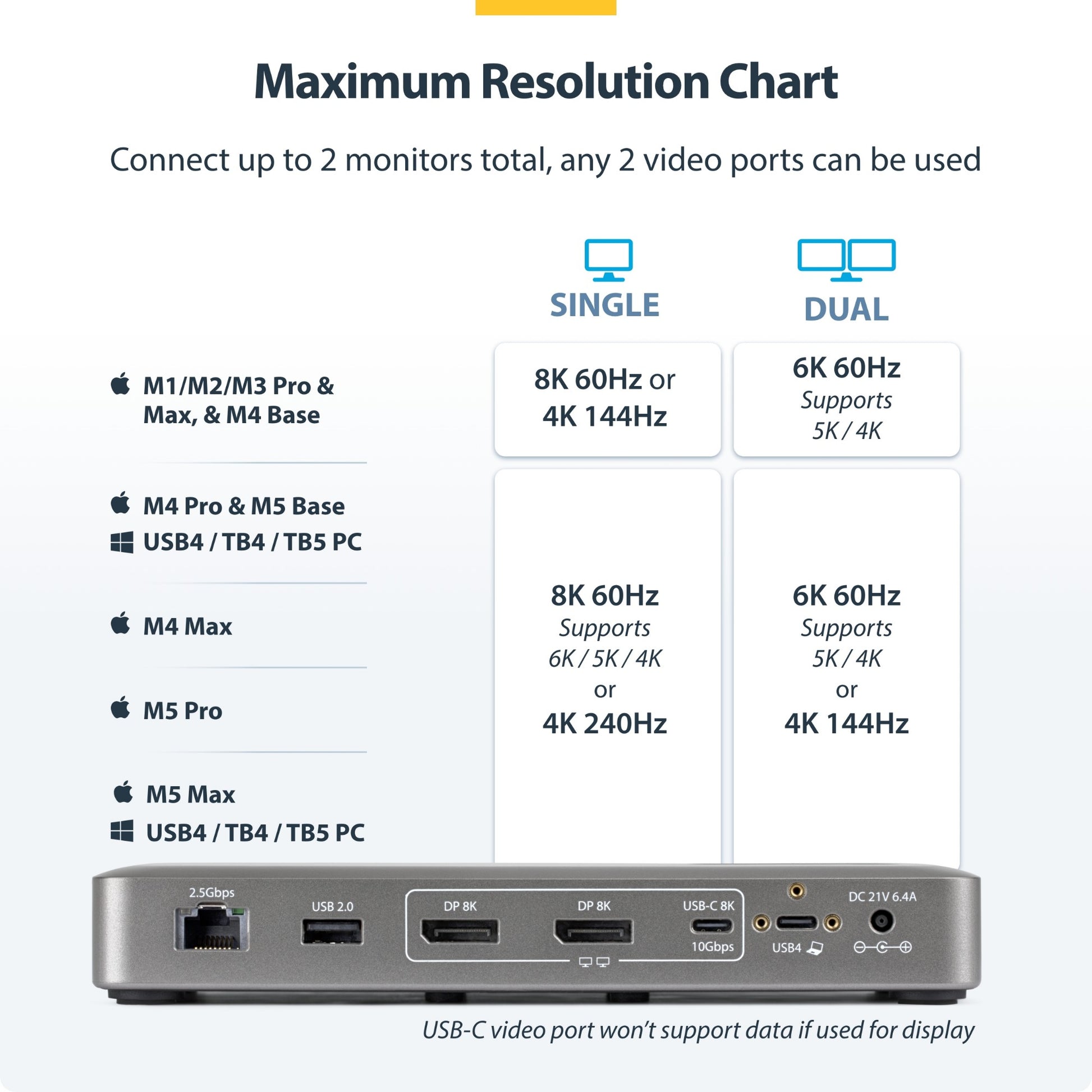

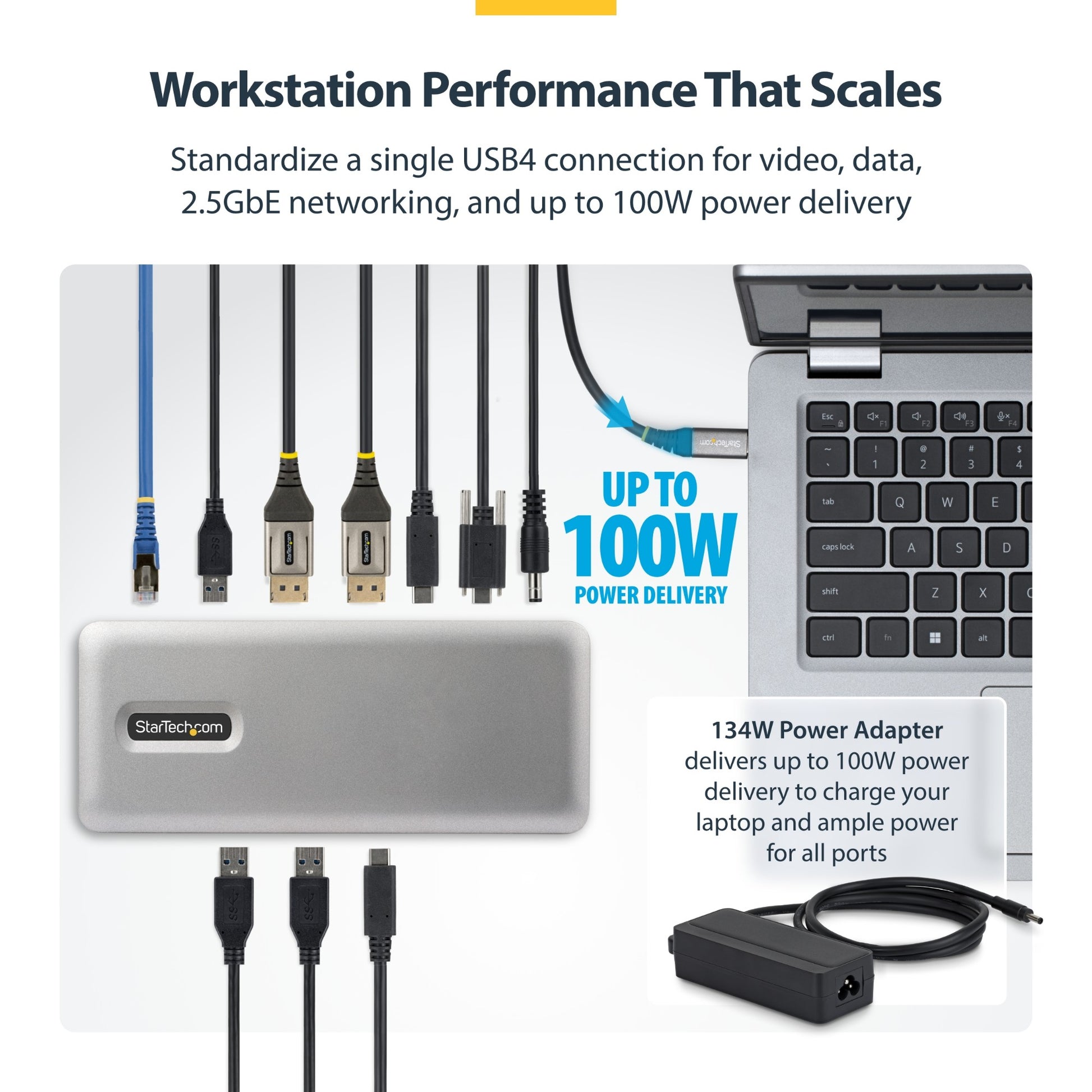

Support demanding workflows with dual 4K 144Hz or single 8K 60Hz video, 2.5GbE network speeds, and 100W laptop charging through one connection. Enable advanced IT features like PXE Boot and Wake-on-LAN for easier remote management.

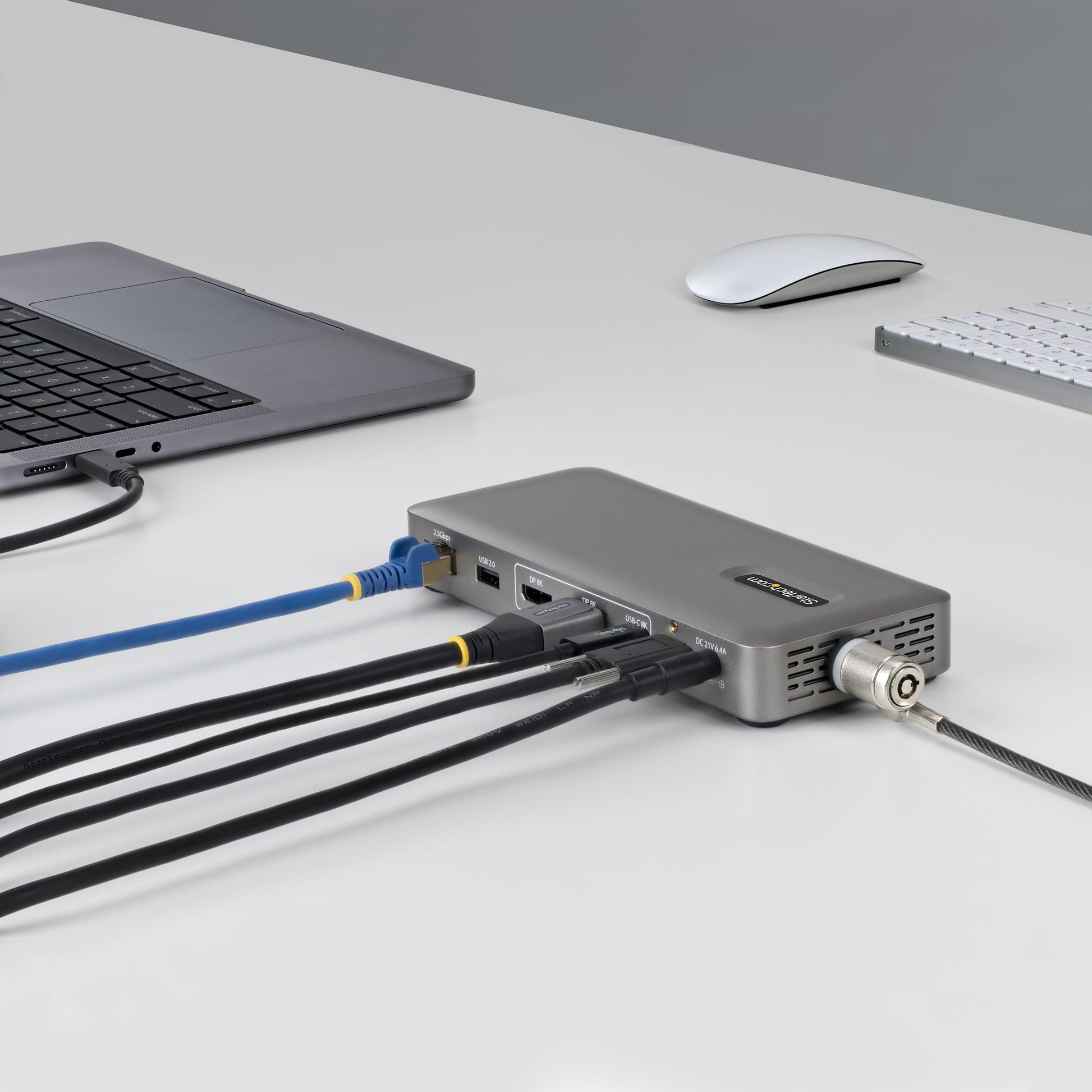

Designed for Real-World IT Environments

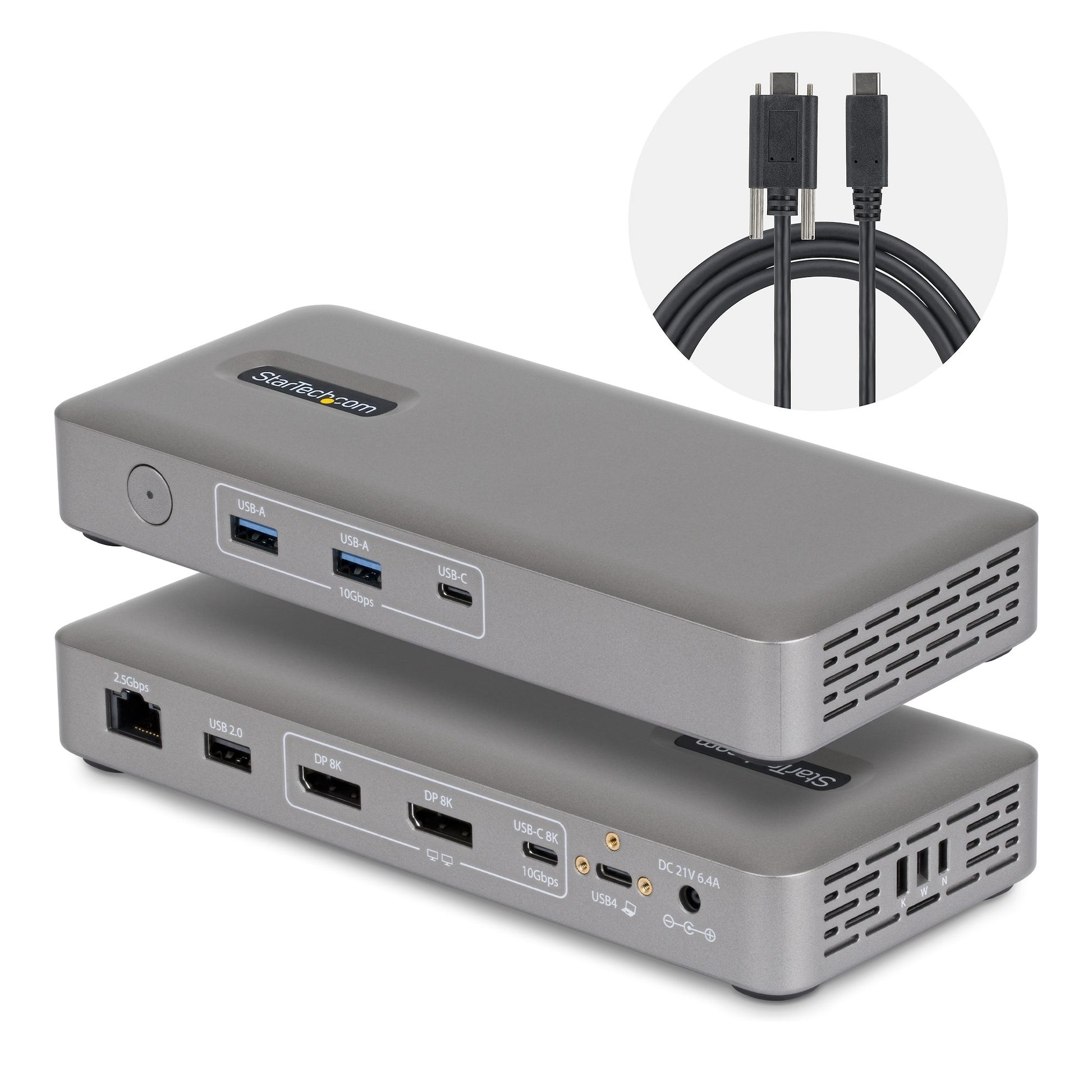

Integrated lock slots and VESA or surface mounting options deter theft and tampering. The included locking USB-C host cable prevents accidental disconnections, or lost and missing cables in hot-desk and meeting spaces. Keep critical systems connected, organized, and protected in high-traffic environments. This hub also features a housing made from 75% post-consumer recycled (PCR) plastic, and the product ships in FSC Mix packaging made from responsibly sourced materials to help align your IT infrastructure with your organization's sustainability goals.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Window Layout Utility : To set up and save custom window layouts.

• MAC Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Specifications

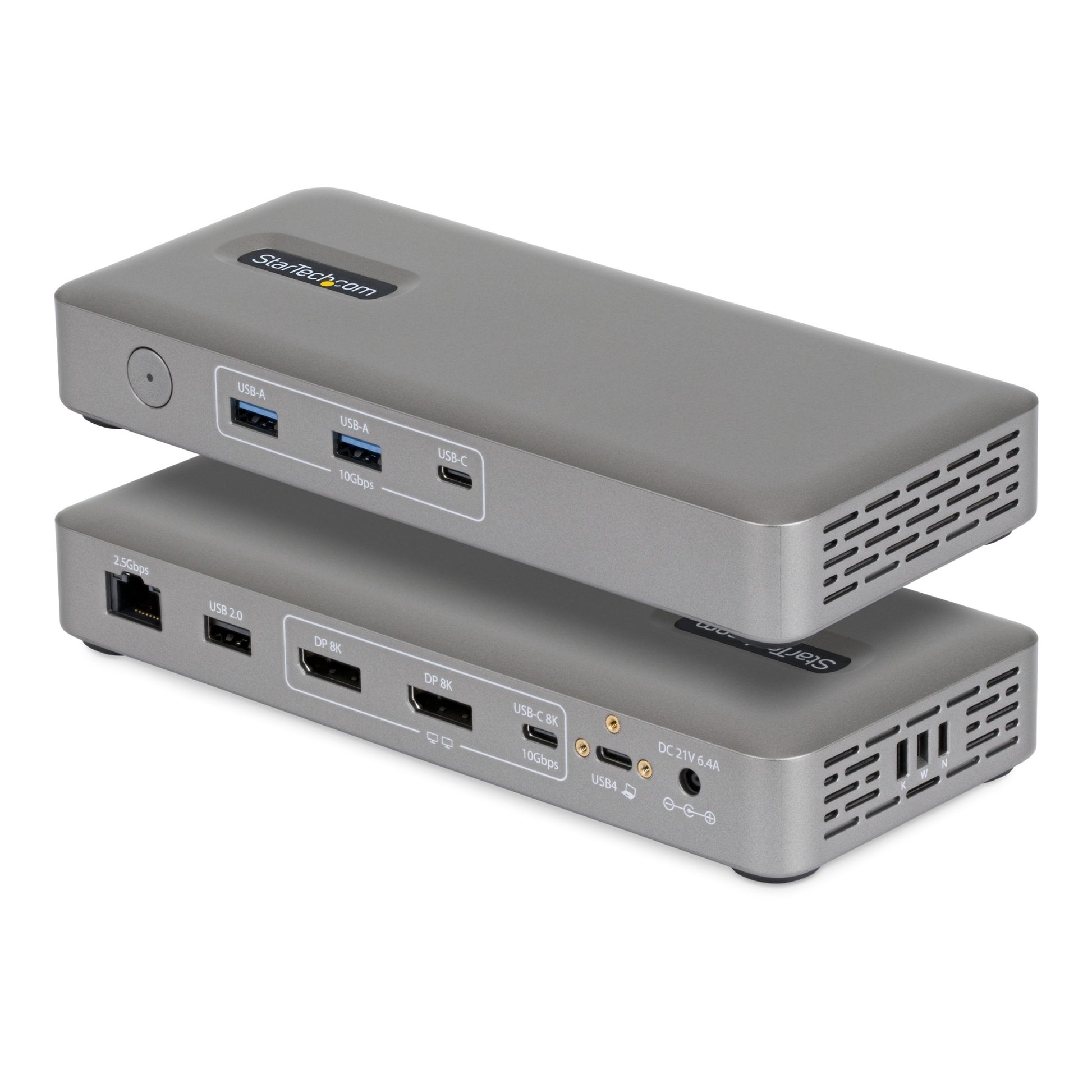

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB4
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Connectivity technology	Wired
Network
Full duplex	Yes
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	7680 x 4320 pixels
On/off switch	Yes
Product colour	Grey
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Power
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington, Nano, Noble, Wedge
HD type	8K Ultra HD
Housing material	Plastic
Maximum refresh rate	24 Hz
Mean time between failures (MTBF)	45663 h
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Products per master (outer) case	5 pc(s)
Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	210 mm
Power
Power source type	DC
Input current	2.5 A
Compatible power plug types	EU, UK
AC input voltage	100 - 240 V
Power consumption (typical)	134.4 W
Output voltage	21 V
Output current	6.4 A
USB cable length	1 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS 26 Tahoe, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported	Ubuntu 24.04 LTS
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	300 g
Width	80 mm
Depth	190 mm
Height	28.5 mm
Package weight	1.4 kg
Package width	275 mm
Package depth	123 mm
Package height	87 mm
Packaging content
Manual	Yes
Cables included	USB
AC adapter included	Yes
Other features
Chipset	Intel - JHL8140, Infineon - CYPD5235-96BZXI, Parade - FL5500, Realtek - RTL8156B
