StarTech.com USB Extender Hub, 10m USB 3.0 Extension Cable with 4-Port USB-A Hub

The StarTech.com expands your ports in seconds — plug in and go.

USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long Cable

The 32.8ft USB 3.0 Extension Cable with 4-Port USB Hub and 5Gbps transfer rates enables multiport connectivity at distances that exceed standard USB 3.0 distance and power source limitations. Daisy chain up to two USB active extension cables for a maximum range of 65.6ft (20m).

Power Options

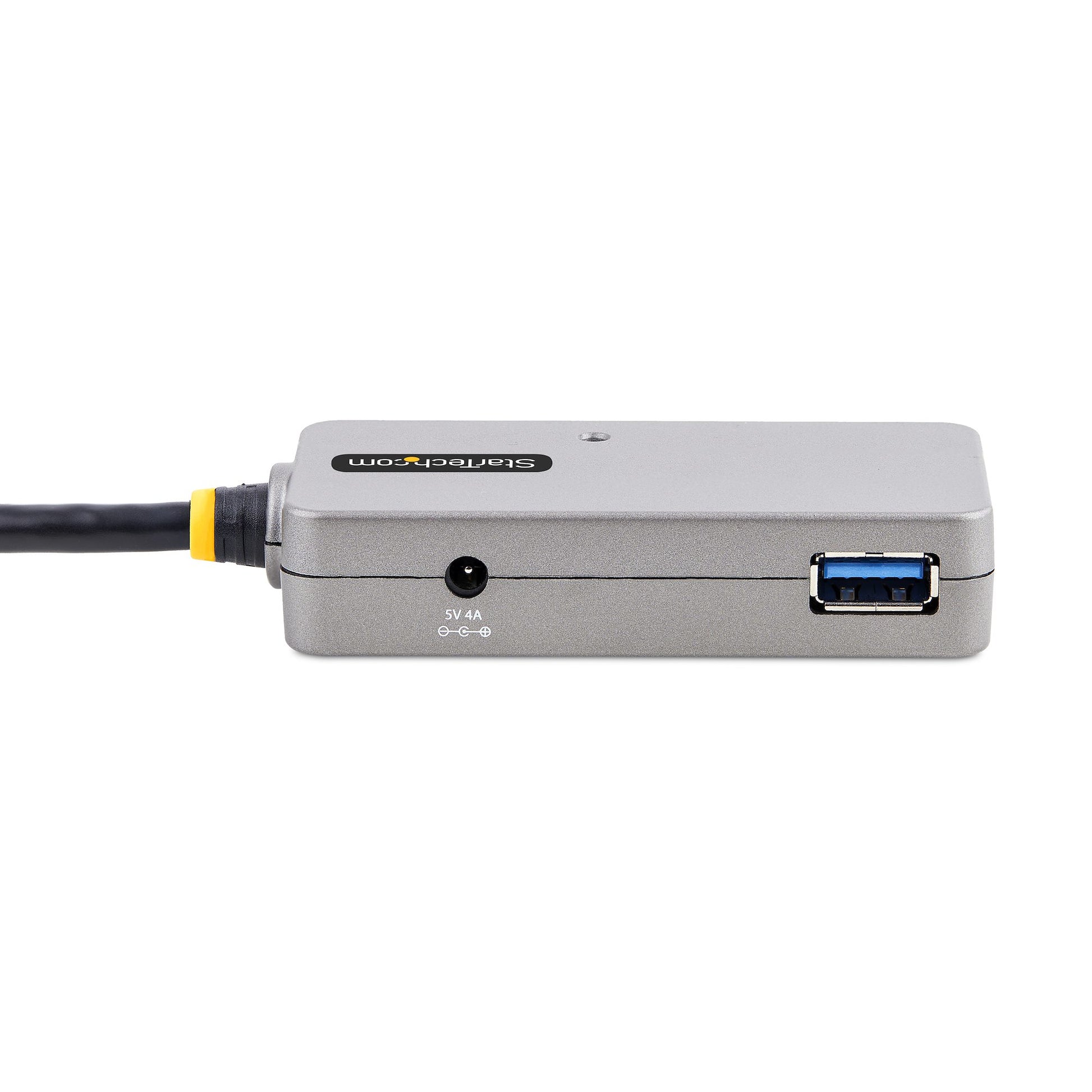

Active electronics allow the USB-A Hub to function without requiring external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V4A DC power adapter supports USB peripherals that require additional power.

Control multiple USB peripherals in remote locations (e.g., webcams, CCTV remote monitoring, remote printers, SSDs, HDDs, scales, mice, keyboards, and other devices) using this 4-port 32.8ft (10m) USB extension cable.

Host and Device Compatibility

The backward compatibility with USB 2.0 and 1.1 ensures functionality with legacy equipment. The hub/cable features USB 3.0/3.2 Gen 1 with data transfer speeds up to 5 Gbps and plug and play (PnP) setup on any operating system, enabling rapid deployment.

The Level-2 ESD protection (4kV air and 4kV contact) and the cable shielding enhance USB device safety and minimize EMI.

The USB Extender Hub is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	Yes
Card reader integrated	No
Ports quantity	4
Cable shielding	Aluminum mylar foil
Cable length	10 m
Features
LED indicators	Yes
Product colour	Black, Silver
Data transfer rate	5000 Mbit/s
Housing material	Plastic
Cable jacket material	Recycled Polyvinyl Chloride (rPVC)
Connector contacts plating	Nickel
Power
Input current	0.6 A
Power plug type	Type H
Power consumption (typical)	20 W
Output voltage	5 V
Output current	4 A
Input voltage	100 - 240 V
Power supply type	DC
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Weight & dimensions
Weight	100 g
Width	40 mm
Height	18 mm
Package width	200 mm
Package depth	239 mm
Package height	65 mm
Package weight	1 kg
Packaging content
AC adapter included	Yes
Quick start guide	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	30 - 70%
Logistics data
Master (outer) case width	430 mm
Master (outer) case length	260 mm
Master (outer) case height	355 mm
Products per master (outer) case	10 pc(s)
Other features
Chipset	VIA Labs - VL817

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
