StarTech.com USB Crash Cart Adapter with File Transfer & Video Capture - TAA KVM Switch
StarTech.com USB Crash Cart Adapter with File Transfer & Video Capture - TAA KVM Switch
Regular price
£436.81 GBP
Regular price
Sale price
£436.81 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the StarTech.com.

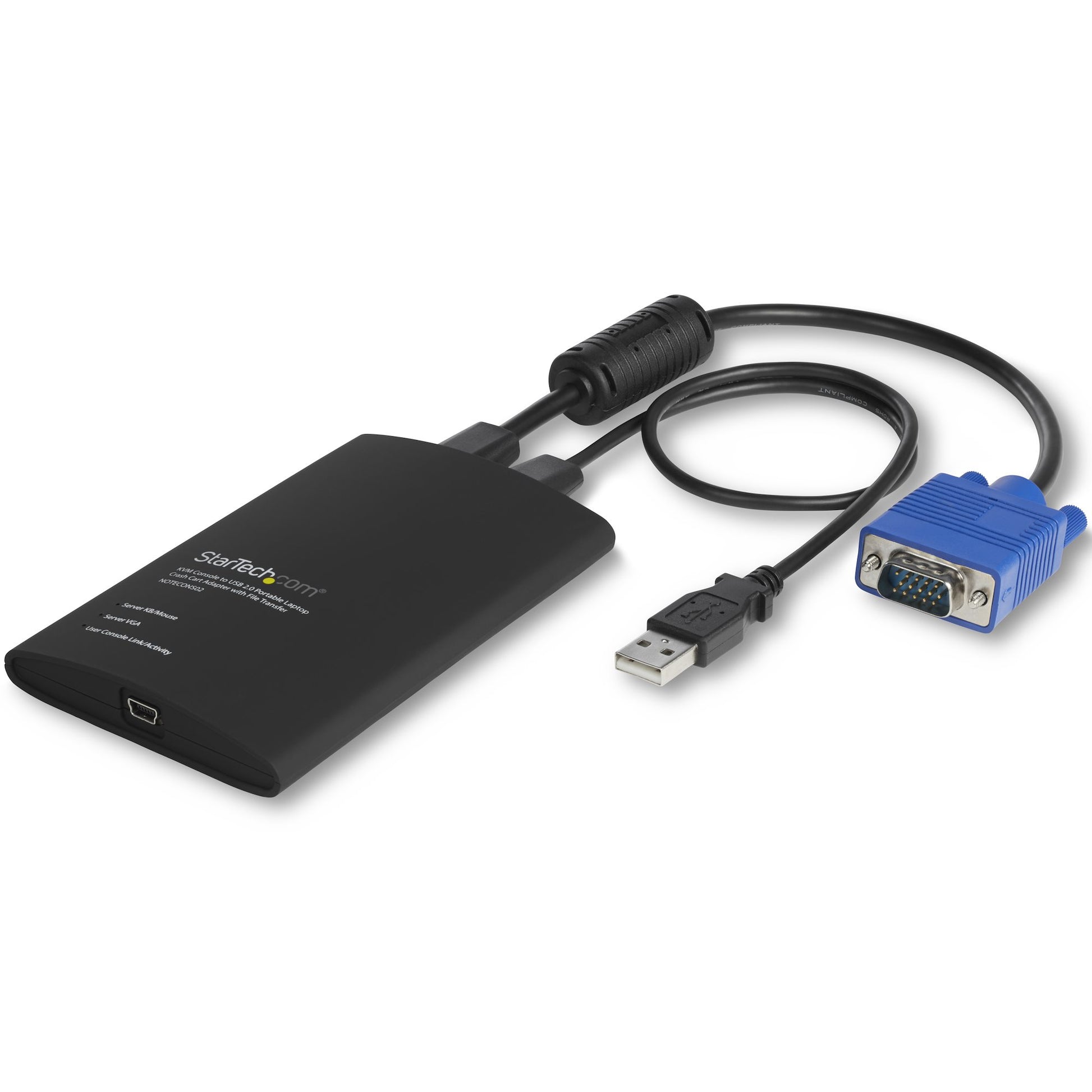

Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables IncludedThe USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.
Instant System Access

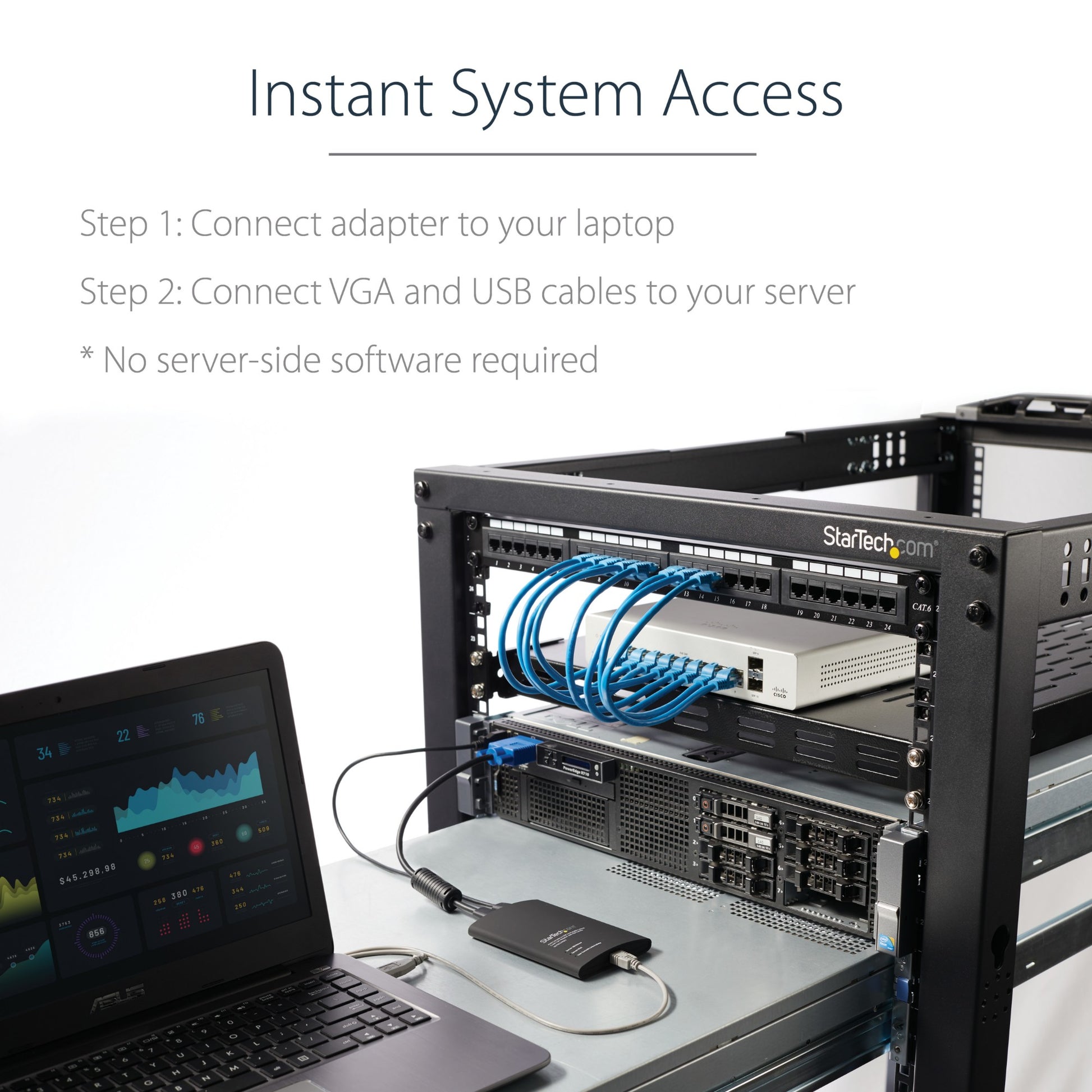

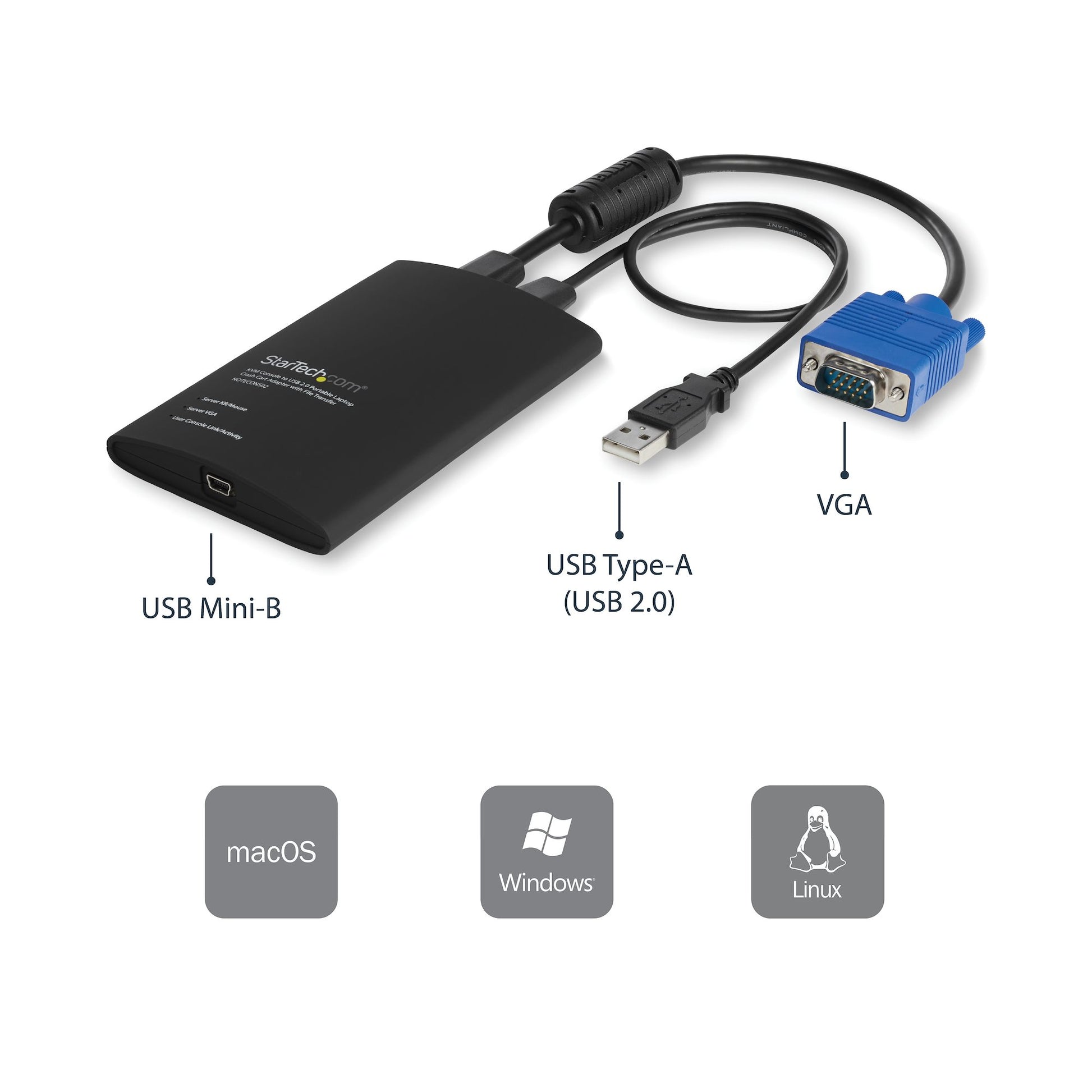

Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.
*Please note that the mouse function may be limited in some BIOS/UEFI environments
Troubleshoot More Efficiently
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Self-Powered Reliability
Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there's no power outlet available.
Take It Anywhere
This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 1 |

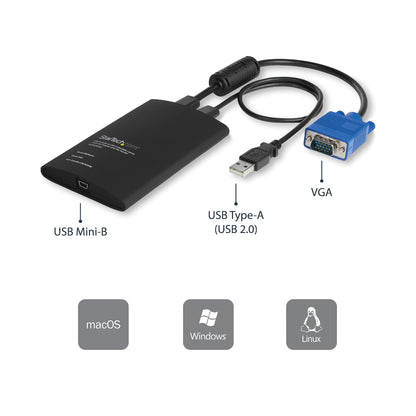

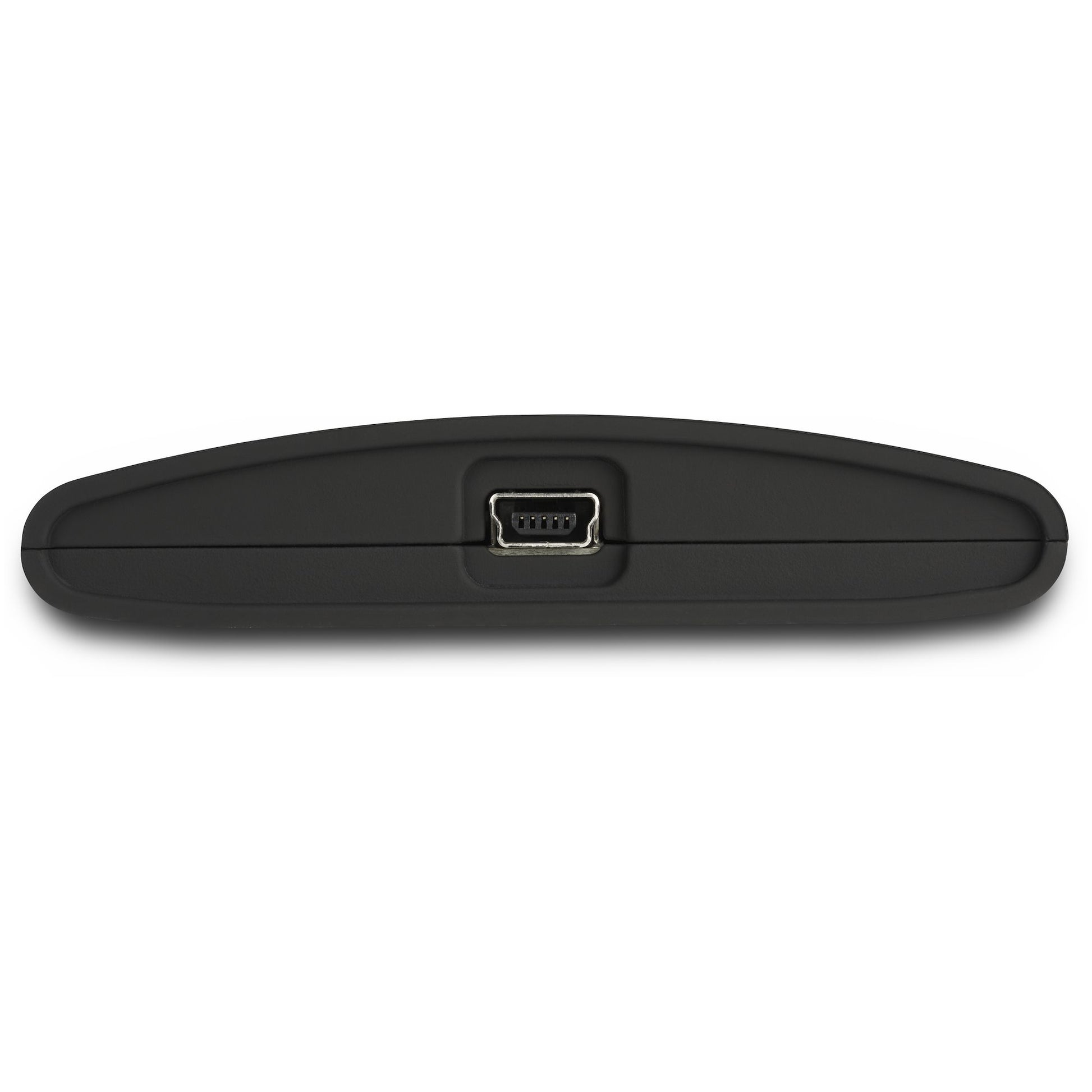

| USB connector type | Mini-USB B |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| Cable length | 0.416 m |
| Performance | |
| Daisy chain | No |
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 1 user(s) |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 909000 h |
| Certification | CE, FCC, TAA, UL |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | USB |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 74 mm |
| Depth | 115 mm |
| Height | 15 mm |
| Weight | 170 g |
| Package width | 165 mm |
| Package depth | 301 mm |
| Package height | 55 mm |
| Package weight | 363 g |
| Packaging content | |

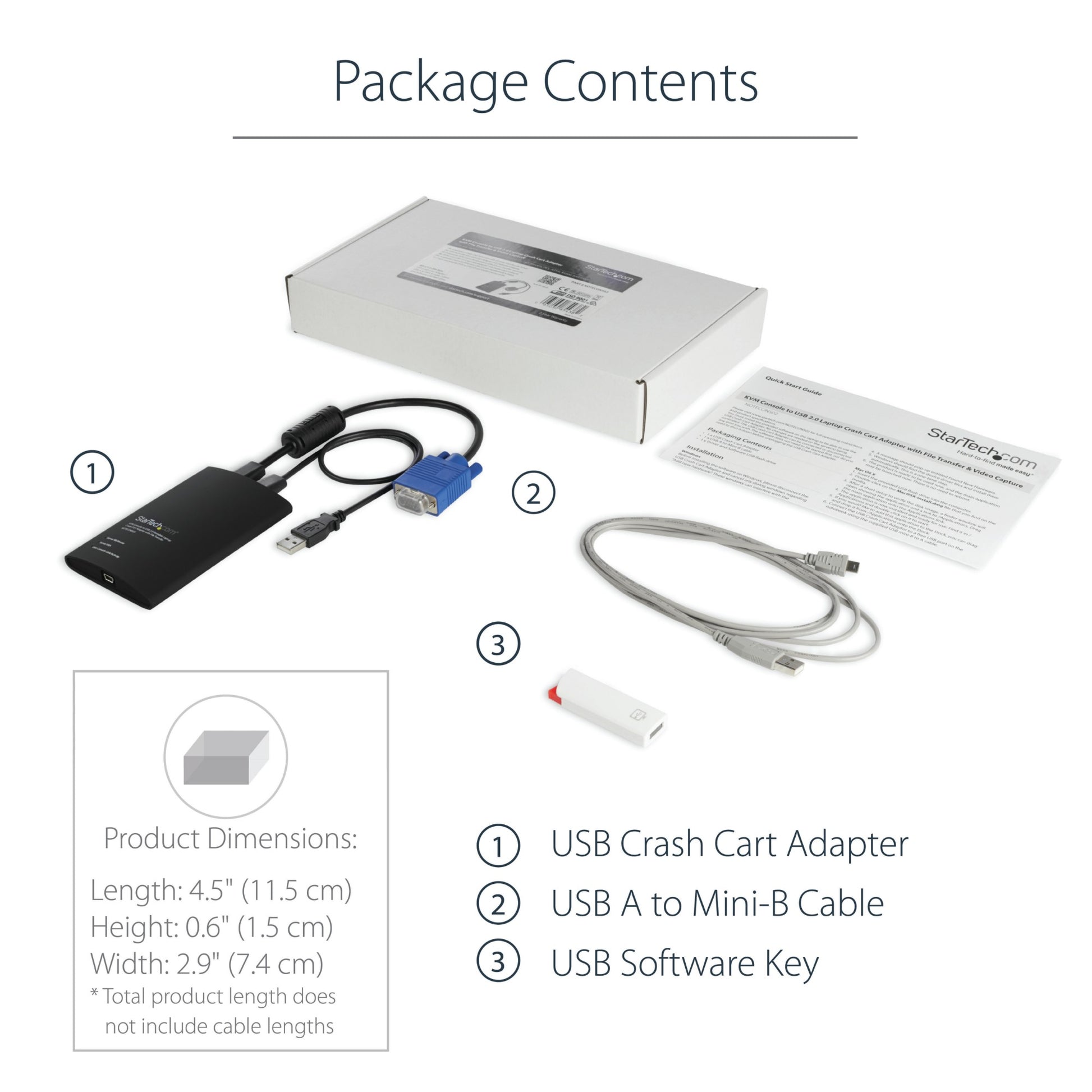

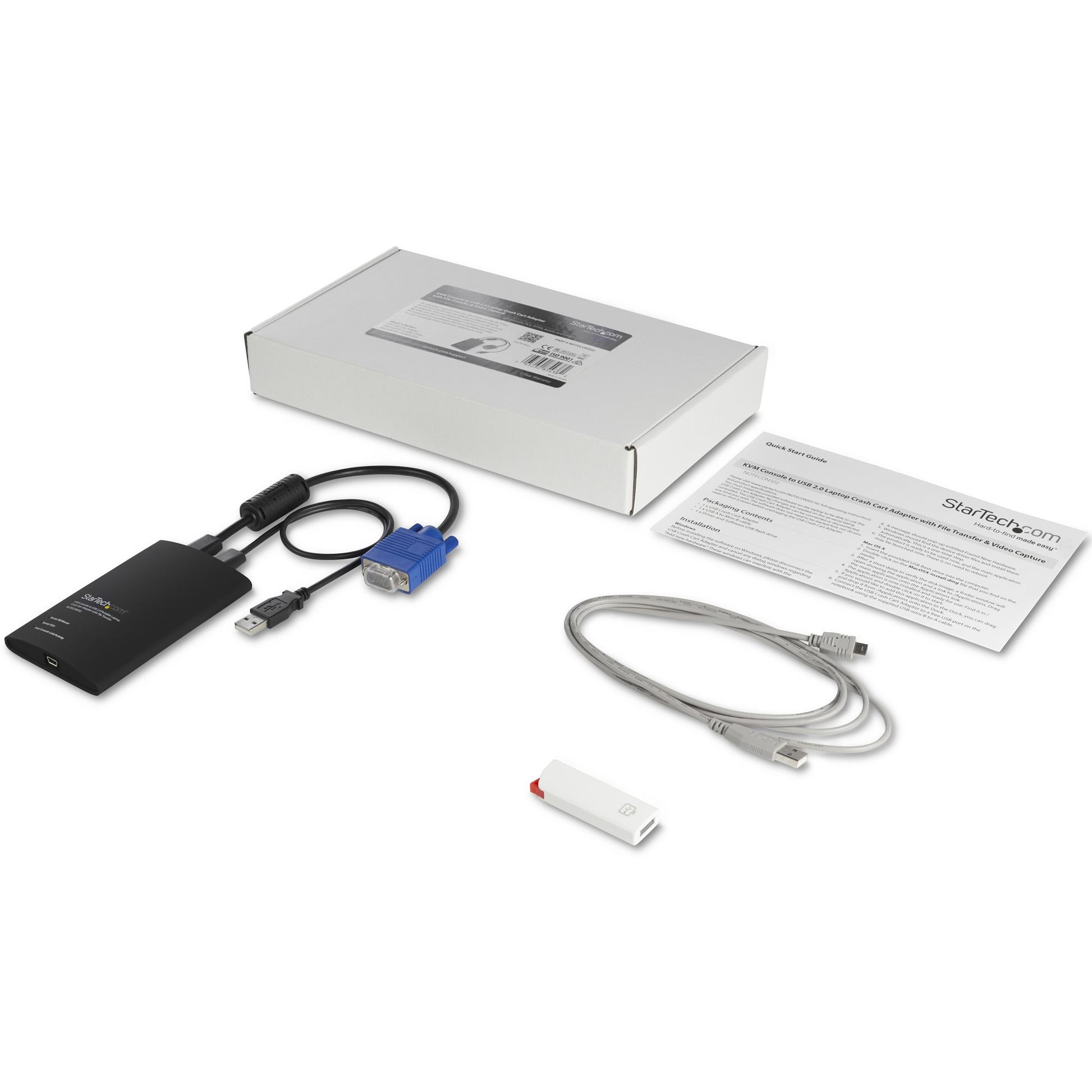

| Cables included | USB |
| Software included | Yes |
| Other features | |
| Compatible operating systems | Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2012, 2008 R2 Mac OS 10.x (Tested up to 10.9) Linux 2.6.x - 3.5.x (32/64bit) |
| Logistics data | |
| Master (outer) case width | 532 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 530 mm |
| Products per master (outer) case | 30 pc(s) |
| Harmonized System (HS) code | 85176200 |
