StarTech.com USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio Hub

The StarTech.com expands your ports in seconds — plug in and go.

Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-through

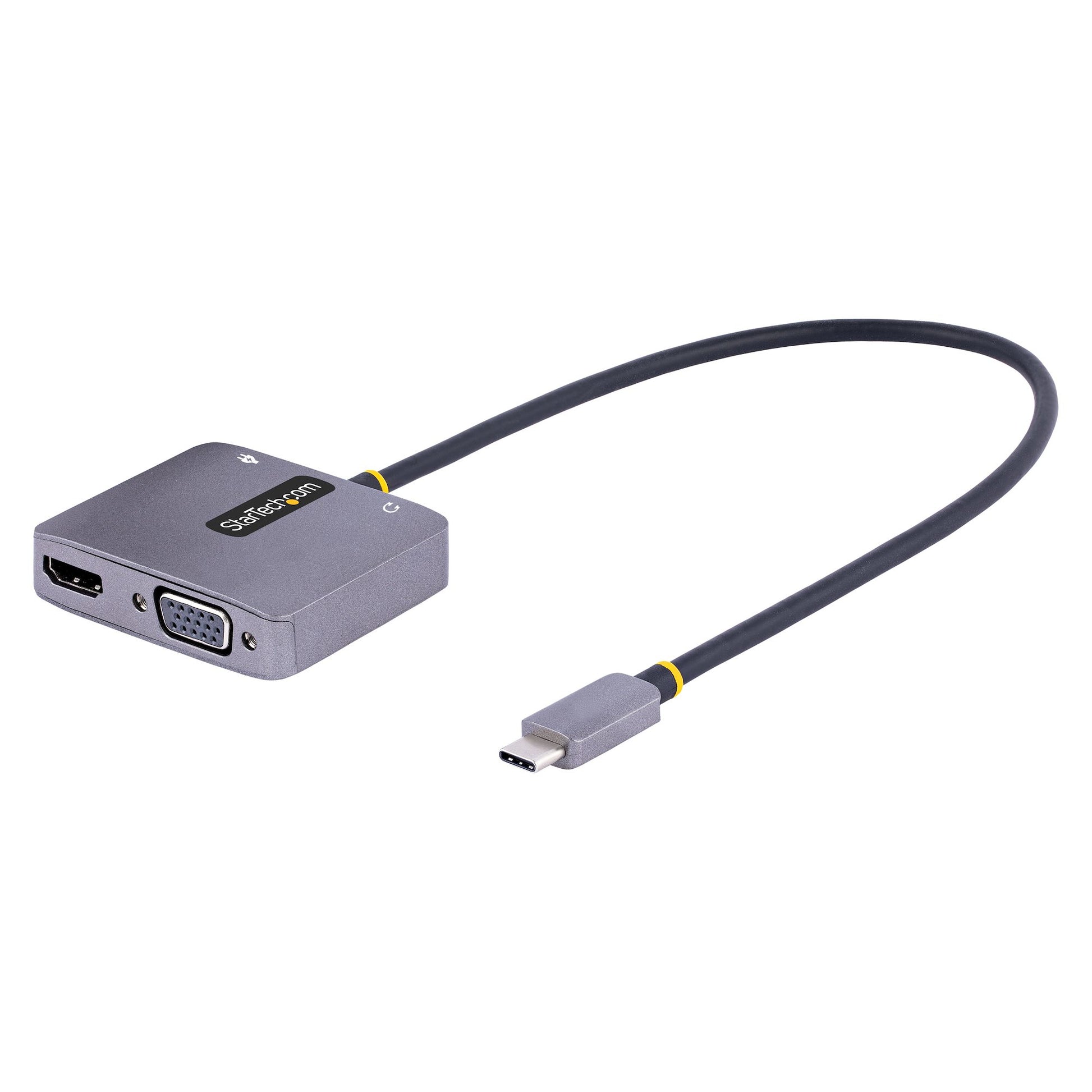

This USB-C™ Multiport Video Adapter offers a portable solution for connecting USB Type-C devices to HDMI and/or VGA displays, with up to 100W of Power Delivery.

Versatile Video Connectivity

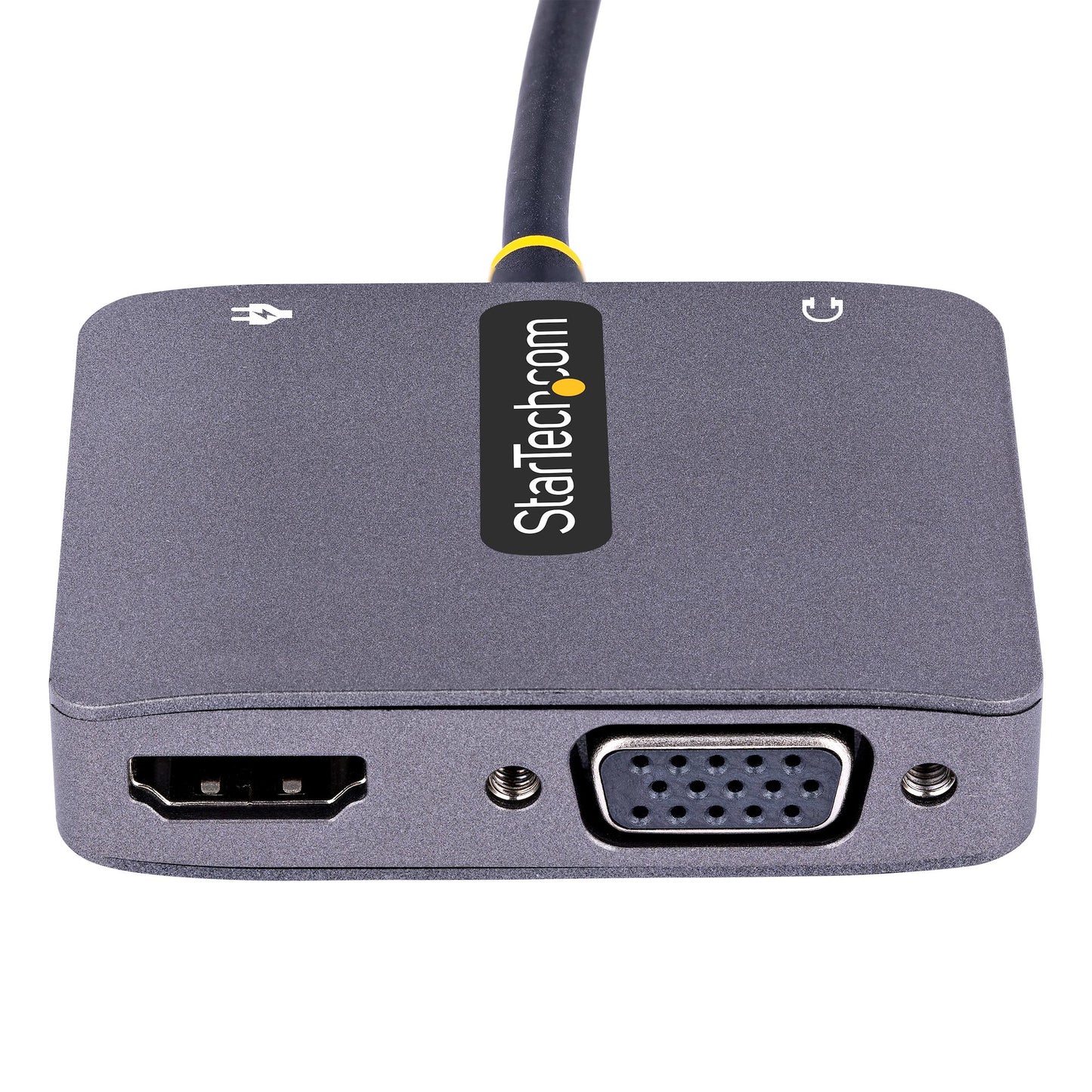

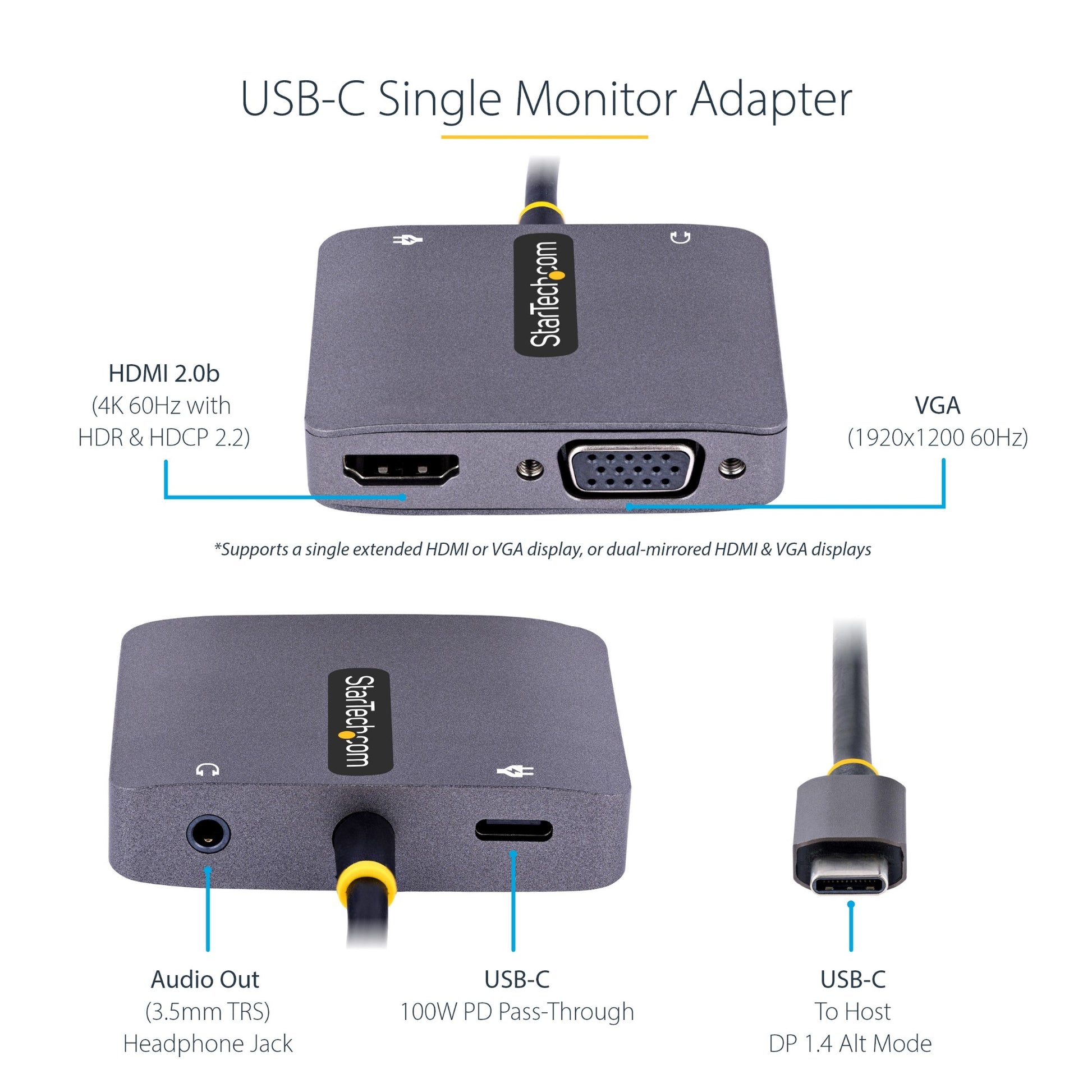

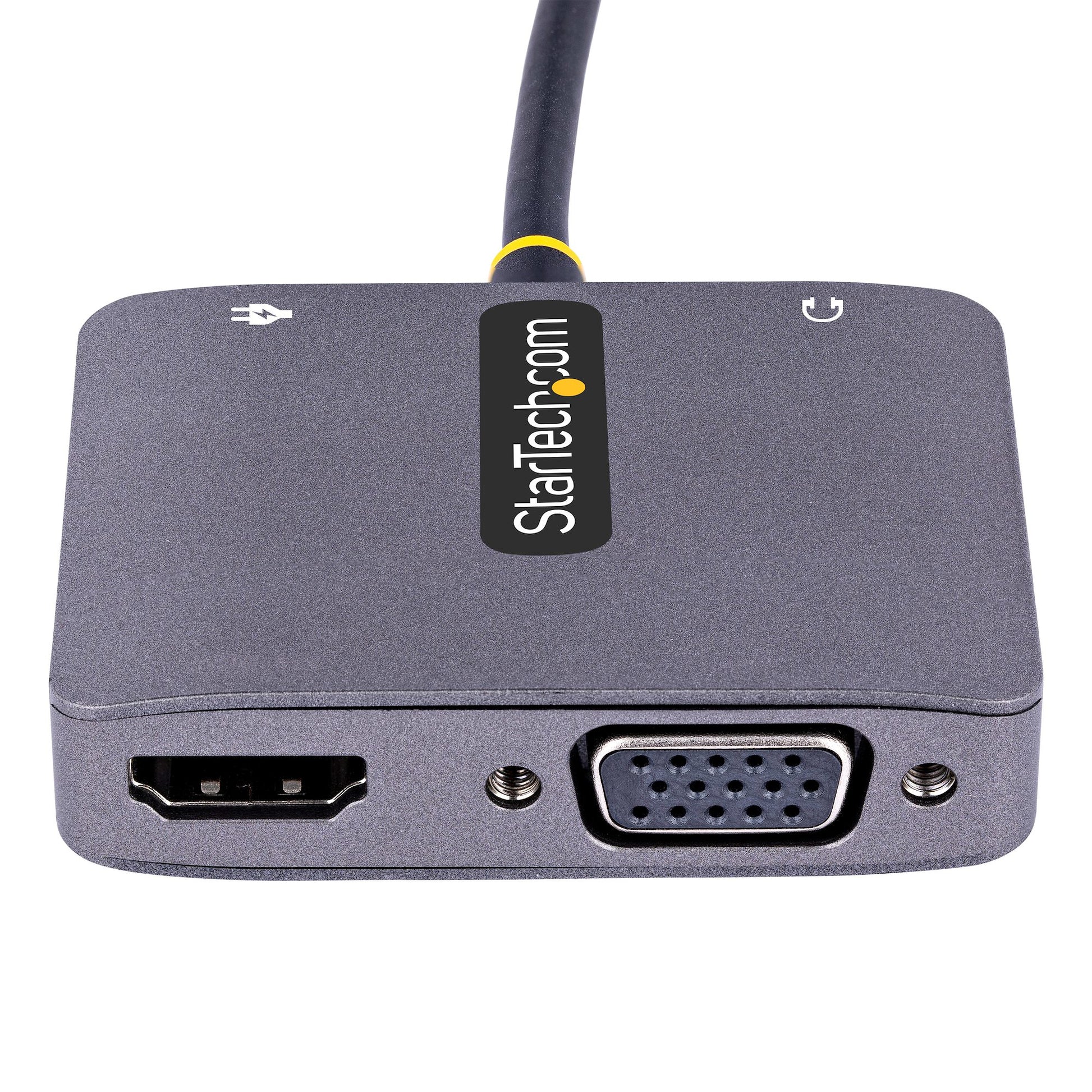

This Multiport Adapter supports a single HDMI display at resolutions up to 4K 60Hz, a single VGA display at resolutions of up to 1920x1200 60Hz or dual-mirrored HDMI and VGA displays at resolutions of up to 1080p. The 3.5mm audio port can be used for connecting speakers while presenting with a VGA projector/display, or headphones.

Extended Cable Length

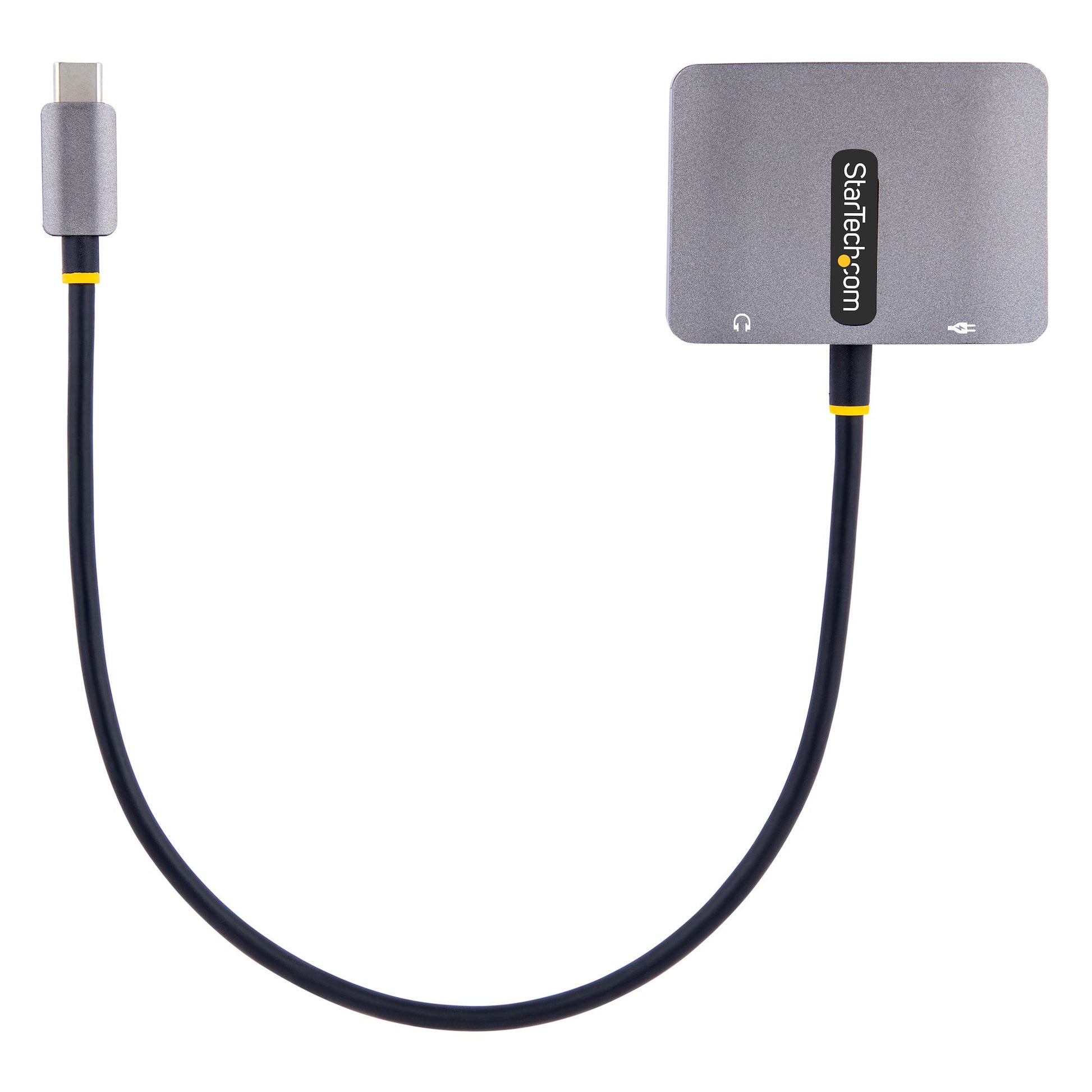

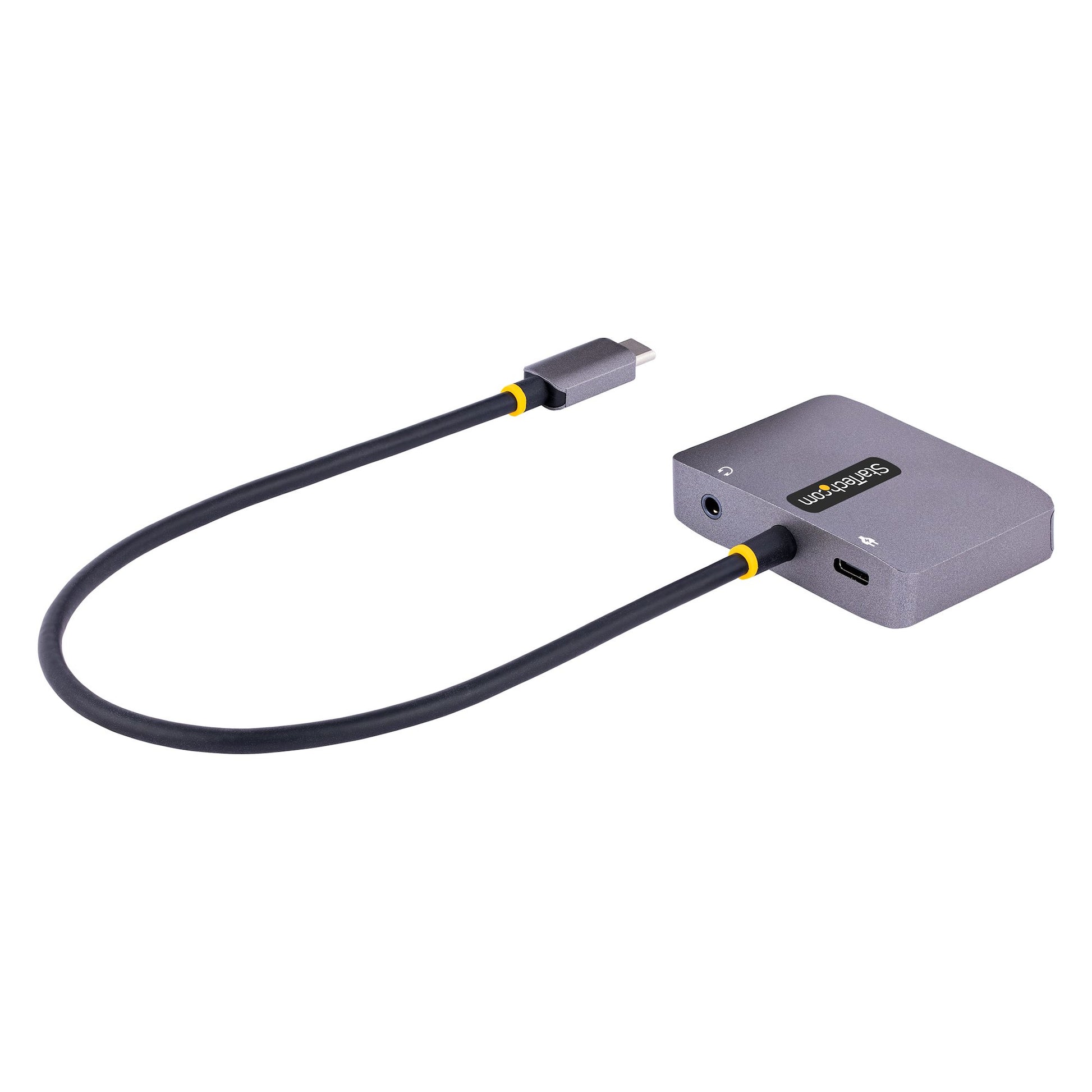

The adapter is equipped with an extra-long 12 inch (30cm) attached cable, providing an extended reach, to reduce port and connector strain on 2-in-1 devices, tablets, or laptops on risers/stands.

Power Delivery

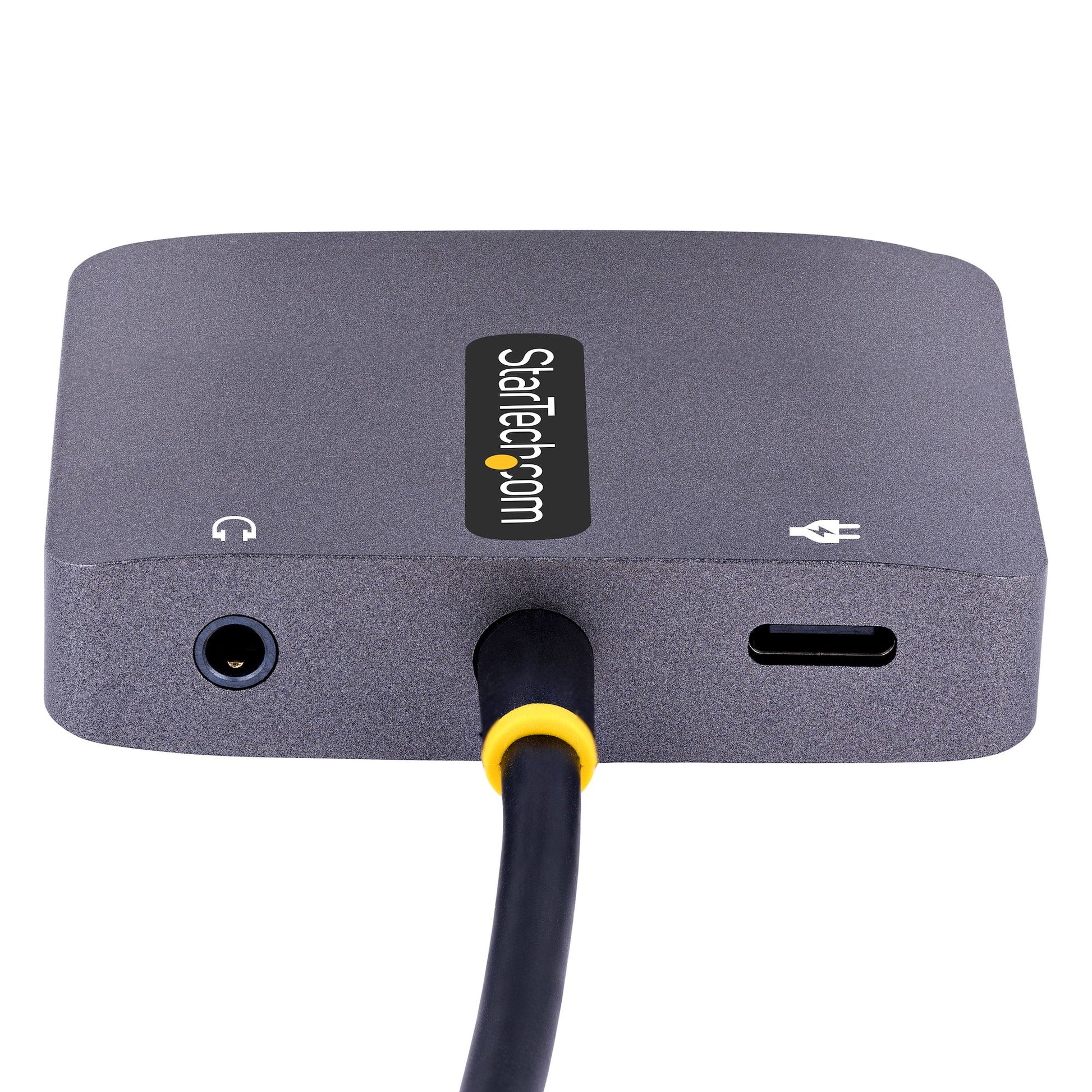

The USB C to HDMI and VGA Adapter is bus powered for easy use while traveling. Optionally, connect a USB-C power adapter and charge your laptop using the Power Delivery 3.0 pass-through feature, supporting up to 100W charging.

Connectivity for Any Laptop

The USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, and Thunderbolt 4 enabled laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and play (driver/software free) compatibility with any operating system such as Windows, macOS, iPadOS, Chrome OS, and Linux.

Note:

The 3.5mm audio output will not be active unless a display is connected to the product. This adapter does not support MST or dual extended displays.

Specifications

Performance
USB connector form factor	Straight
VGA (D-Sub) output	Yes

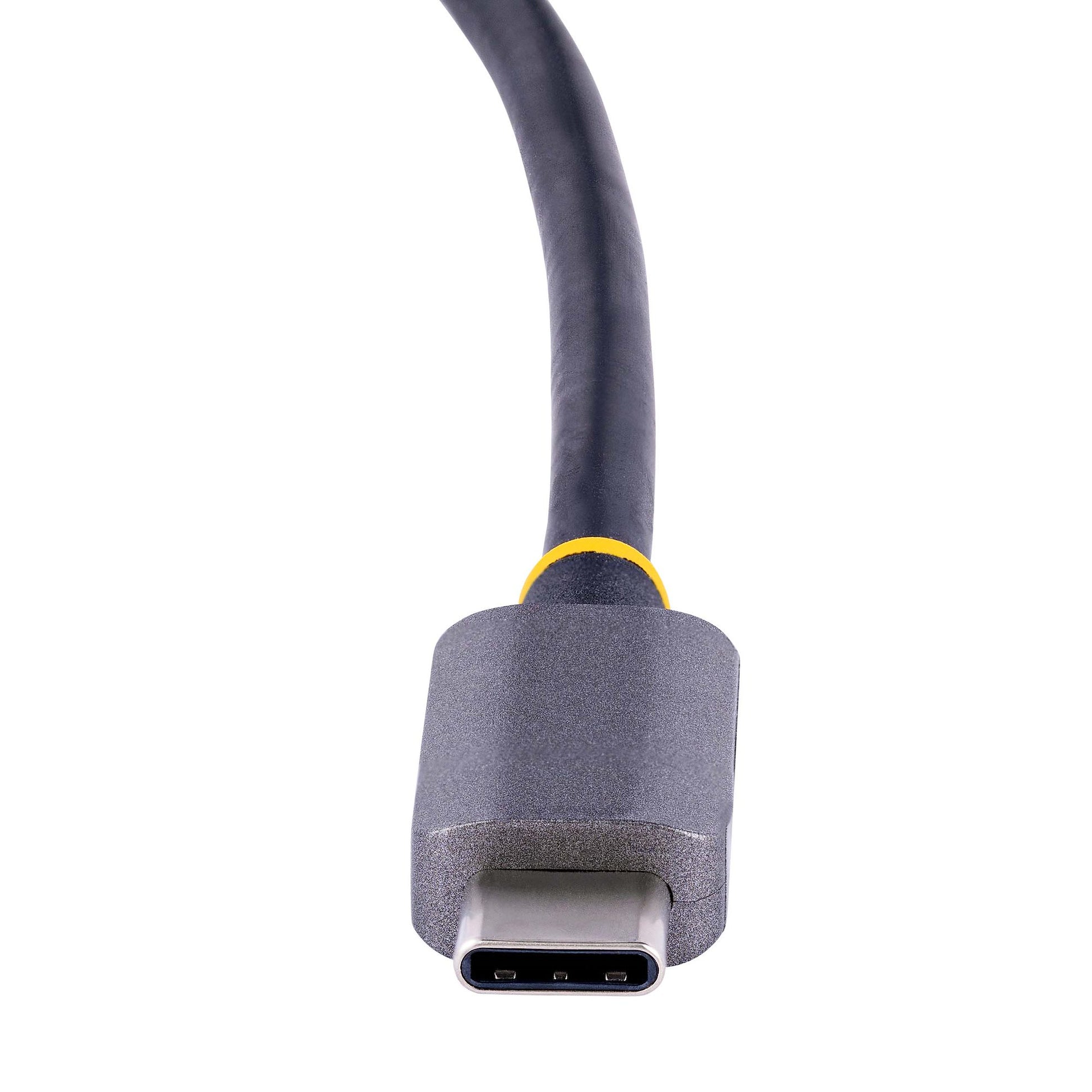

USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	2
HDMI version	2.0b
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Maximum resolution (HDMI)	3840 x 2160 pixels
Audio output channels	7.1 channels
Maximum analog resolution	1920 x 1200 pixels
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Maximum transfer distance	30 m
Design
Product colour	Grey
Integrated USB cable	Yes

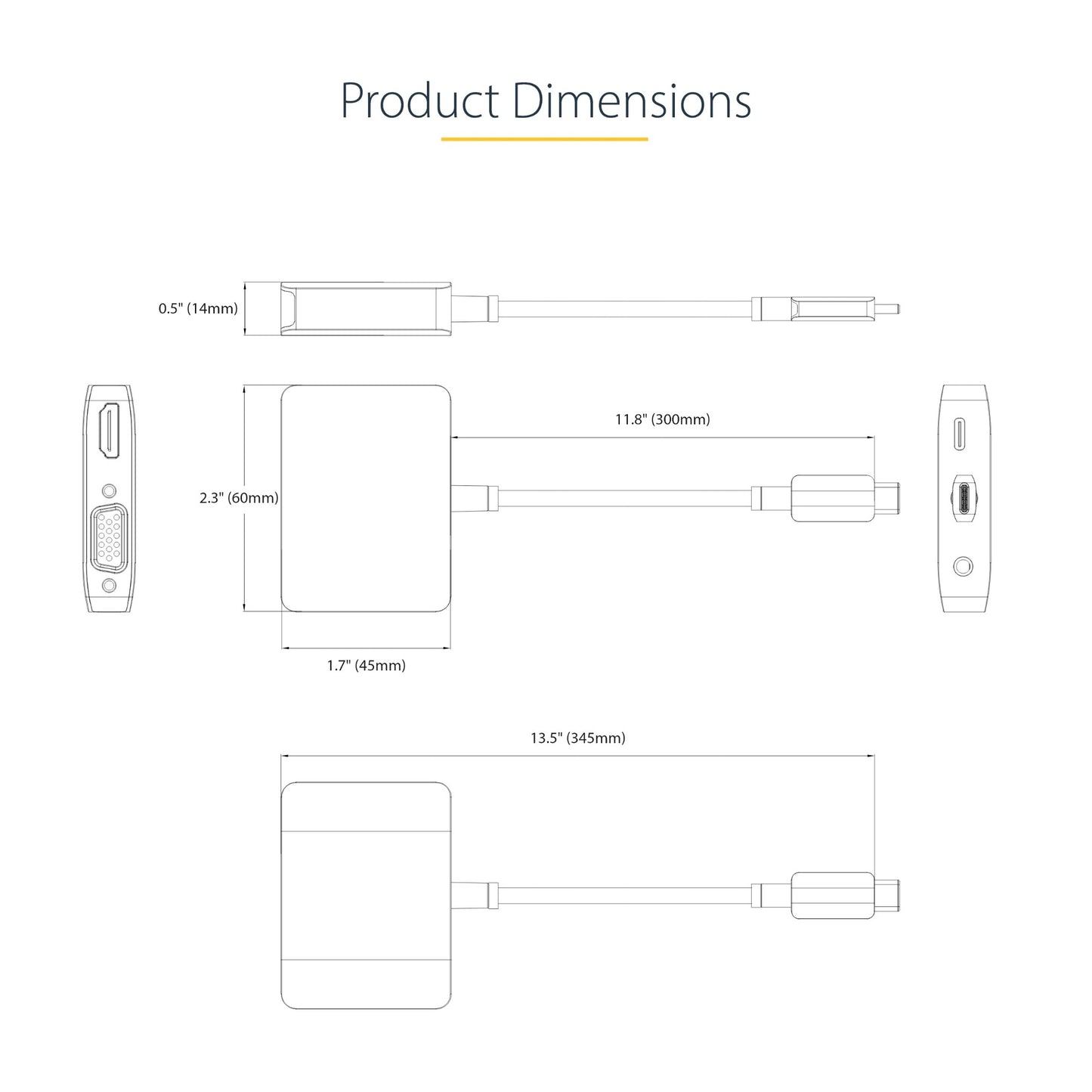

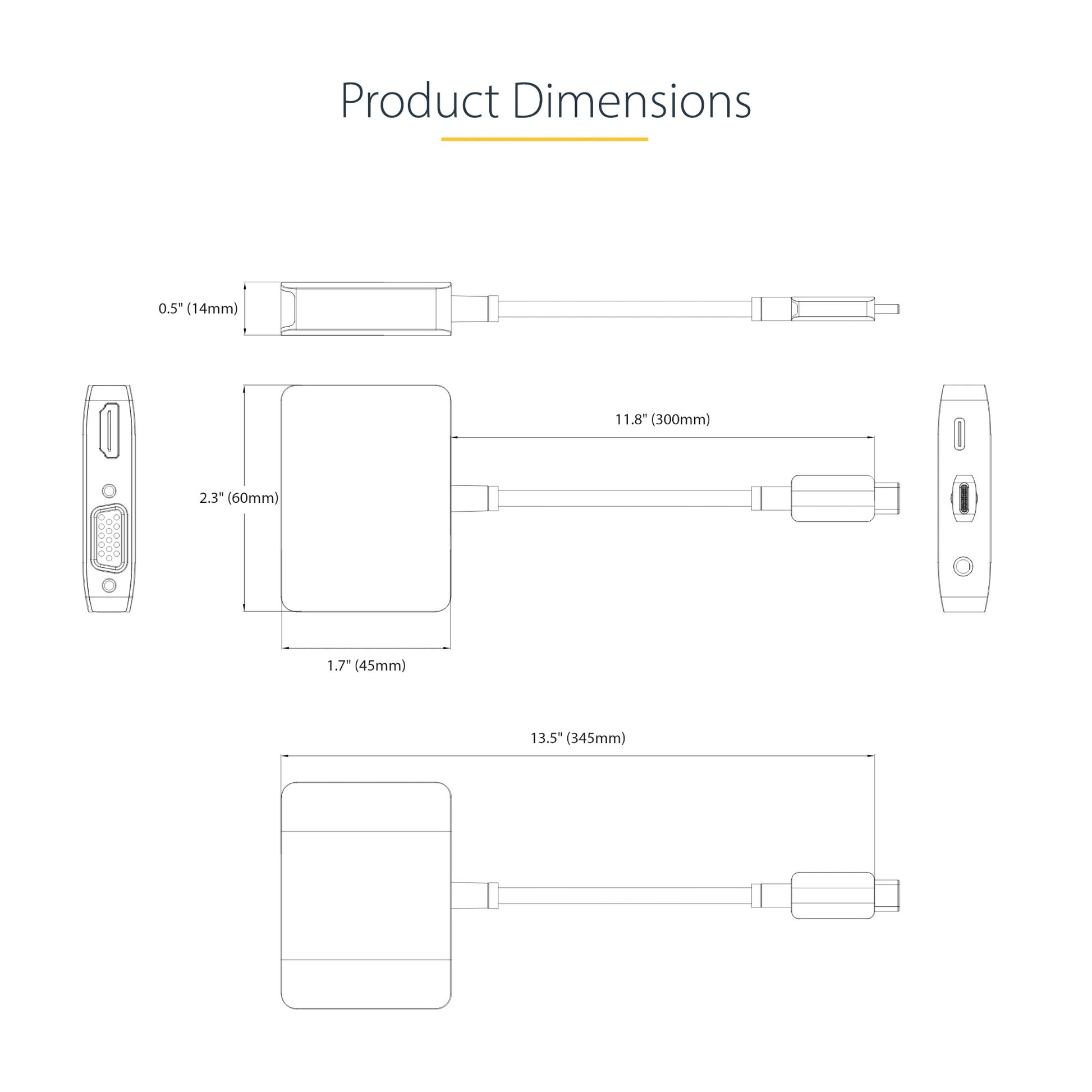

Weight & dimensions
Width	60 mm
Depth	45 mm
Height	14 mm
Weight	41 g
Package width	147 mm
Package depth	174 mm
Package height	33 mm
Package weight	245 g
Technical details
Products per master (outer) case	60 pc(s)
Master (outer) case width	541 mm
Master (outer) case length	348 mm
Master (outer) case height	324 mm
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Downloads

• Datasheet (PDF)
