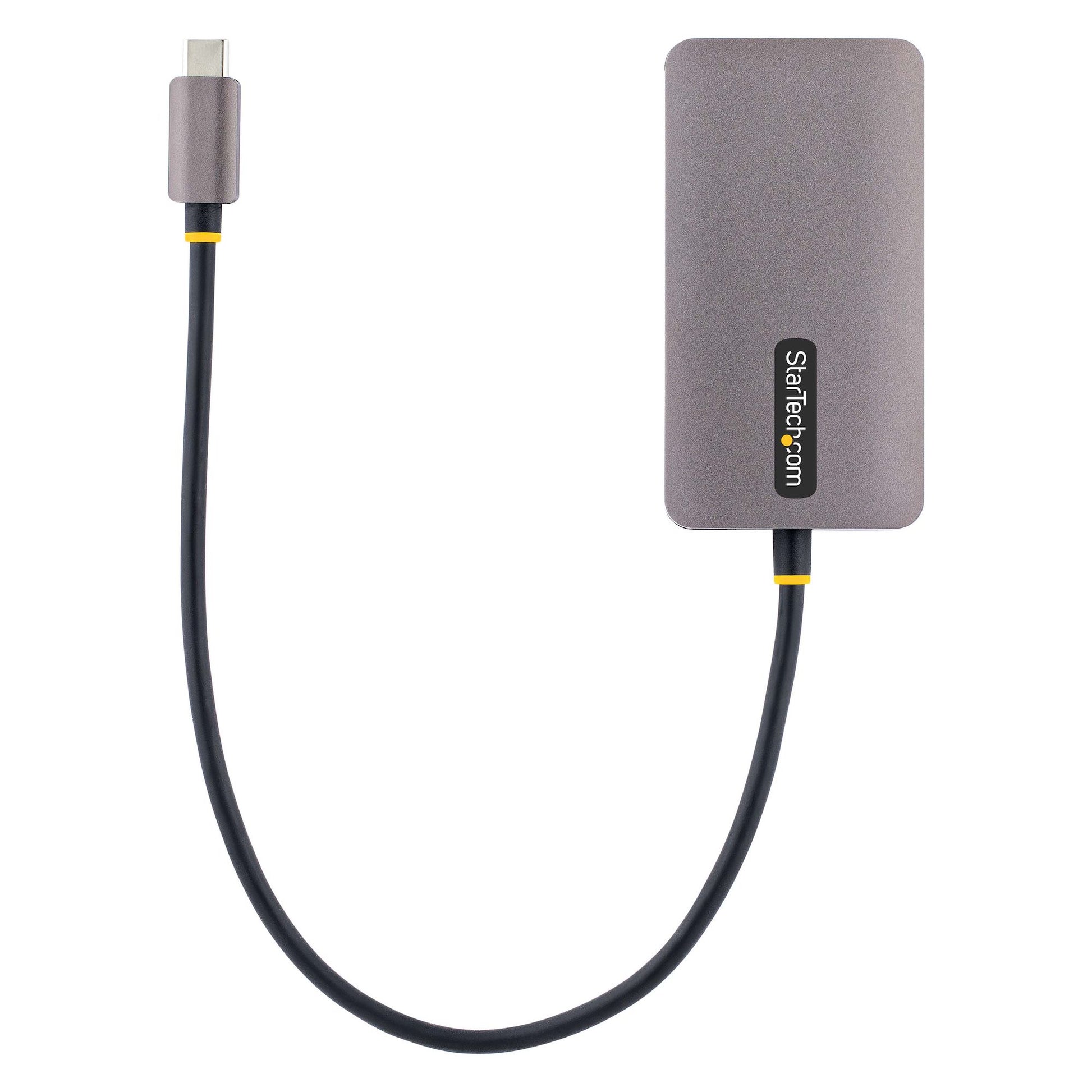

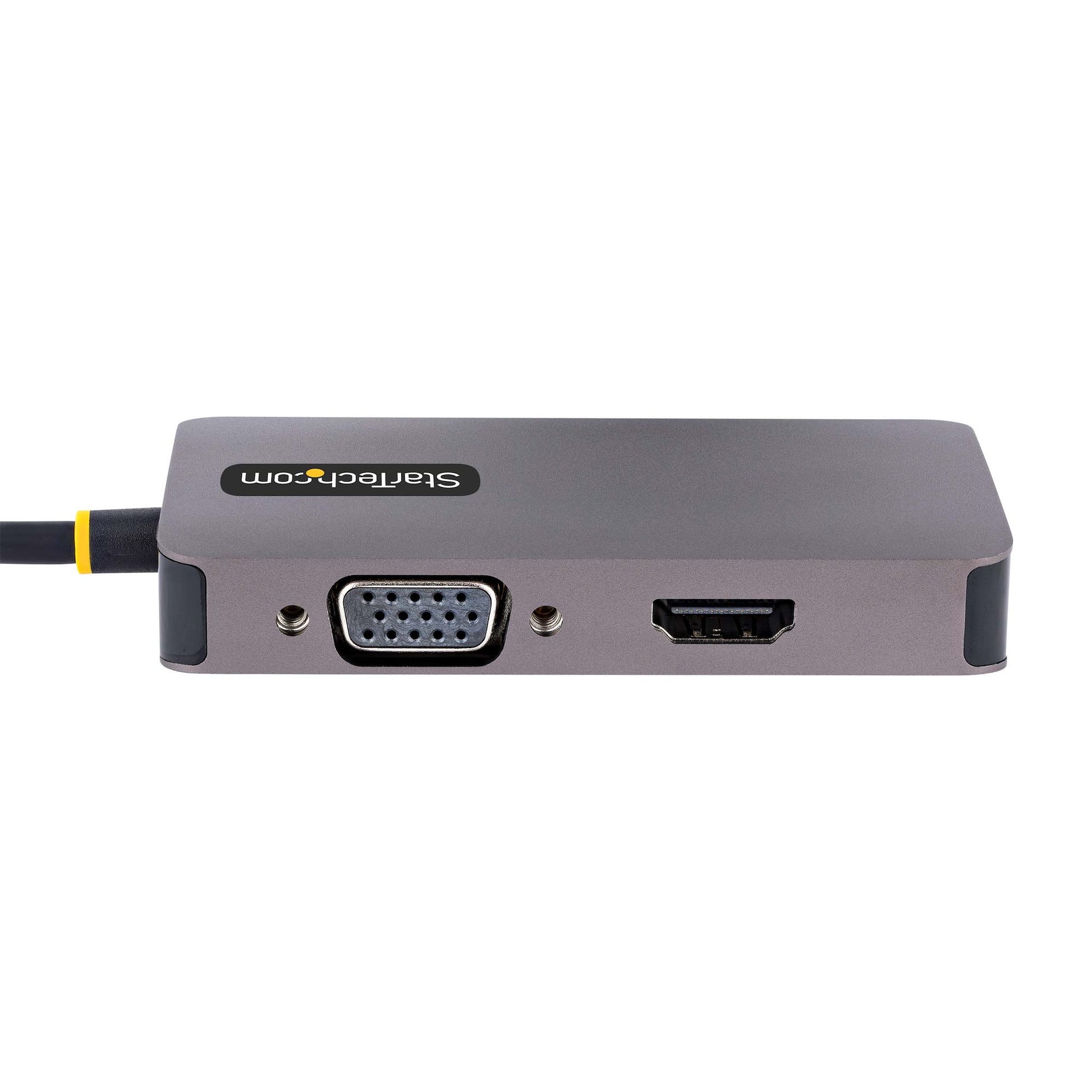

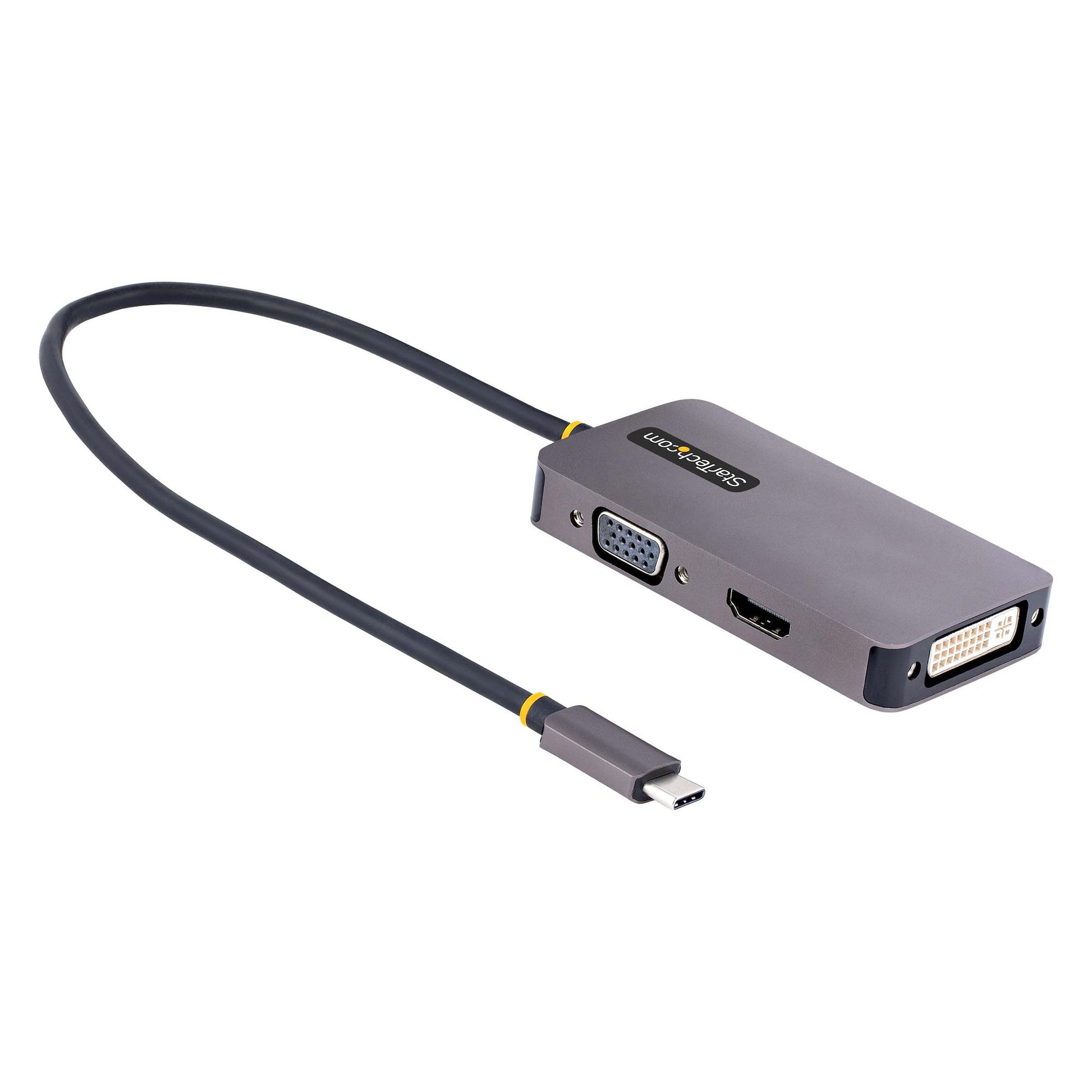

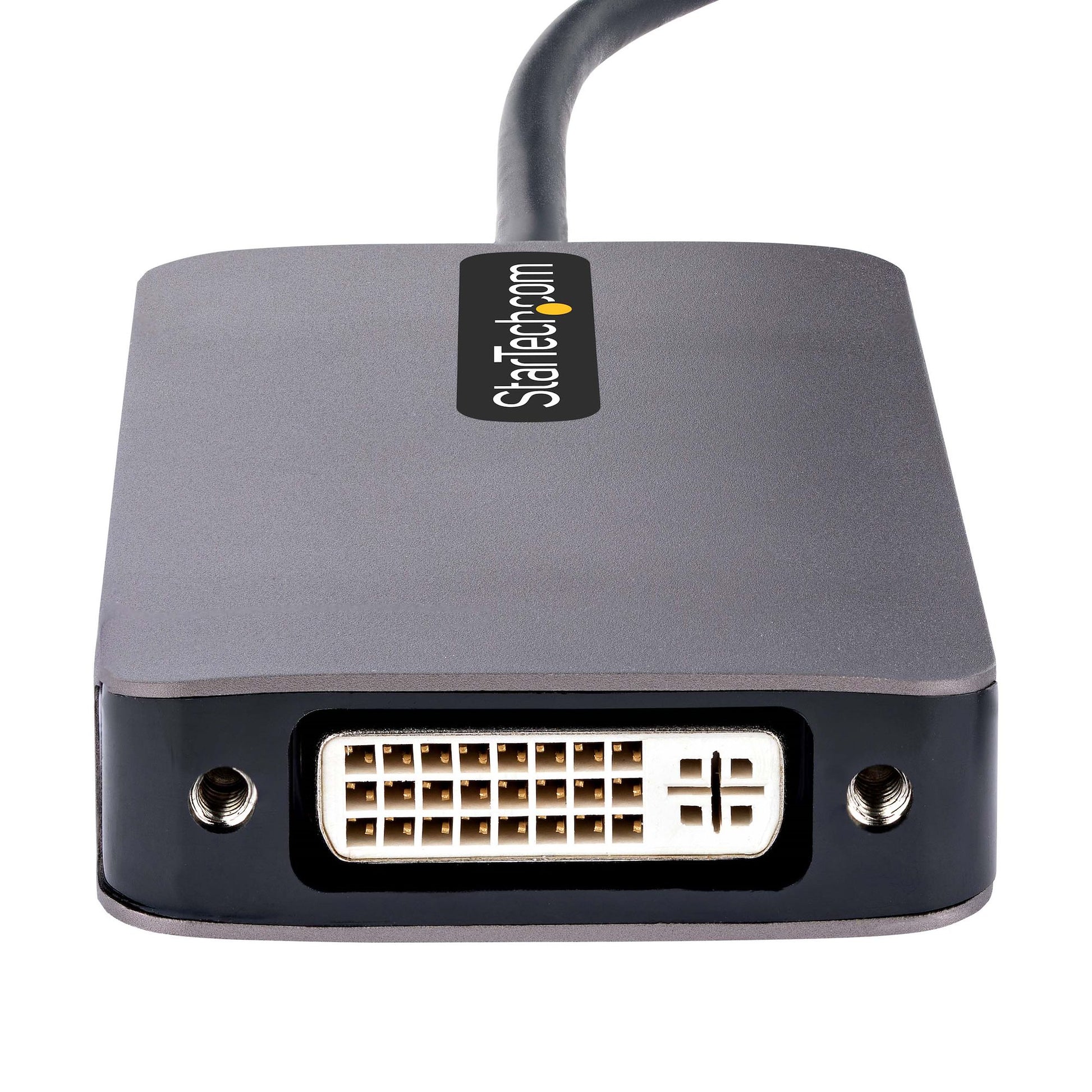

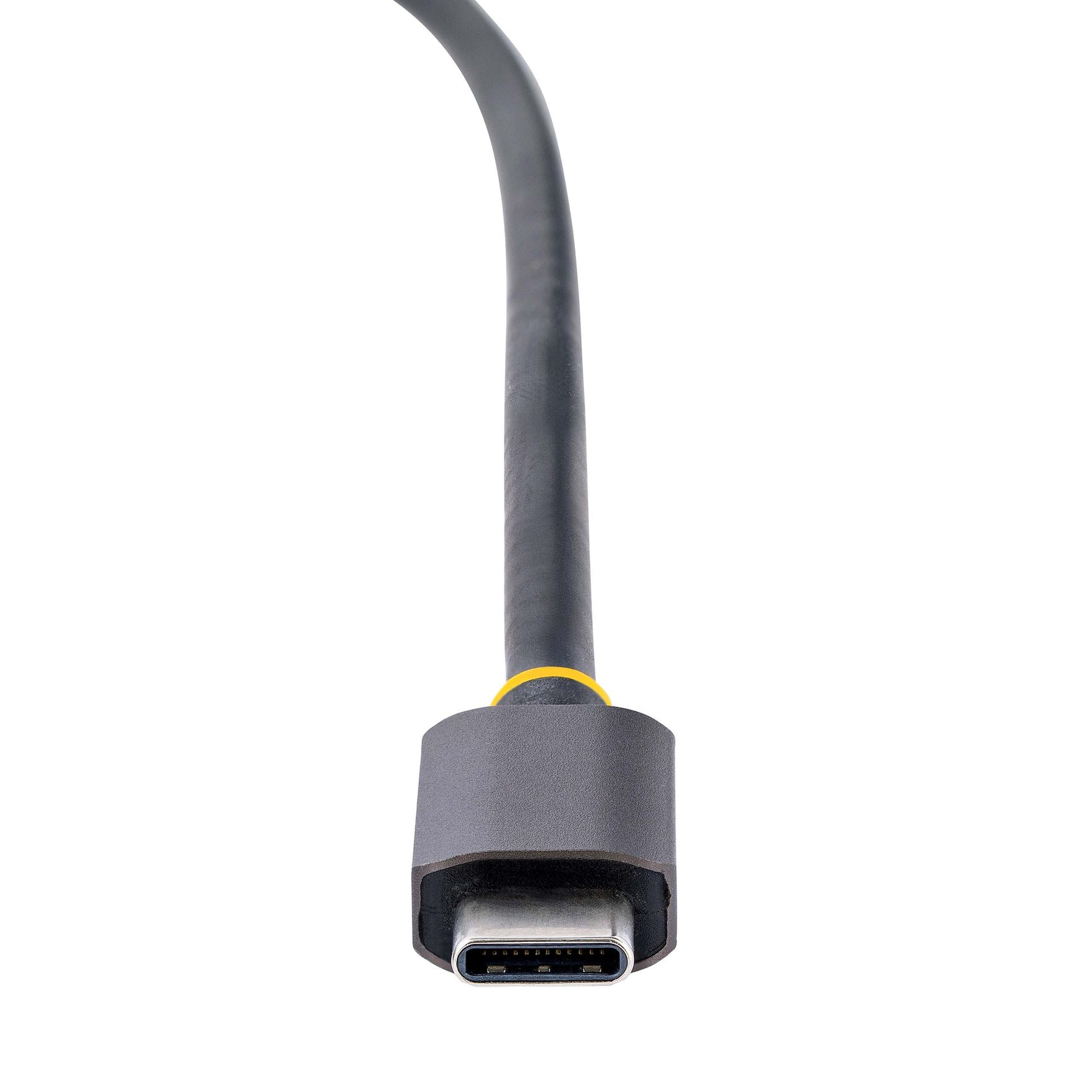

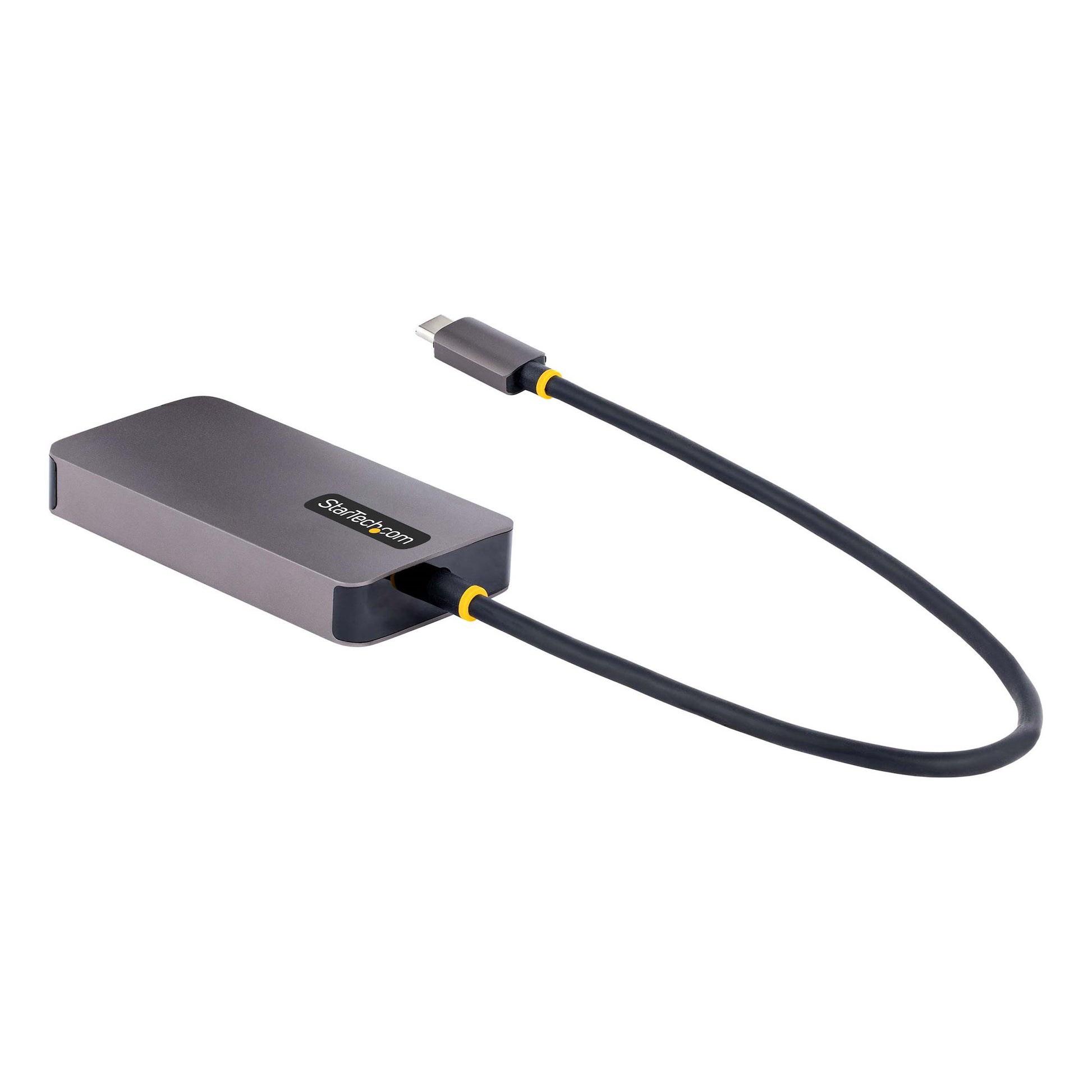

StarTech.com USB C Video Adapter, USB C to HDMI DVI VGA Adapter, Up to 4K 60Hz Hub

The StarTech.com expands your ports in seconds — plug in and go.

USB Type-C™ to VGA DVI or HDMI® Travel Adapter | 4K 60Hz | Aluminum

This USB-C™ multiport video adapter offers a durable and portable solution for connecting your USB Type-C device to a n HDMI, DVI, or VGA display.

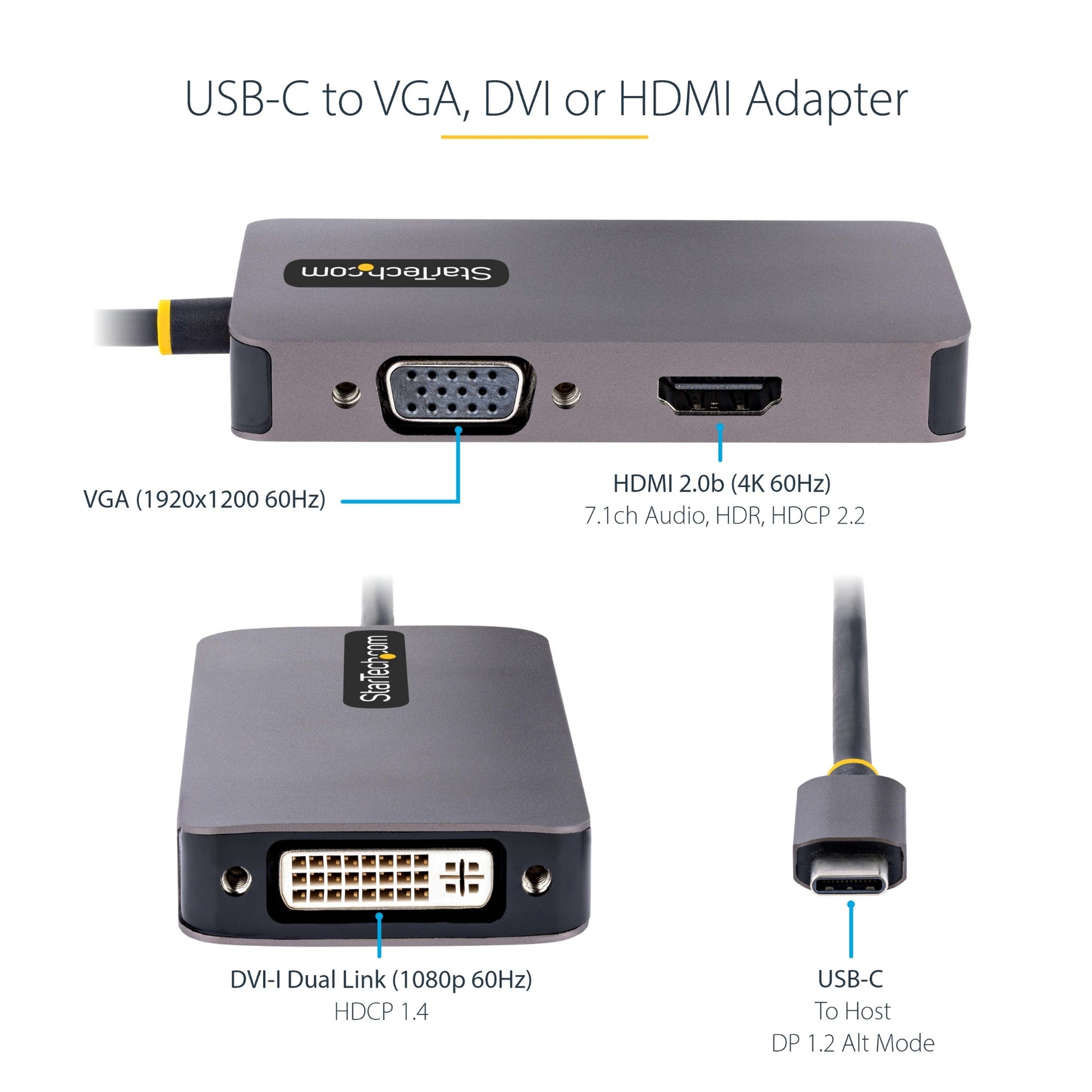

Ultra HD 4K 60Hz Resolution

The HDMI 2.0b output supports up to 4K 60 Hz resolutions and HDR whereas VGA output supports up to 1920x1200 at 60 Hz, and the DVI-I output supports up to 1080p at 60 Hz. All the outputs offer compatibility with older displays supporting lower resolution. The adapter supports dual mirrored 1080p displays when using either VGA and HDMI or VGA and DVI-I monitor configurations.

Video Connectivity On The Go

Avoid the hassle of carrying different adapters with a USB Type-C Multiport Video Adapter. Connect a USB-C DisplayPort Alt-mode device to virtually any display. A durable aluminum enclosure helps the adapter withstand being carried in a travel bag between office, home, shared spaces, and during business travel.

Ease of Use

The USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, Thunderbolt 4 Laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and Play (PnP) capability allows you to quickly connect to devices running Windows, macOS, iPadOS, chromeOS, or Linux. The VGA and DVI outputs are compatible with screw locking cables ensuring a secure connection with displays and projectors. The 12 inch (30 cm) attached cable allows for flexibility in your setup and less strain on ports and connectors.

118-USBC-HDMI-VGADVI is backed for 3-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

Note:

This adapter does not support MST or dual extended displays

Specifications

Performance
USB connector form factor	Straight
Chipset	ITE - IT6224FN
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
VGA (D-Sub) output	Yes
USB connector type	USB Type-C
USB connector gender	Male
DVI output	Yes
HDMI output	Yes
DisplayPort output	No
Number of displays supported	3
HDMI version	2.0b
HDCP	Yes
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Audio output channels	7.1 channels
VGA (D-Sub) ports quantity	1
DVI-I ports quantity	1
High Dynamic Range (HDR) supported	Yes
HDCP version	2.2
Design
Product colour	Grey
Integrated USB cable	Yes
USB cable length	0.3 m
Weight & dimensions
Width	45 mm
Depth	85 mm
Height	14 mm
Weight	73 g
Package width	173 mm
Package depth	145 mm
Package height	33 mm
Package weight	137 g
Technical details
Products per master (outer) case	60 pc(s)
Master (outer) case width	542 mm
Master (outer) case length	347 mm
Master (outer) case height	327 mm
Harmonized System (HS) code	84733020

Downloads

• Datasheet (PDF)
