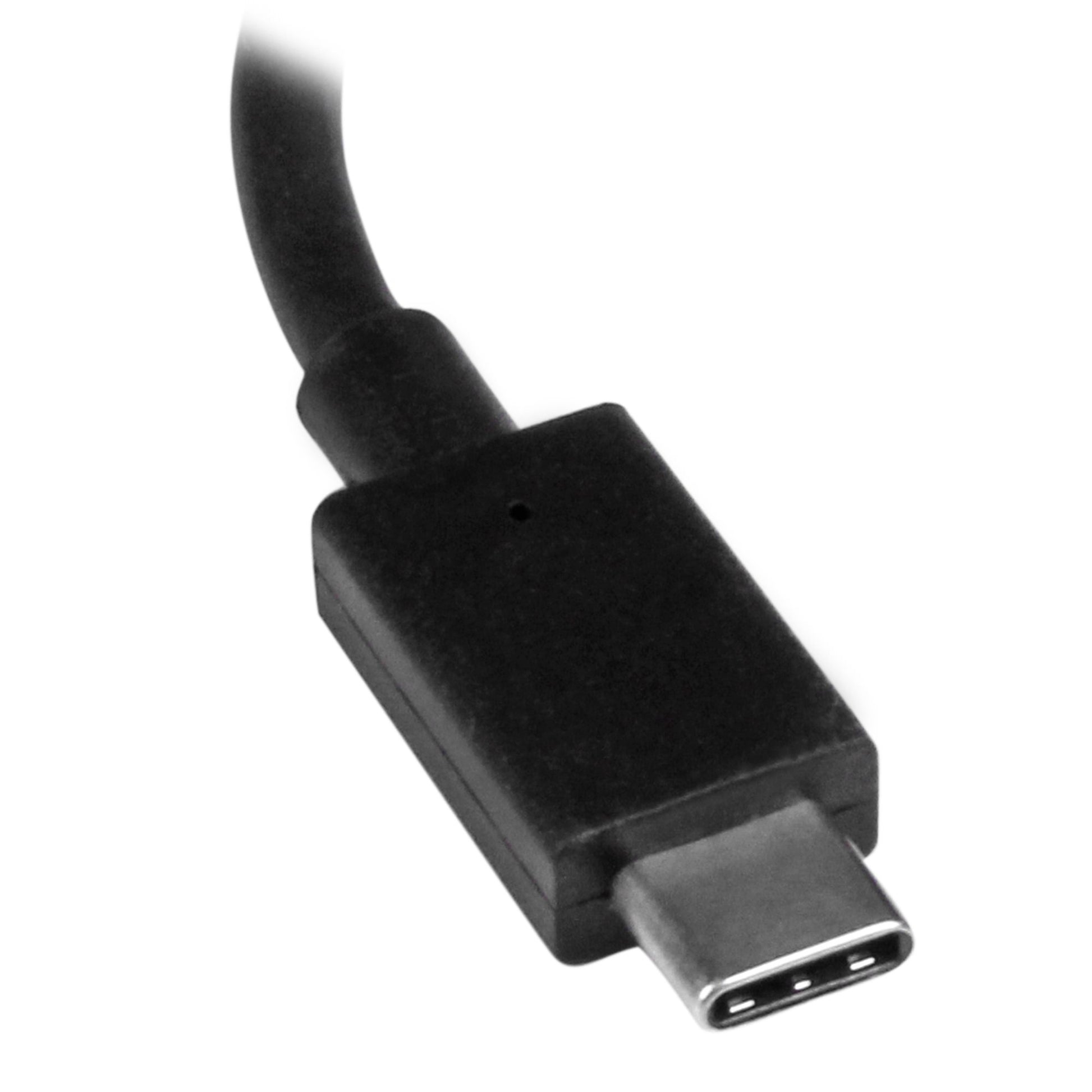

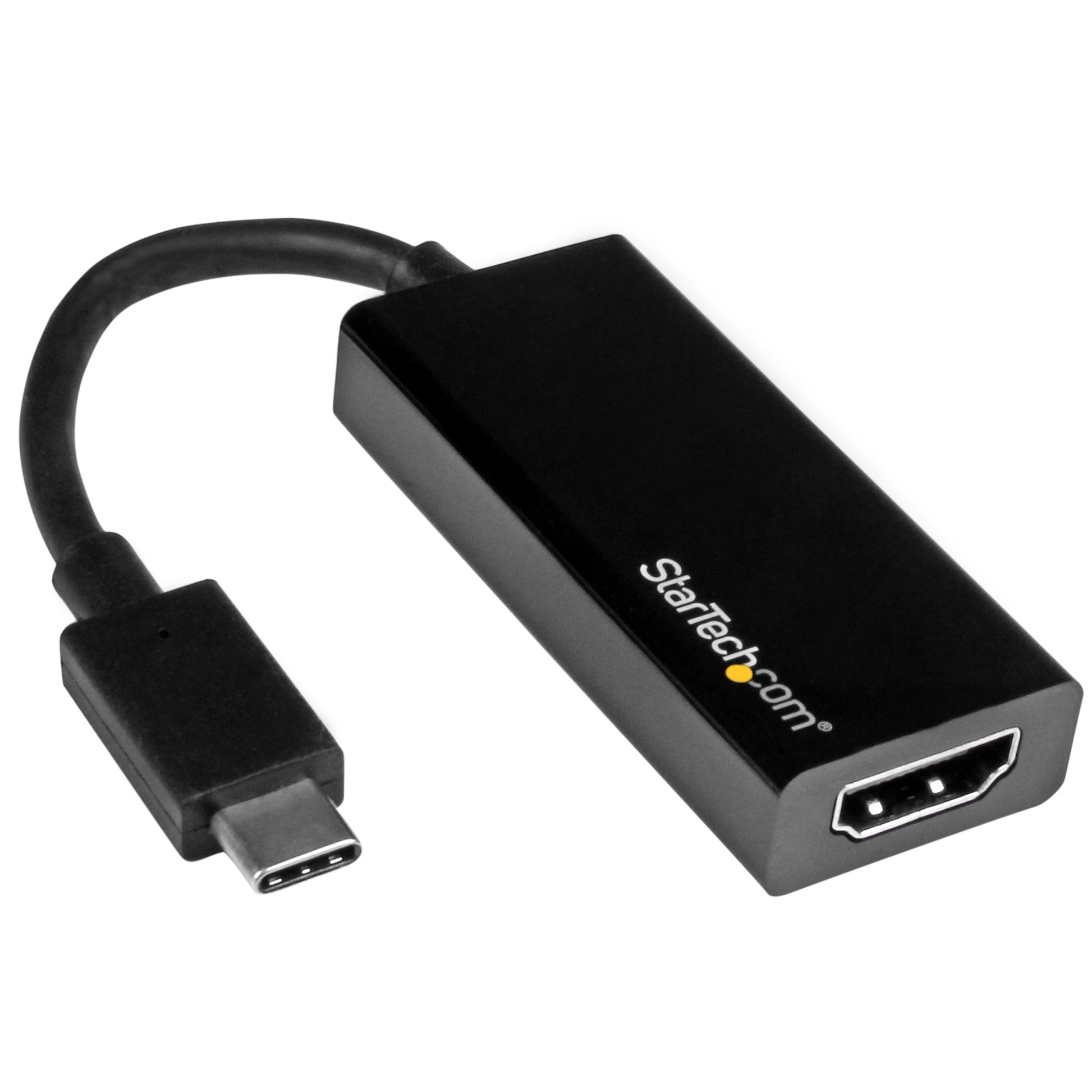

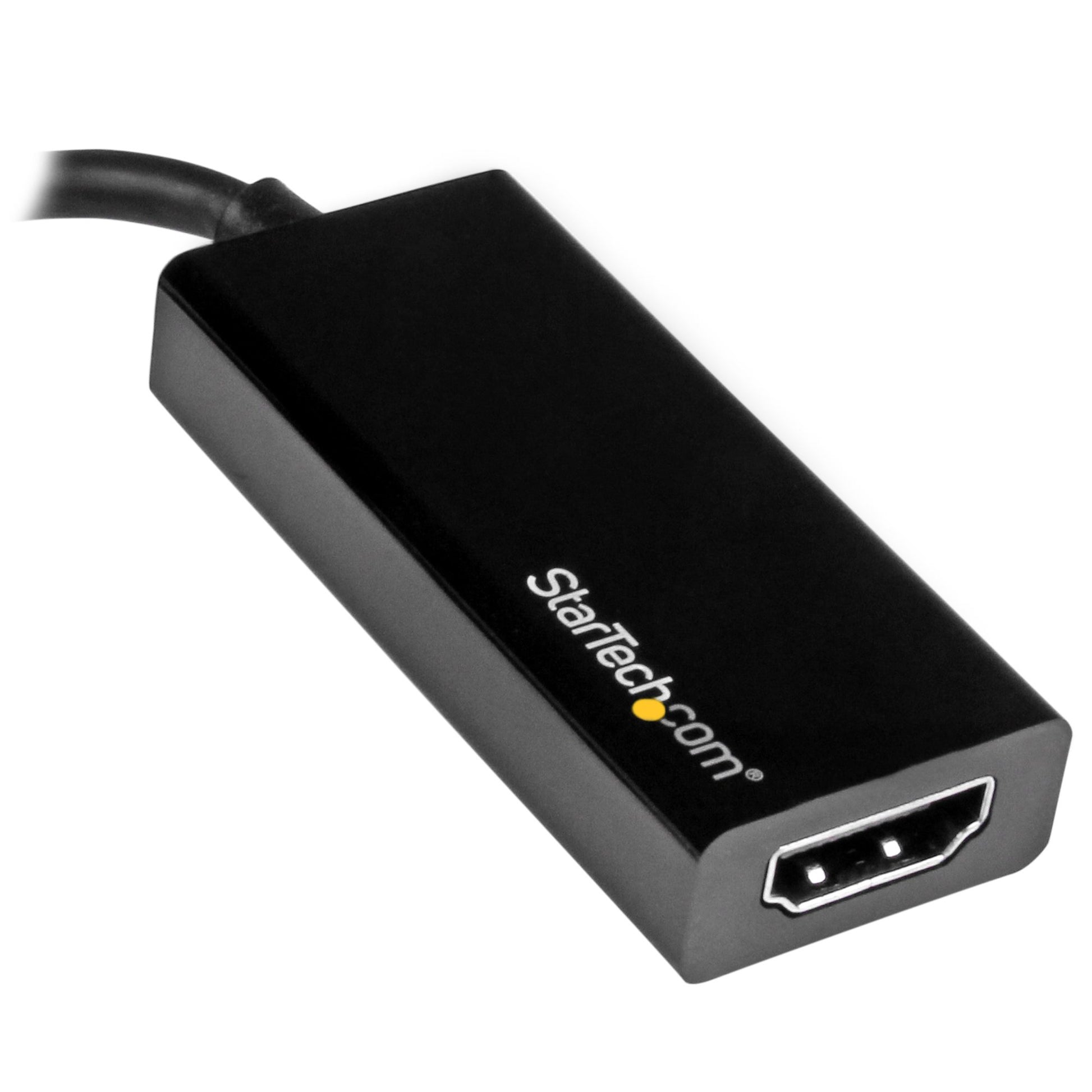

StarTech.com USB-C to HDMI Adapter with 4K 30Hz - Black Hub

The StarTech.com USB-C to HDMI Adapter expands your ports in seconds — plug in and go.

USB Type-C™ to HDMI Converter | Thunderbolt™ 3 Compatible | DP Alt Mode

This USB-C to HDMI adapter lets you to output 4K video and audio from the USB Type-C port on your laptop to an HDMI display or projector. The adapter works with USB 3.1 or Thunderbolt 3 Type-C devices that pass a DP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

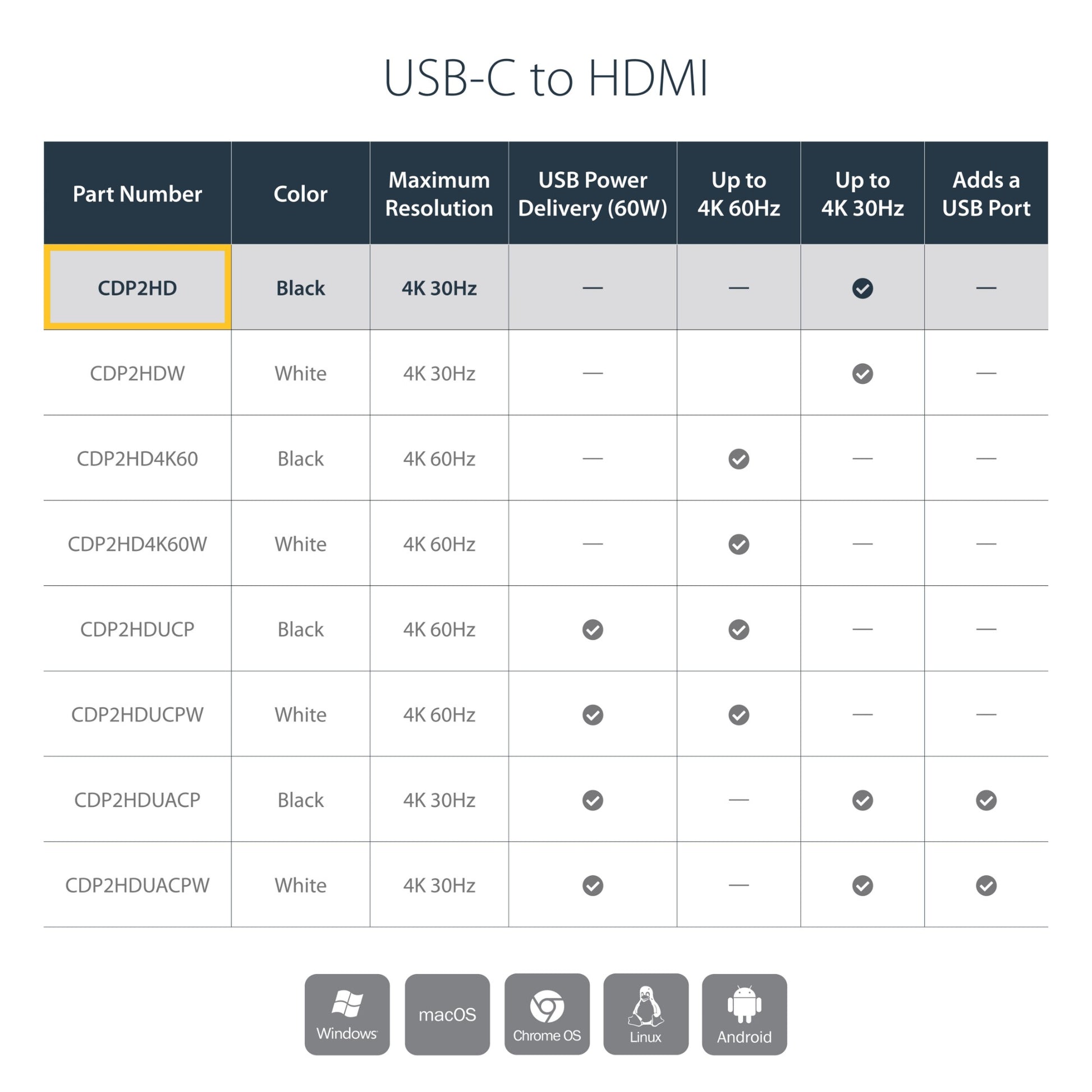

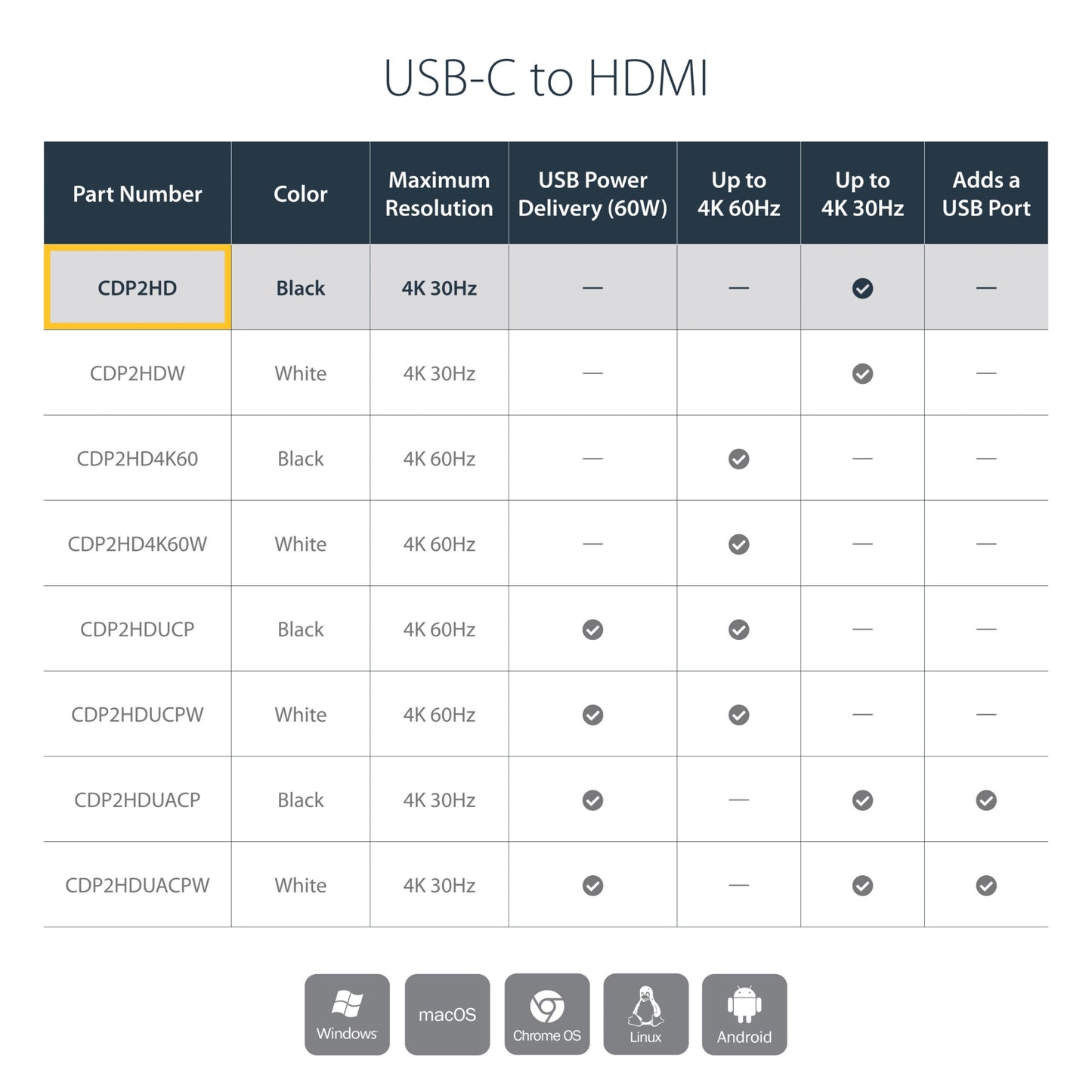

This video adapter is also available in white (CDP2HDW).

Enjoy High-Definition Resolution up to 4K at 30Hz

This adapter lets you harness the video capabilities from your computer's USB-C connection, to deliver the astonishing quality of UHD to a 4K 30Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 30Hz, perfect for performing high-resolution tasks. Plus, the USB-C display adapter is backward compatible with 1080p monitors and displays, making it a great accessory for any workspace application.

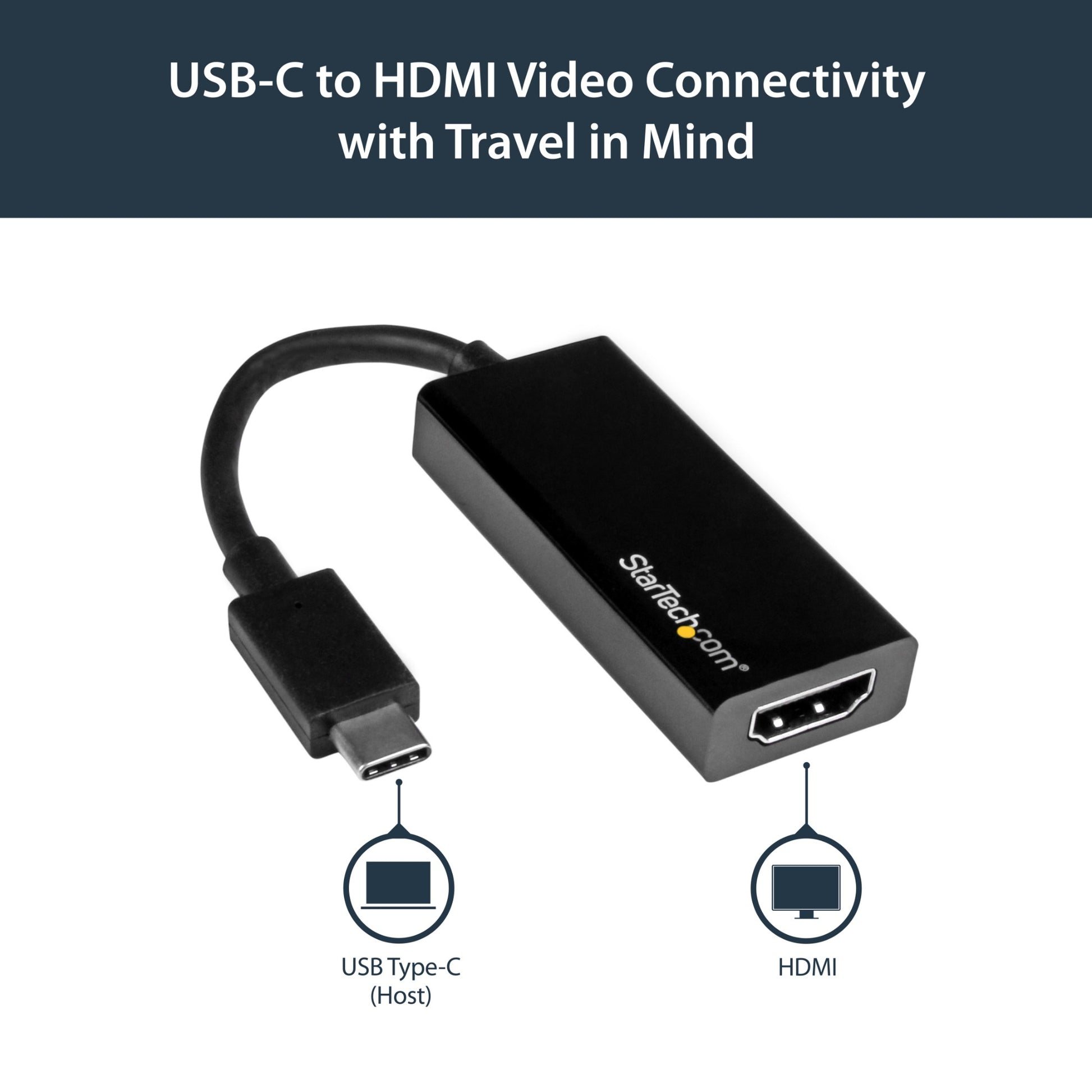

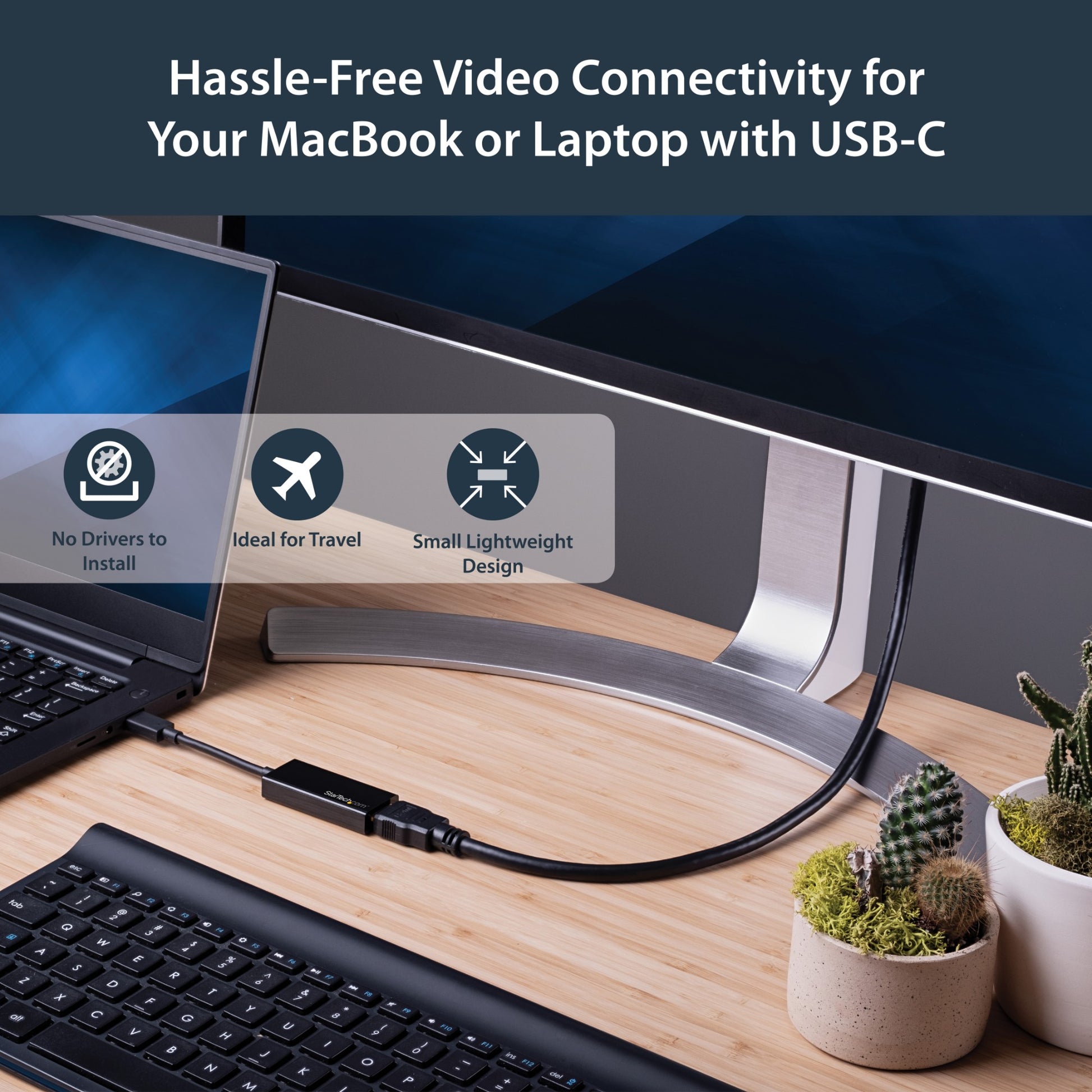

Hassle-Free Connection to Your USB Type-C Laptop

This HDMI converter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, so you can plug it to your device in any direction. Plus, it’s Thunderbolt 3 compatible, providing a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

Lightweight Design Makes it the Perfect Travel Companion

This compact, lightweight USB-C video adapter is easy to carry in your laptop bag. It's ideal for BYOD (Bring Your Own Device) applications at the office and is compatible with any device that supports USB-C DP Alt Mode.

CDP2HD is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Performance
USB connector form factor	Straight
Chipset	Parade - PS171, STMicroelectronics - STM32F072CBU6
Supported video modes	1080p, 720p
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1280 x 720 (HD 720), 2560 x 1600 (WQXGA), 3840 x 2160
USB connector type	USB Type-C
USB connector gender	Male
USB version	3.2 Gen 2 (3.1 Gen 2)
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	1
HDMI version	1.4
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	30 Hz
Audio output channels	7.1 channels
Design
Product colour	Black
Integrated USB cable	Yes
USB cable length	0.12 m

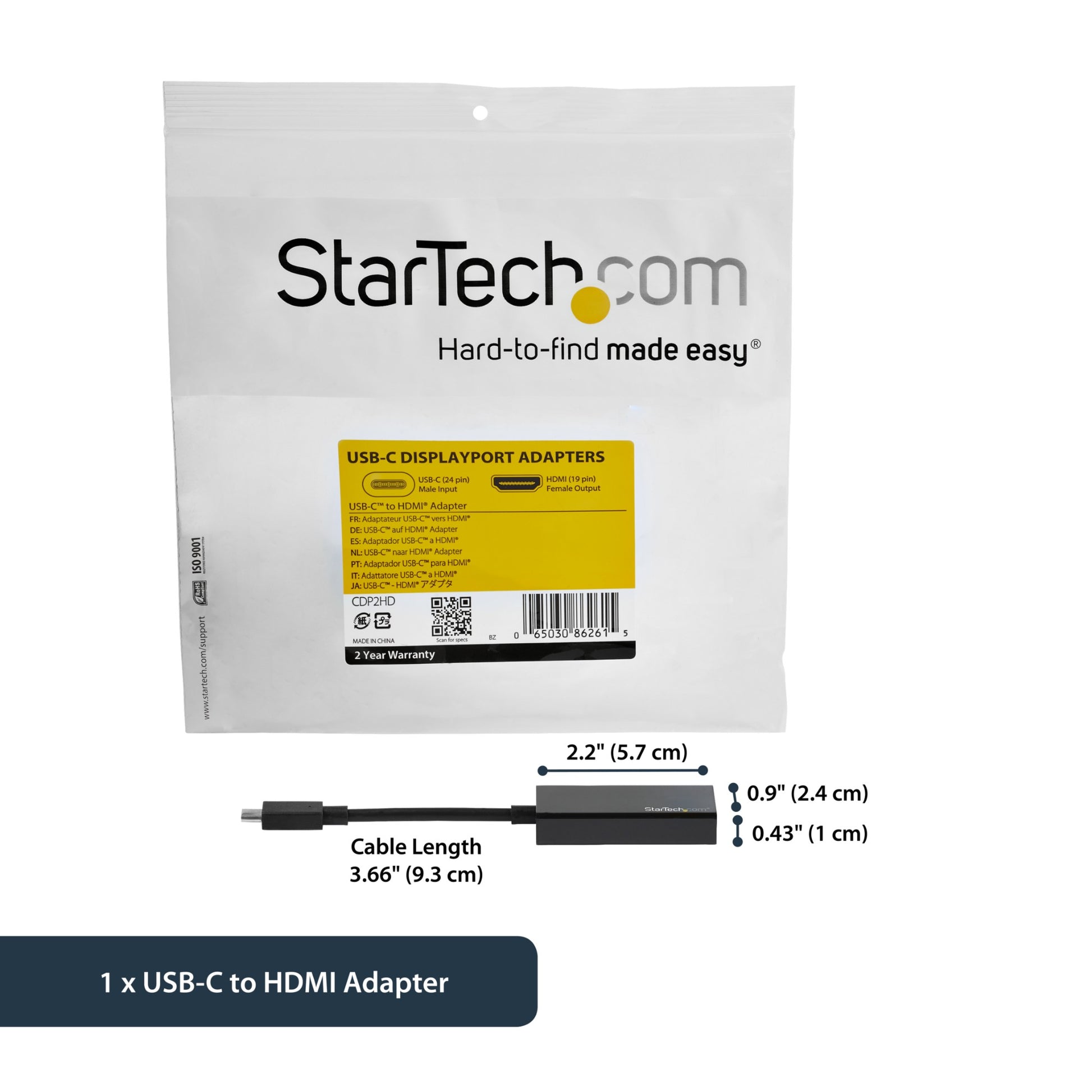

Weight & dimensions
Width	23 mm
Depth	147 mm
Height	9 mm
Weight	22 g
Package width	197 mm
Package depth	104 mm
Package height	18 mm
Package weight	30 g
Technical details
Products per master (outer) case	120 pc(s)
Master (outer) case width	516 mm
Master (outer) case length	344 mm
Master (outer) case height	227 mm
Sustainability compliance	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
