StarTech.com USB-C to HDMI Adapter, 8K 60Hz / 4K 120Hz, Thunderbolt / USB4 Cable

Make the connection with the StarTech.com USB-C to HDMI Adapter — length and connector details are in the spec table.

Connect a USB-C source to an HDMI display, with support for HDR10+ video, resolutions up to 8K at 60Hz and a 7.9in (20cm) attached cable

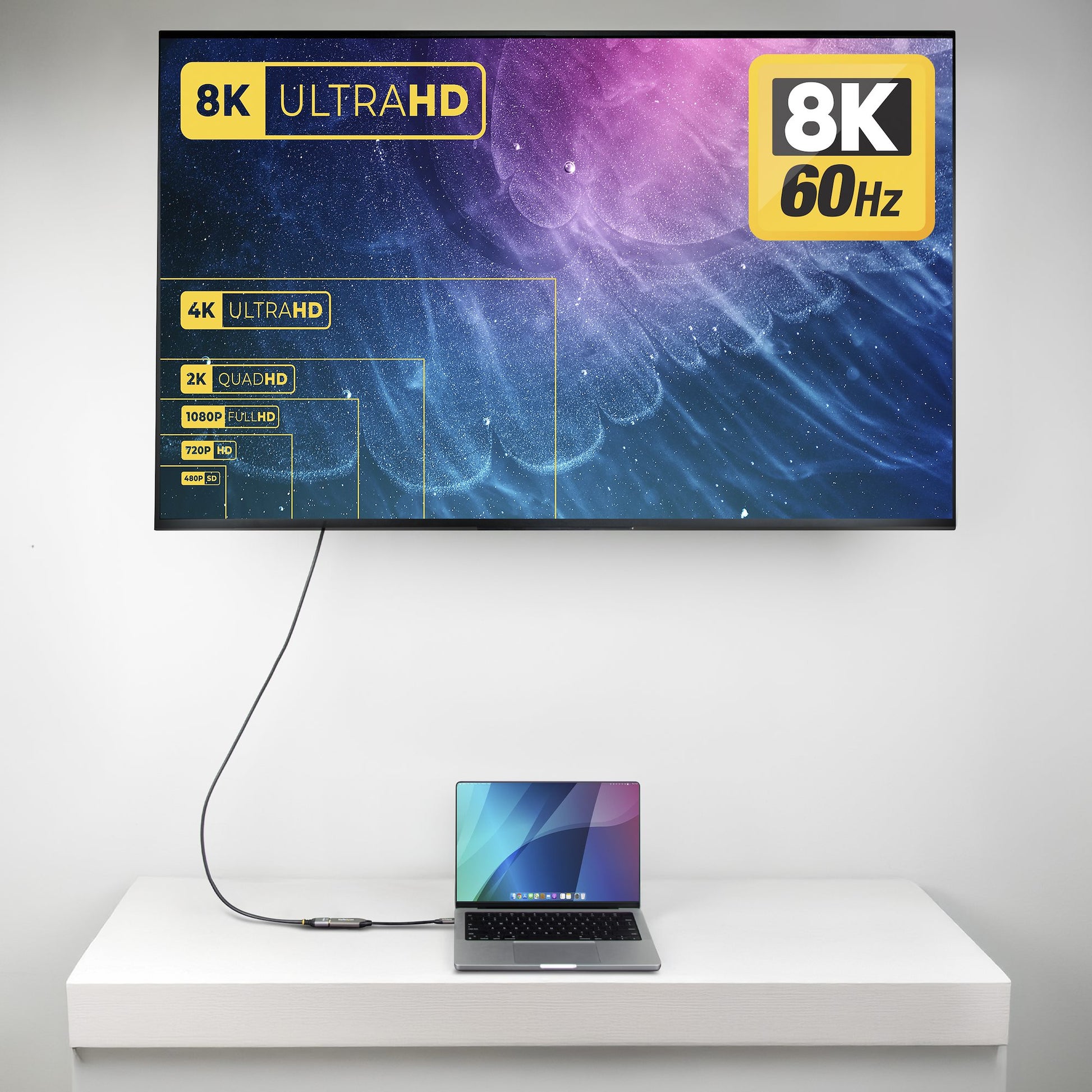

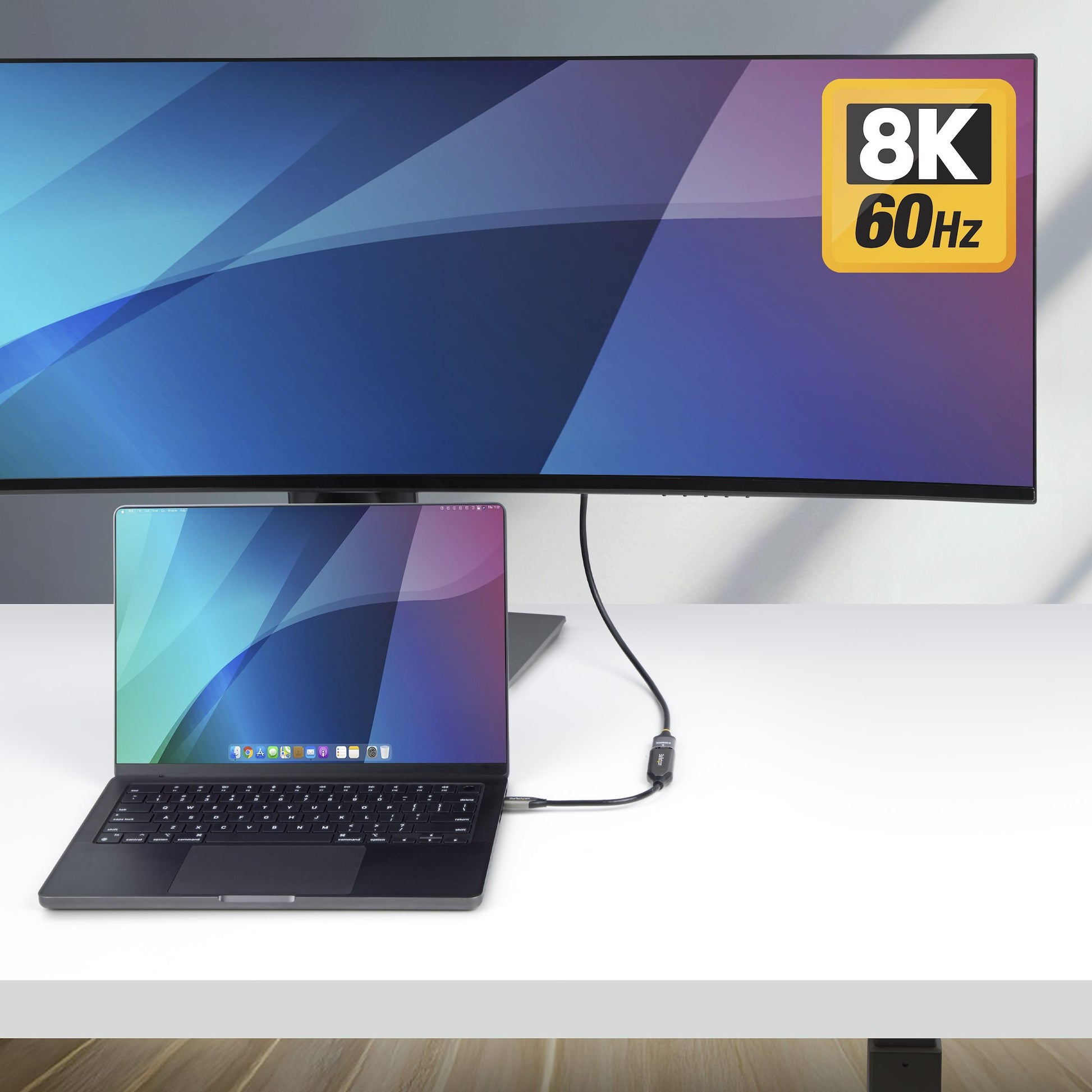

This USB-C to HDMI adapter enables ultra high-resolution video output at up to 8K at 60Hz through a USB-C DP Alt Mode port, making it ideal for video editing, 3D rendering, CAD work, digital signage, or boardroom displays.

Easy Setup, High Performance

With plug-and-play installation, the adapter connects to primary or secondary displays in extended or mirror mode, utilizing the host device's native GPU to deliver uncompressed, high-bandwidth video. It supports USB-C, USB4, and Thunderbolt laptops and devices without the need for drivers or software.

Seamless 8K Output Across Leading Devices

Compatible with major brands like Dell, HP, Lenovo, and Microsoft, the adapter delivers 8K 60Hz on Pro, Max, and Ultra models of Apple's M1, M2, and M3 chips, as well as all M4 versions. Base models of M1, M2, and M3 support up to 4K at 60Hz.

Deliver High-Performance Audio and Video Anywhere

Supporting HDMI 2.1, HDCP 2.3, HDR10+, and 7.1-channel audio, the adapter ensures a rich media experience. Its compact 7.9-inch (20cm) cable with a durable jacket withstands frequent use and is easy to carry.

Specifications

Features
Chipset	VIA - VL103, Parade - PS196
HDMI version	2.1
Product colour	Grey
Cable length	0.2 m
Connector 1	USB Type-C
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Nickel
Jacket material	Polyvinyl chloride (PVC)
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320
HDCP	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	144 Hz
HDCP version	2.3
High Dynamic Range (HDR) supported	Yes
Supported audio channels	7.1
USB Type-C DisplayPort Alternate Mode	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS
Other features
Width	16.3 mm
Height	5 mm
Depth	200 mm
Weight & dimensions
Weight	22.5 g
Package width	0.0100 mm
Package depth	120 mm
Package height	220 mm
Package weight	10 g
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	515 mm
Master (outer) case length	300 mm
Master (outer) case height	125 mm
Products per master (outer) case	168 pc(s)

Downloads

• Datasheet (PDF)
