StarTech.com USB-C to HDMI Adapter, 4K 60Hz Video, HDR10, USB-C to HDMI Monitor Hub

The StarTech.com USB-C to HDMI Adapter expands your ports in seconds — plug in and go.

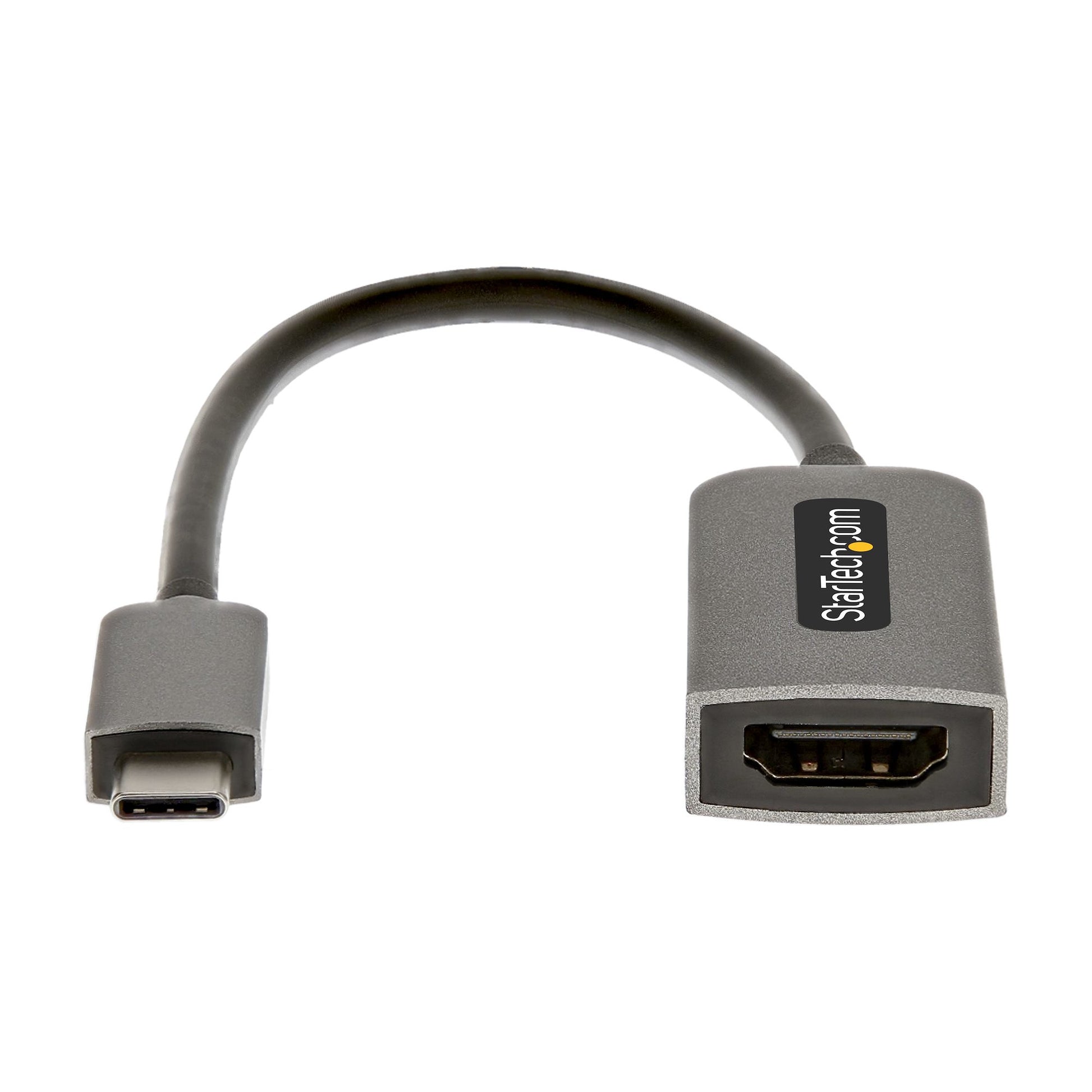

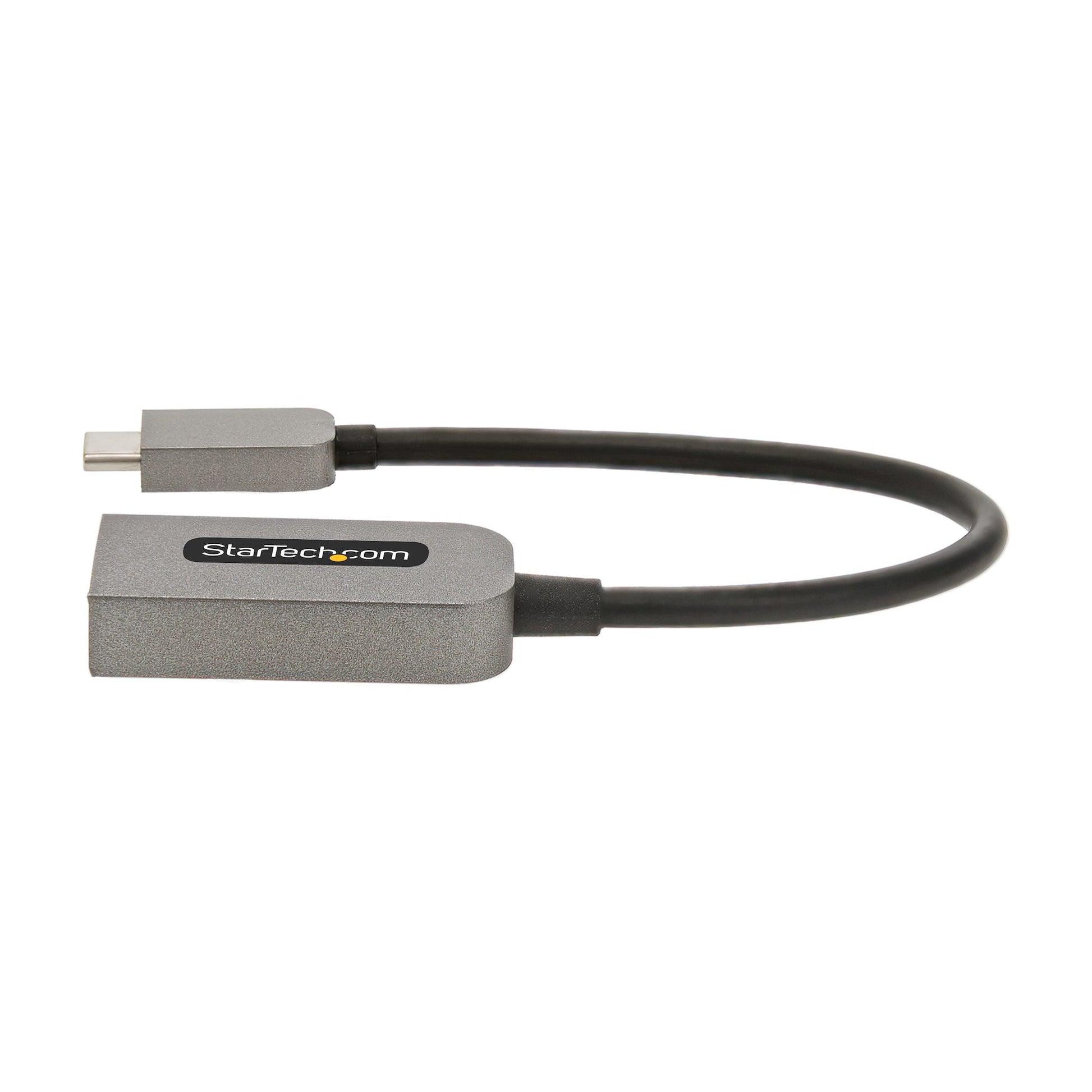

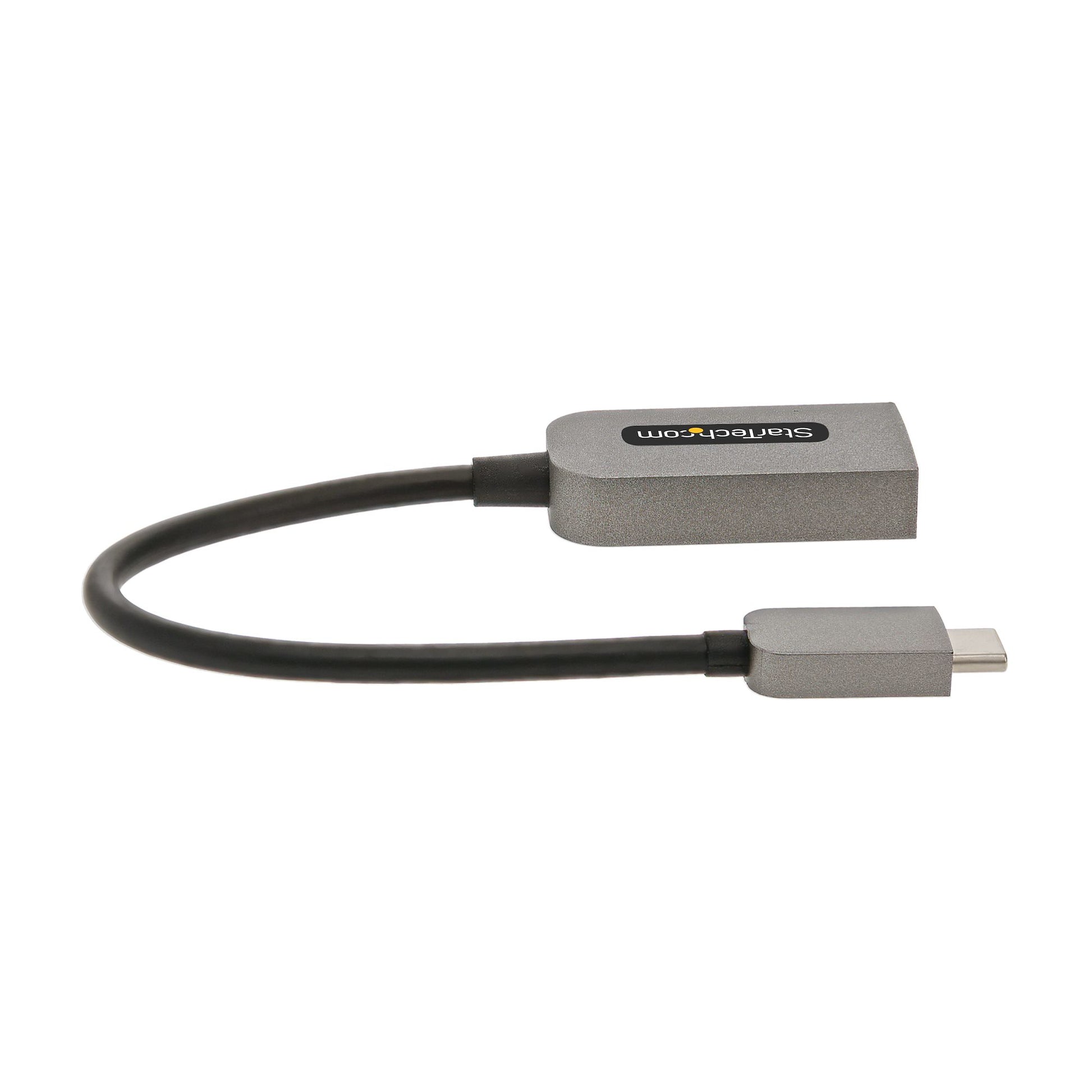

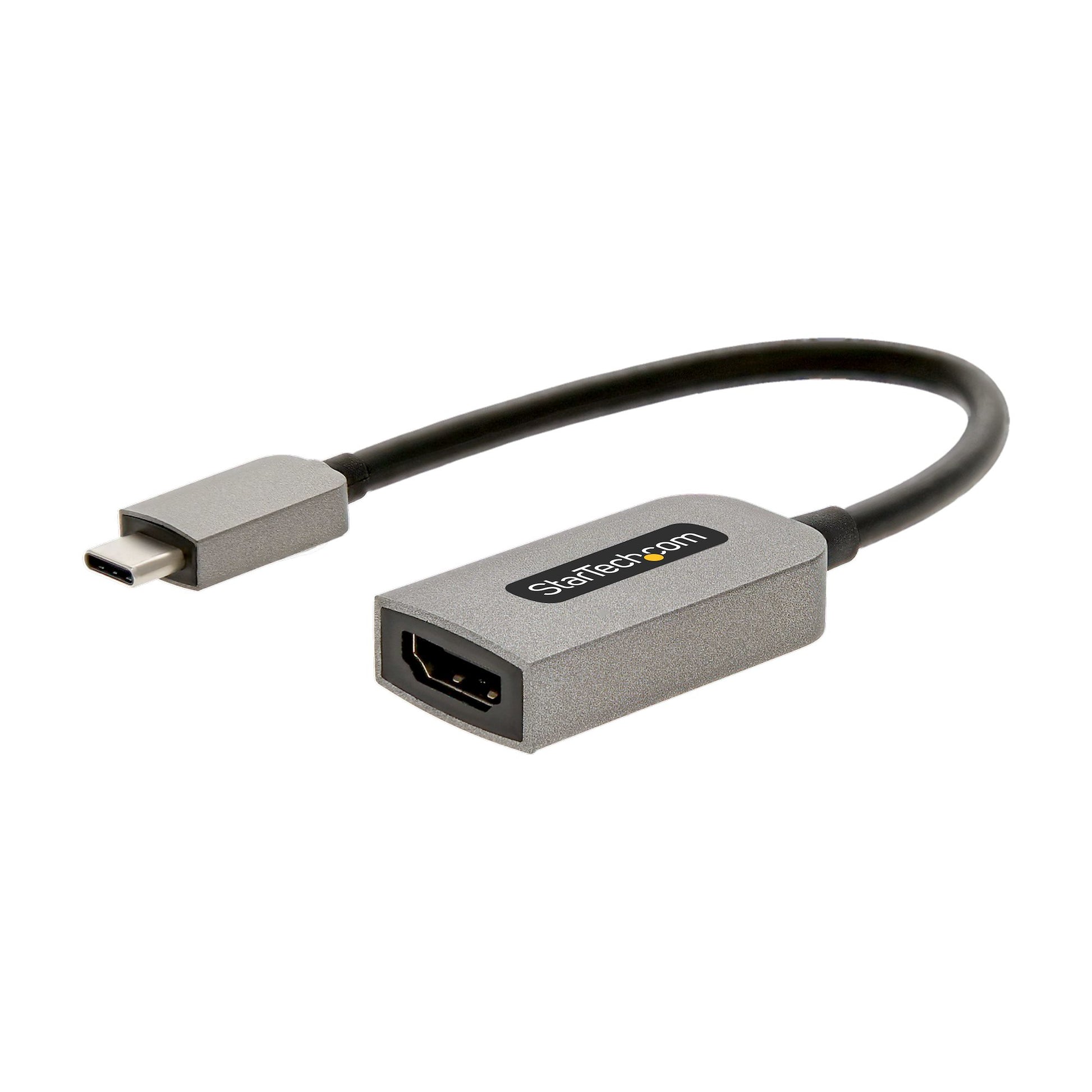

Compact USB-C to 4K 60Hz HDMI dongle with HDR10 support

This adapter is a practical solution for ultra-slim USB Type-C laptops and tablets that don't include HDMI ports, an increasingly common challenge in today's mobile work environments.

4K 60Hz with HDR

The USB-C video adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 X 2160) and bandwidths up to 18Gbps. It delivers 4:4:4 chroma subsampling for accurate color reproduction and sharp image fidelity. Backward compatibility ensures smooth integration with earlier HDMI versions.

Enjoy enhanced contrast, brightness, and color accuracy thanks to High Dynamic Range (HDR) support, enabling more vivid and true-to-life visuals in digital signage, video conferencing, or high-resolution presentations.

Built for Business Durability

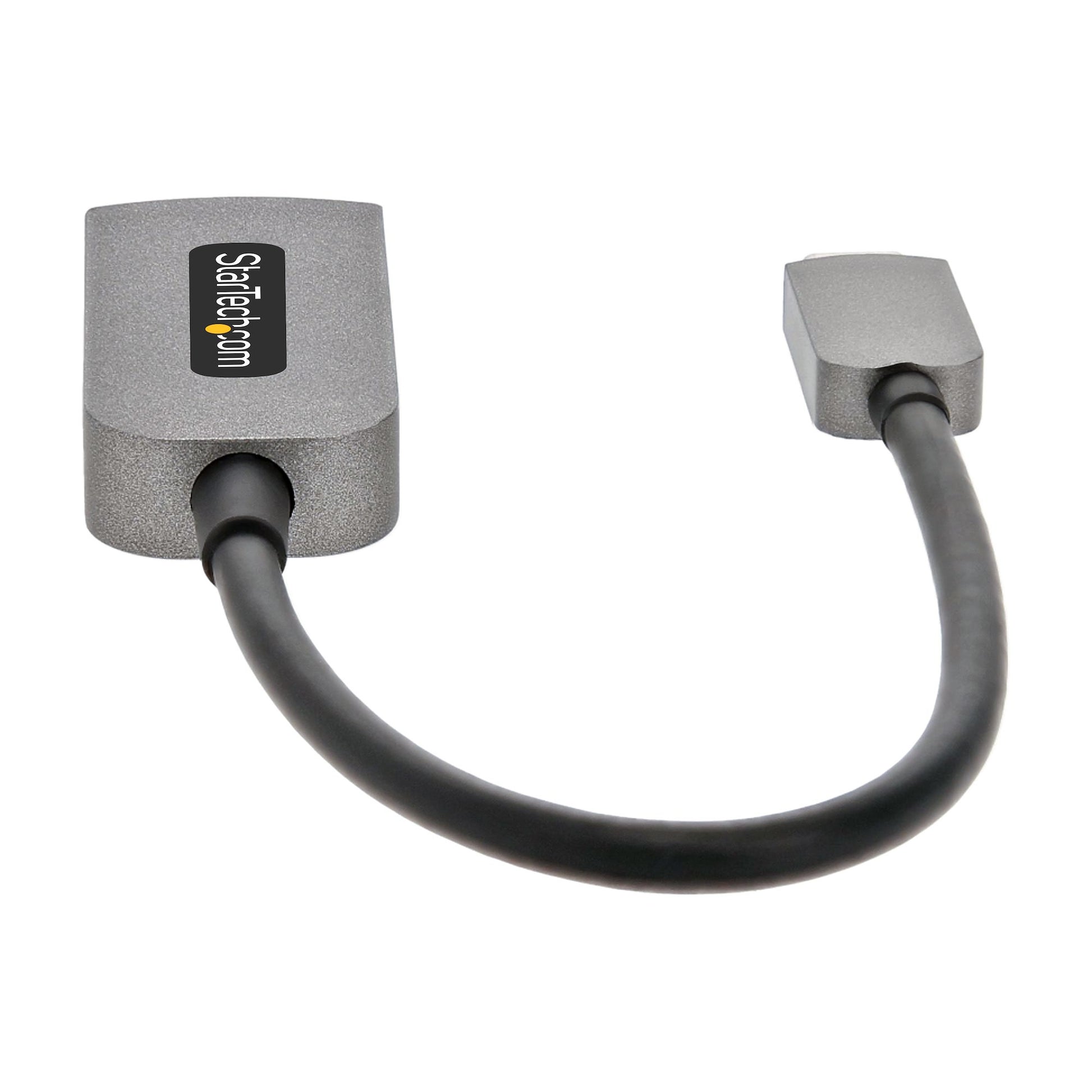

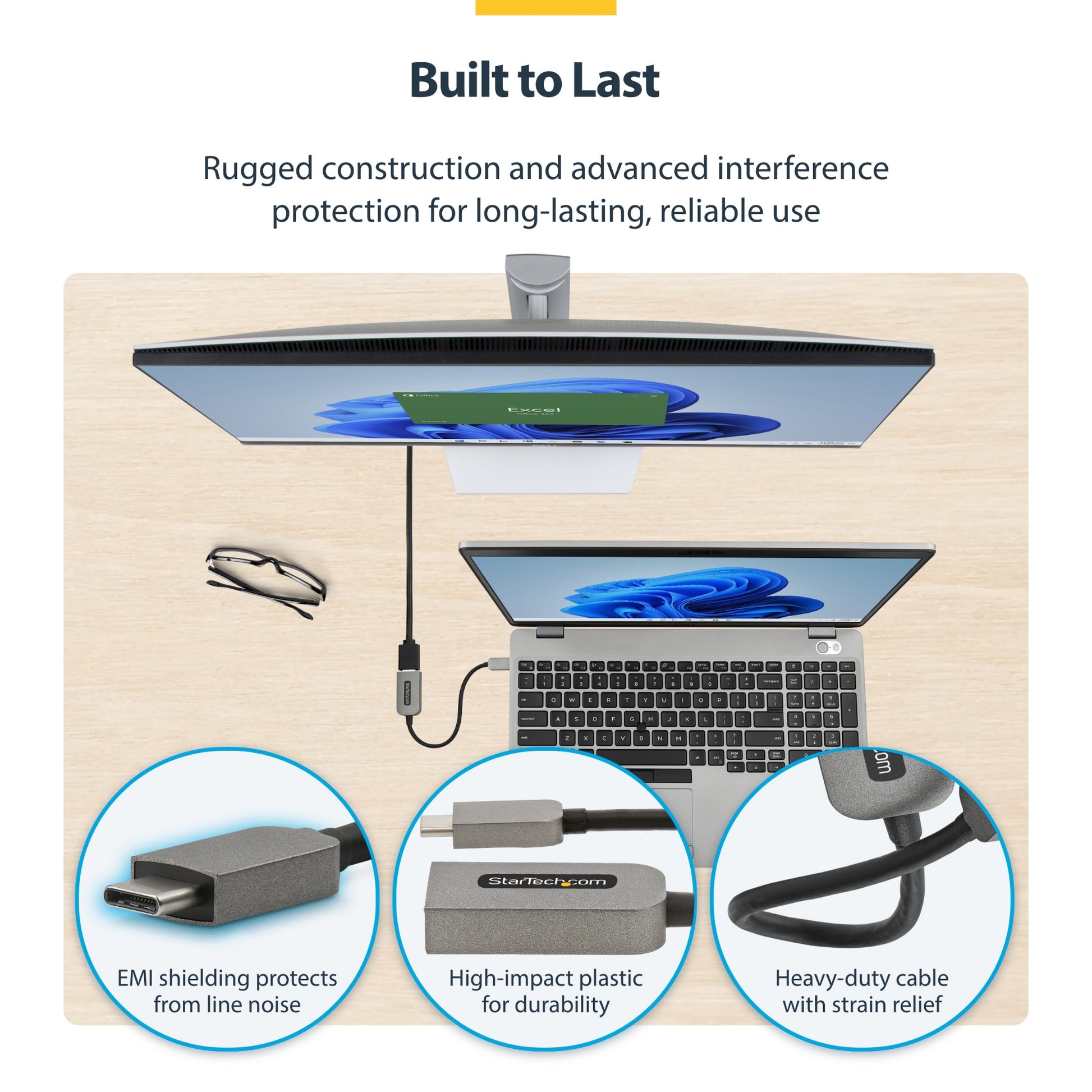

Designed for daily use, this compact lightweight adapter features a metal inner housing for EMI shielding on the USB-C connector, a high-impact plastic shell for durability, and a heavy-duty cable with molded strain relief for long-term reliability.

Notes:

• To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b.
• NVIDIA graphics adapters may not support 4:4:4 chroma subsampling.

Specifications

Performance
USB connector form factor	Straight
Chipset	ANX7517
Supported graphics resolutions	3840 x 2160, 4096 x 2160
USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	1
HDMI version	2.0b
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Audio output channels	2.0 channels
Design
Product colour	Grey
USB cable length	0.13 m
Weight & dimensions
Depth	44 mm
Height	10.5 mm
Weight	16 g
Package width	128 mm
Package depth	125 mm
Package height	14 mm
Package weight	22 g
Technical details
Products per master (outer) case	300 pc(s)
Master (outer) case width	507 mm
Master (outer) case length	330 mm
Master (outer) case height	217 mm
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	25 - 60%

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
