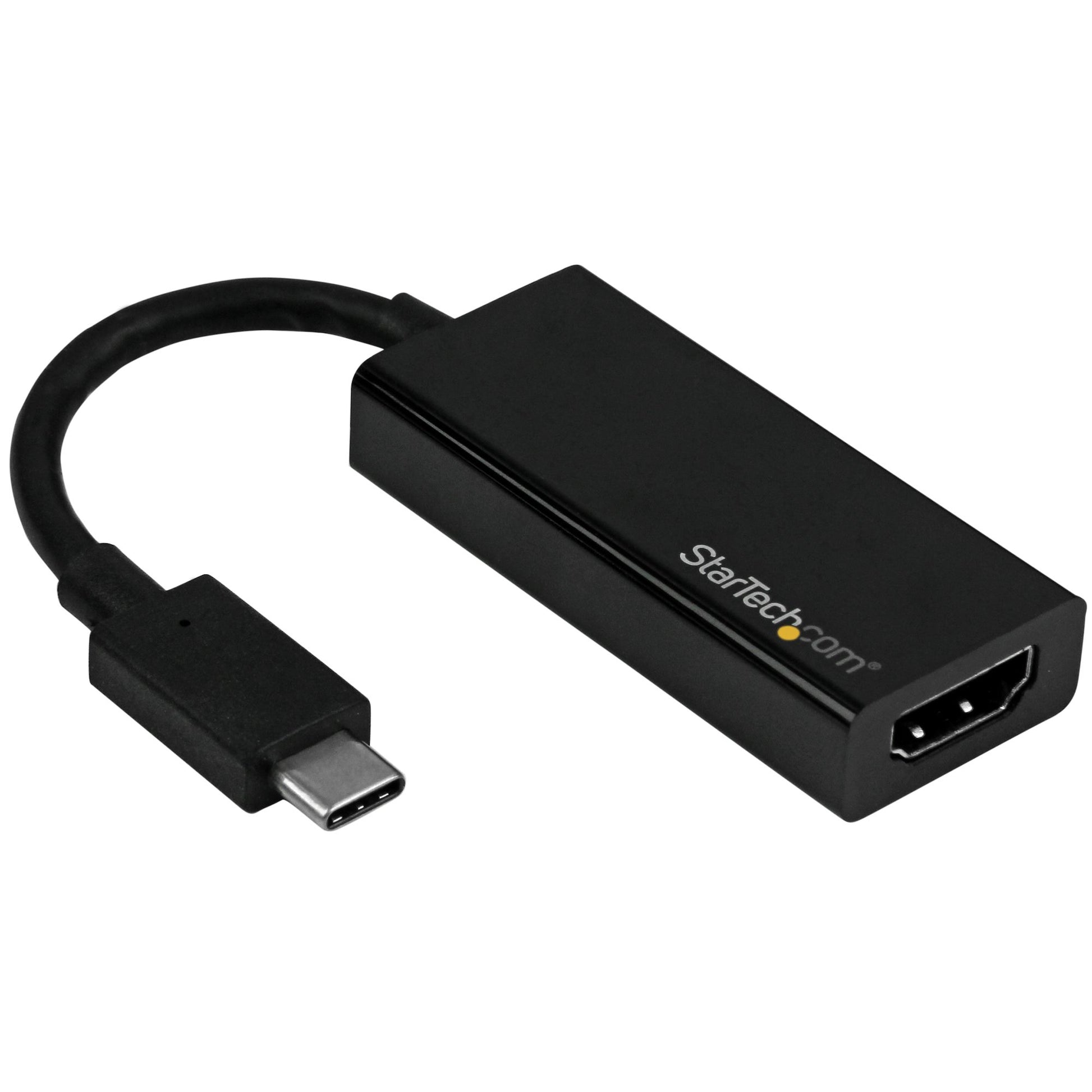

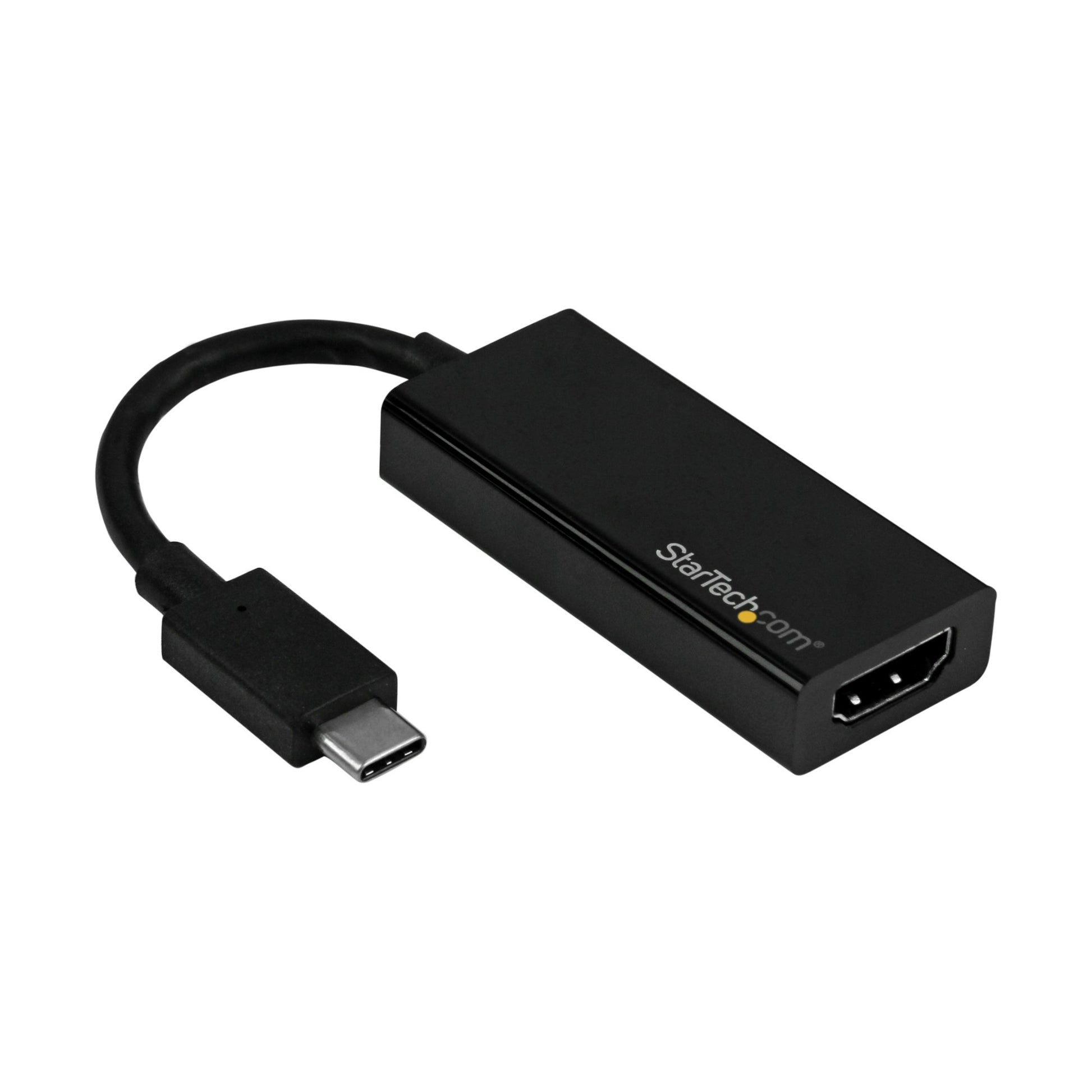

StarTech.com USB-C to HDMI Adapter - 4K 60Hz Hub

The StarTech.com USB-C to HDMI Adapter expands your ports in seconds — plug in and go.

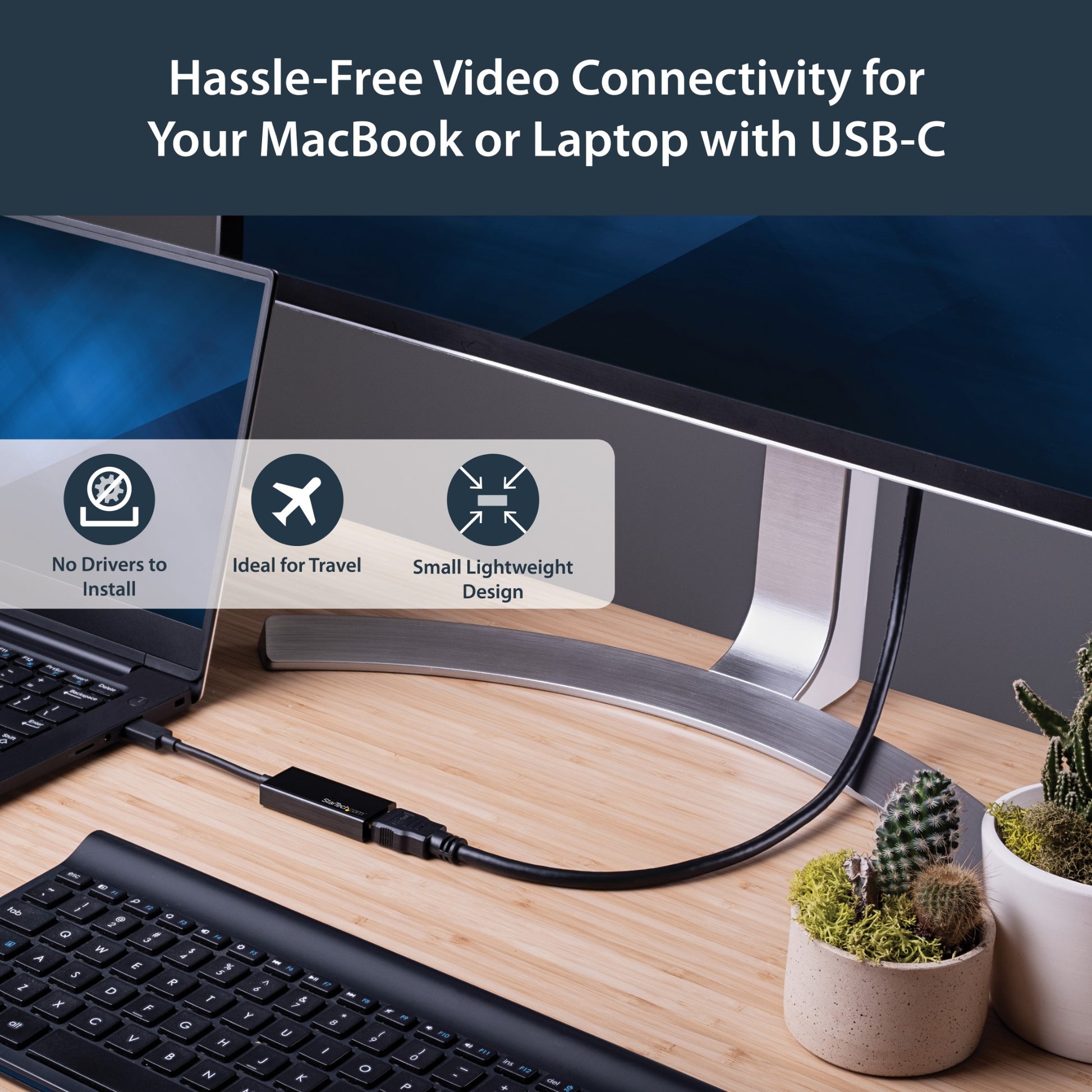

Connect your MacBook, Chromebook or other USB Type-C laptop to an Ultra HD 60Hz display or projector

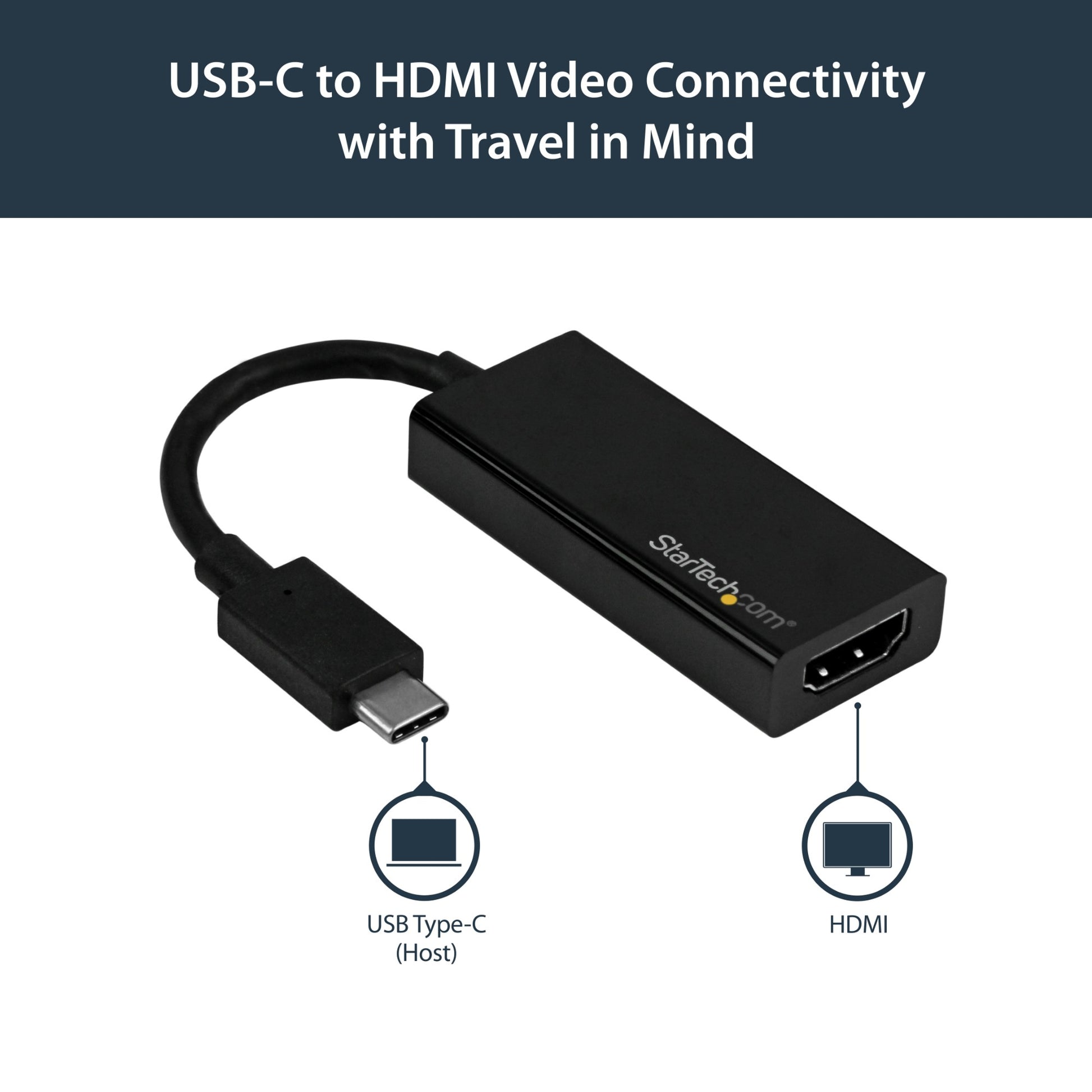

This USB-C™ to HDMI® adapter lets you output HDMI video and audio from a USB Type-C™ device, such as a USB-C equipped MacBook, with support for Ultra HD 4K at 60 Hz. This adapter works with USB-C devices that pass a DisplayPort video signal, and it's also compatible with Thunderbolt™ 3 ports.

Astonishing Picture Quality

The adapter lets you harness the video capabilities that are built into your USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60 Hz display. This makes it easier for you to multitask, while working on the most resource-demanding applications imaginable. With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60 Hz, which is perfect for performing high-resolution tasks such as viewing 4K video. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.

Ultimate Portability

This USB Type-C video adapter is highly portable, with a small footprint and a lightweight design. The adapter is the perfect accessory for your new slim USB-C device, fitting easily into your laptop bag or carrying case, which is great for BYOD (Bring Your Own Device) applications at the office.

Hassle-Free Connection with USB Type-C

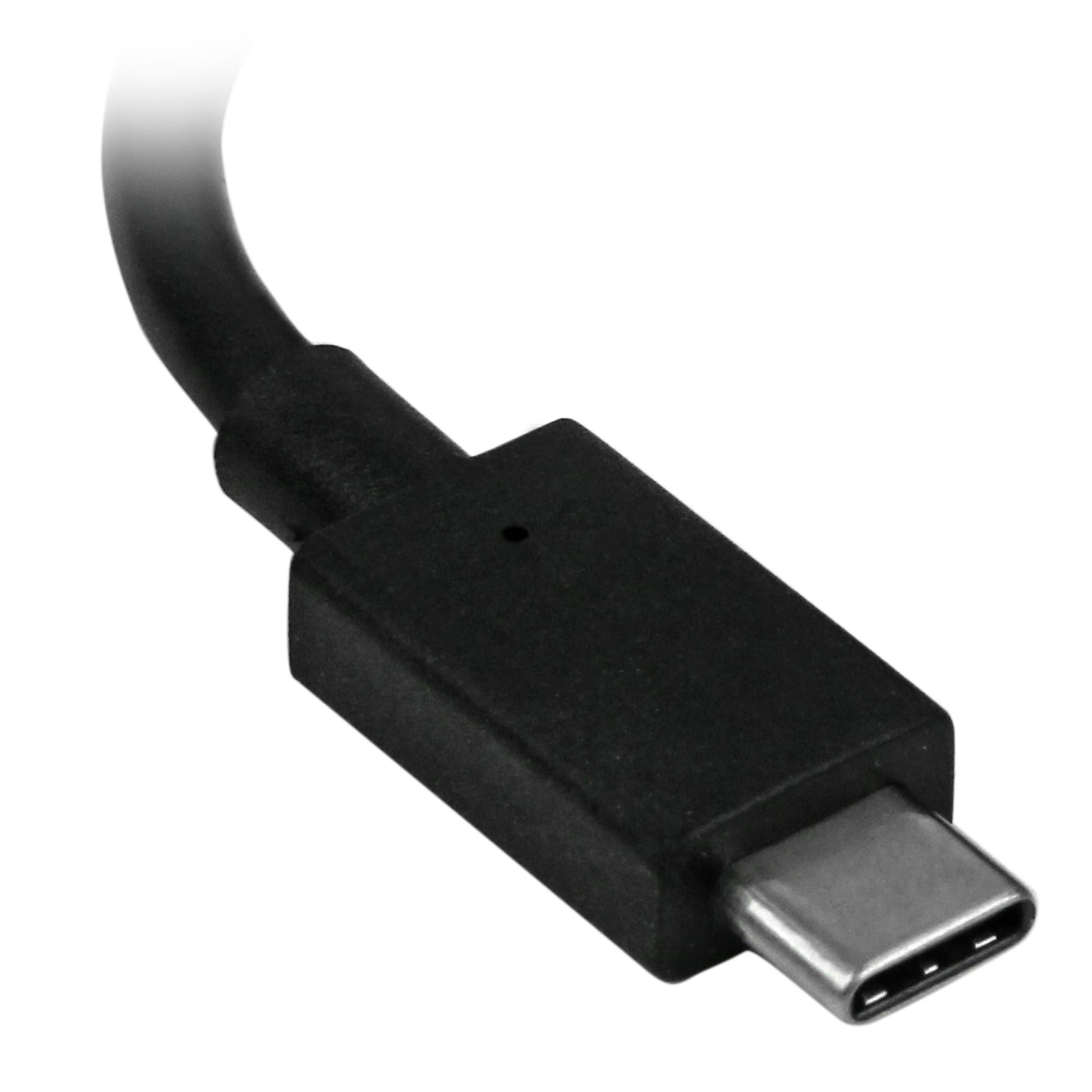

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in. The reversible connector means you will always plug it in correctly on your first try, saving you the hassle and distraction of repeatedly attempting to connect your laptop to a display or projector, while you're delivering a presentation or speaking to a group.

The CDP2HD4K60 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

• Your USB-C equipped device must support video to work with this adapter.

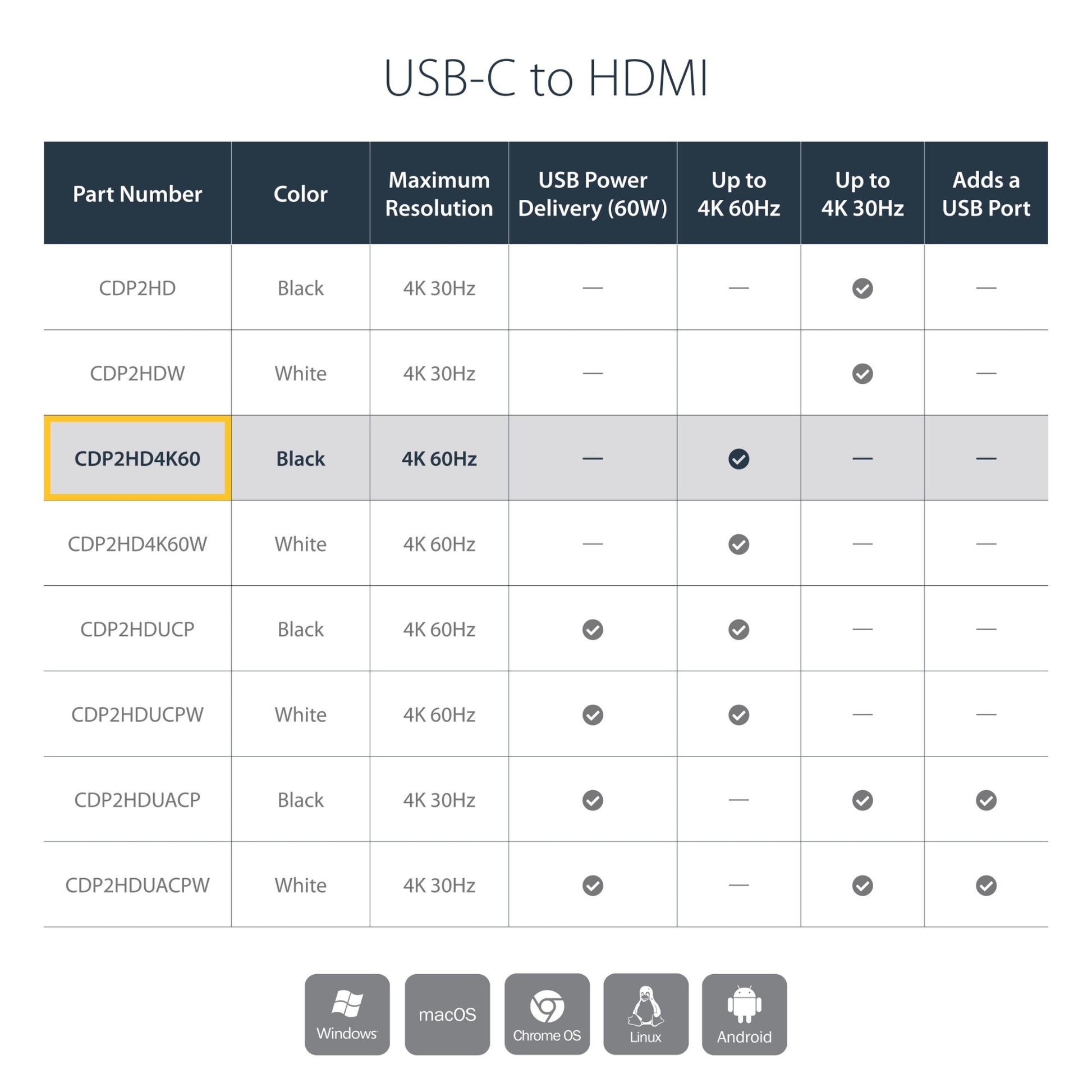

• This product may experience display detection issues with certain models of Mac. If you’re experiencing issues please contact our technical support. For hassle-free compatibility with Mac we recommend CDP2HD4K60H.

Specifications

Performance
USB connector form factor	Straight
Chipset	Parade - PS176, STMicroelectronics - STM32F072CBU6
Supported video modes	720p, 1080p, 2160p
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	1
HDMI version	2.0
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Maximum resolution (HDMI)	3840 x 2160 pixels
Audio output channels	7.1 channels
Design
Product colour	Black
Integrated USB cable	Yes

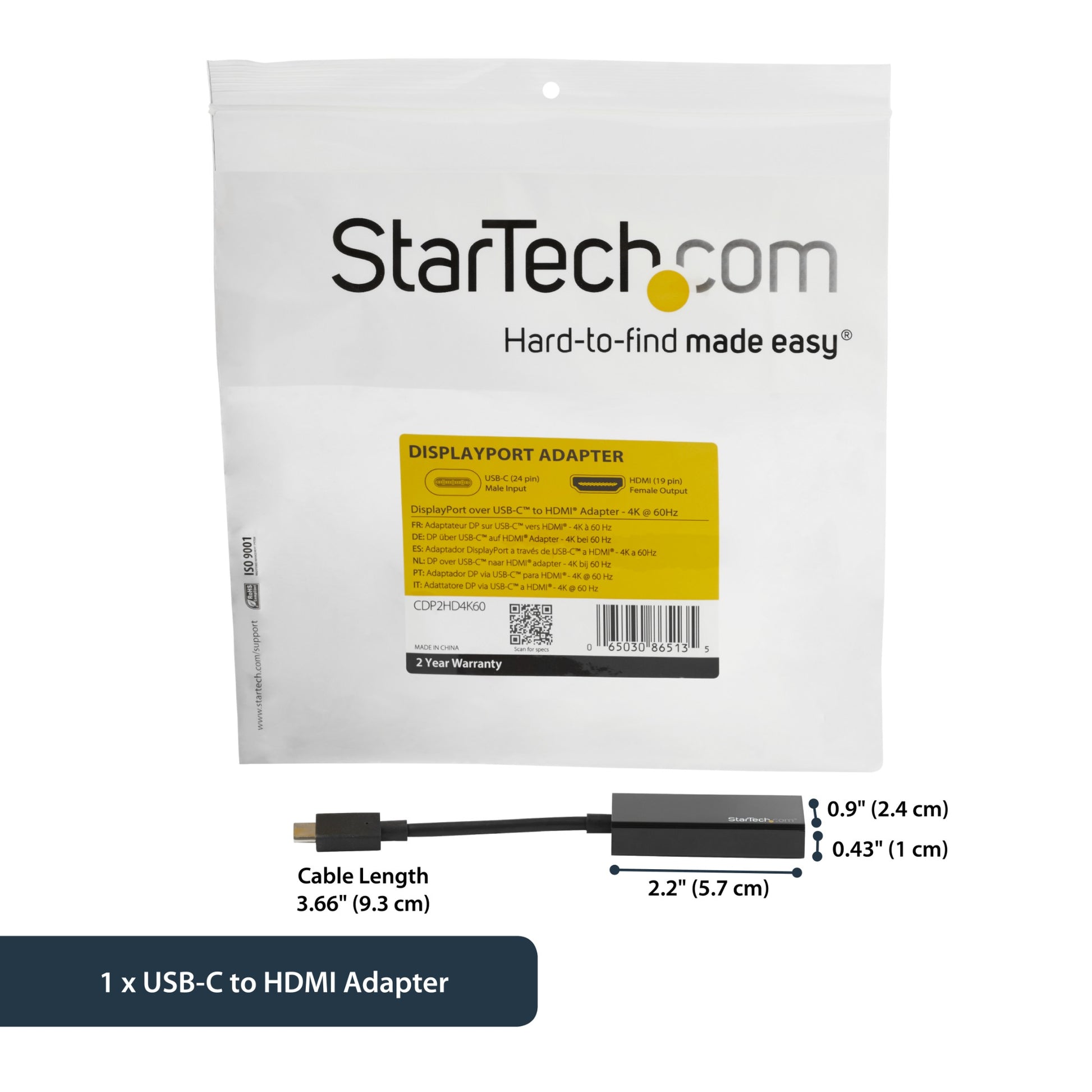

USB cable length	0.093 m
Weight & dimensions
Width	25 mm
Depth	150 mm
Height	11 mm
Weight	23 g
Package width	200 mm
Package depth	220 mm
Package height	6 mm
Package weight	32 g
Technical details
Products per master (outer) case	120 pc(s)
Master (outer) case width	335 mm
Master (outer) case length	495 mm
Master (outer) case height	230 mm
Sustainability compliance	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	25 - 85%

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
