StarTech.com USB-C to Dual HDMI Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K

The StarTech.com USB-C to Dual HDMI expands your ports in seconds — plug in and go.

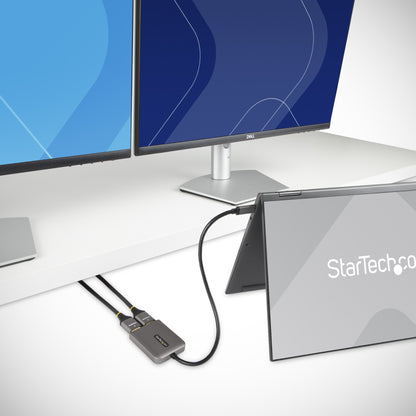

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent HDMI® monitors

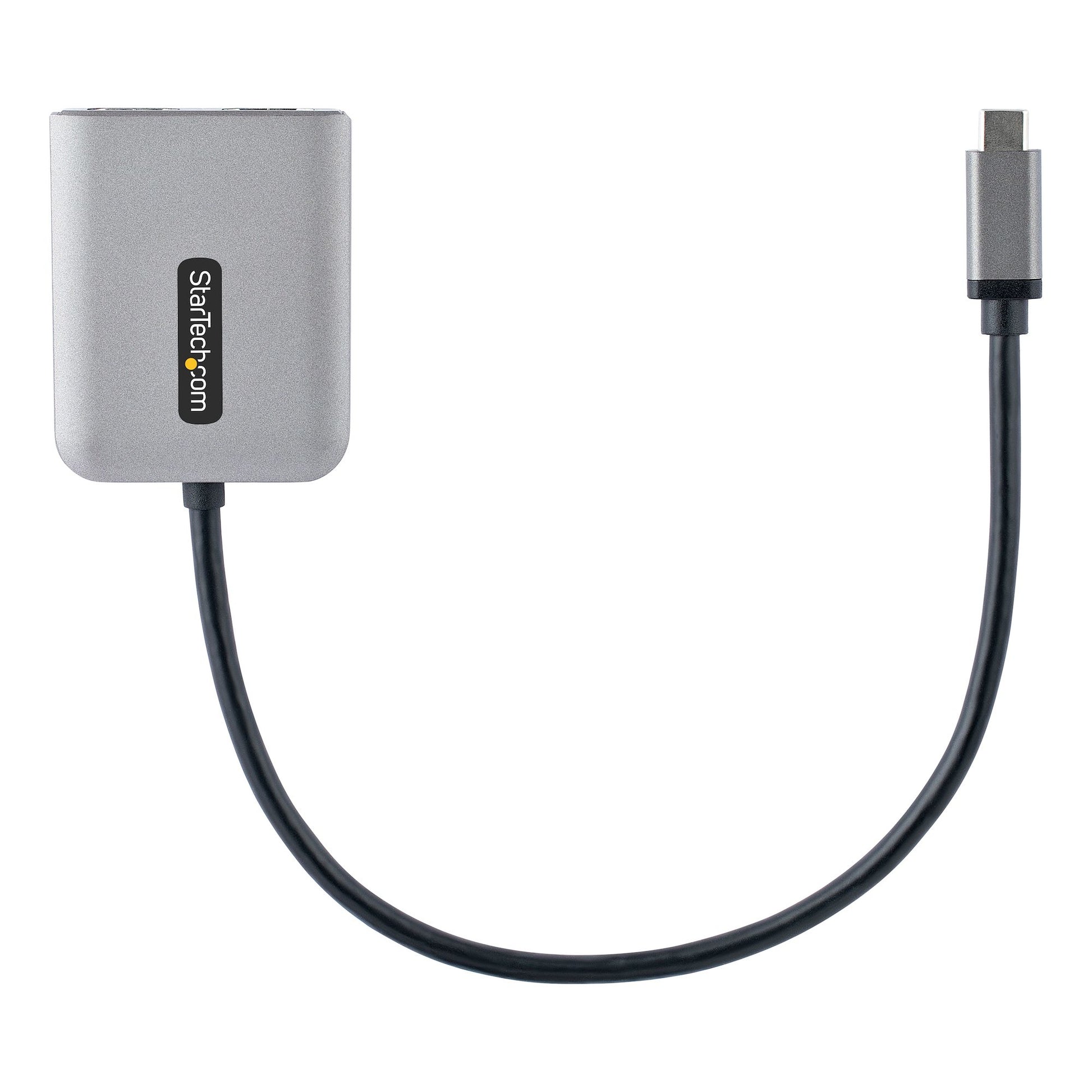

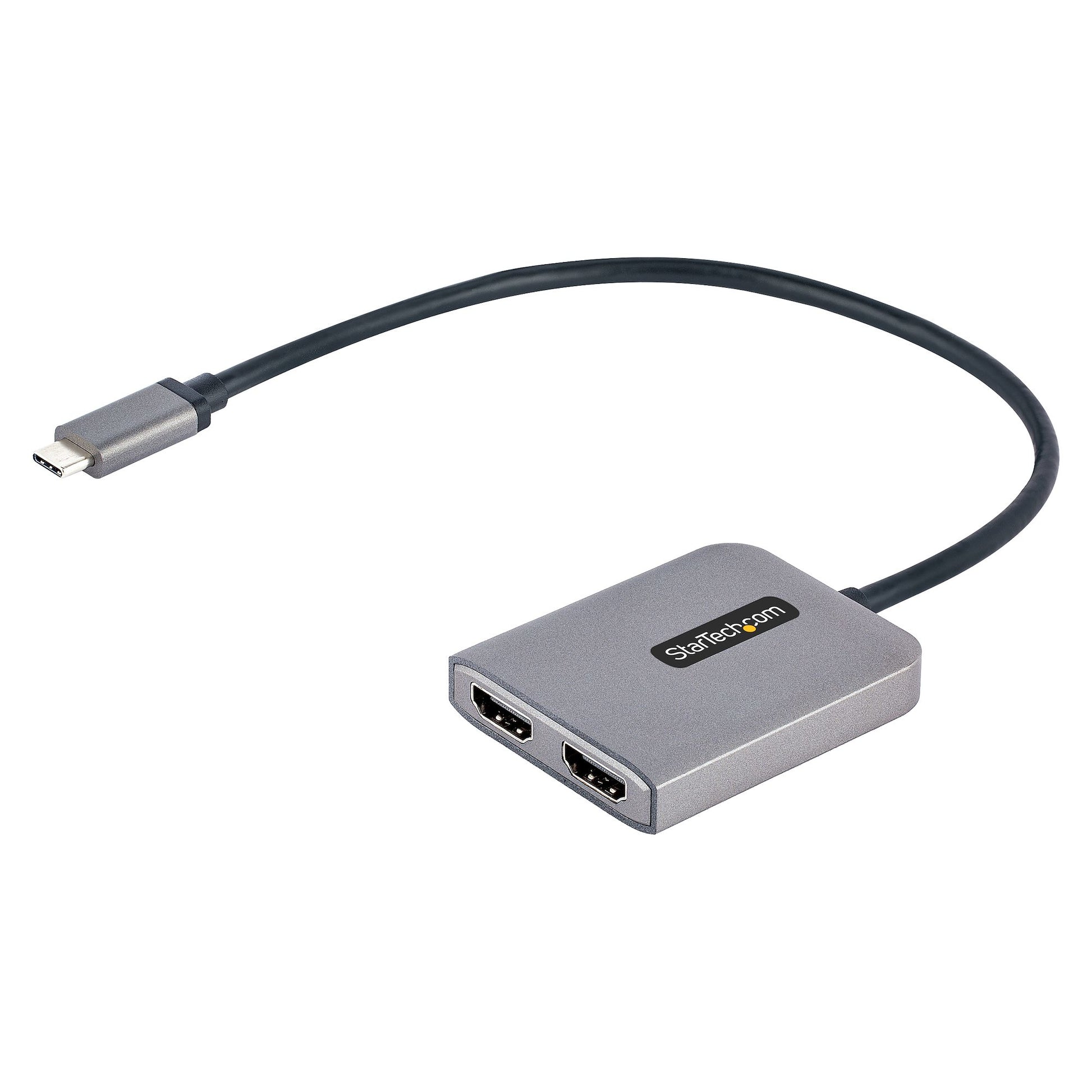

This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.

Multi-tasking Made Easy

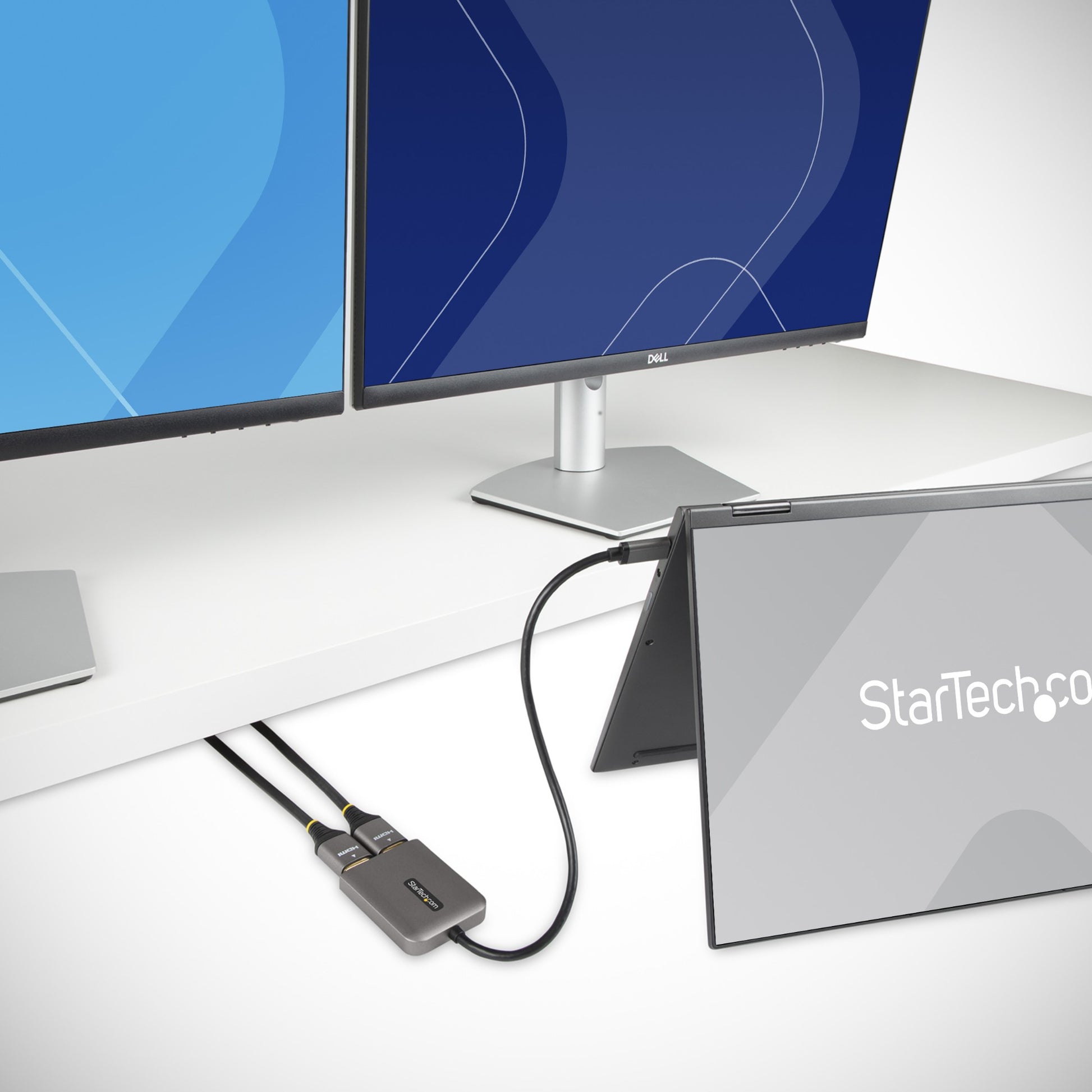

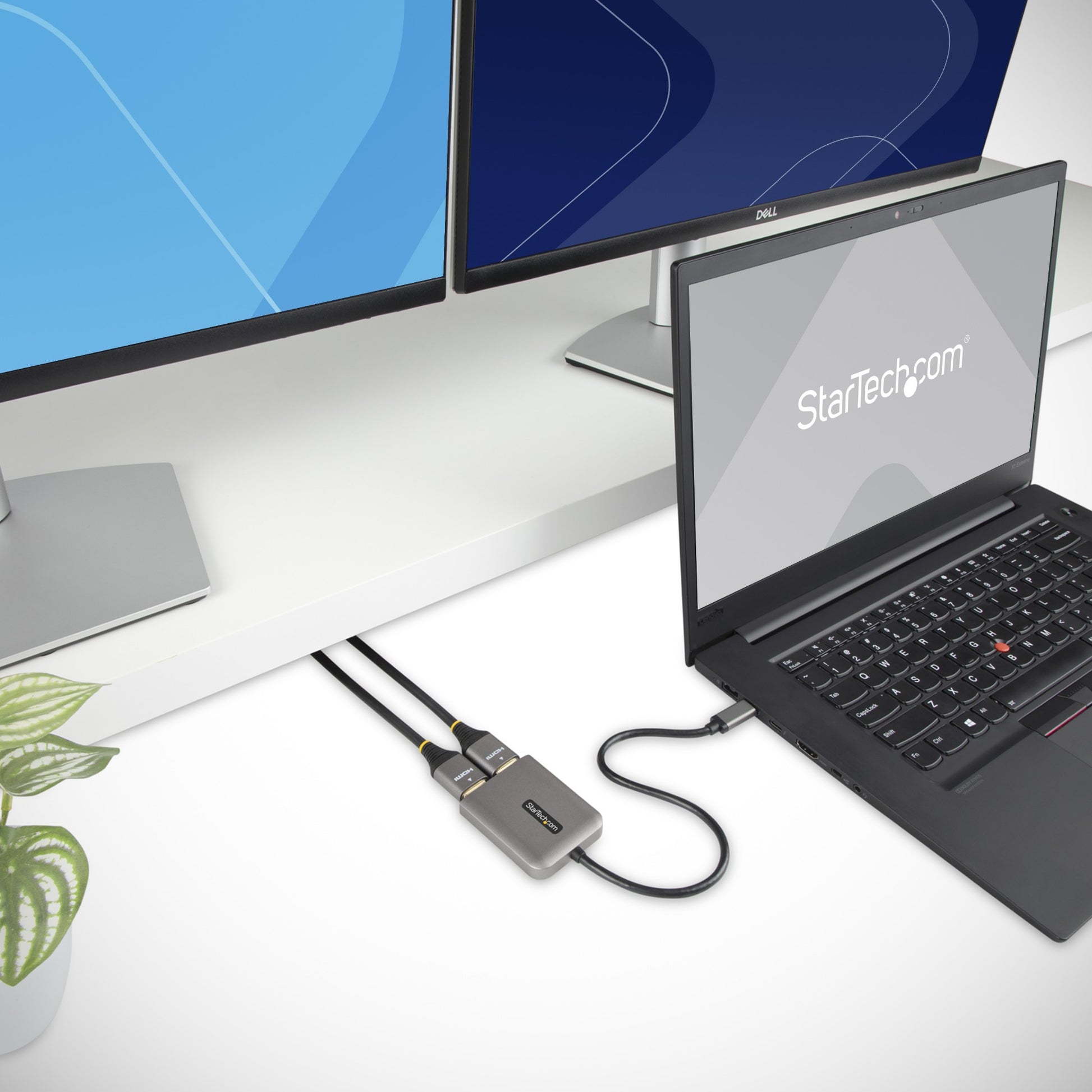

This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.

Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

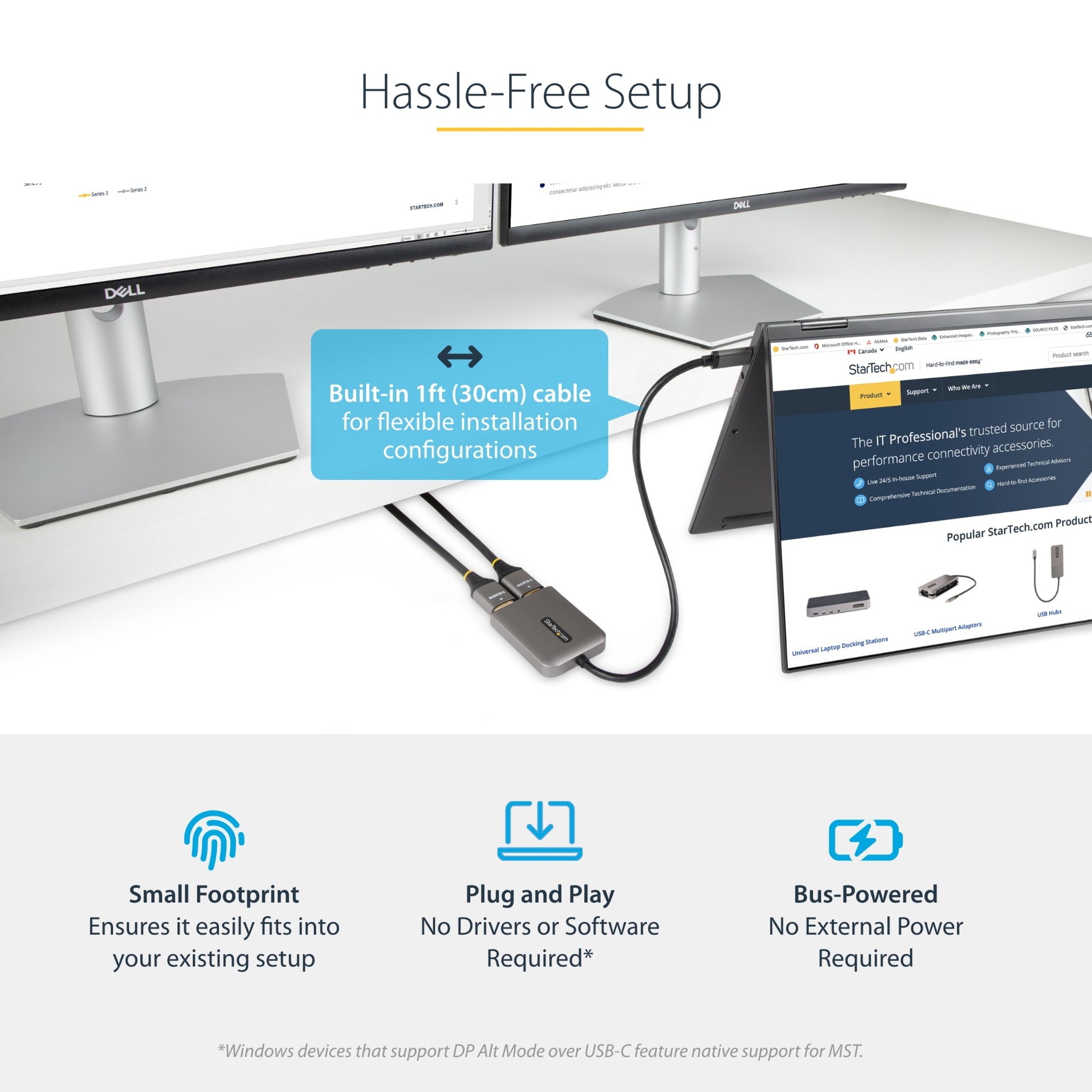

Hassle-Free Setup

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.

MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.

Specifications

Performance
USB connector form factor	Straight
Chipset	Synaptics VMM5200

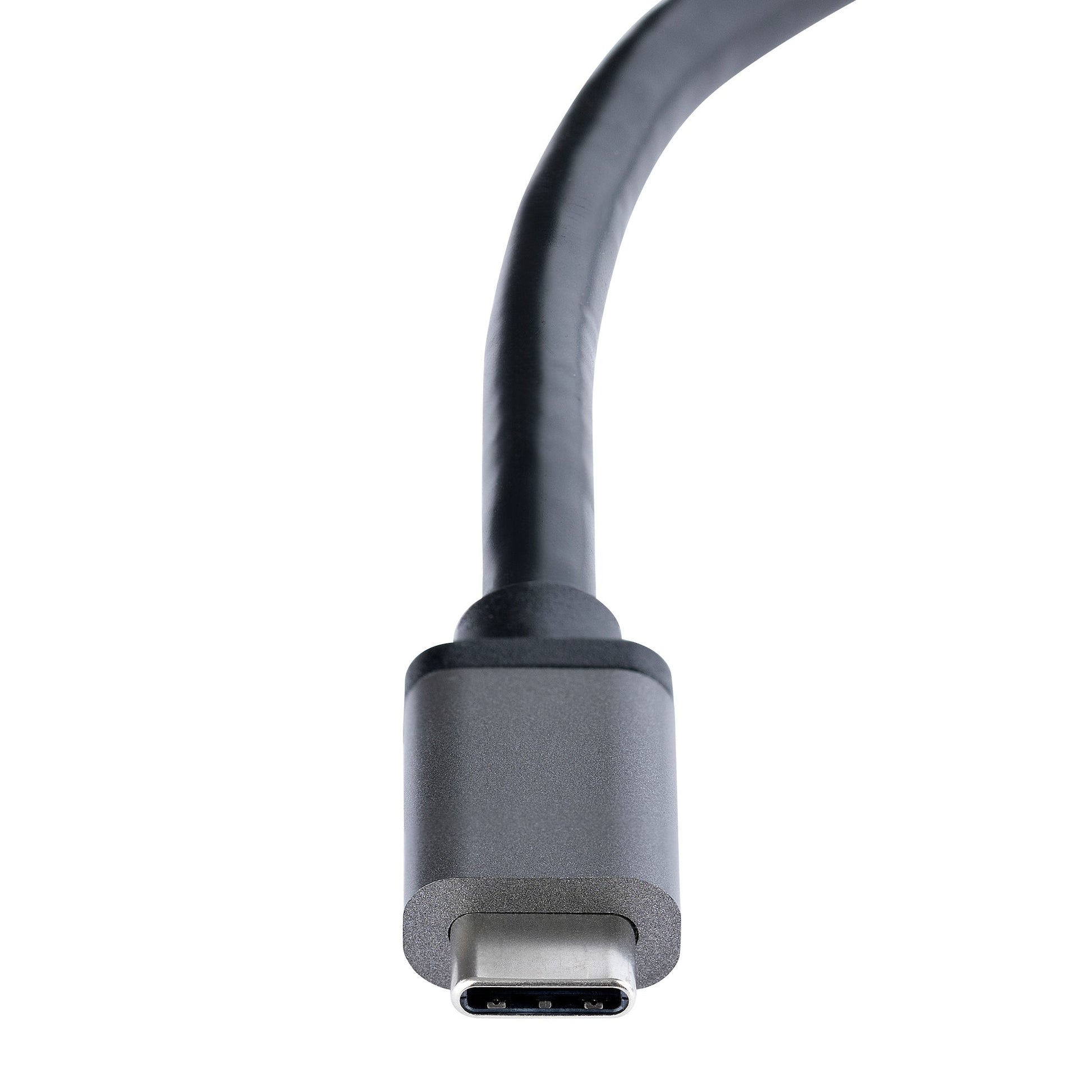

USB connector type	USB Type-C
USB connector gender	Male

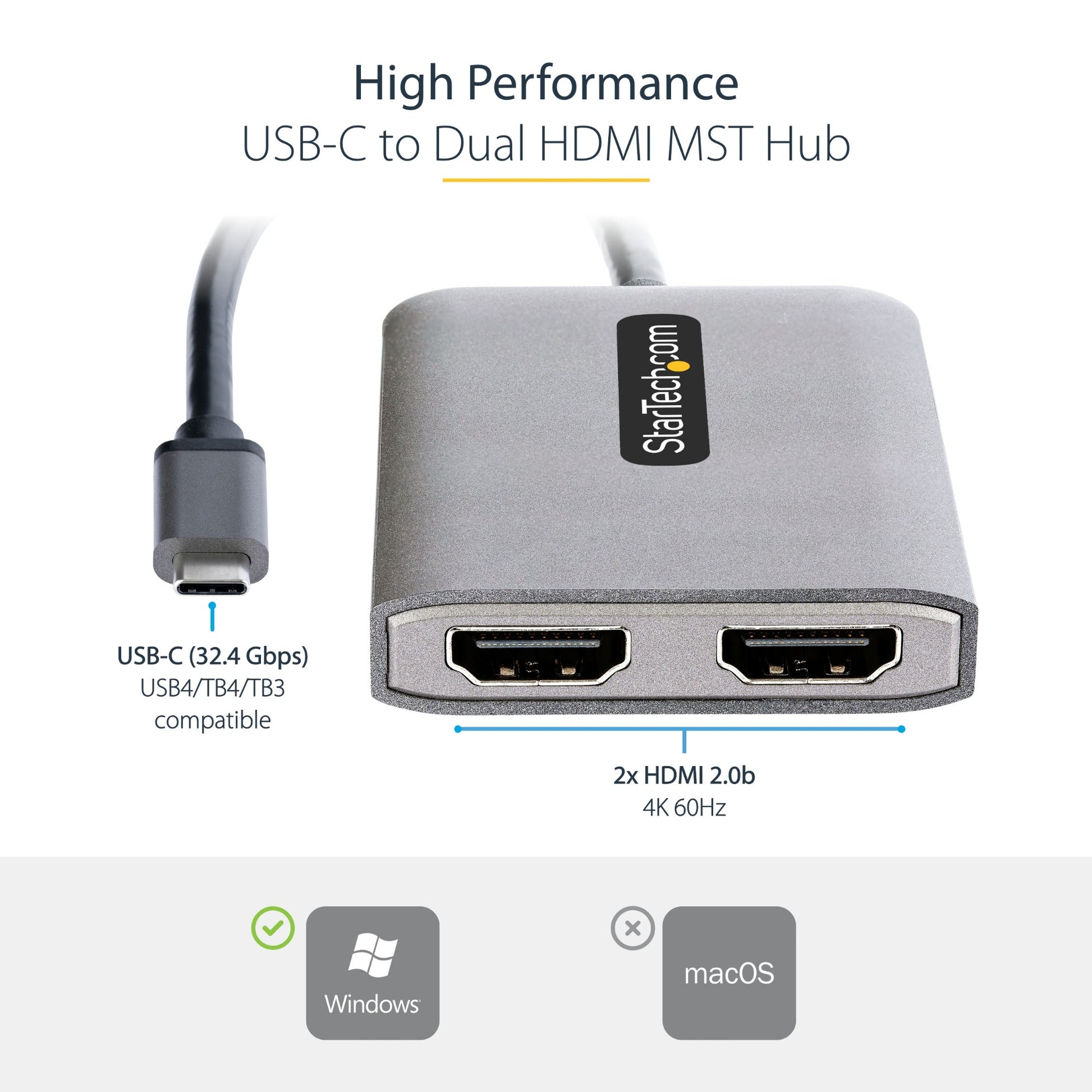

Data transfer rate (max)	32.4 Gbit/s
DVI output	No
HDMI output	Yes
DisplayPort output	Yes
Number of displays supported	2
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Audio output channels	7.1 channels

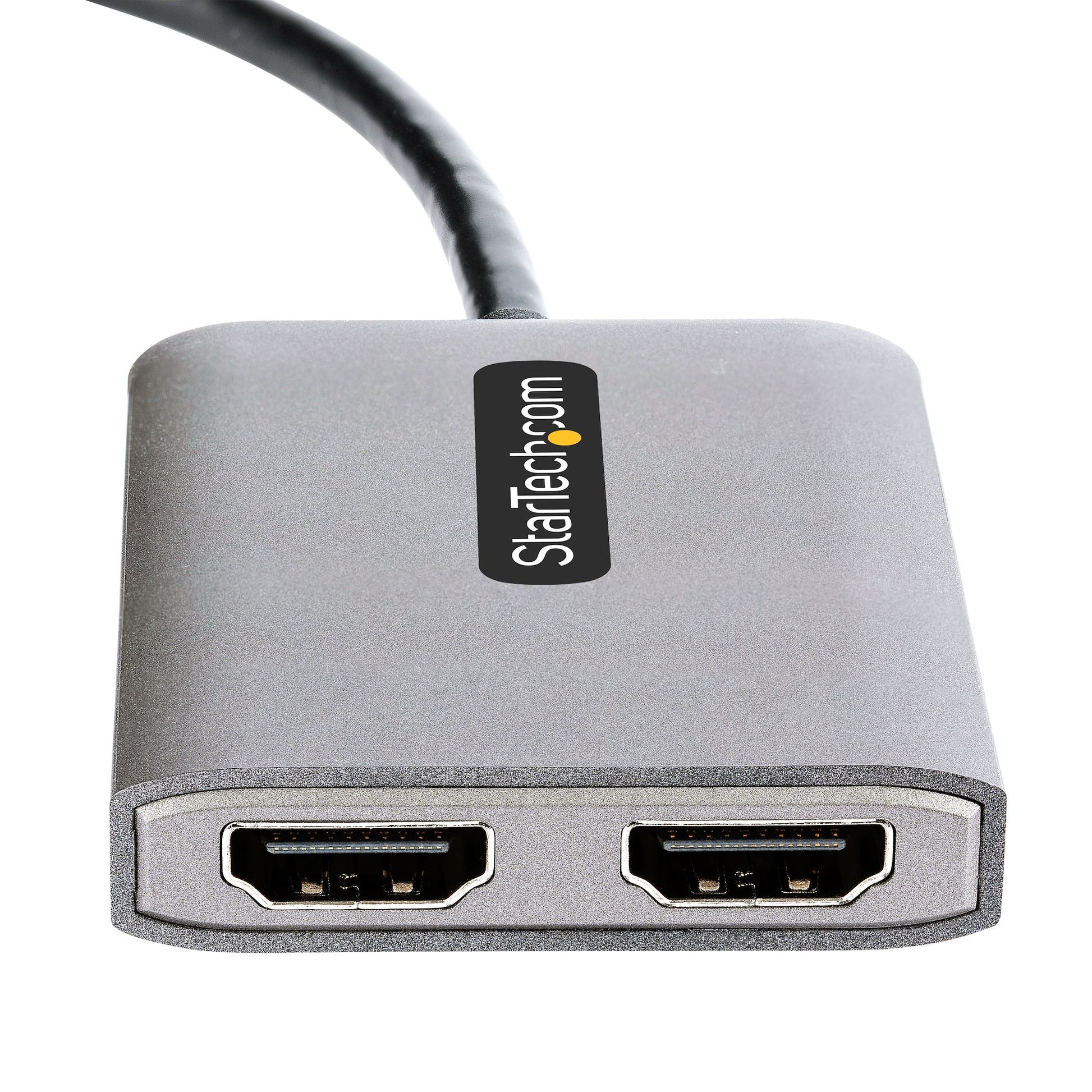

HDMI ports quantity	2
High Dynamic Range (HDR) supported	Yes
Design
Product colour	Black, Grey
Housing material	Plastic
Integrated USB cable	Yes
USB cable length	0.3 m
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64
Weight & dimensions
Width	105 mm
Depth	43 mm
Height	14 mm
Weight	55 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	108.8 g
Technical details
Products per master (outer) case	70 pc(s)
Master (outer) case width	460 mm
Master (outer) case length	331 mm
Master (outer) case height	440 mm
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%

Downloads

• Datasheet (PDF)
