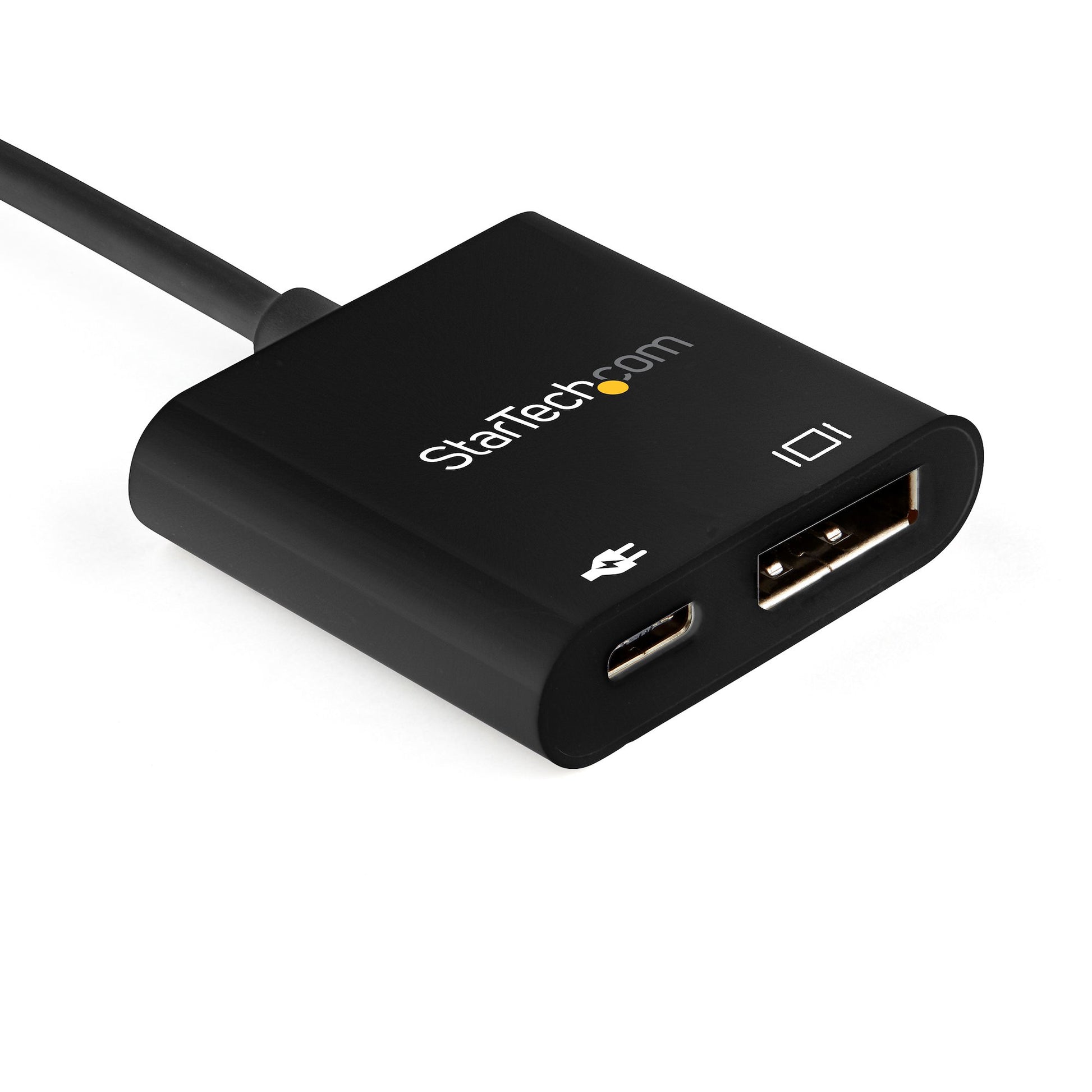

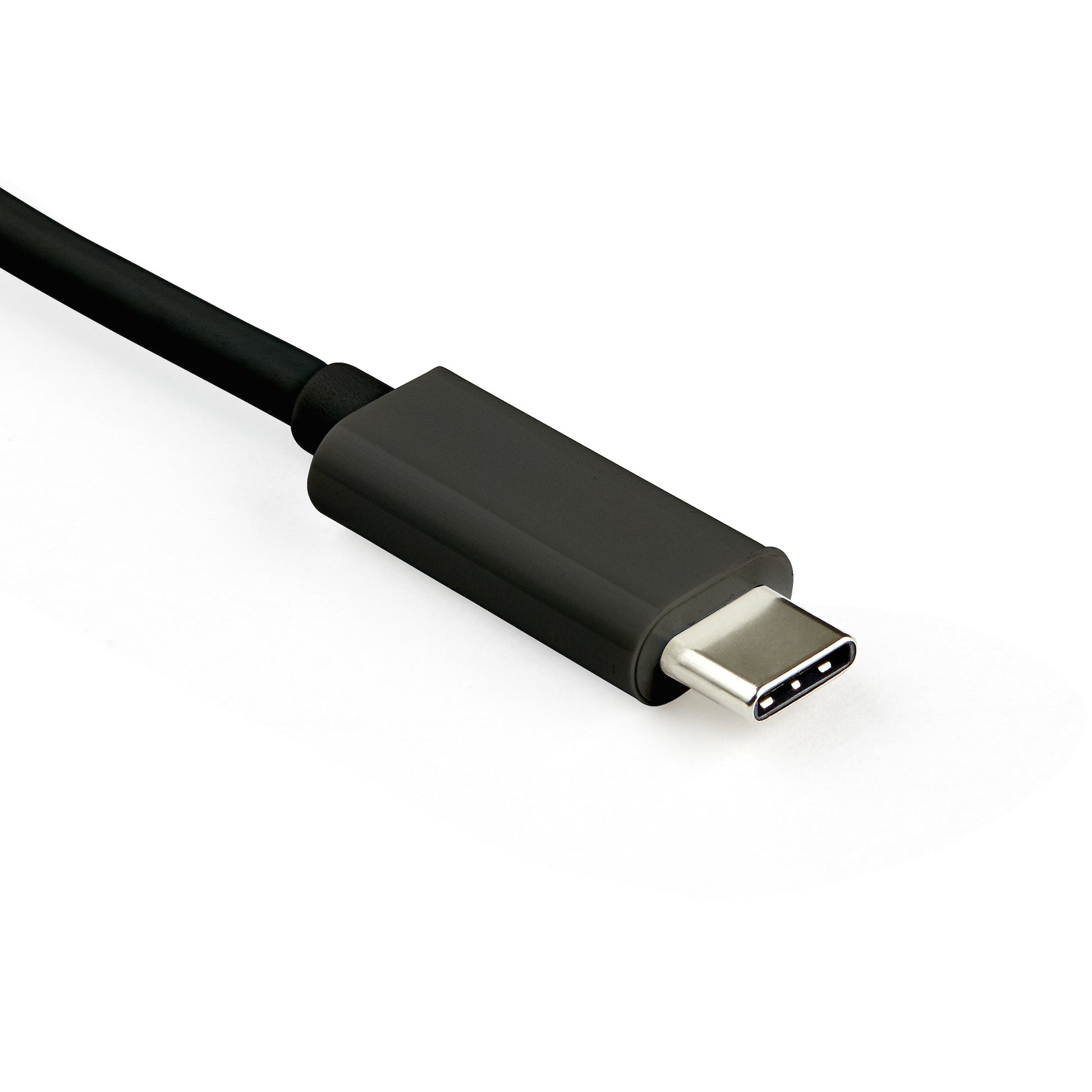

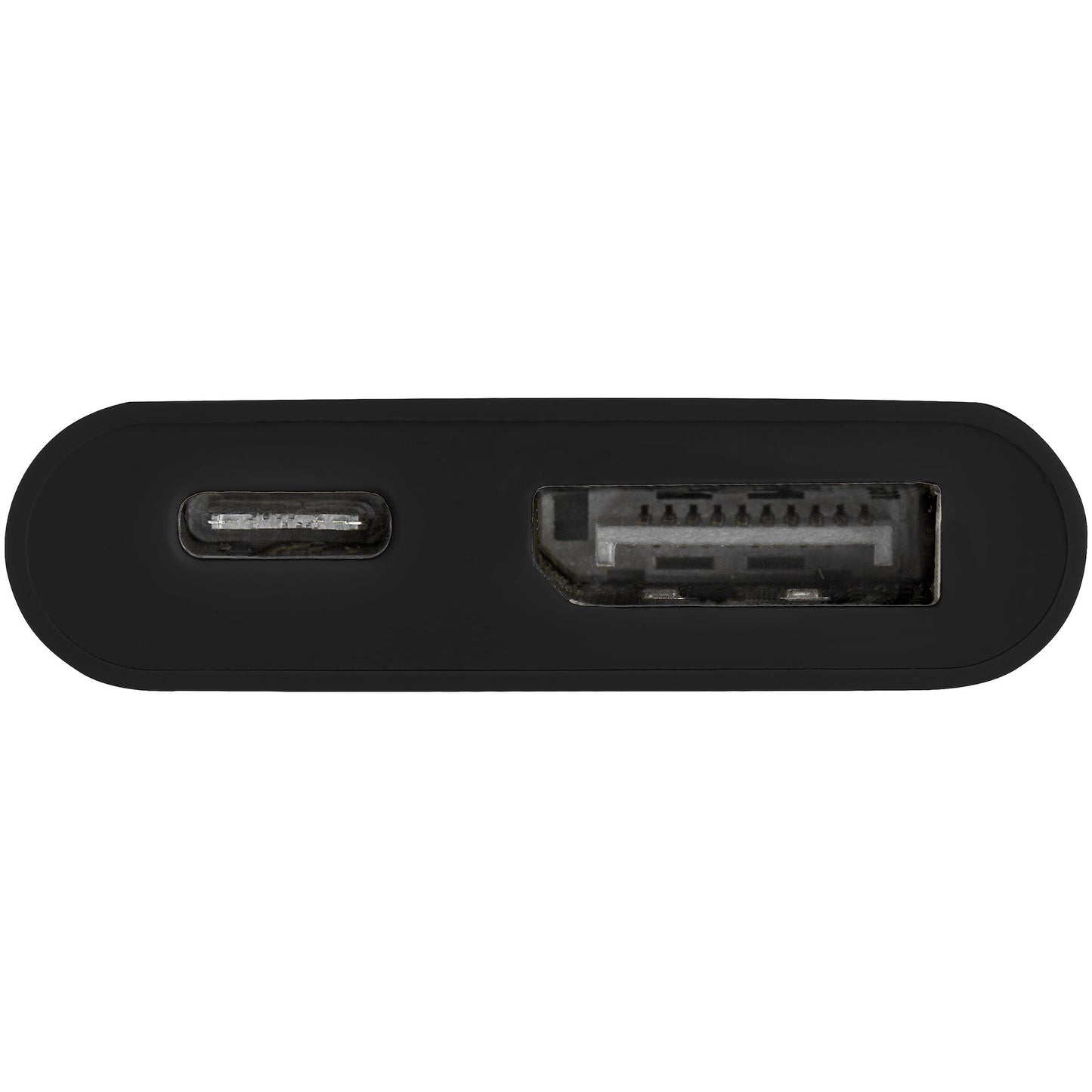

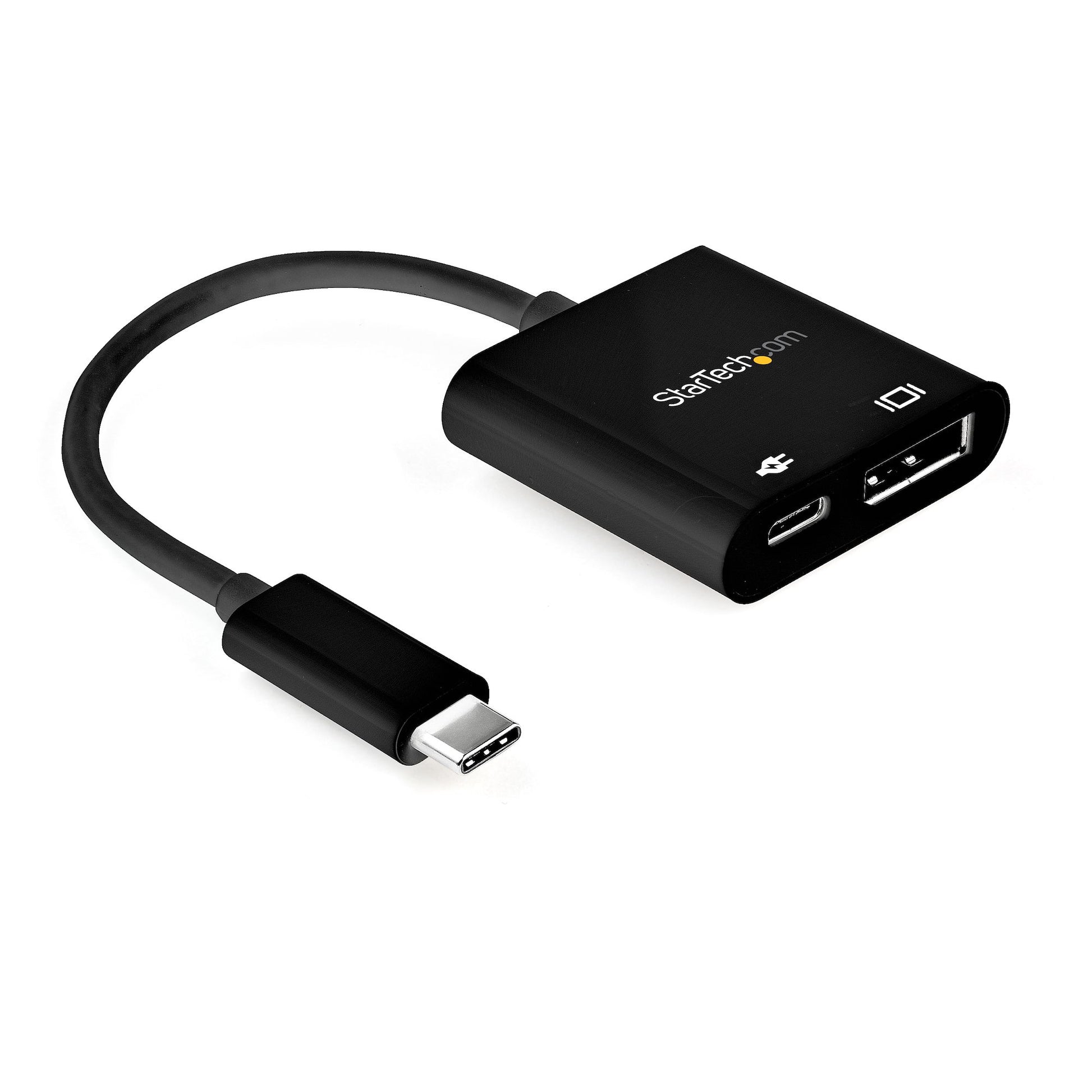

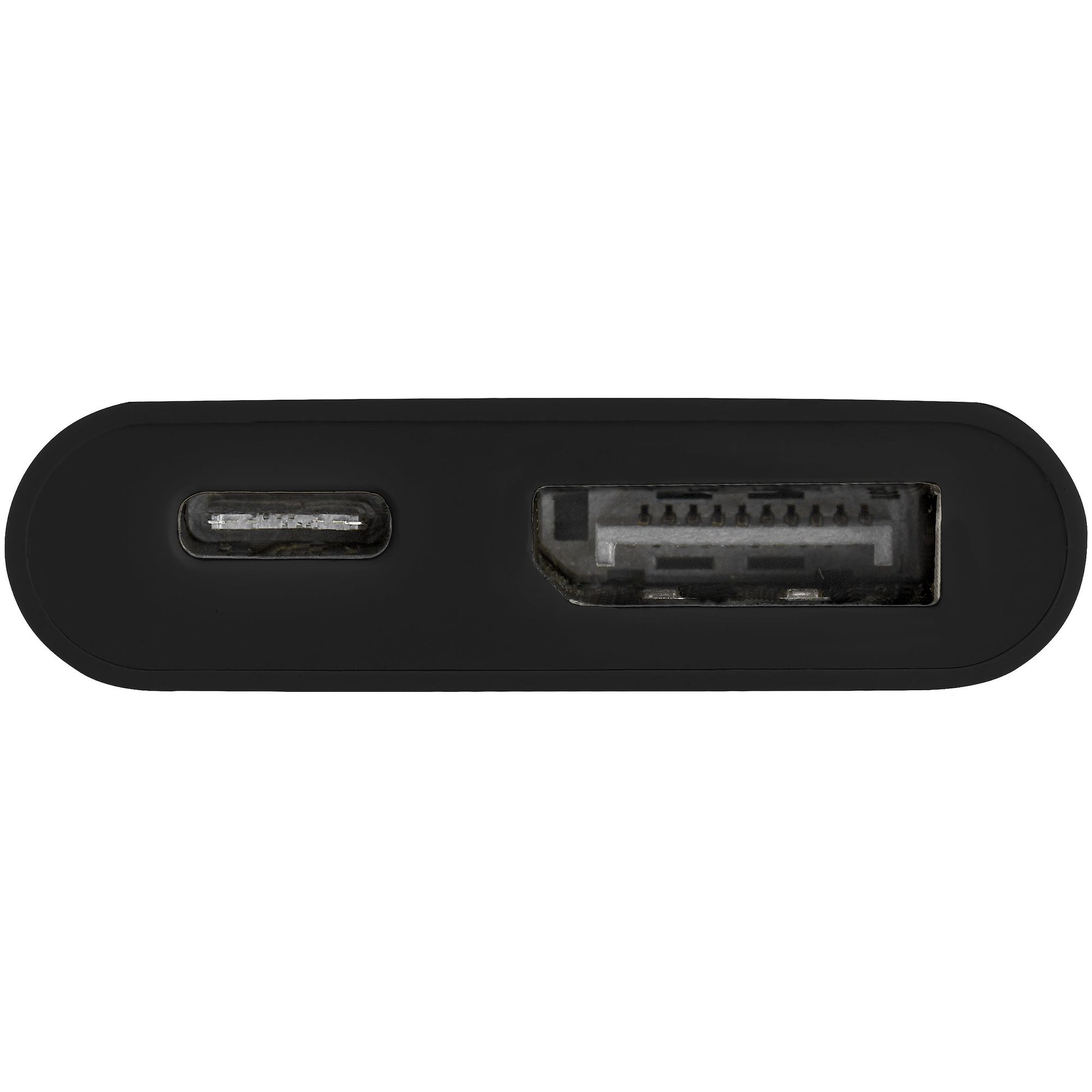

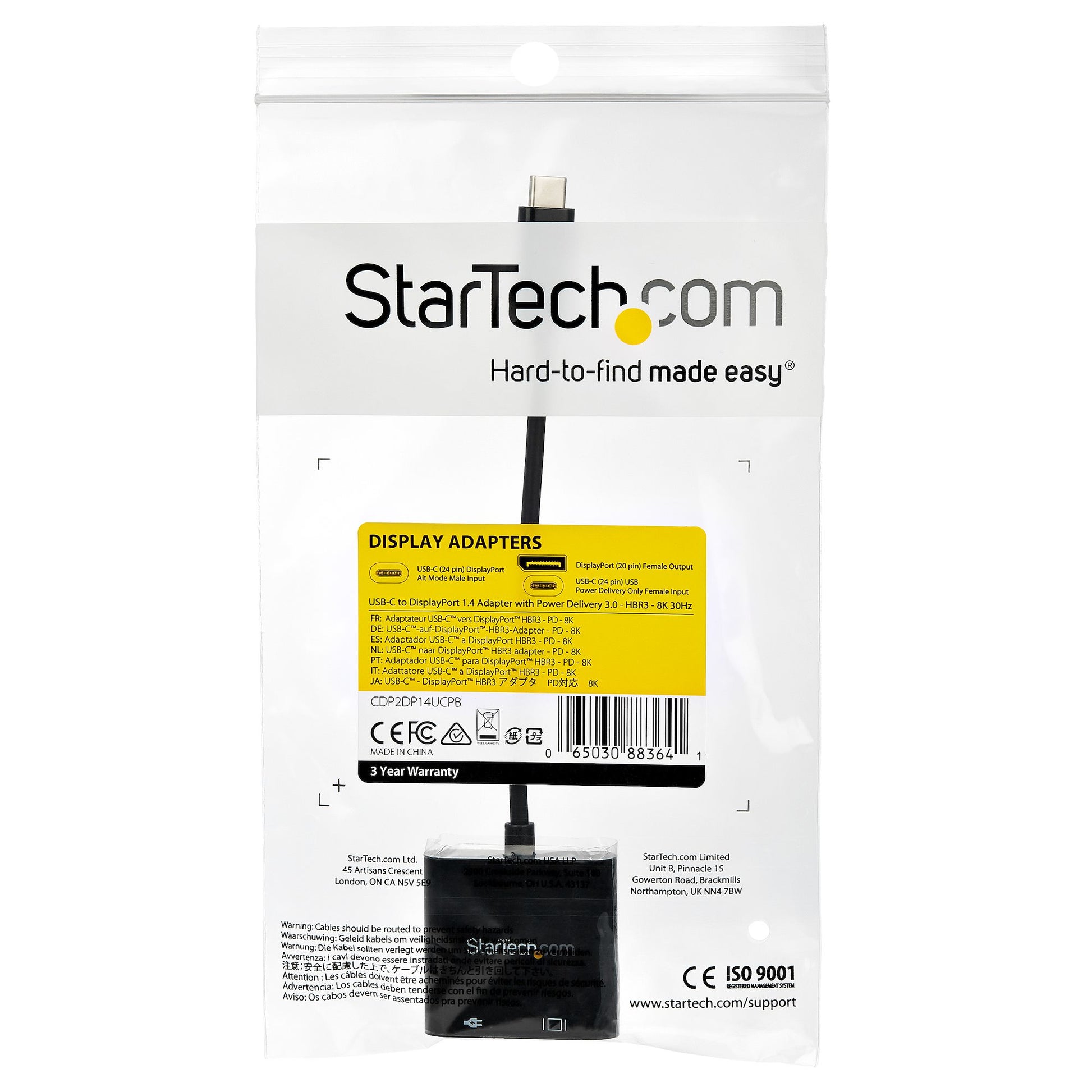

StarTech.com USB C to DisplayPort Adapter with Power Delivery - 8K 60Hz /4K 120Hz Hub

The StarTech.com expands your ports in seconds — plug in and go.

DisplayPort™ 1.4 Adapter | Thunderbolt™ 3 Compatible | HBR3 | 60W PD

This USB-C™ to DisplayPort™ adapter lets you connect your USB Type-C or Thunderbolt 3 device to a DisplayPort display, providing you with a convenient, high-performance solution. The adapter features USB Power Delivery so you can power and charge your devices while outputting Ultra HD video.

Power & Video with USB Power Delivery

This USB-C display adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port so you can charge your laptop or tablet using its USB-C power adapter.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Incredible 8K Picture Quality

Delivering cutting-edge picture quality, this 8K DisplayPort 1.4 adapter supports UHD resolutions up to 7680x4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

Ideal for Travel

This lightweight display adapter is highly portable, with a small-footprint design. It's the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.

CDP2DP14UCPB is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

• Your USB-C device must support DisplayPort Alternate Mode to work with this adapter.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

Specifications

Performance
Chipset	Parade PS8468, VIA VL102
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320
USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	No
DisplayPort output	Yes
Number of displays supported	1
HDCP	Yes
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Refresh rate at maximum resolution	30 Hz
Audio output channels	7.1 channels
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDCP version	1.4/2.2
Design
Product colour	Black
Housing material	Plastic
Integrated USB cable	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Weight & dimensions
Width	40 mm
Depth	43 mm
Height	11.4 mm
Weight	22 g
Package width	128 mm
Package depth	220 mm
Package height	15 mm
Package weight	26 g
Technical details
Products per master (outer) case	200 pc(s)
Master (outer) case width	300 mm
Master (outer) case length	500 mm
Master (outer) case height	210 mm
Sustainability compliance	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
