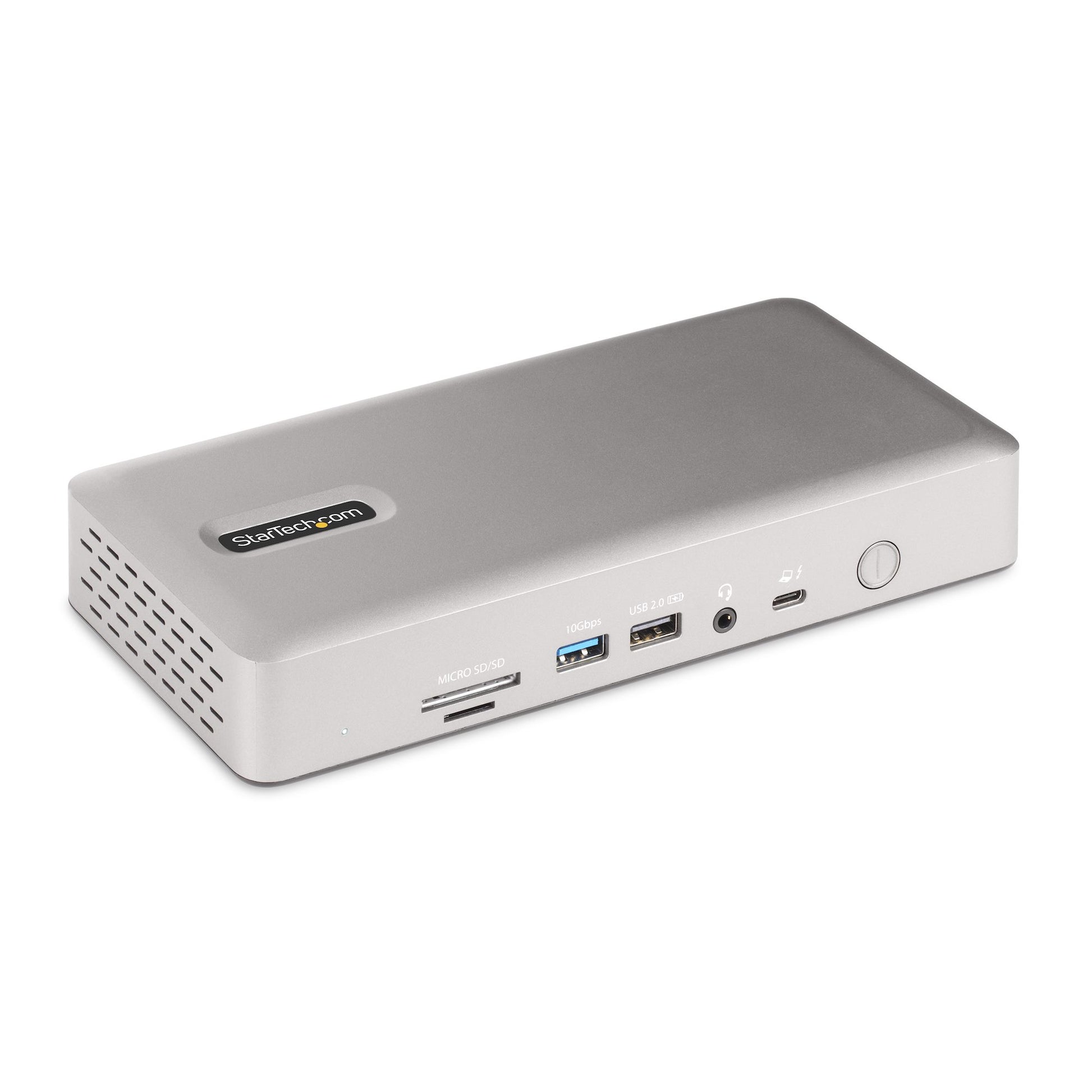

StarTech.com Universal USB4 & Thunderbolt 4 Docking Station 100W
StarTech.com Universal USB4 & Thunderbolt 4 Docking Station 100W
Regular price
£241.40 GBP
Regular price
Sale price
£241.40 GBP
Taxes included.
Quantity
Couldn't load pickup availability

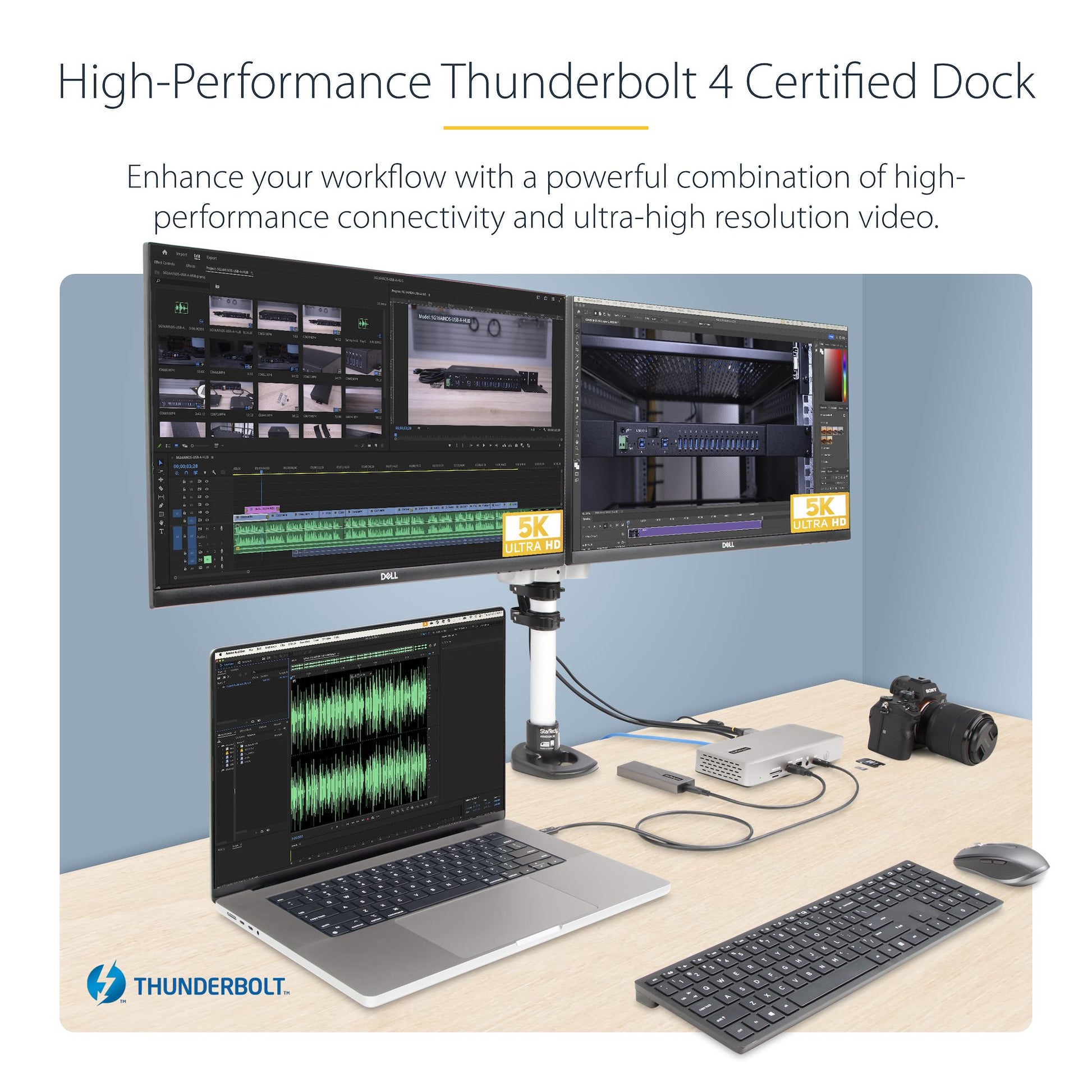

One cable, full desk: the StarTech.com Universal USB4 & turns your laptop into a workstation with quad displays, 100W charging over a single Thunderbolt 4 connection.

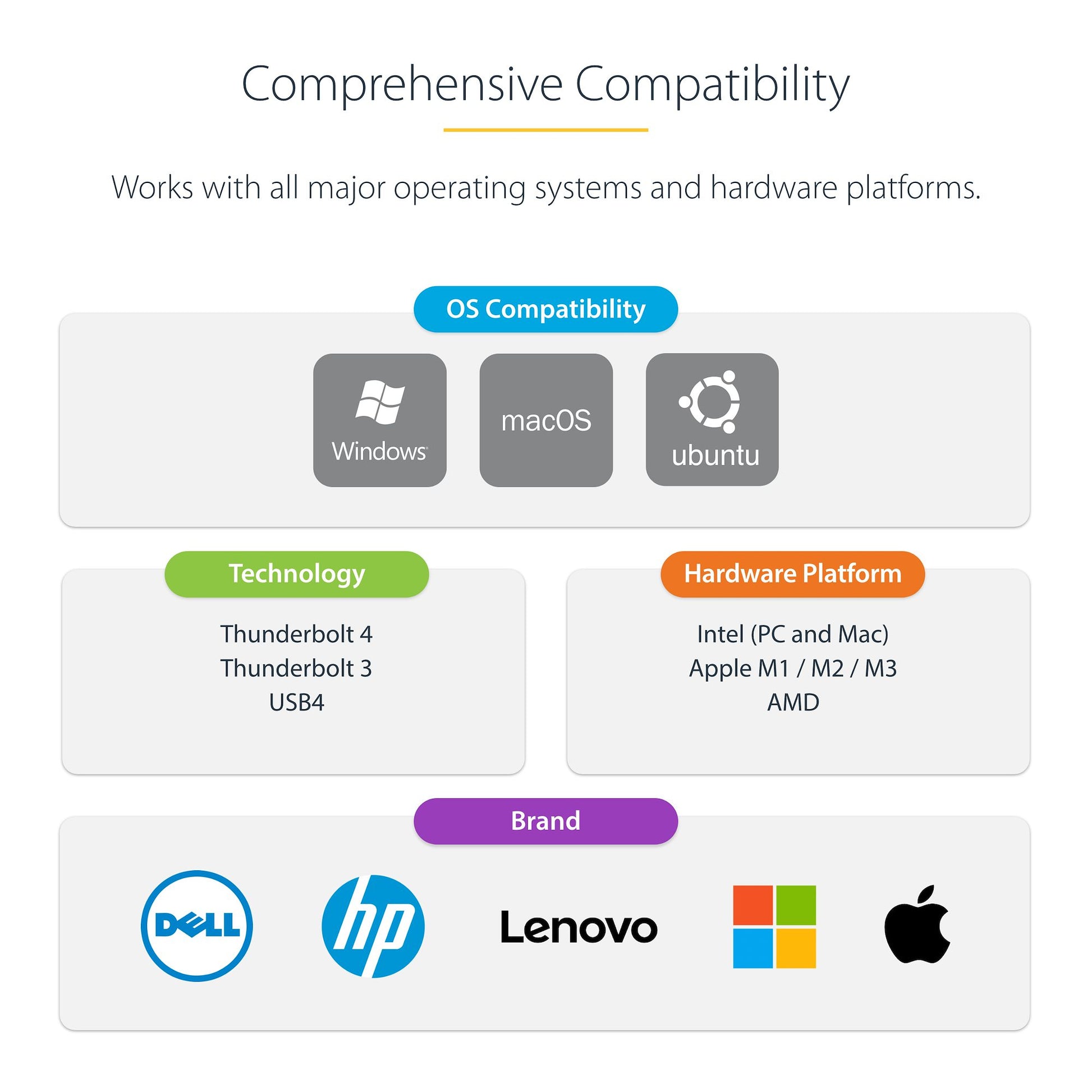

Universal Laptop Dock offering driverless compatibility with Windows and macOSEngineered to maximize performance and future-proof your workspace, this universal USB4 and Thunderbolt 4 dock is Thunderbolt Certified, ensuring reliable connectivity and optimal user experience.

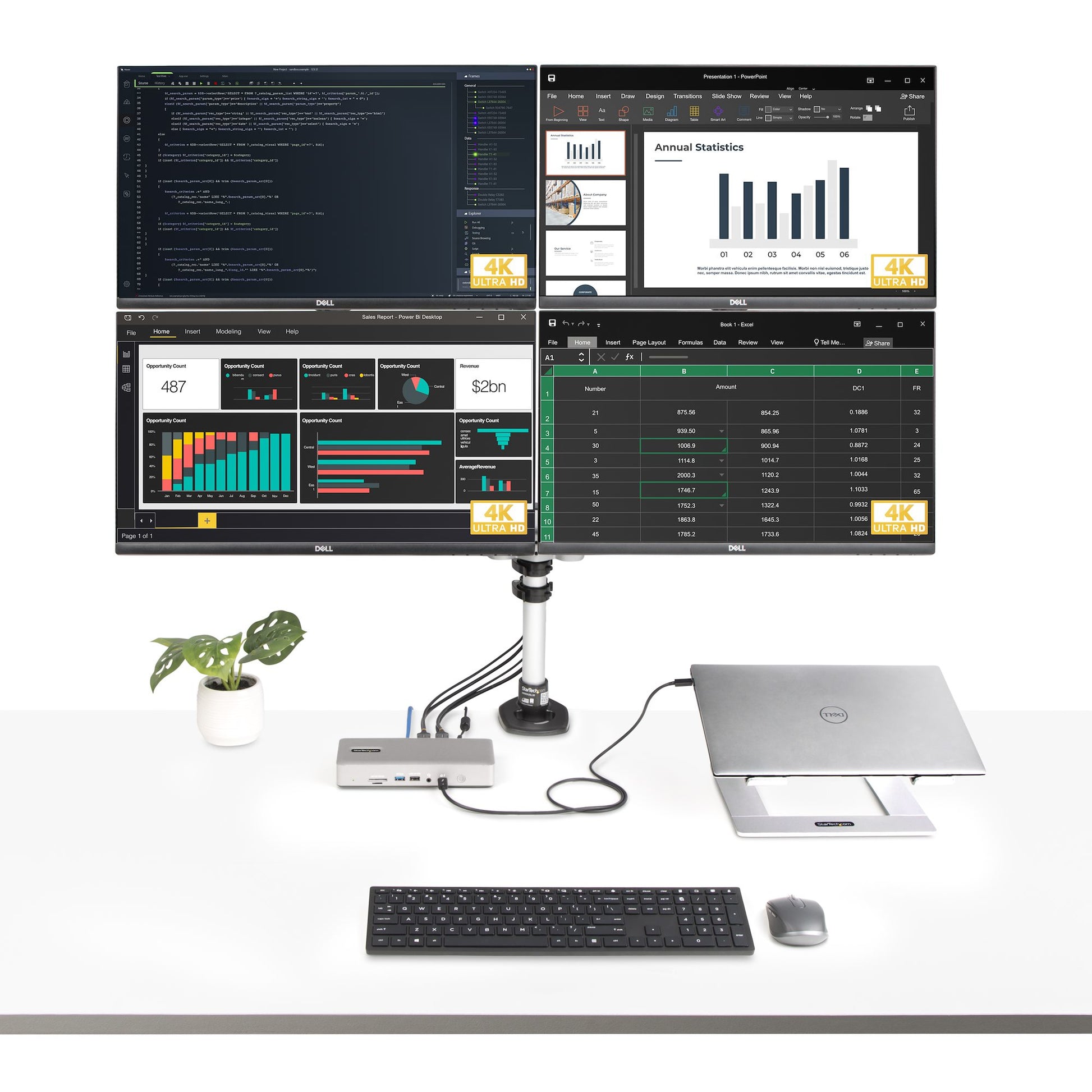

Quad Display on Windows
Push the boundaries of productivity with quad 4K 60Hz displays on Windows laptops running the latest Intel 12th Gen CPUs (or later) and DP 1.4 with DSC. Legacy systems still benefit from flexible dual or triple monitor setups.
Dual Display on Mac
Experience dual extended 4K displays on MacBook Air and Pro powered by M3, M4 or M5 chips (clamshell mode required for M3), and MacBook M1 / M2 Pro or Max configurations. For Apple computers featuring the M-series base processor only a single display is supported.
98W Power Delivery
Includes a fully spec'd 180W power adapter that enables the dock to charge the laptop with 98W Power Delivery, while preserving enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 98 W |
| DisplayPort version | 1.4 |
| Network | |
| Full duplex | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 7680 x 4320 pixels |
| On/off switch | Yes |
| Product colour | Grey |
| Card reader integrated | Yes |

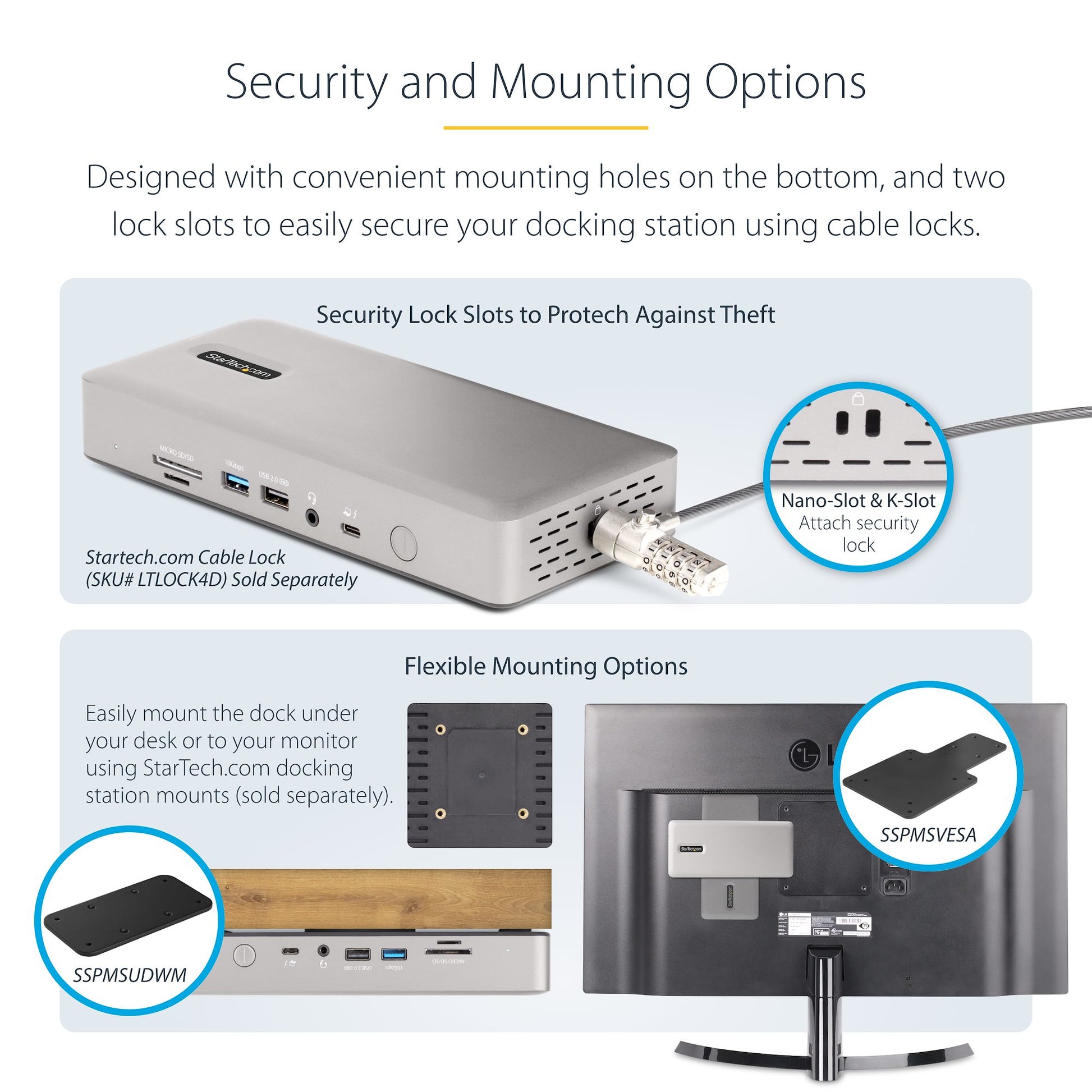

| Cable lock slot | Yes |
| LED indicators | LAN, Power |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Cable lock slot type | Kensington, Nano |
| HD type | 8K Ultra HD |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 270 mm |
| Power | |
| Power source type | DC |
| Input current | 2.5 A |
| Power consumption (max) | 180 W |
| Compatible power plug types | EU, UK |
| AC input voltage | 110 - 240 V |
| Output voltage | 20 V |
| Output current | 9 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 200 g |
| Width | 210 mm |
| Depth | 96 mm |
| Height | 34 mm |
| Package weight | 1.4 kg |
| Package width | 235 mm |
| Package depth | 230 mm |
| Package height | 90 mm |

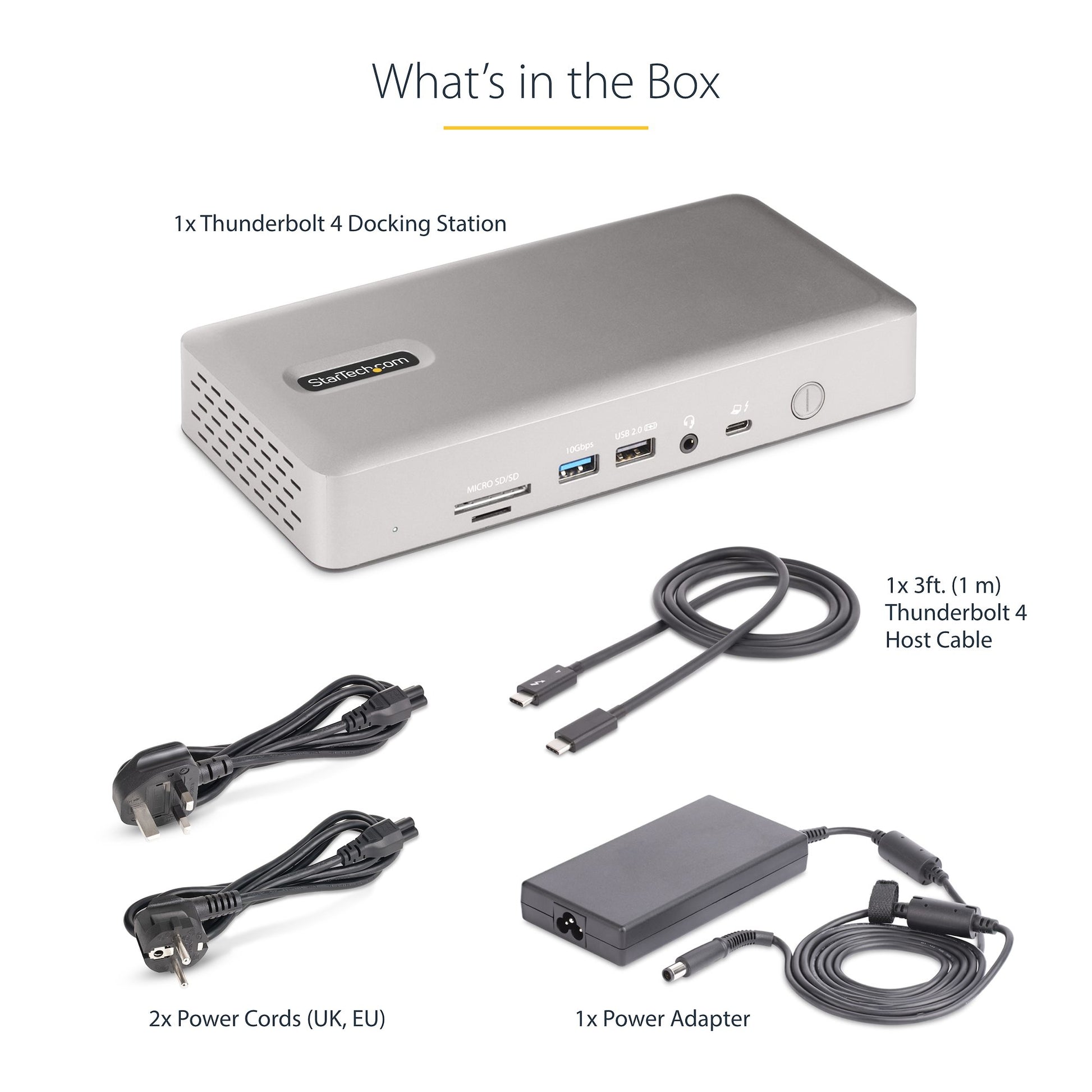

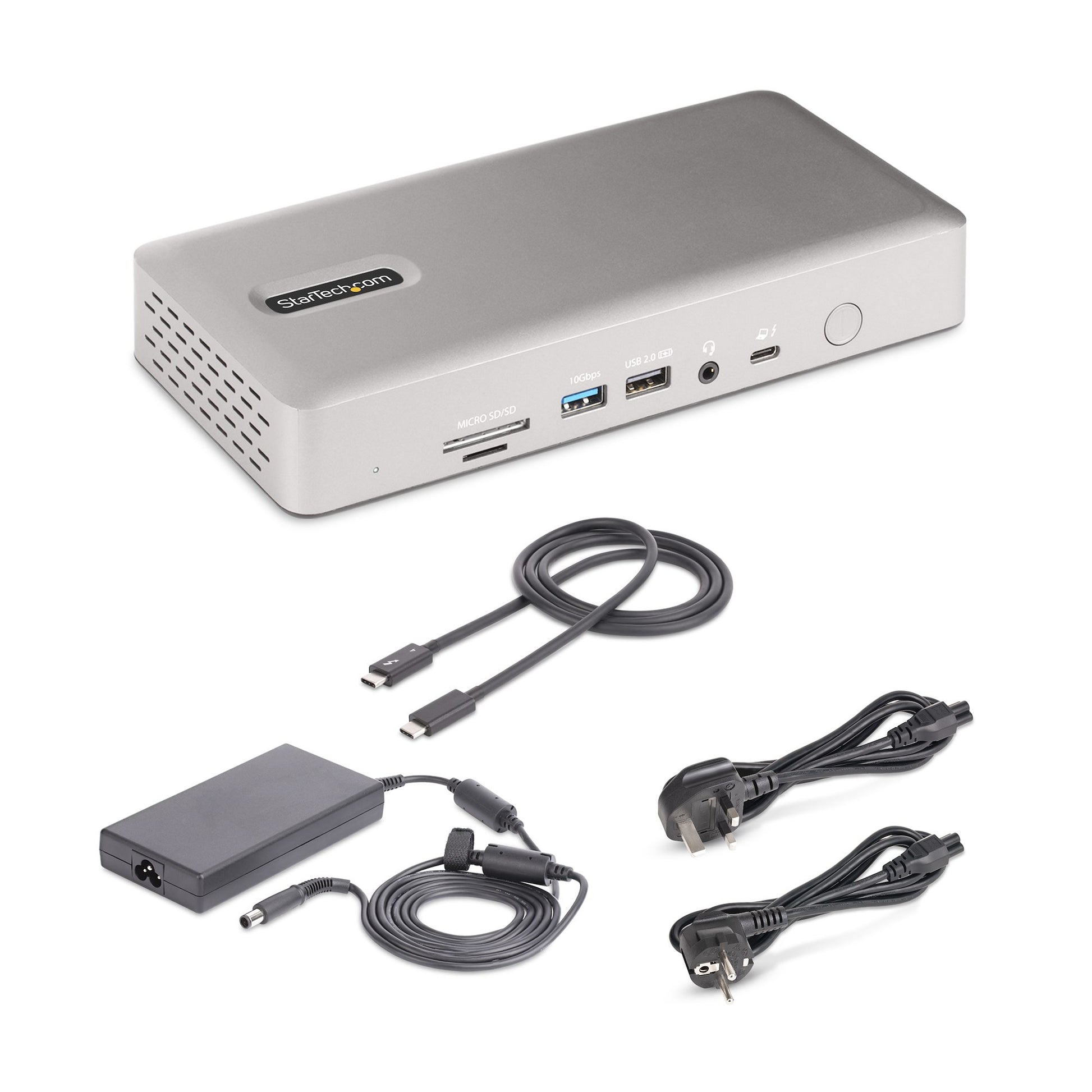

| Packaging content | |
| Quick start guide | Yes |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Other features | |
| Chipset | Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
