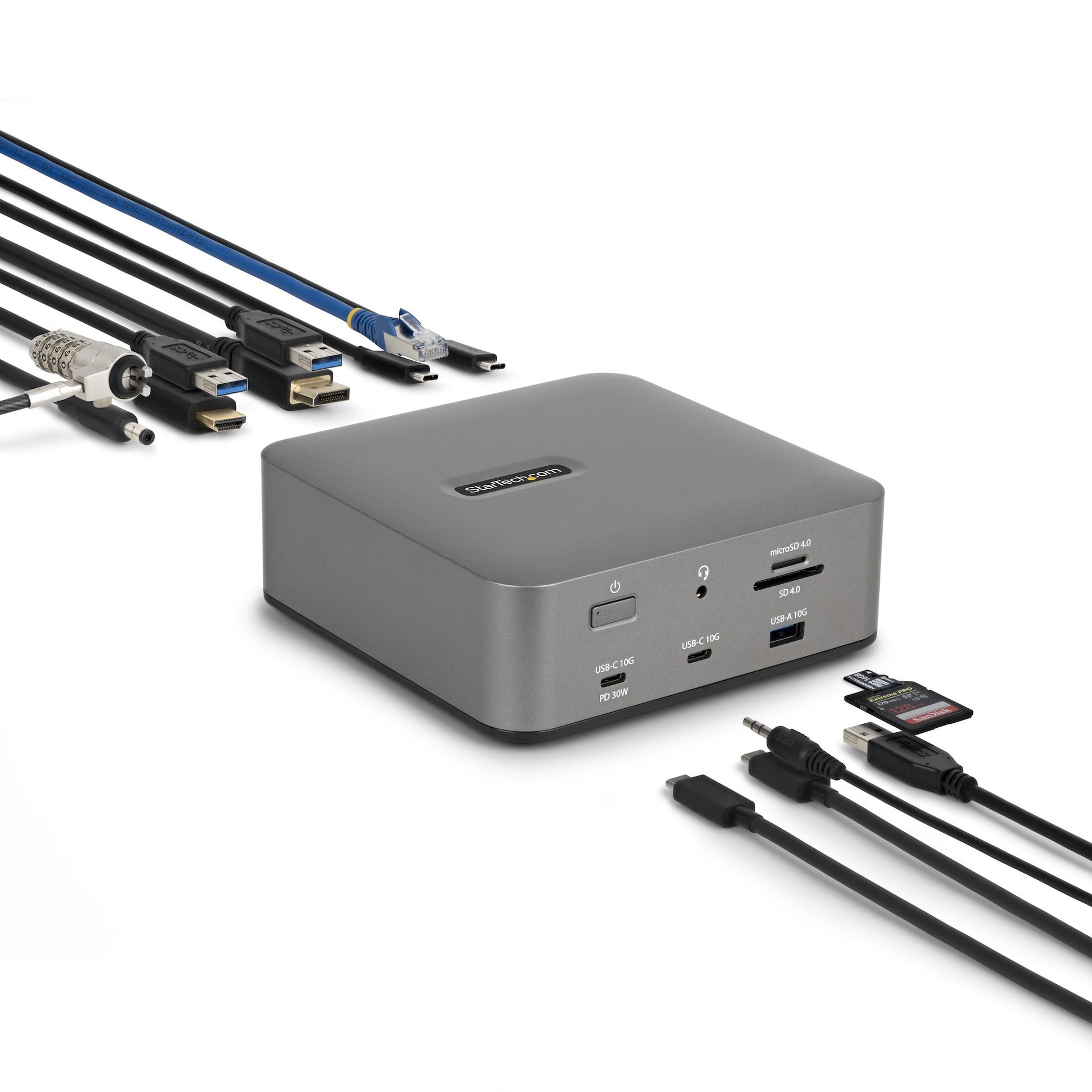

StarTech.com Universal Thunderbolt 5 Docking Station 140W

One cable, full desk: the StarTech.com Universal turns your laptop into a workstation with wired networking, 140W charging over a single Thunderbolt 5 connection.

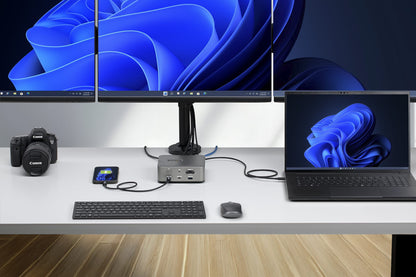

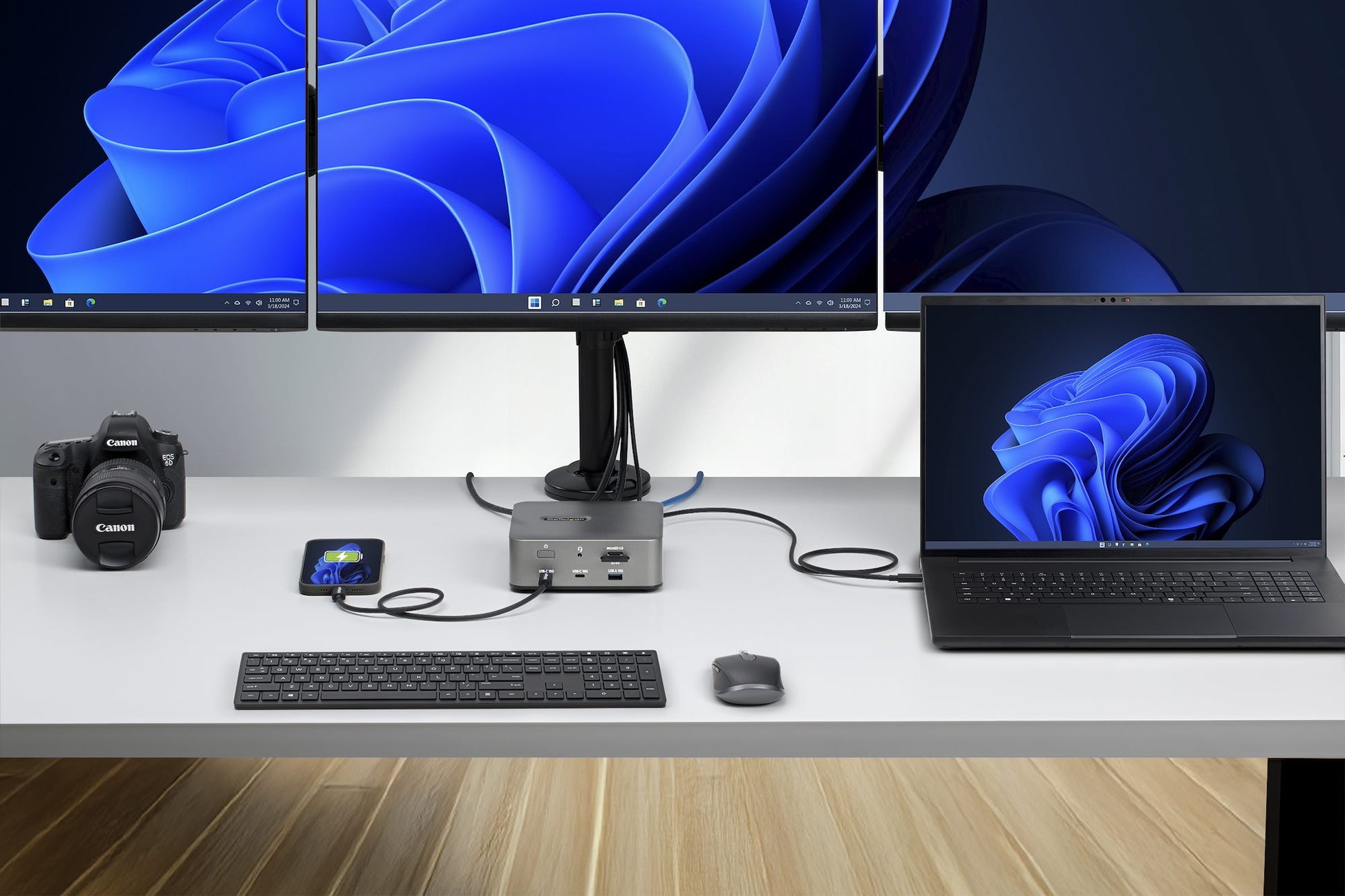

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation

Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.

Advanced Display and Charging Capabilities

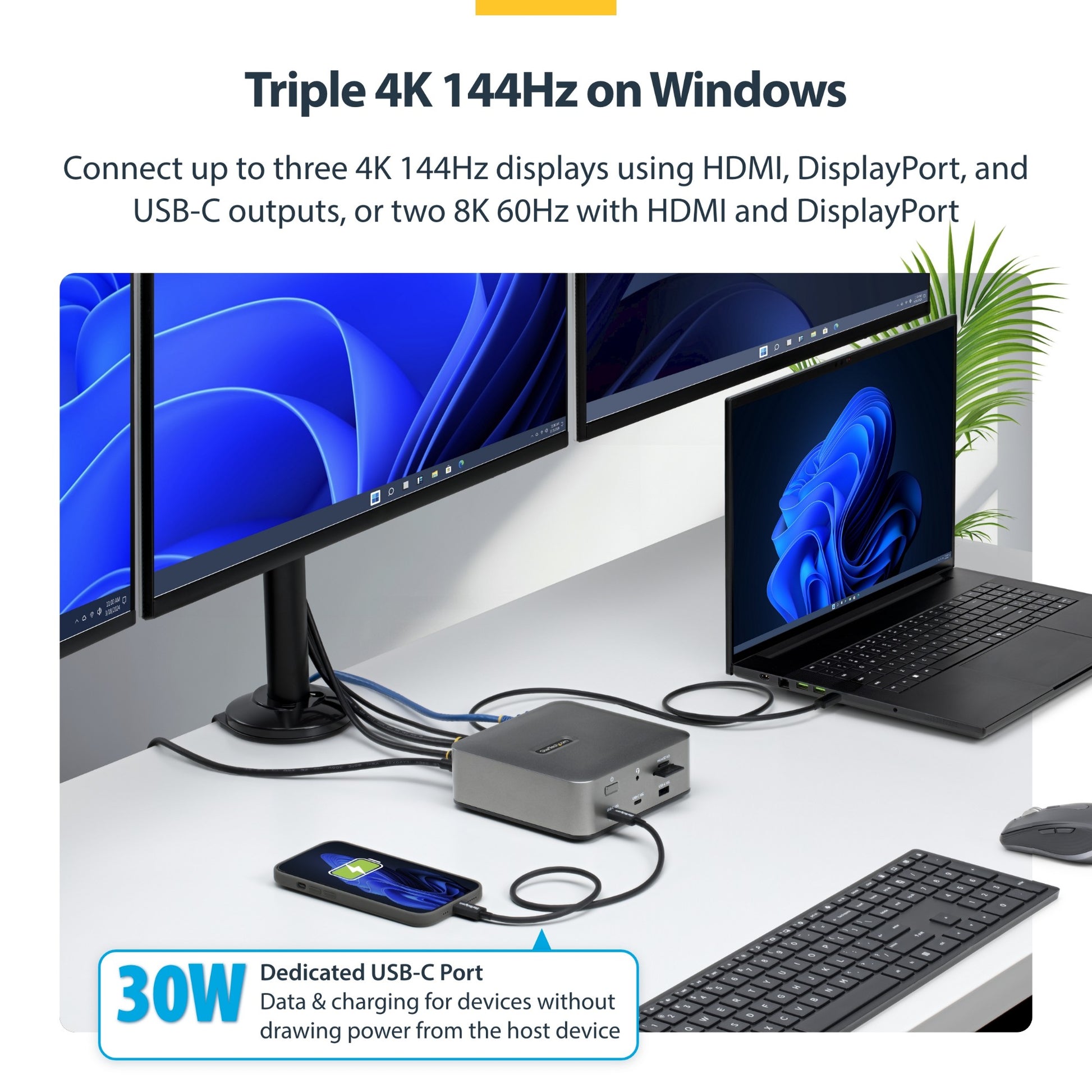

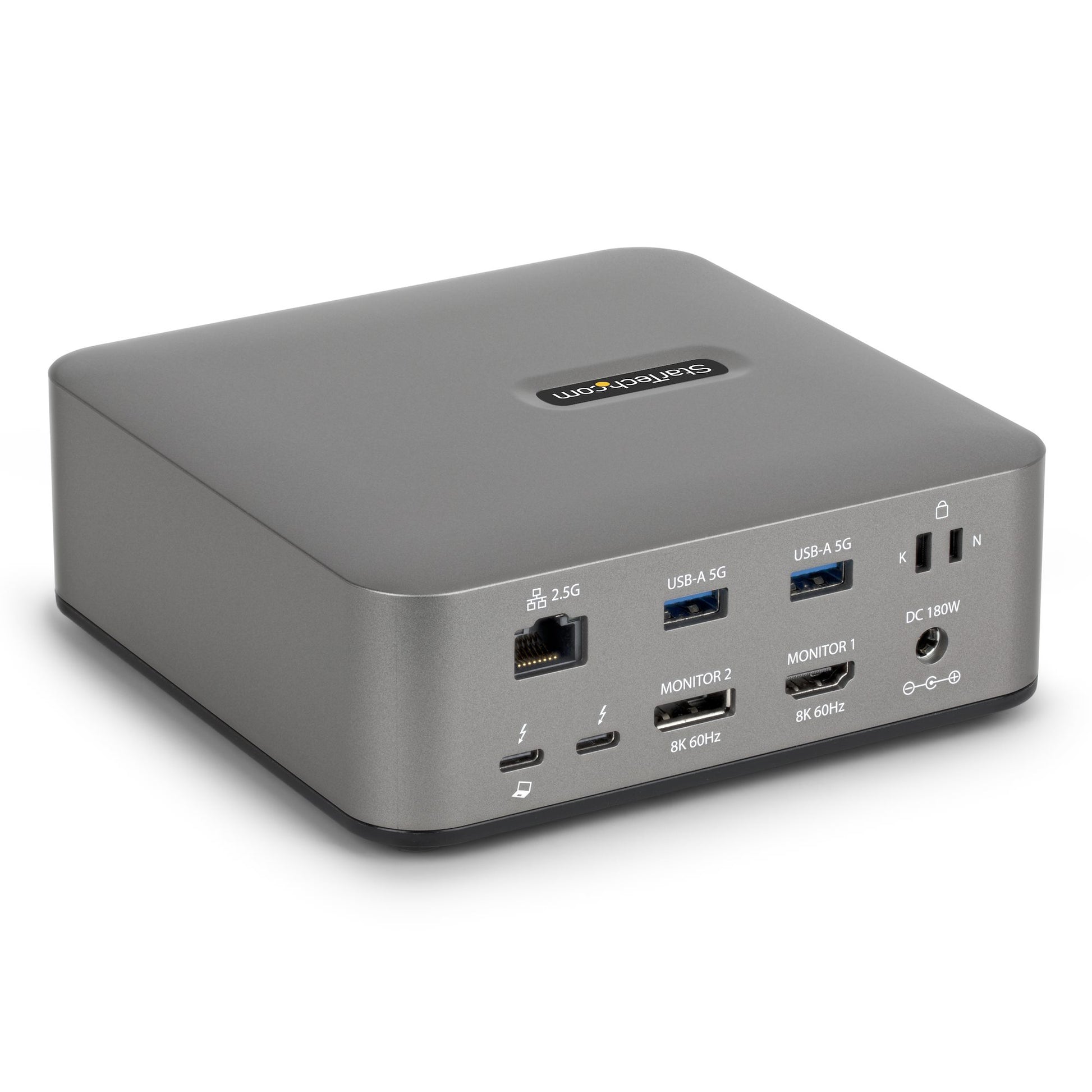

Connect up to three 4K 144Hz displays using a combination of HDMI, DisplayPort, and USB-C outputs or dual 8K 60Hz via HDMI and DisplayPort. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro M4. A dedicated 30W USB-C port provides data connectivity and charging for phones or tablets without drawing power from the host computer.

Networking and Compatibility

Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.

Secure and High-Functioning Workspace

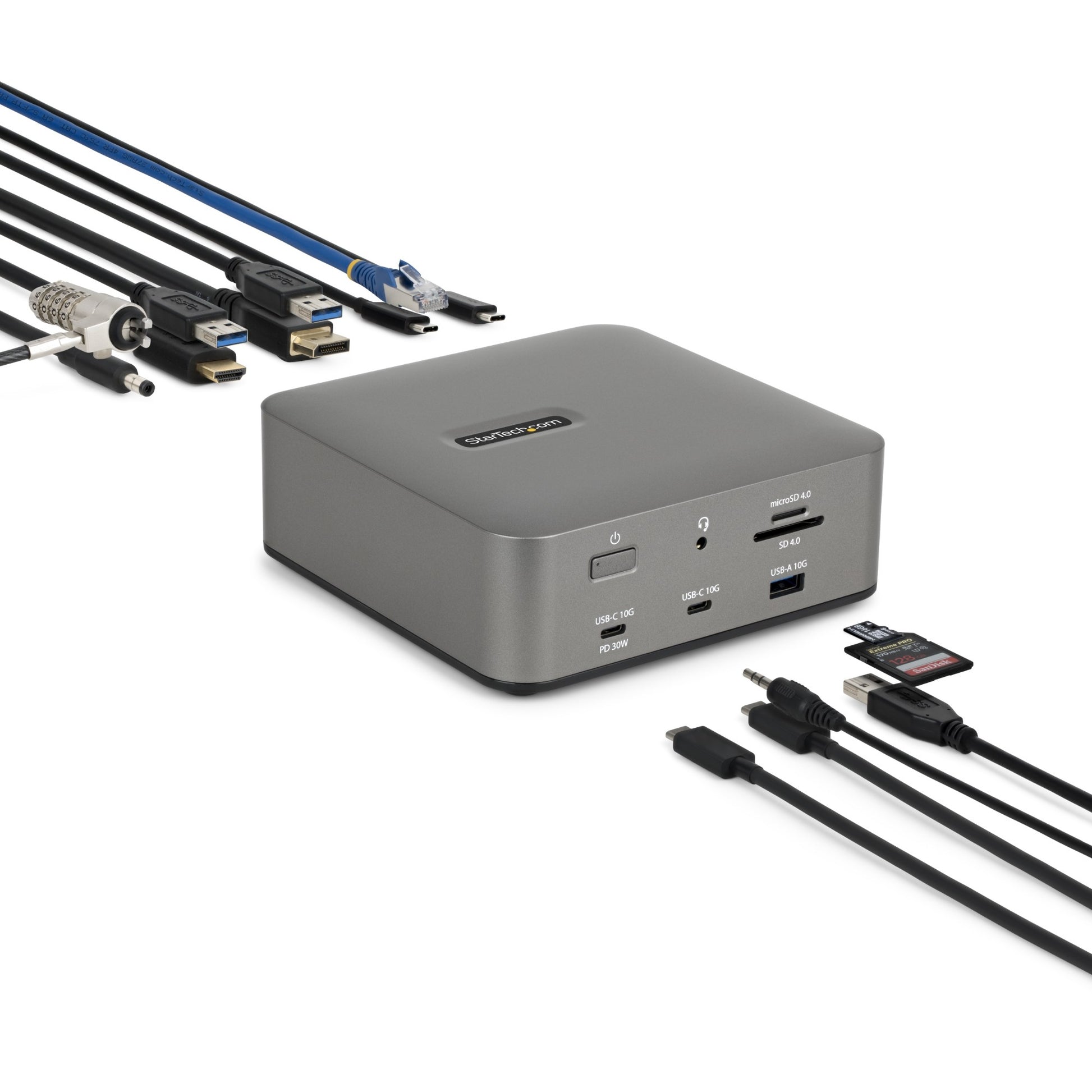

Dual security slots (K-Slot and Nano) let you physically secure the dock helping prevent theft in shared environments or high-traffic workspaces. This dock features built-in SD 4.0 and microSD 4.0 card slots for fast transfers from UHS-II-compatible memory cards. A 3.5mm audio jack supports headsets or speakers for seamless conferencing or media playback.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.

Download the StarTech.com Connectivity Tools to optimize your device setup .

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 5
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	140 W
Thunderbolt 5 ports quantity	1
Network
Full duplex	Yes
Networking standards	IEEE 802.3bz
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
On/off switch	Yes
Product colour	Grey
Card reader integrated	Yes
Cable lock slot	Yes
LED indicators	Yes
Data transfer rate	40 Gbit/s
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Cable lock slot type	Kensington, Nano
HD type	4K Ultra HD
Housing material	Plastic
Maximum refresh rate	144 Hz
Technical details
Compliance certificates	RoHS, Trade Agreements Act (TAA)
User guide	Yes
Products per master (outer) case	5 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	330 mm
Master (outer) case height	170 mm
Power
Output voltage	20 V
Output current	9 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	592 g
Width	150 mm
Depth	140 mm
Height	50 mm
Package weight	1.8 kg
Package width	302 mm
Package depth	169 mm
Package height	59 mm

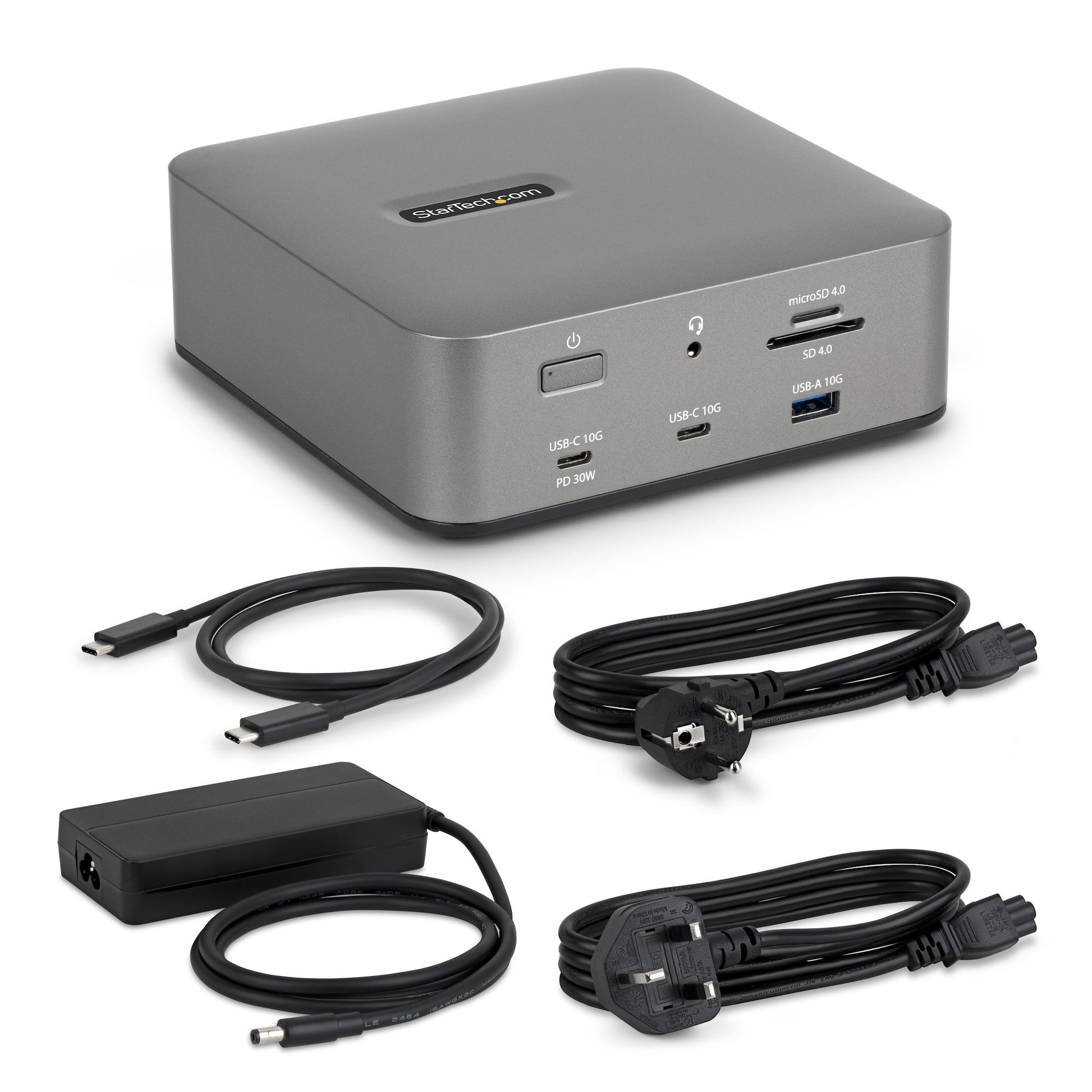

Packaging content
Cables included	Thunderbolt
AC adapter included	Yes
Other features
Chipset	Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U
