StarTech.com Ultra-Slim Articulating TV Wall Mount for up to 65-inch and 99lb/45kg

Position your screen exactly where you need it with the StarTech.com Ultra-Slim Articulating TV Wall — VESA fit and load ratings are below.

Mount a TV to a wall using this space-saving, low-profile mount with premium finish

Create a TV mounting solution with this articulating wall mount that supports up to 65-inch televisions and 99lb (45kg). Use in conference rooms, customer-facing applications, and collaborative spaces where durability, precision, and presentation matter.

Ultra‑slim Articulating Television Mount

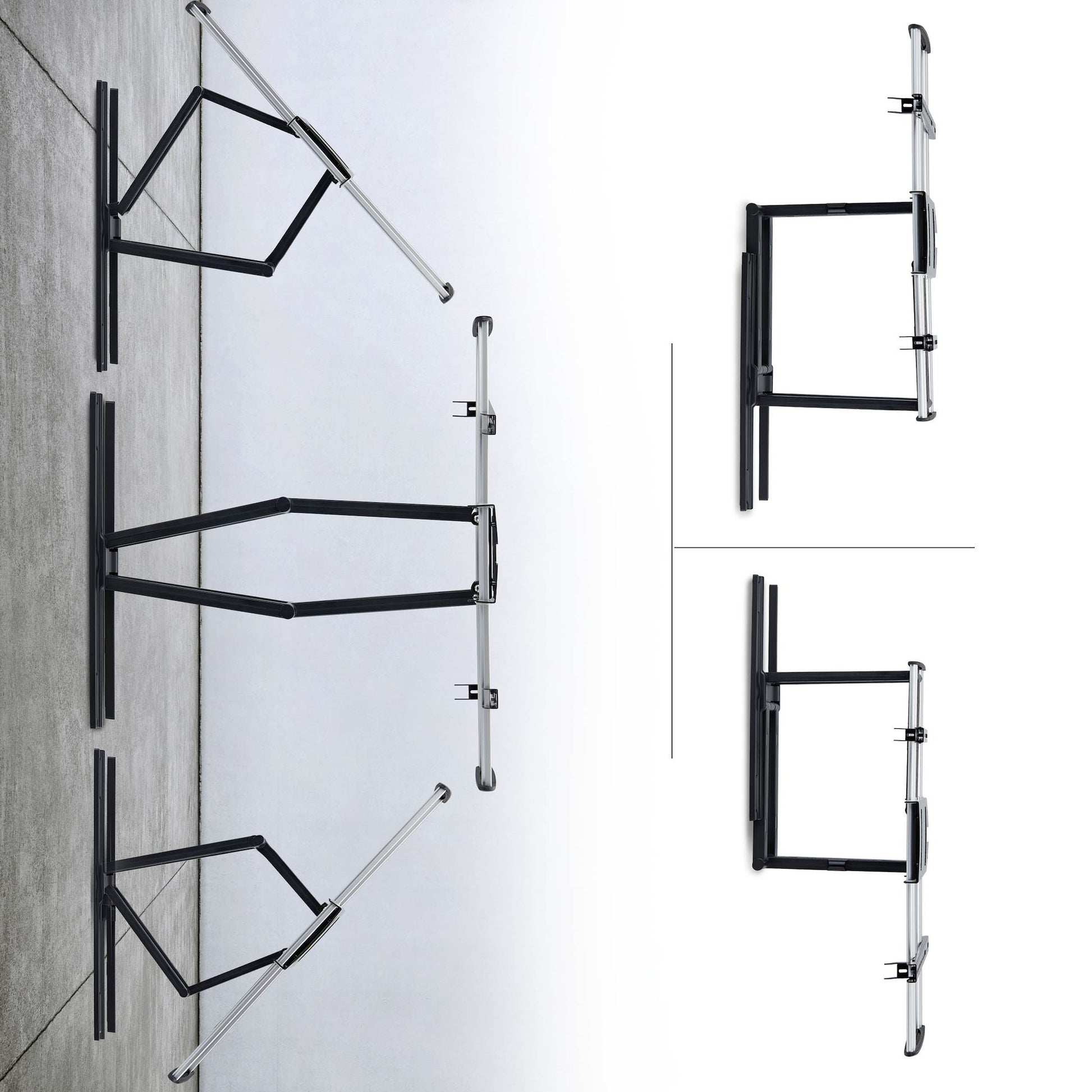

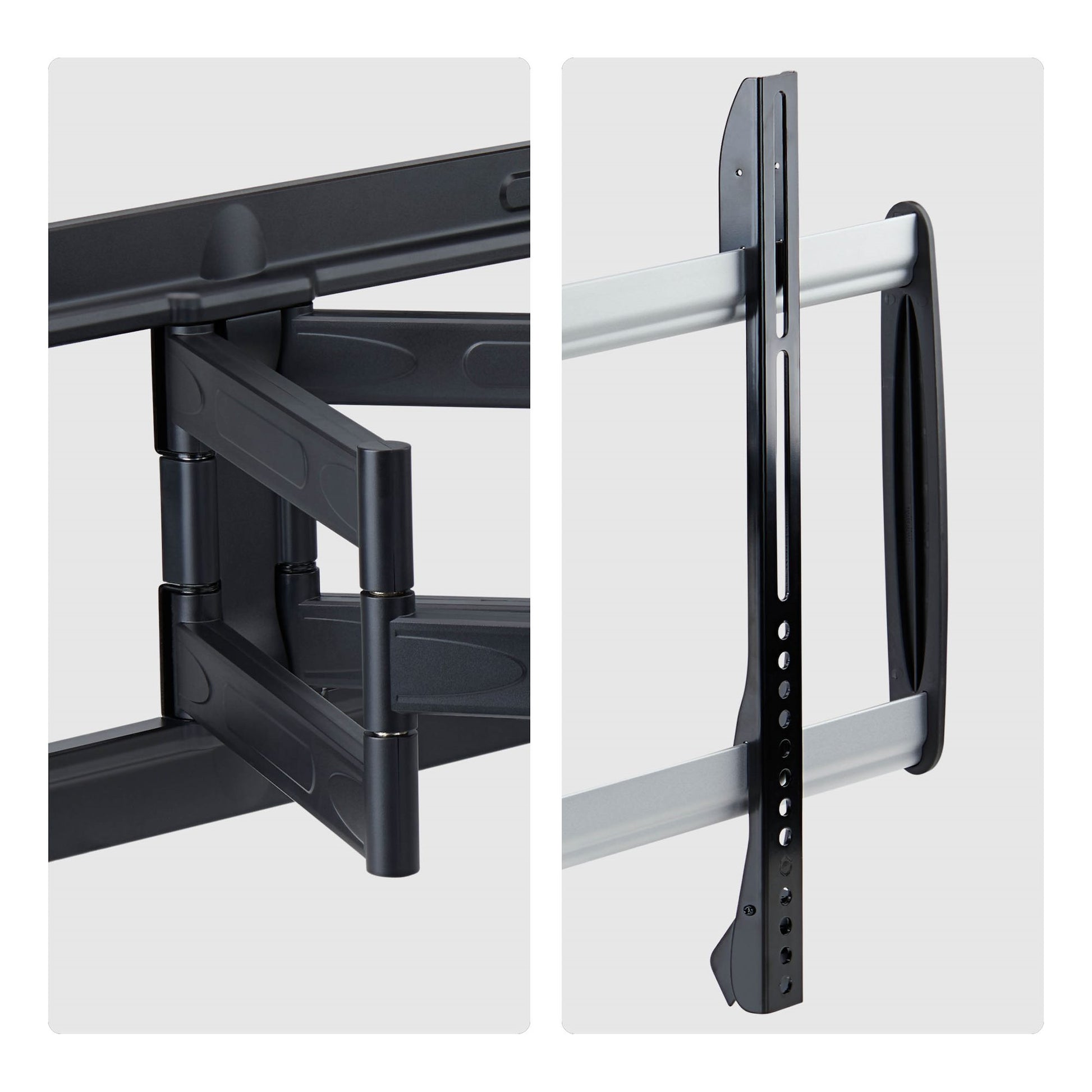

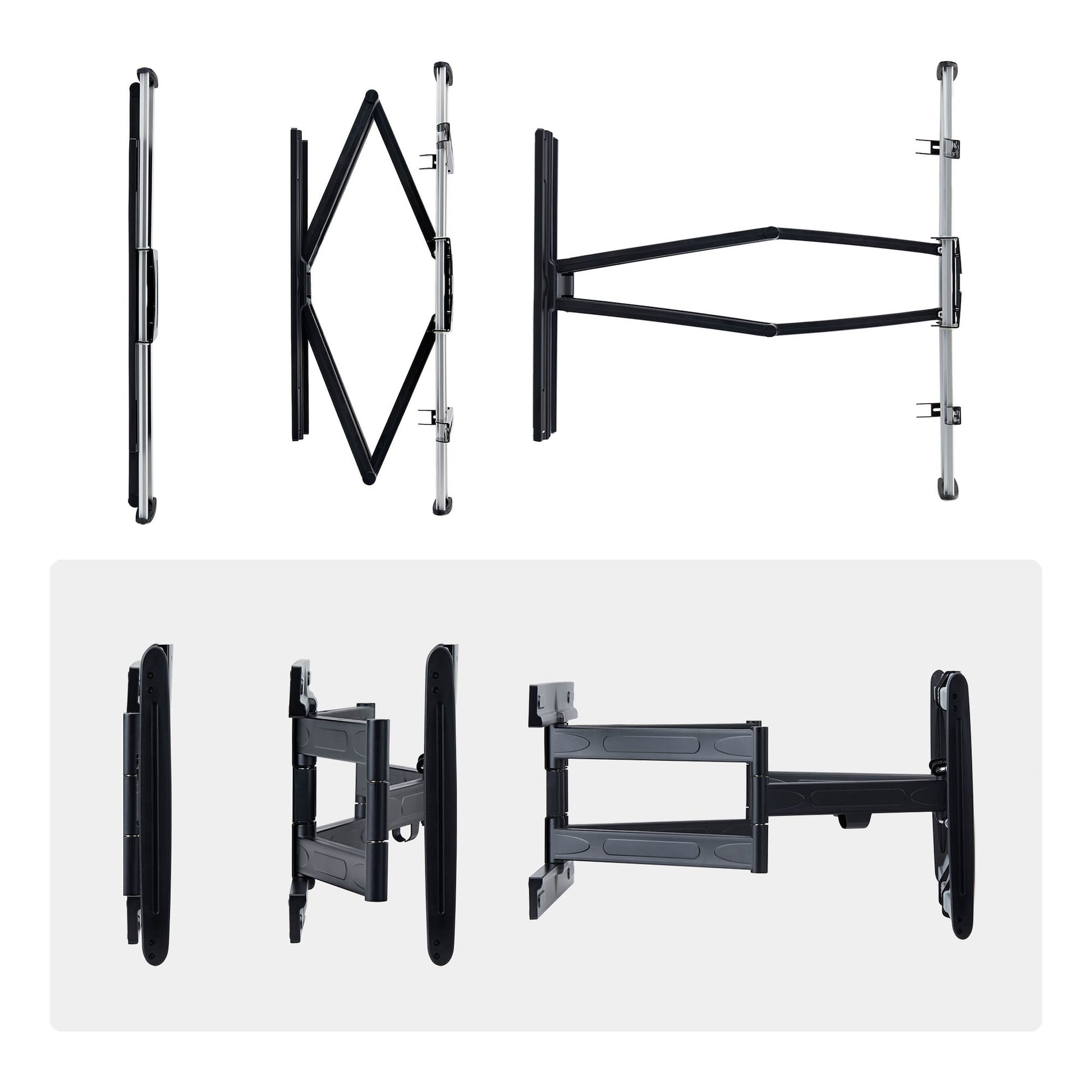

Mount sits just 1.5in (4cm) from the wall for a sleek, unobtrusive look and extends to a maximum of 23.6in (60cm) when needed. For perfect screen positioning, you can tilt (+2°/-12°); swivel (+/-60°); and rotate (+/-2°) the display. The dual articulating arms and wider wall plate (16in North America spacing) provide smooth motion and stability during adjustments.

Versatile Mounting with a Premium Finish

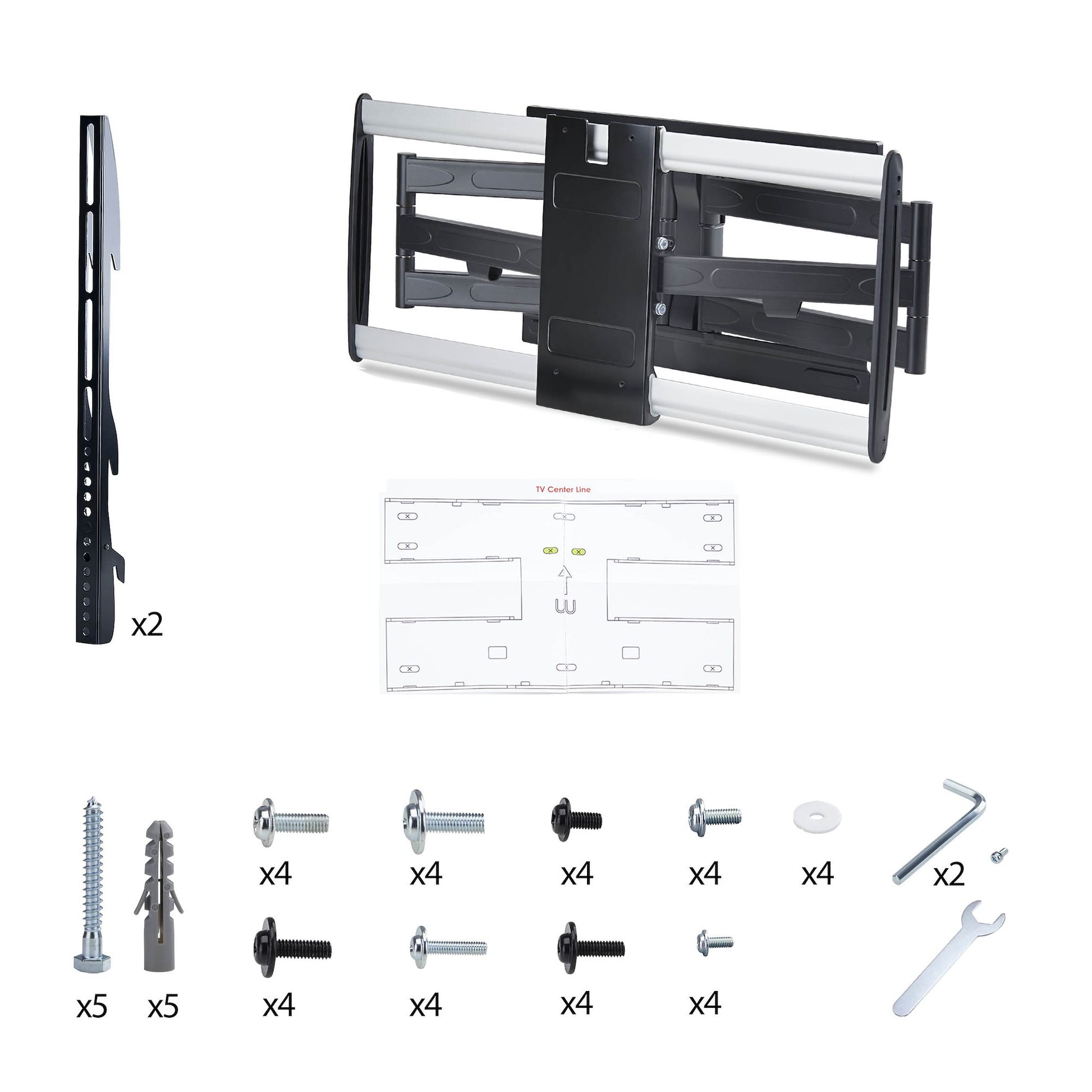

This VESA-compatible wall mount supports patterns up to 600x400mm and includes hardware, spacers, and a wall template for clean installation. It secures to wood studs, brick, or concrete surfaces, offering flexibility across environments. Integrated cable channels keep wires organized, while the silver steel and aluminum frame with decorative covers creates a refined, professional look from any angle.

Specifications

Mounting
Maximum weight capacity (per display)	45 kg
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,500 x 300,600 x 300,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	165.1 cm (65")
Maximum weight capacity	45 kg
Ergonomics
Height adjustment	No
Cable management	Yes
Tilt angle range	-12 - 2°
Swivel angle range	-60 - 60°
Distance to the wall (min)	4 cm
Distance to the wall (max)	60 cm
Tilt adjustment	Yes
Swivelling	Yes
Technical details
Product colour	Black, Silver
Compliance certificates	Trade Agreements Act (TAA)
Design
Anti-theft function	No
Housing material	Aluminium, Steel
Packaging content
Screws included	Yes
Number of washers included	4
Number of screws	39
Wrench included	Yes
Wrench type	Hexagonal wrench
User guide	Yes
Mounting brackets included	Yes
Weight & dimensions
Width	480 mm
Depth	730 mm
Height	40 mm
Weight	7.3 kg
Packaging data
Package width	799 mm
Package depth	454 mm
Package height	61 mm
Package weight	9.6 kg
Logistics data
Master (outer) case width	799 mm
Master (outer) case length	454 mm
Master (outer) case height	61 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
