StarTech.com TV Wall Mount supports 60-100 inch VESA Displays (165lb/75kg) - Heavy

Position your screen exactly where you need it with the StarTech.com TV Wall Mount supports — VESA fit and load ratings are below.

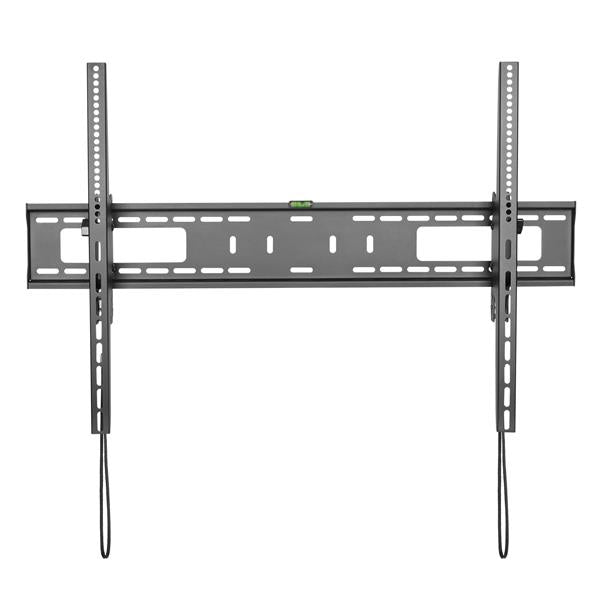

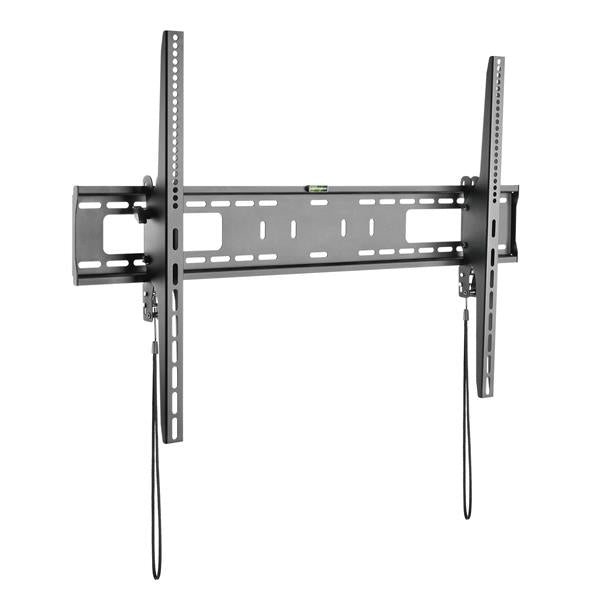

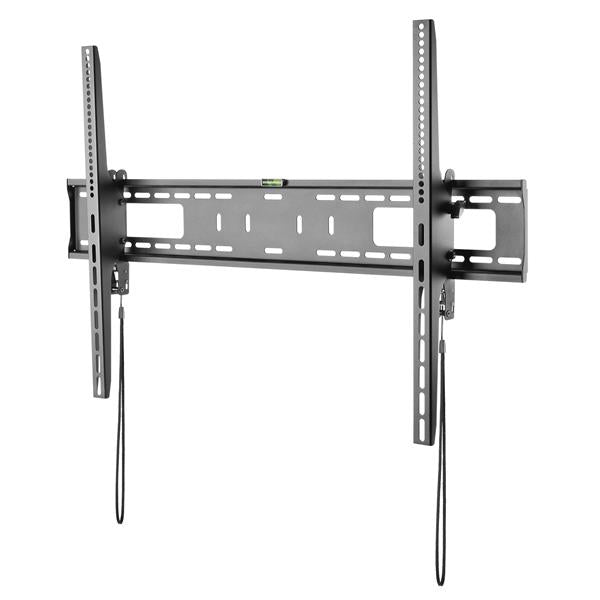

Display Wall Mount | Steel | For 60" to 100" TVs

Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100" and features an attractive low-profile design.

Create an Engaging Display for Digital Signage

Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces.

The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600.

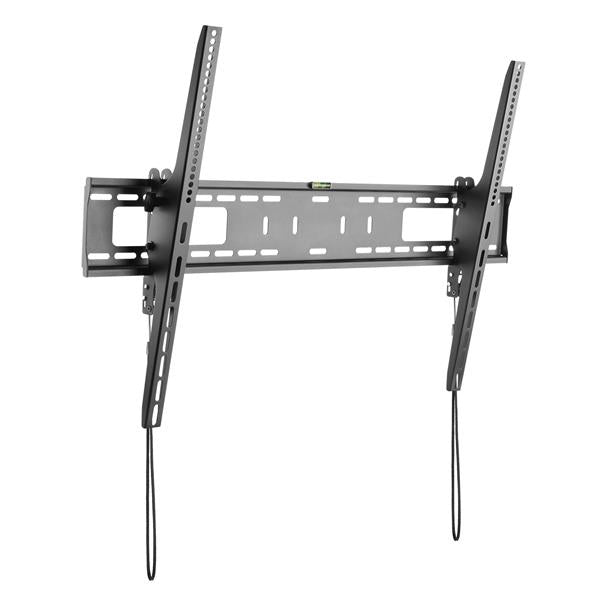

Tilting Design for Optimal Viewing

Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease.

Low-Profile Design

Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from the wall.

Robust Steel Construction and Easy Installation

The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires.

FPWTLTB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	152.4 cm (60")
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	900 x 600 mm
Maximum screen size	2.54 m (100")
Maximum weight capacity	75 kg
Ergonomics
Cable management	No
Tilt angle range	-10 - 5°
Technical details
Product colour	Black
Compliance certificates	RoHS
Design
Certification	CE, REACH
Anti-theft function	No
Housing material	Plastic, Steel

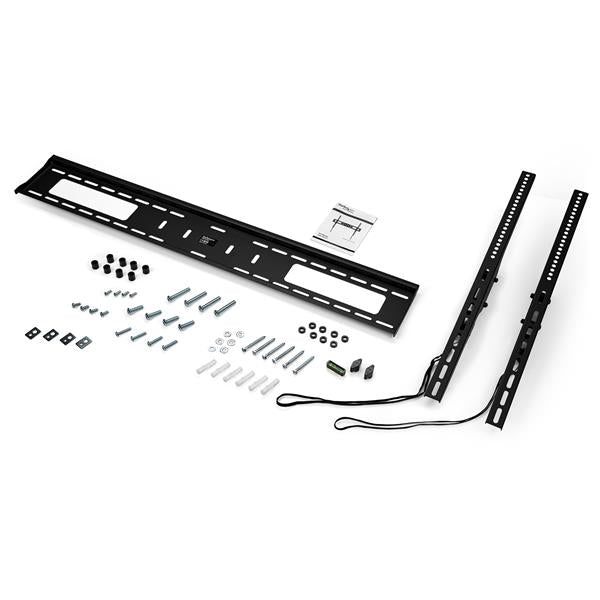

Packaging content
Screws included	Yes
Adapter bracket included	Yes
Number of adapter brackets included	2
Anchors included	Yes
Number of anchors included	6
Washers included	Yes
Number of washers included	10
Spacer included	Yes
Number of spacers included	16
Number of screws	26
Manual	Yes
Weight & dimensions
Width	625 mm
Depth	954 mm
Height	50 mm
Weight	4.5 kg
Depth (max)	95.4 cm
Packaging data
Package width	160 mm
Package depth	985 mm
Package height	57 mm
Package weight	4.8 kg
Logistics data
Master (outer) case width	182 mm
Master (outer) case length	1007 mm
Master (outer) case height	235 mm
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	85299097
