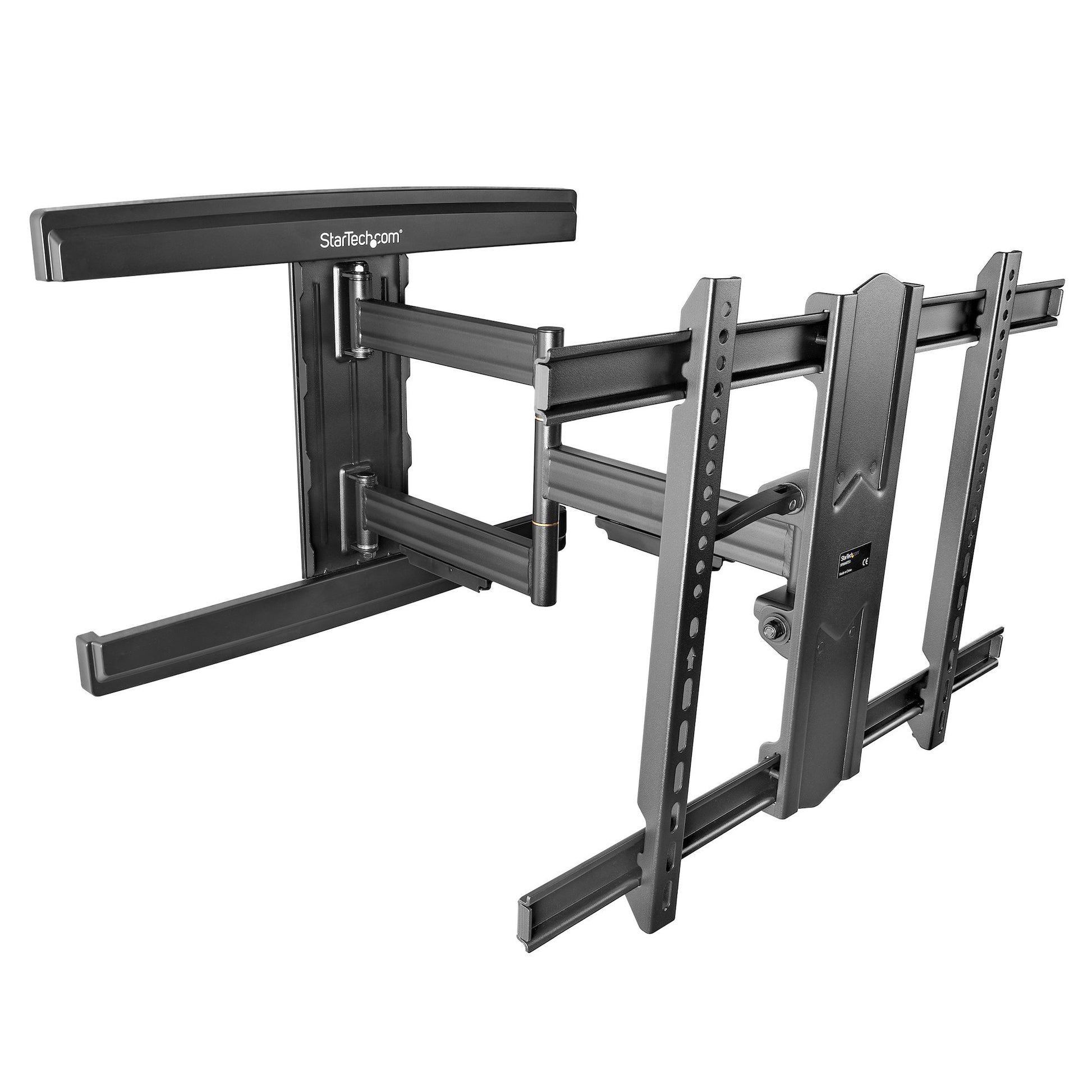

StarTech.com TV Wall Mount for up to 80 inch (110lb) VESA Mount Displays - Low

Position your screen exactly where you need it with the StarTech.com TV Wall Mount — VESA fit and load ratings are below.

Display Wall Mount | Steel | For up to 80" Displays

With its contemporary design, featuring a long extension arm with a large swivel range, this full motion TV wall mount for large-screen displays is the perfect choice for versatile viewing. You can extend the swiveling arm out to adjust your screen position, making it easy to view your display from numerous angles within the room.

Save Space

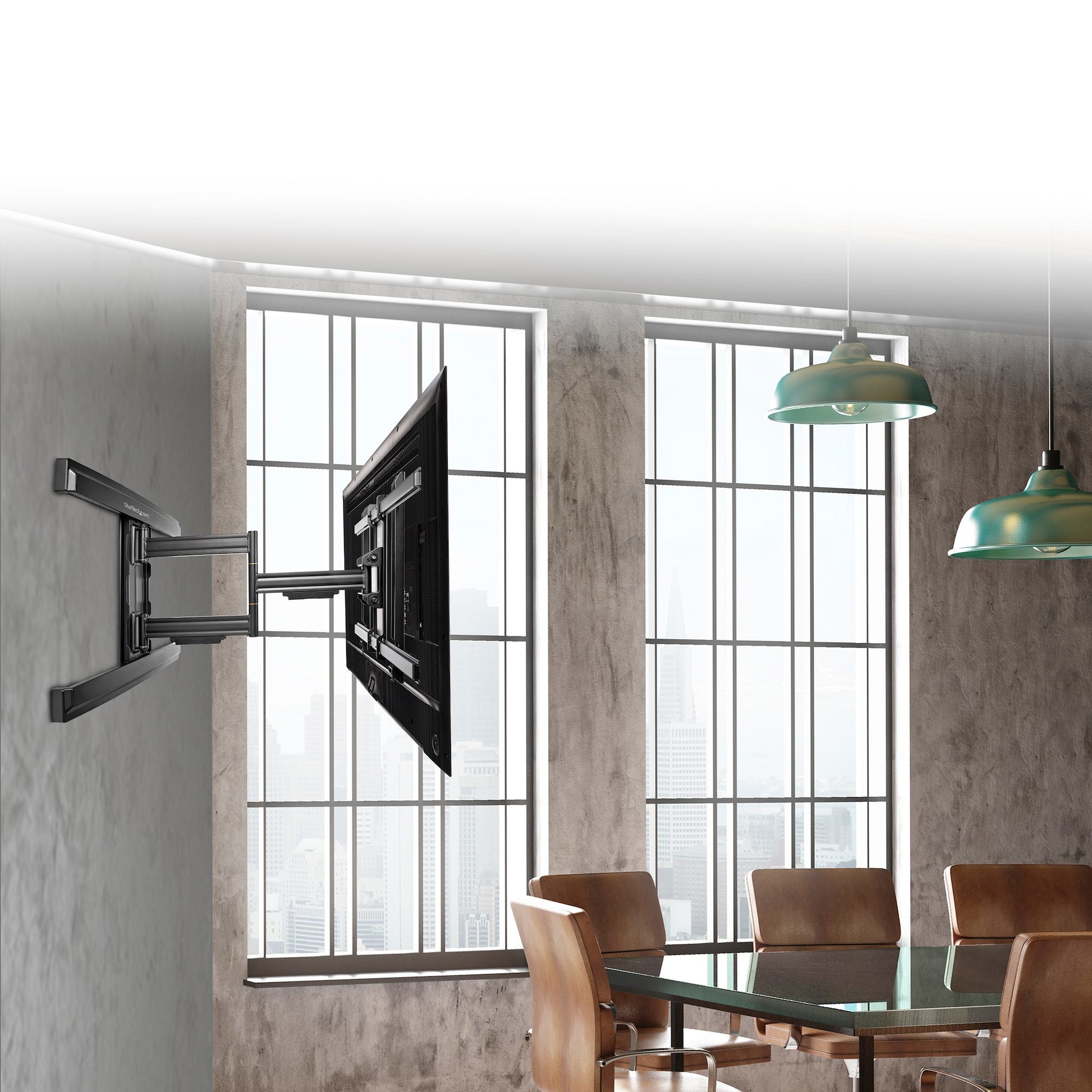

This adjustable wall mount TV bracket is ideal for a meeting space, lobby, boardroom, classroom or other venues. The monitor mount provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while freeing up valuable space.

Robust Steel Construction

Engineered from high-grade steel, the flat-screen TV wall mount securely supports VESA mount displays, including curved TVs, 37" to 80" with a weight capacity of 110 lb. (50 kg).

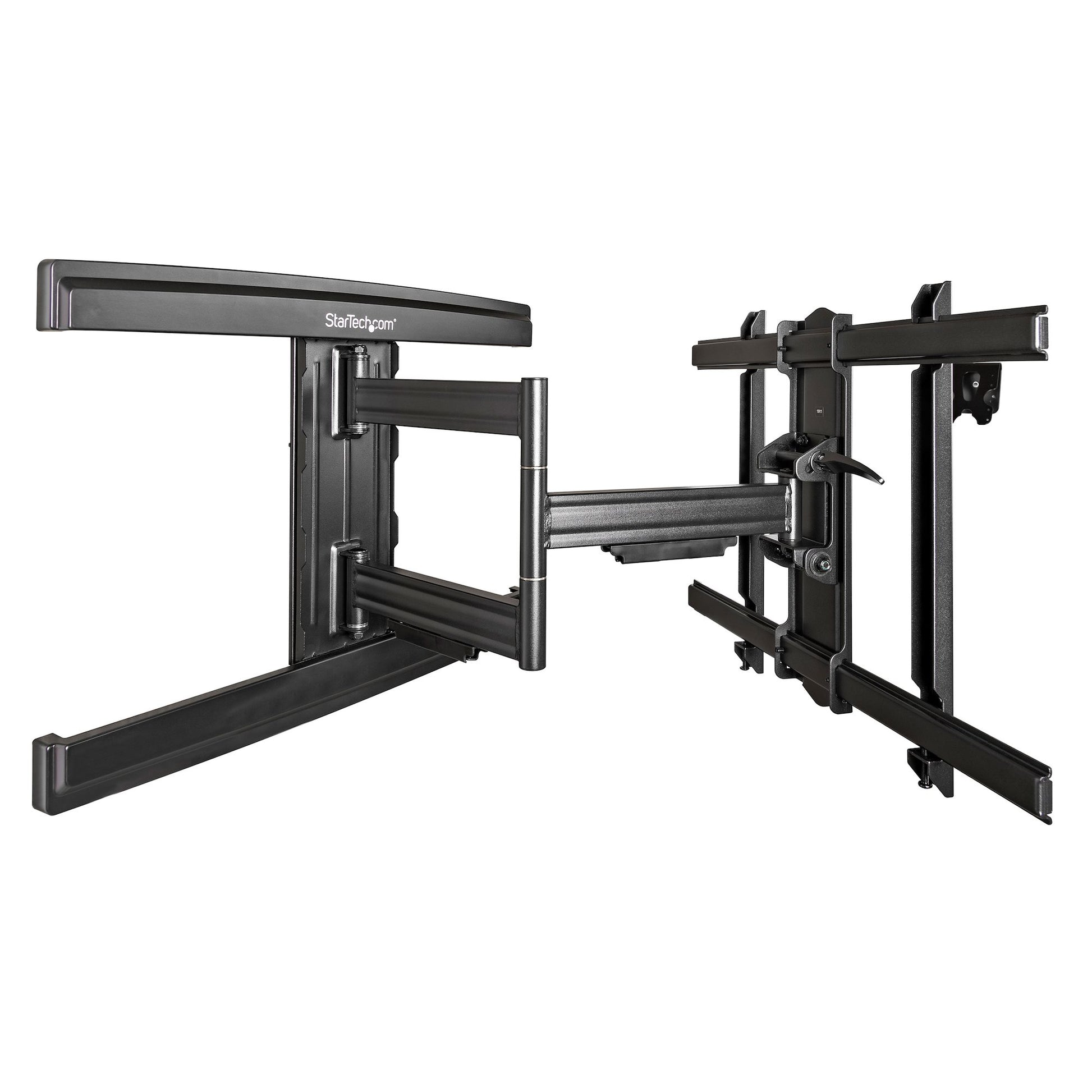

Full-Motion Adjustment

With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 25.5" (65 cm) to adjust the position of your display. Swivel the arm with ease, up to 90 degrees to the left or right, to position your TV for comfortable viewing.

You can also retract the arm back, to nest against the wall. With its low-profile design, the articulating TV wall mount enables your display to sit just 2.8" (70 mm) from the wall.

Find the Right Viewing Angle

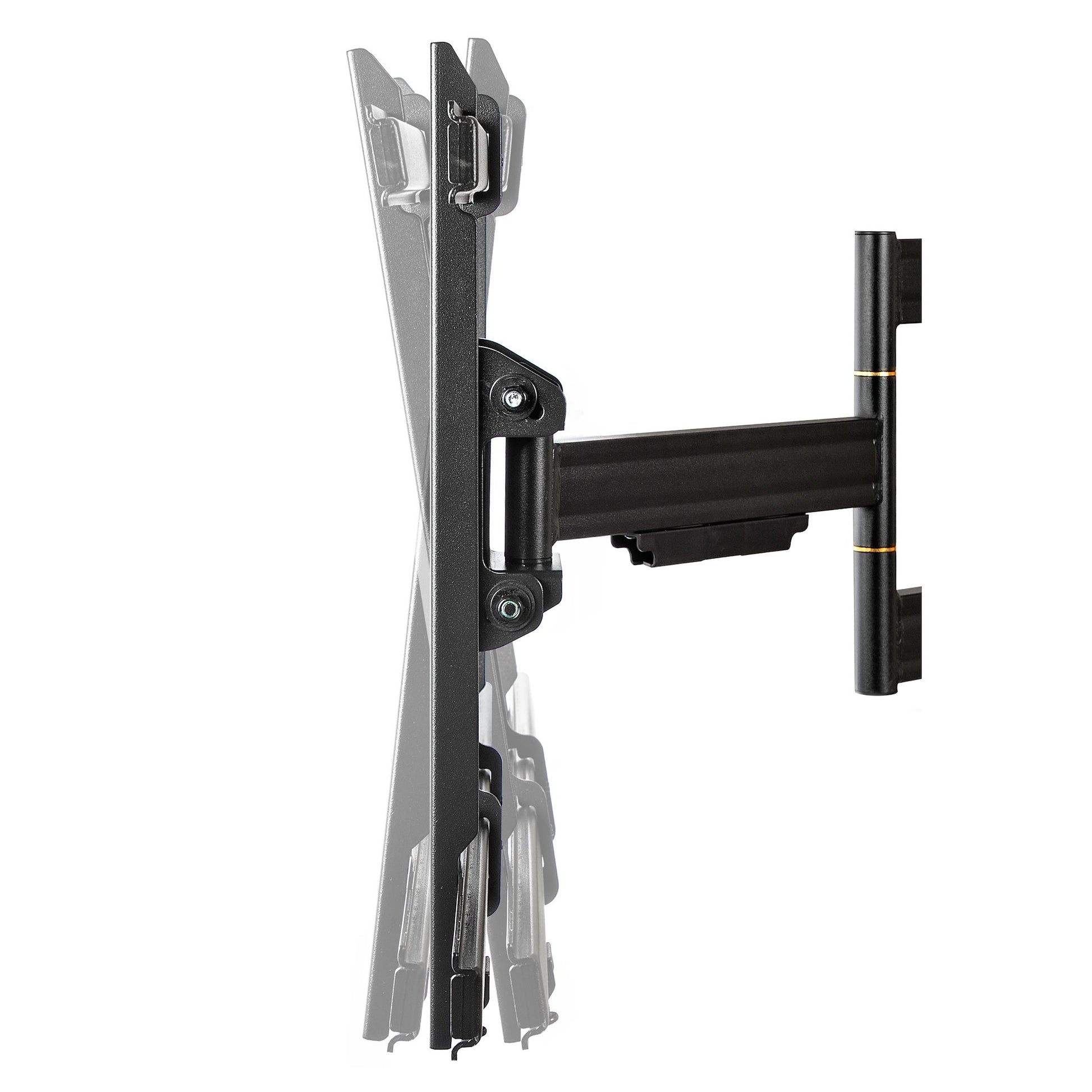

Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare.

The tilting TV wall mount also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after you've installed it, to ensure your display is level.

Easy to Install

The universal swivel TV wall mount is easy to install. The television mounting brackets for flat screen displays feature a post-installation lateral shift, to help adjust and center the mount on the wall, even with off-center studs. Cable management keeps cables neatly organized.

FPWARTS1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	94 cm (37")
Panel mounting interface	200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	2.03 m (80")
Maximum weight capacity	50 kg
Ergonomics
Cable management	Yes
Tilt angle range	-15 - 2°
Swivel angle range	-90 - 90°
Pivot angle	-90 - 90°
Distance to the wall (min)	7 cm
Distance to the wall (max)	65 cm
Technical details
Product colour	Black
Compliance certificates	RoHS
Design
Certification	CE, REACH
Housing material	Steel

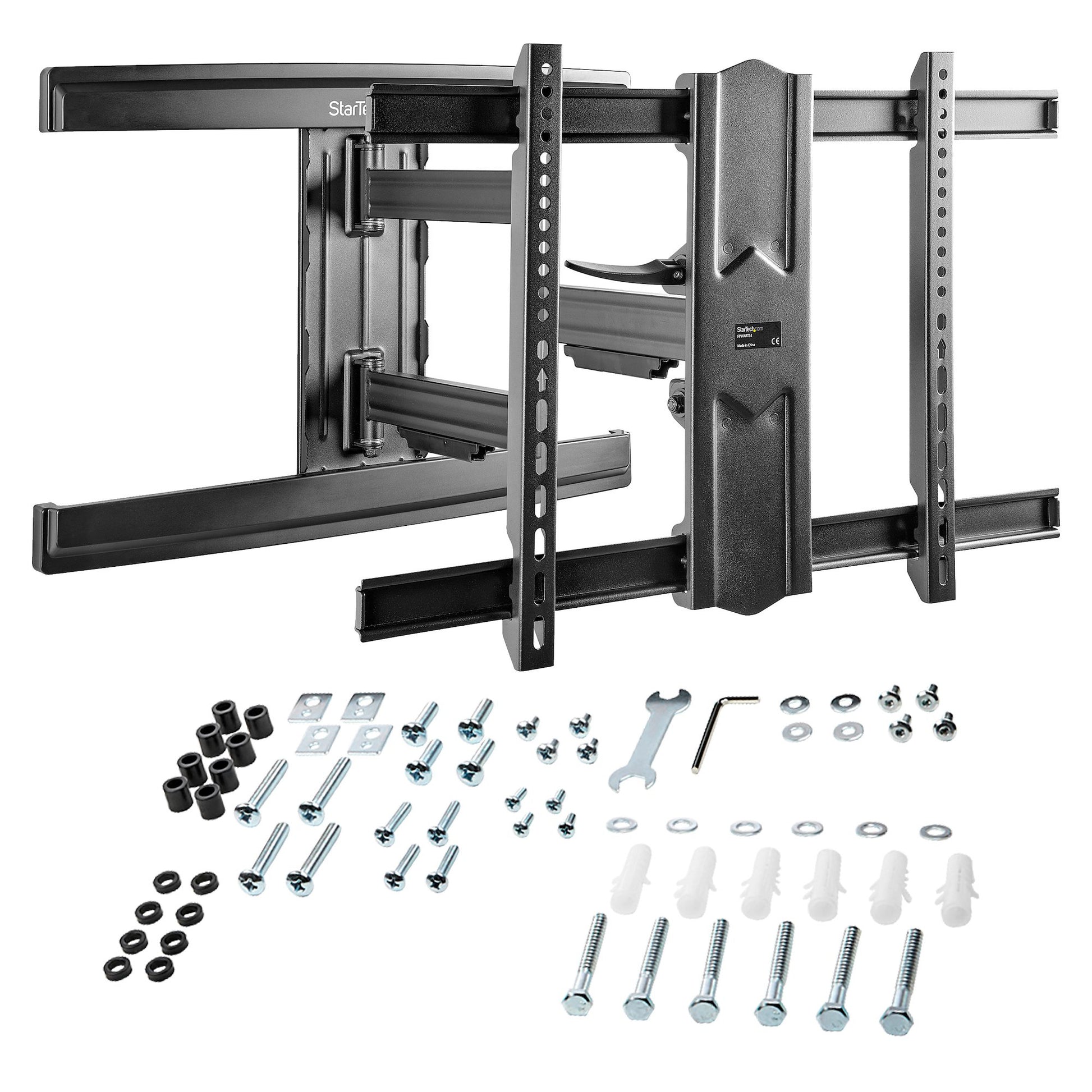

Packaging content
Screws included	Yes
Decorative cover included	Yes
Number of decorative covers included	2 pc(s)
Anchors included	Yes
Number of anchors included	6
Washers included	Yes
Number of washers included	14
Spacer included	Yes
Number of spacers included	16
Number of screws	30
Wrench type	Hexagonal wrench
Manual	Yes
Weight & dimensions
Width	465 mm
Height	935 mm
Weight	13 kg
Depth (max)	65 cm
Packaging data
Package width	732 mm
Package depth	560 mm
Package height	116 mm
Package weight	14.2 kg
Logistics data
Master (outer) case width	755 mm
Master (outer) case length	578 mm
Master (outer) case height	245 mm
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85299097
Other features
Screw type	M5, M6, M8
