StarTech.com TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount (ILPTBSP)
StarTech.com TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount (ILPTBSP)
Regular price
£116.58 GBP
Regular price
Sale price
£116.58 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the StarTech.com TV Ceiling Mount — VESA fit and load ratings are below.
Display Ceiling Mount | Full Motion | For 32" to 75" DisplaysThis ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

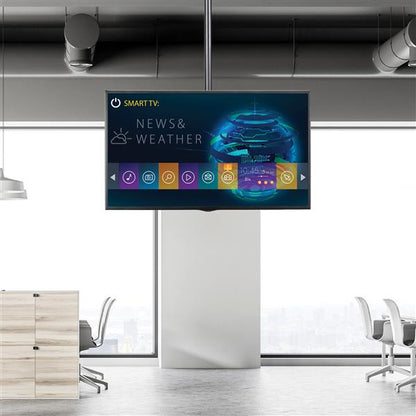

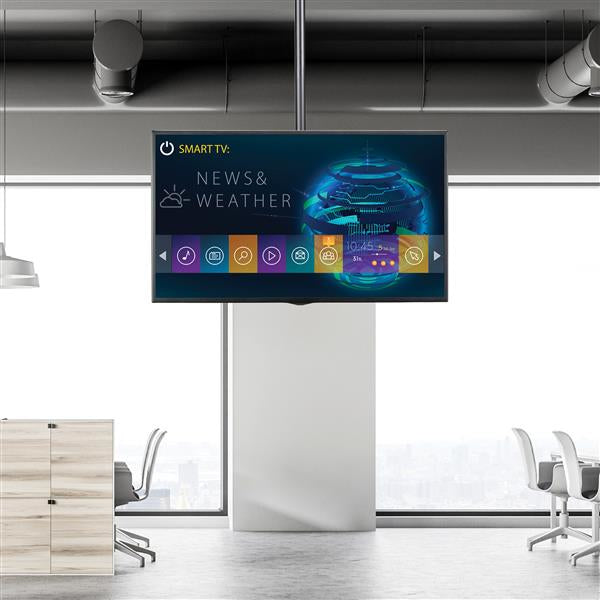

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
Adjustable Height

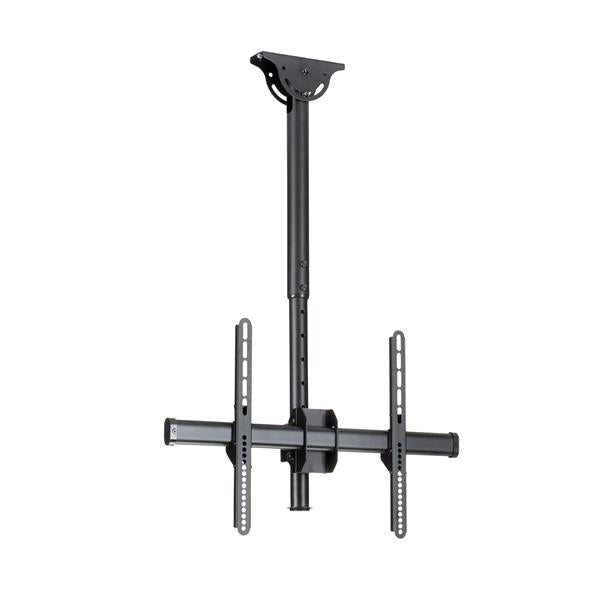

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).
Swivels to Suit Your Ceiling

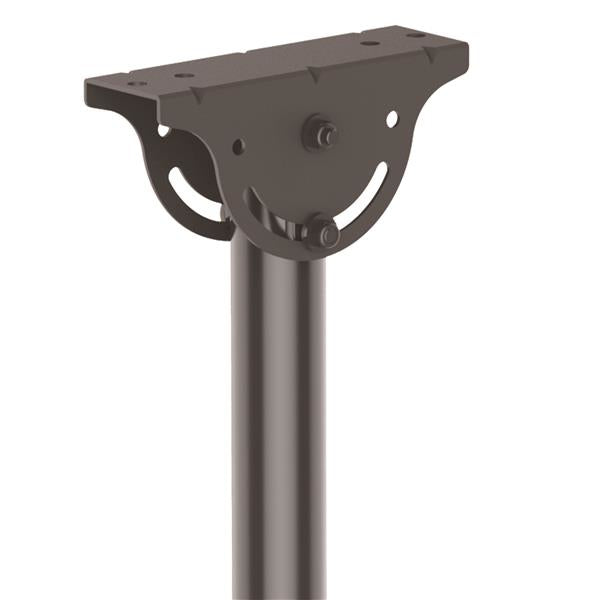

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction

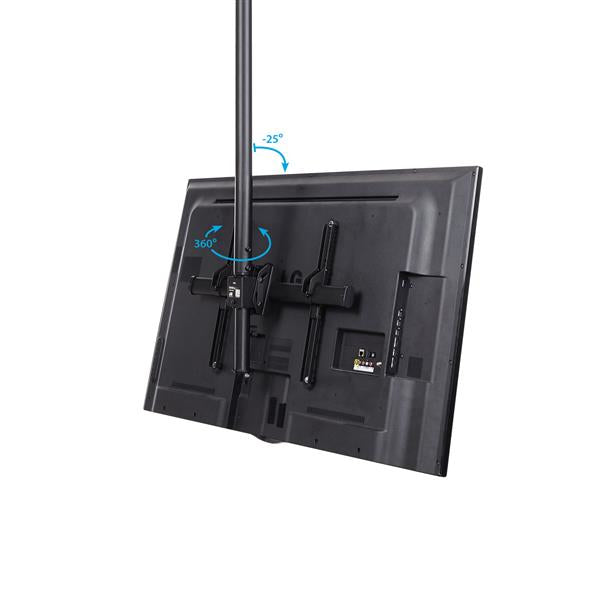

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

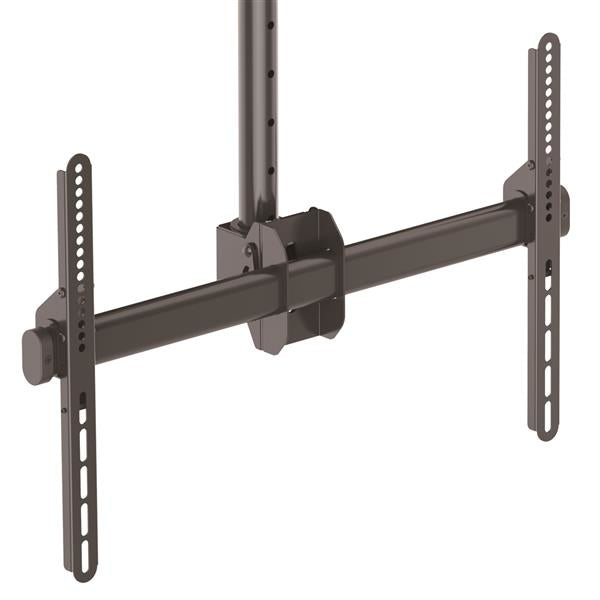

Hook-and-Mount Design

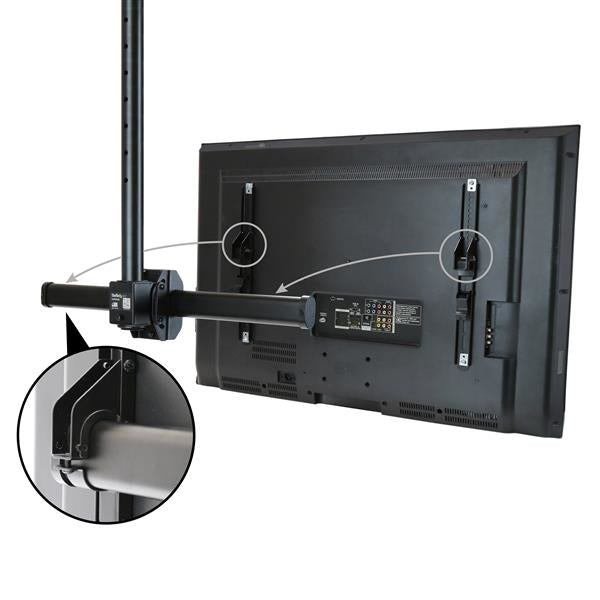

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 94 cm (37") |
| Maximum weight capacity | 50 kg |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 560 - 910 mm |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -25 - 0° |
| Angle of rotation | 360° |
| Pivot angle | -180 - 180° |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Certification | REACH, CE |
| Product colour | Black |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 680 mm |
| Depth | 680 mm |
| Height | 1150 mm |
| Weight | 4.9 kg |
| Depth (max) | 43.5 cm |
| Package dimensions (WxDxH) | 366 x 771 x 149 mm |
| Package width | 776 mm |
| Package depth | 380 mm |
| Package height | 150 mm |
| Package weight | 6.8 kg |

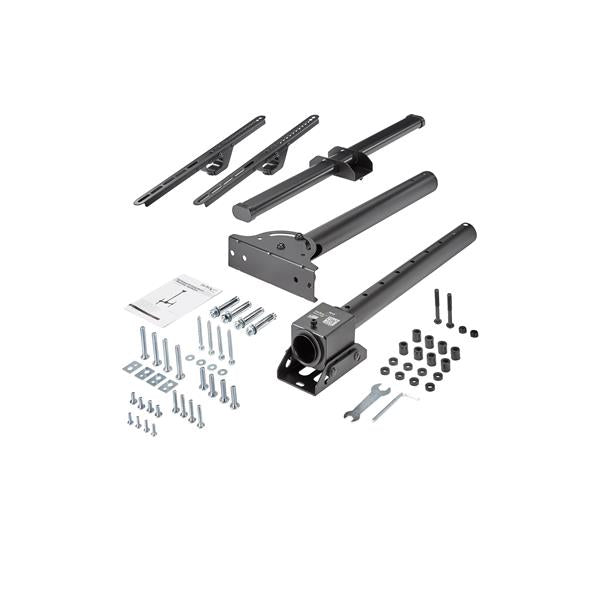

| Packaging content | |
| Wrench included | Yes |
| Washers included | Yes |
| Spacer included | Yes |
| Screws included | Yes |
| Number of washers included | 8 |
| Number of spacers included | 8 |
| Number of screws | 24 |
| Mounting kit | Yes |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 795 mm |
| Master (outer) case length | 393 mm |
| Master (outer) case height | 469 mm |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85299097 |
