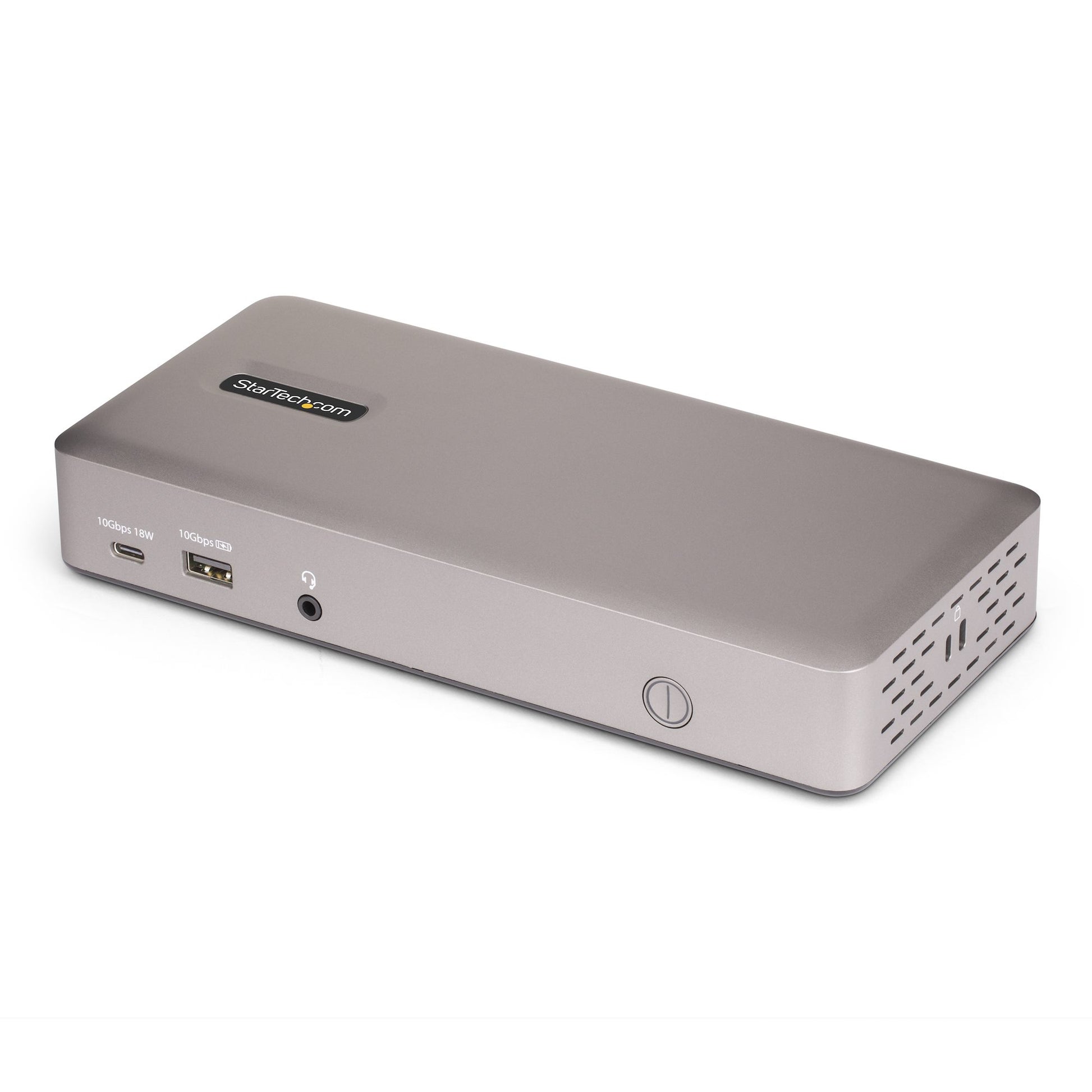

StarTech.com Triple-Monitor USB4 USB-C Docking Station 100W
StarTech.com Triple-Monitor USB4 USB-C Docking Station 100W
Regular price
£158.53 GBP
Regular price
Sale price
£158.53 GBP
Taxes included.
Quantity
Couldn't load pickup availability

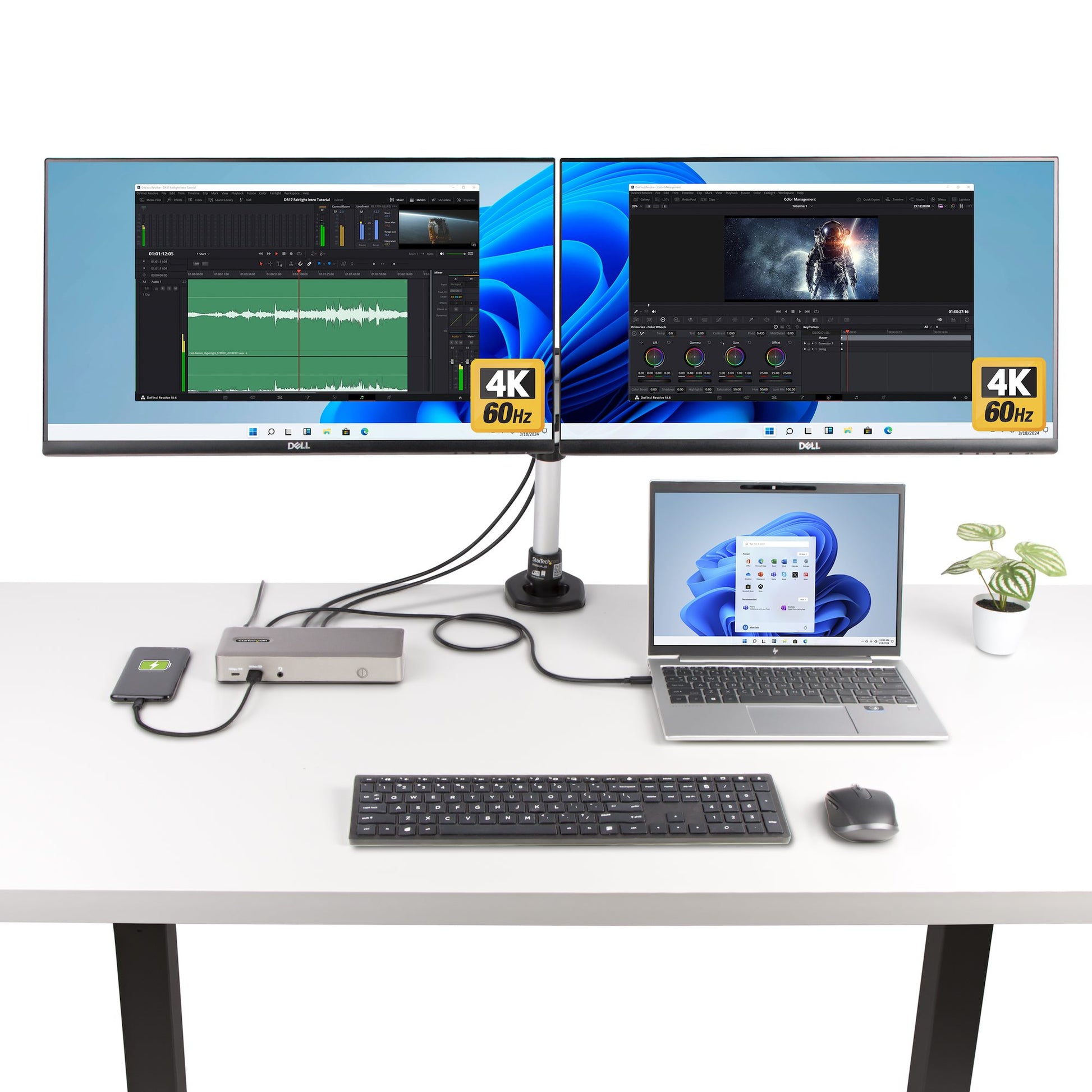

One cable, full desk: the StarTech.com Triple-Monitor USB4 turns your laptop into a workstation with triple displays, wired networking, 100W charging over a single USB-C connection.
Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop ChargingExpand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.
High-Performance Display and Networking
Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.
Comprehensive Connectivity and Power

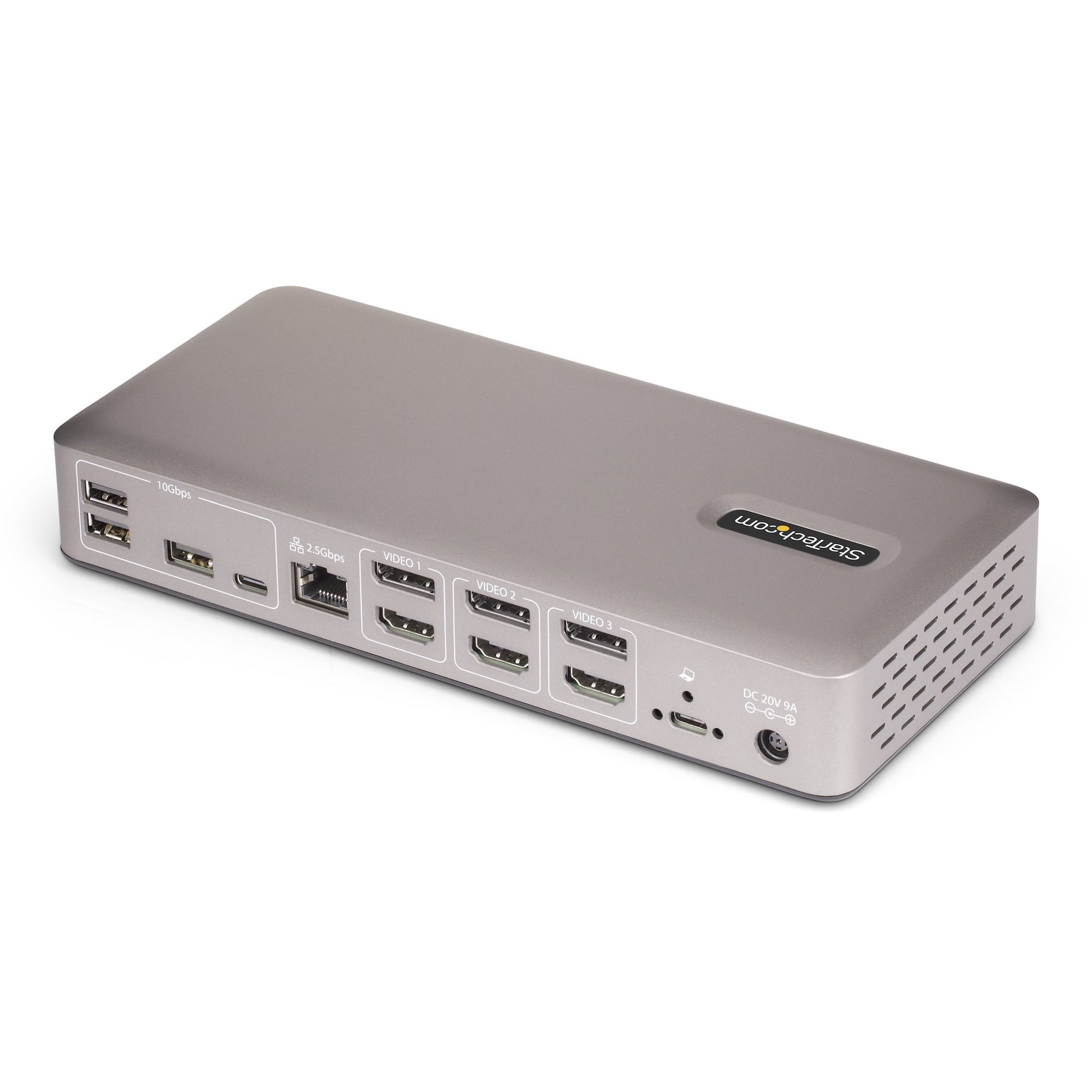

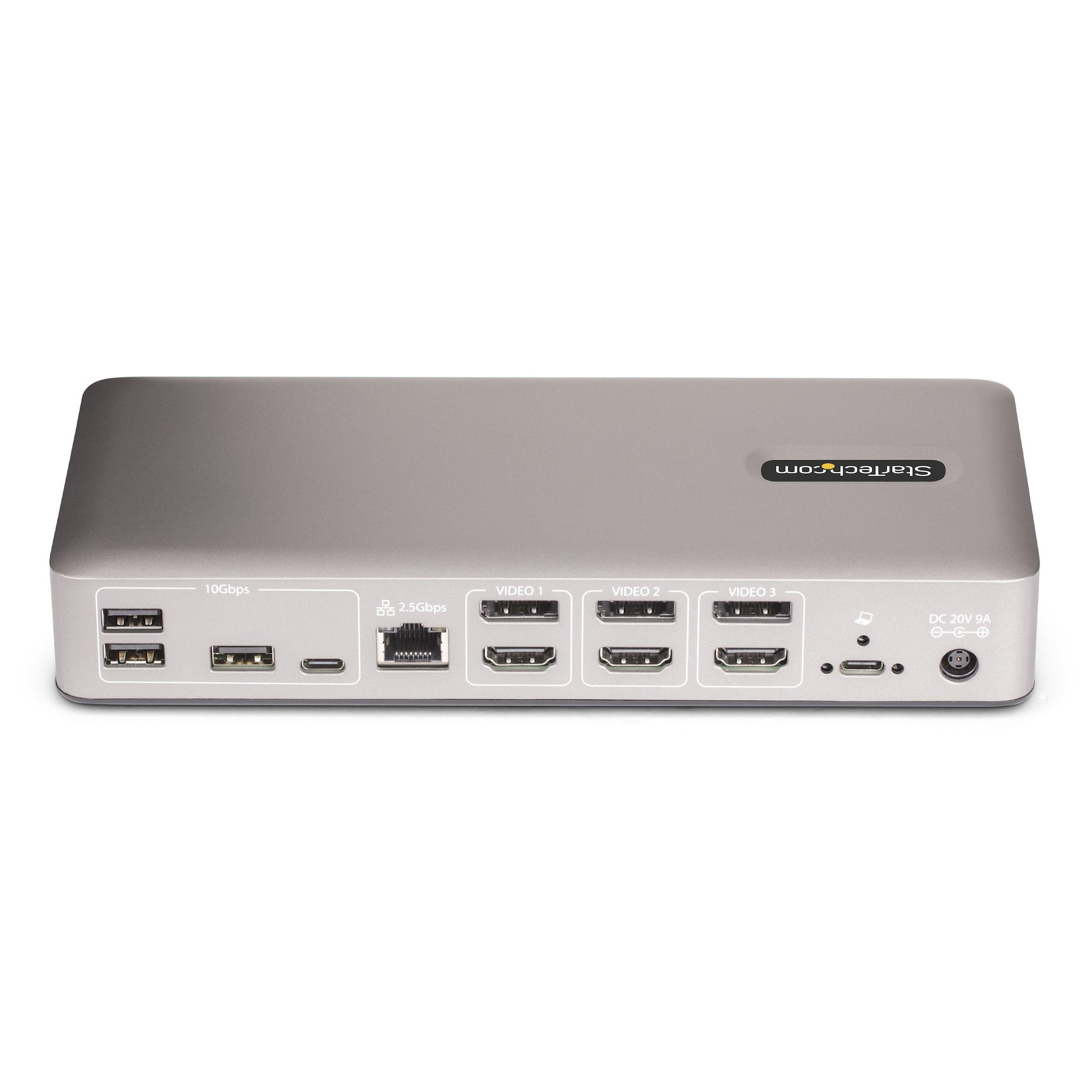

The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.
Driverless Deployment with Secure Mounting Options

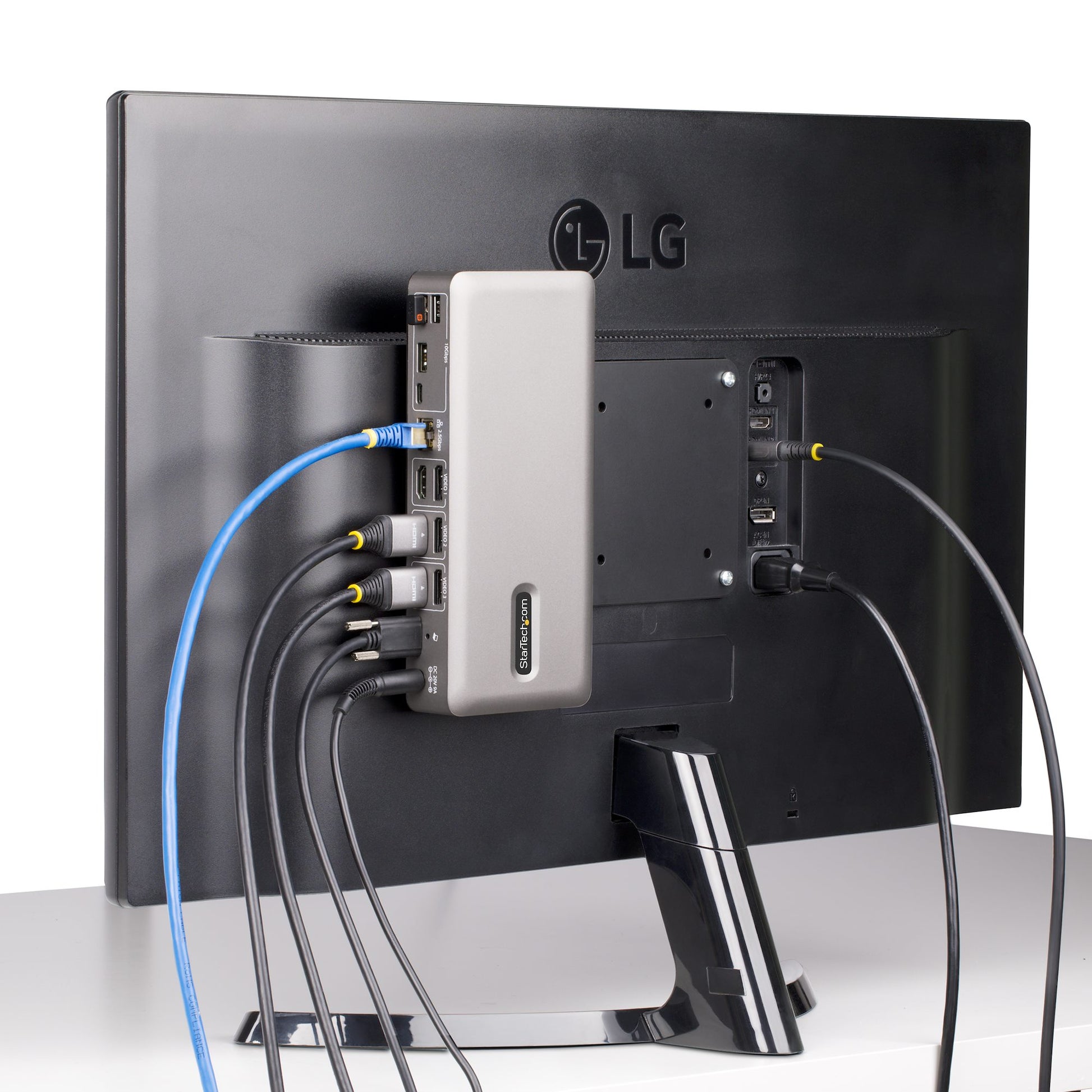

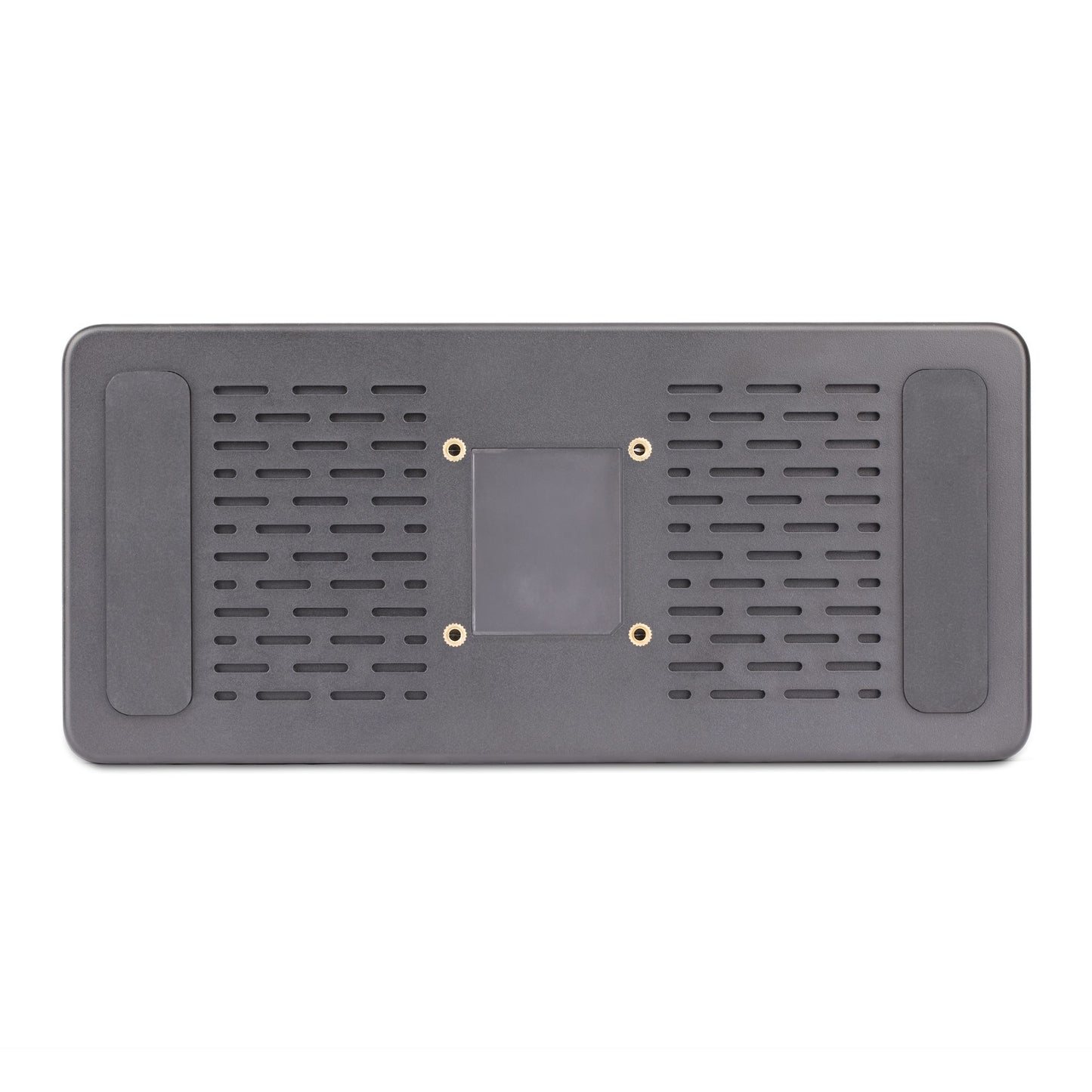

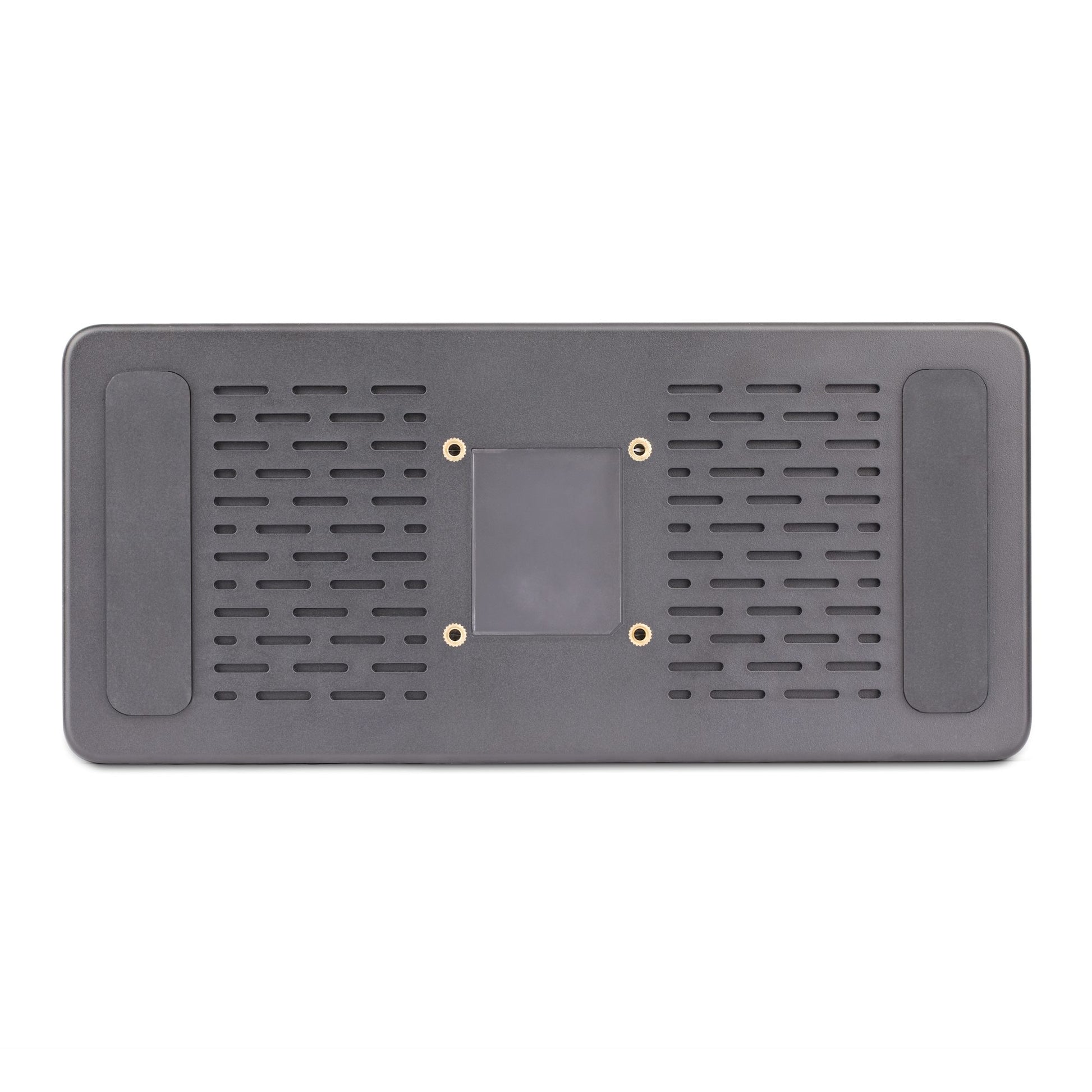

Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 3 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Network | |
| Full duplex | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Grey |
| Card reader integrated | No |

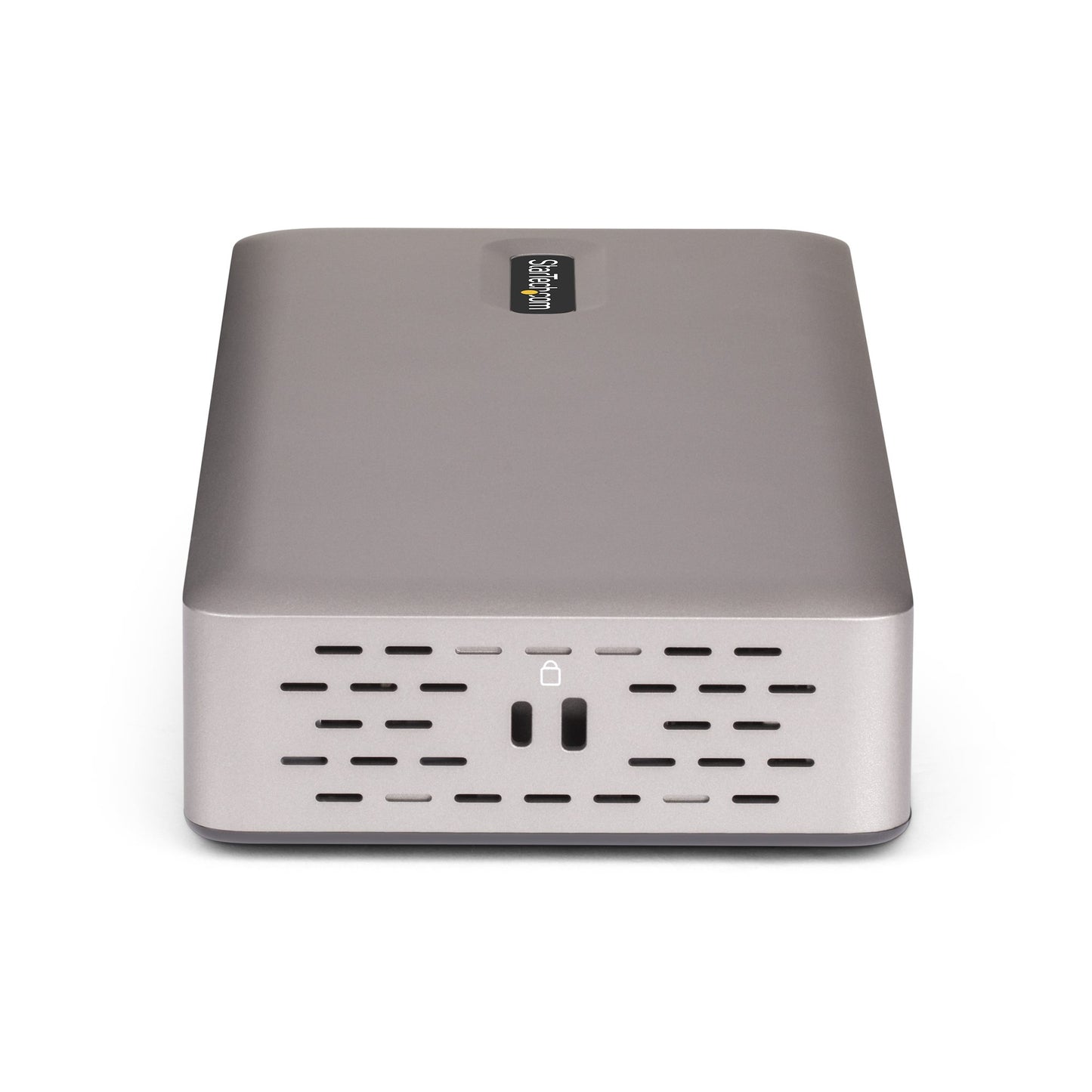

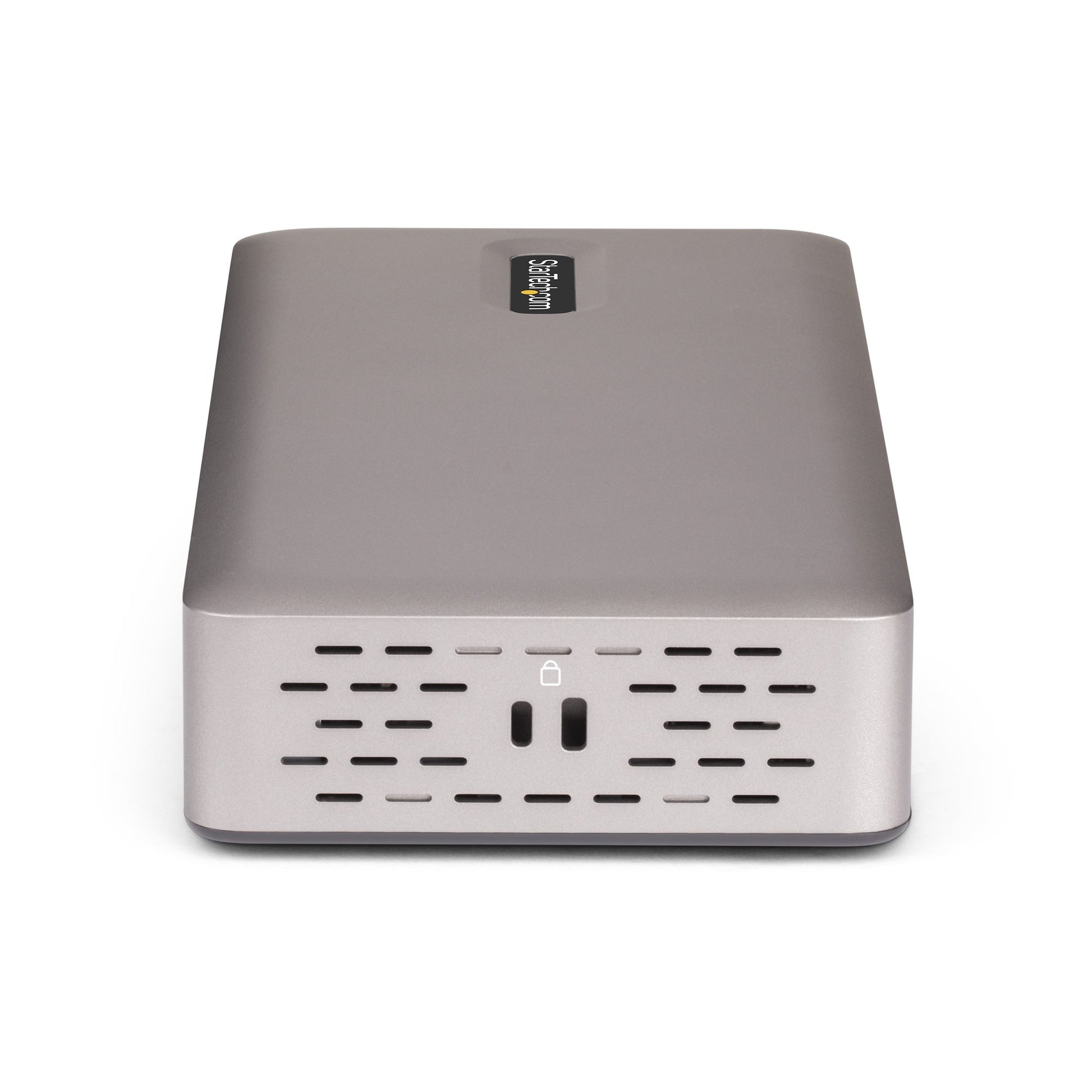

| Cable lock slot | Yes |
| Data transfer rate | 40 Gbit/s |
| Cable lock slot type | Kensington, Nano |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 144 Hz |
| Technical details | |
| Compliance certificates | CE |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 285 mm |
| Power | |
| Input current | 2.5 A |
| Power consumption (max) | 180 W |
| Compatible power plug types | US |
| AC input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Output current | 9 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 1.06 kg |
| Width | 95 mm |
| Depth | 210 mm |
| Height | 34 mm |
| Package weight | 1.4 kg |
| Package width | 145 mm |
| Package depth | 235 mm |
| Package height | 99 mm |

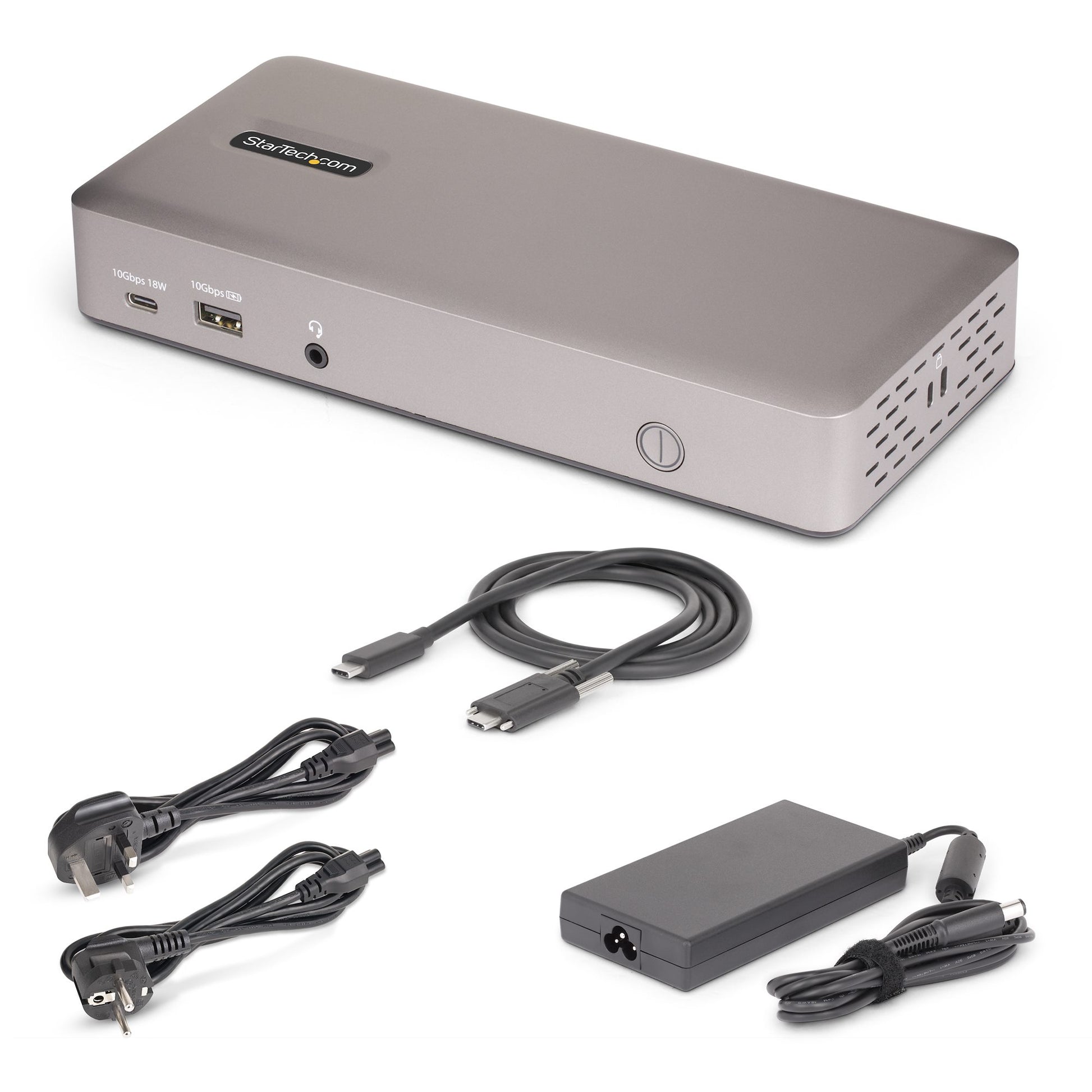

| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Other features | |
| Chipset | VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469 |
