StarTech.com Triple-Monitor USB-C Docking Station 140W
StarTech.com Triple-Monitor USB-C Docking Station 140W
Regular price
£185.21 GBP
Regular price
Sale price
£185.21 GBP
Taxes included.
Quantity
Couldn't load pickup availability
One cable, full desk: the StarTech.com Triple-Monitor turns your laptop into a workstation with triple displays, wired networking, 140W charging over a single USB-C connection.
Universal triple-monitor dock compatible with macOS, Windows, and ChromeOSThis universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments.

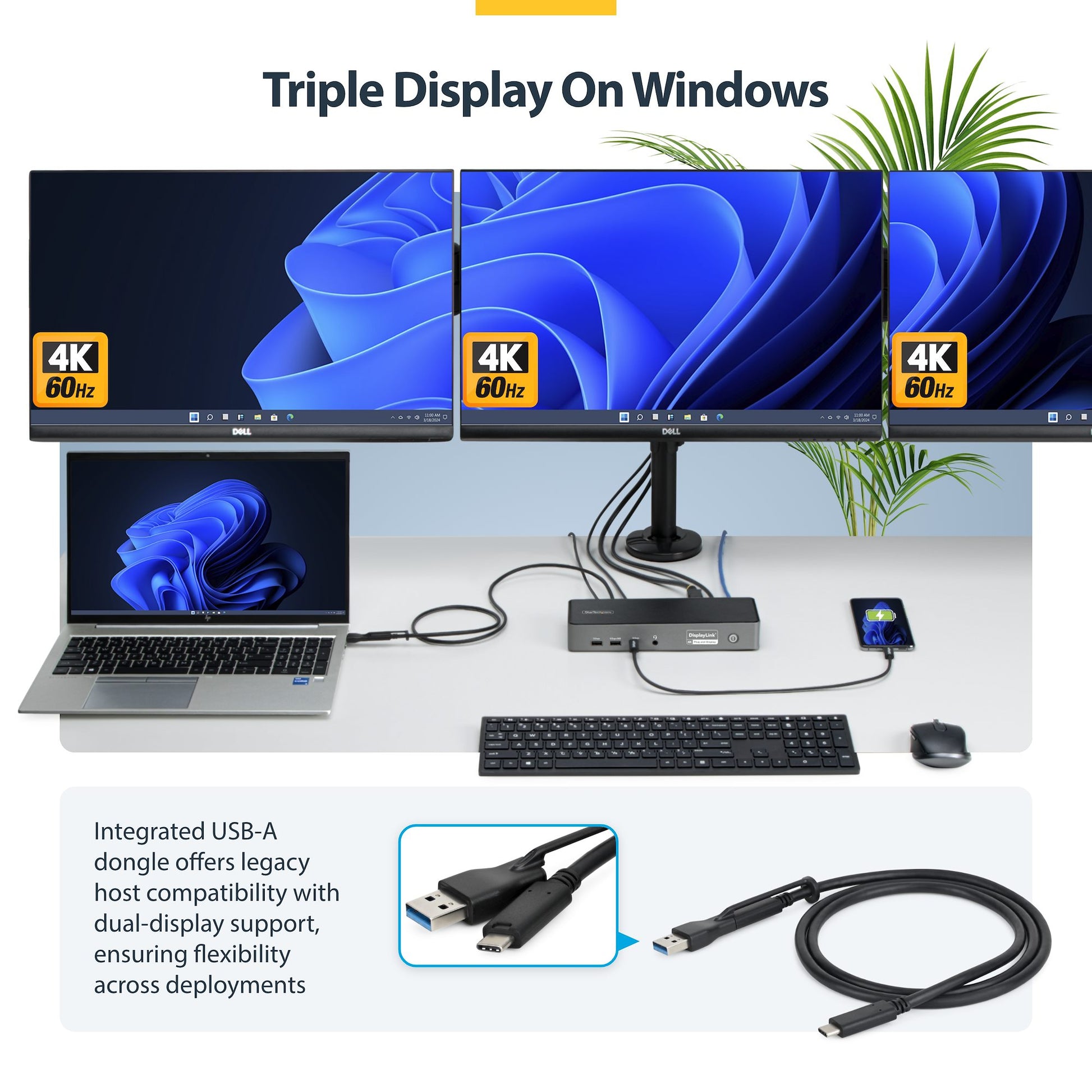

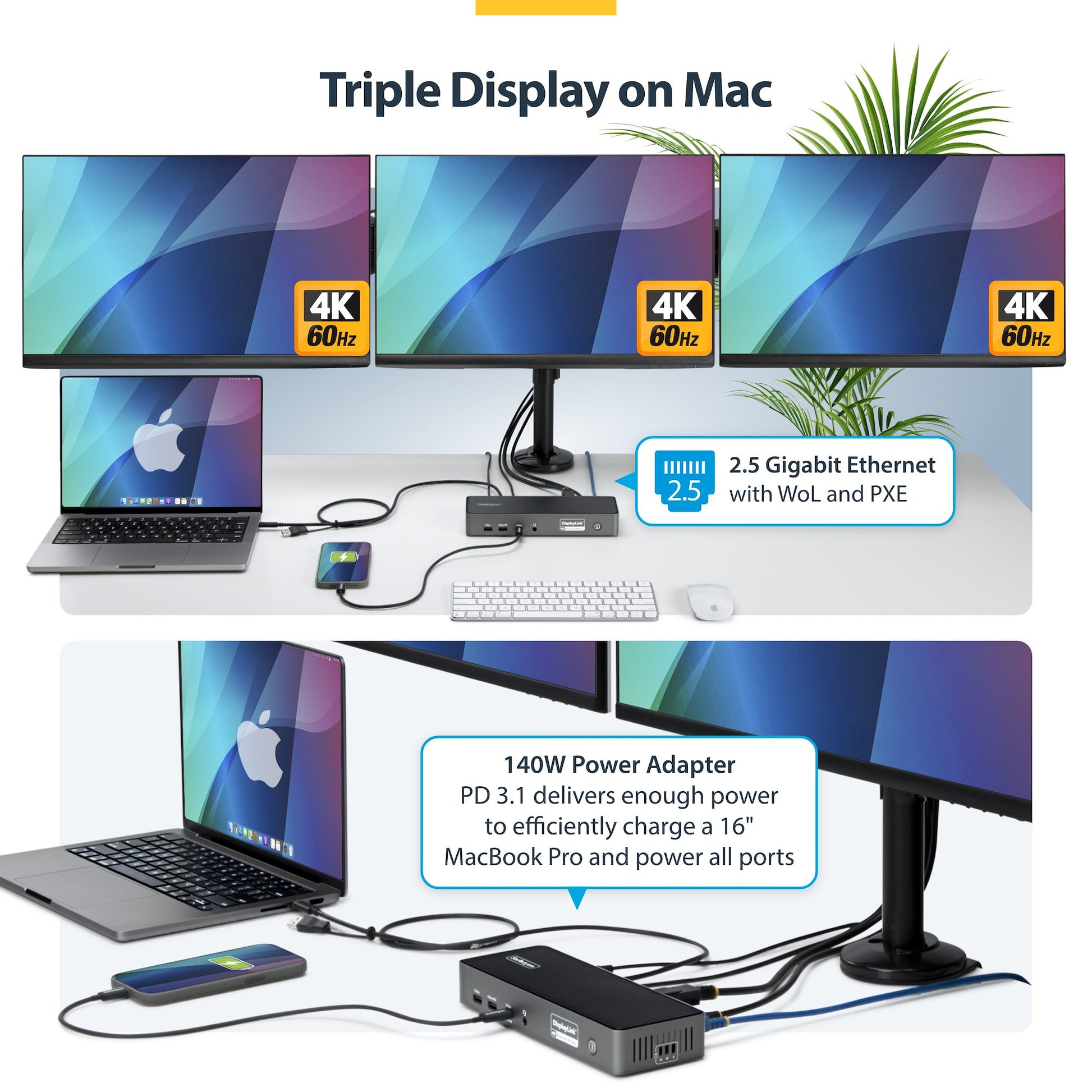

Triple 4K Display Support & 140W USB-C Charging
Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.
GPU Agnostic for Cross-Platform IT Deployments
DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.
Enterprise-Grade Networking & Physical Security

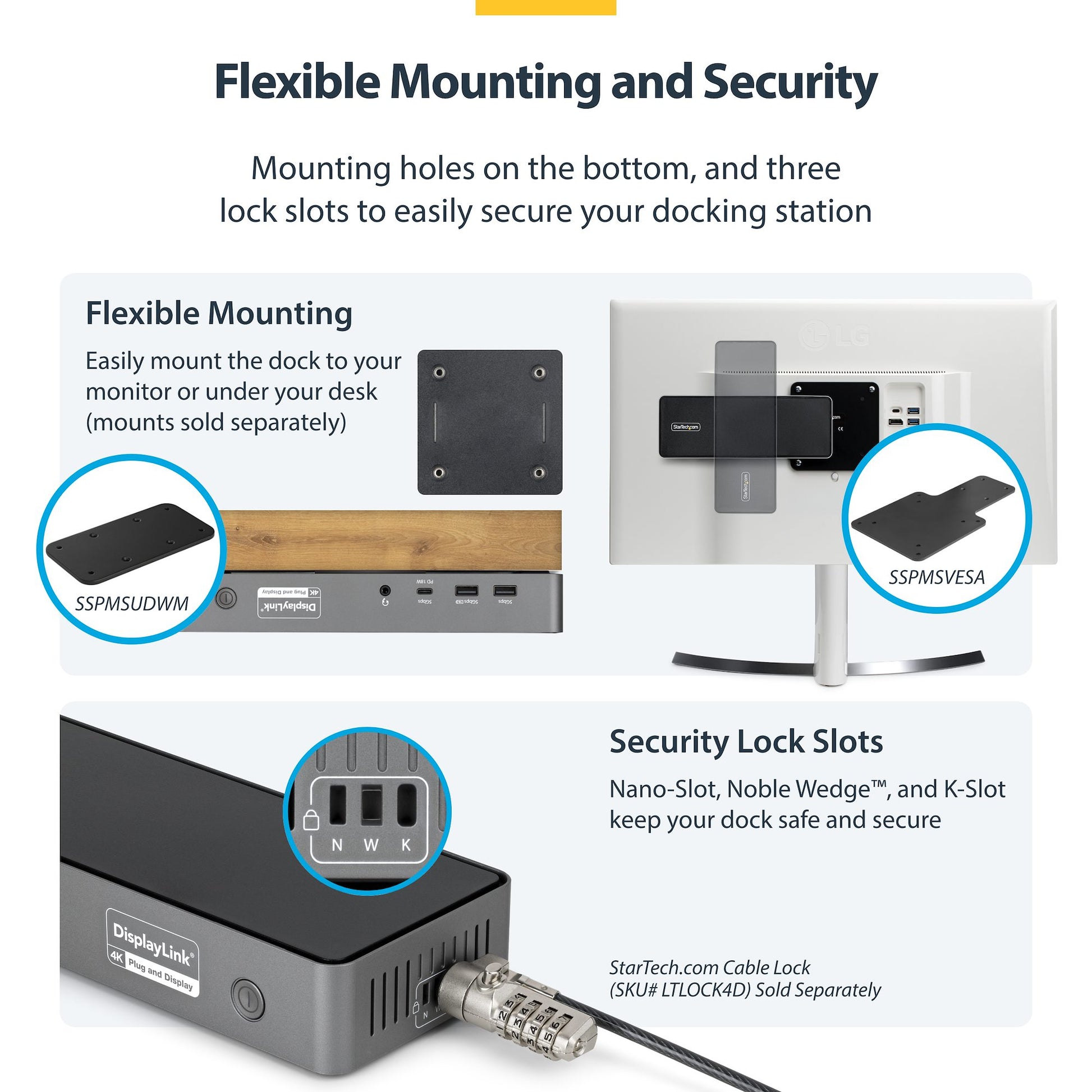

The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.
Specifications

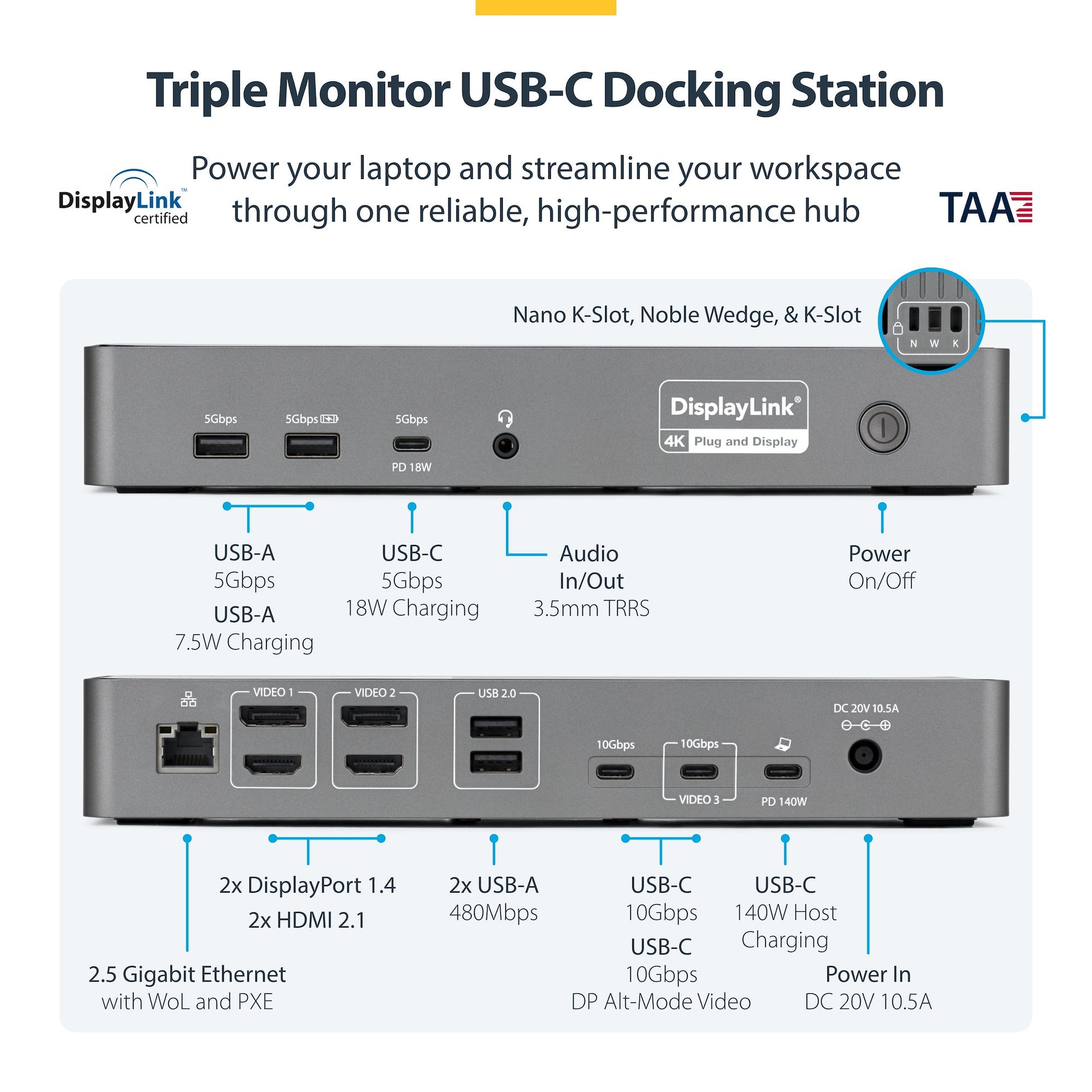

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Full duplex | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| On/off switch | Yes |
| Product colour | Grey |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Cable lock slot type | Kensington, Nano, Wedge |
| HD type | 4K Ultra HD |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| User guide | Yes |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 300 mm |
| Power | |
| Power source type | DC |
| Input current | 2.5 A |
| Power plug type | Type M |
| Power consumption (max) | 210 W |
| Compatible power plug types | EU, UK |
| AC input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Output current | 10.5 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 24.04 LTS |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging data | |
| Package weight | 1.2 kg |
| Package width | 169 mm |
| Package depth | 251 mm |
| Package height | 90 mm |

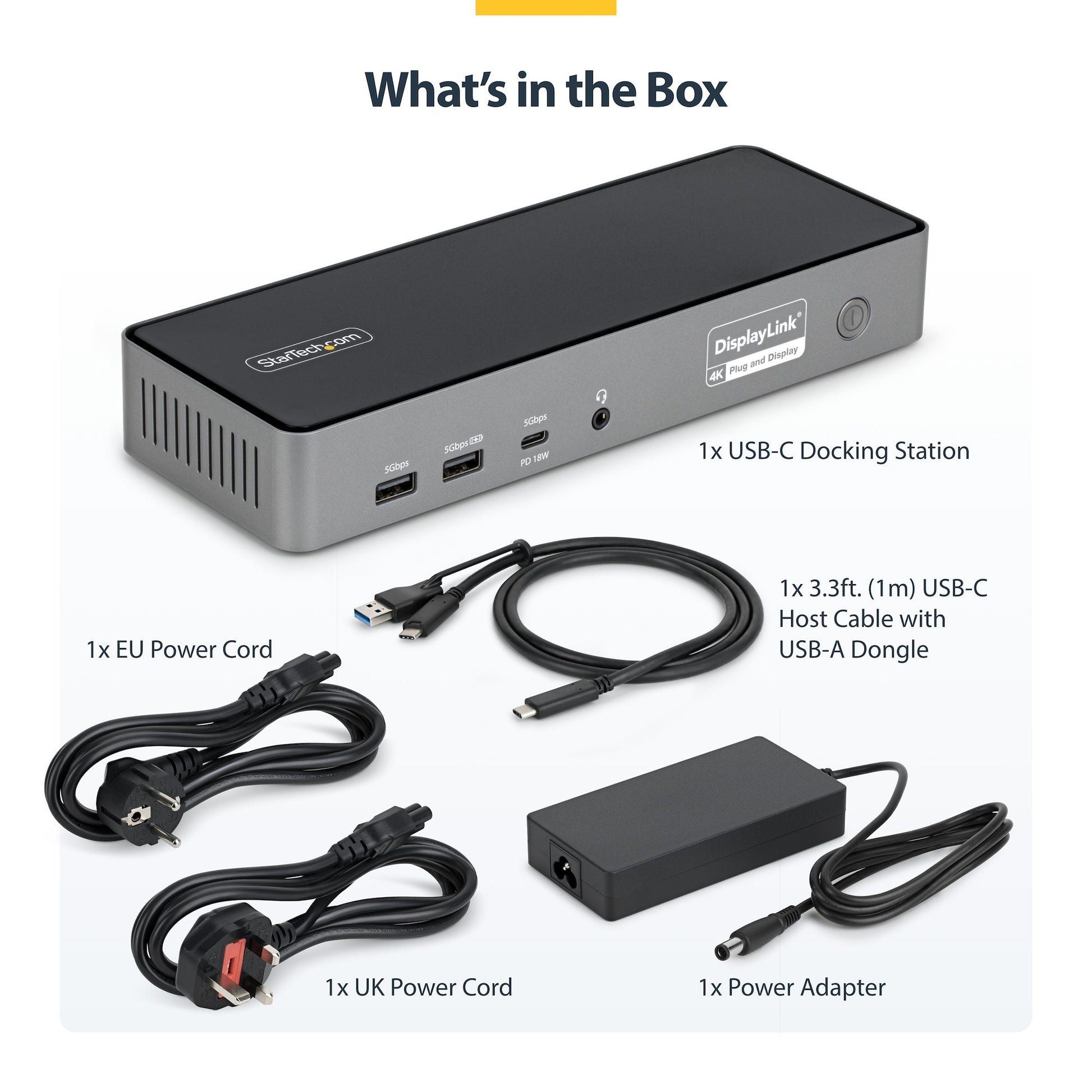

| Packaging content | |
| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Other features | |
| Chipset | DisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B |
