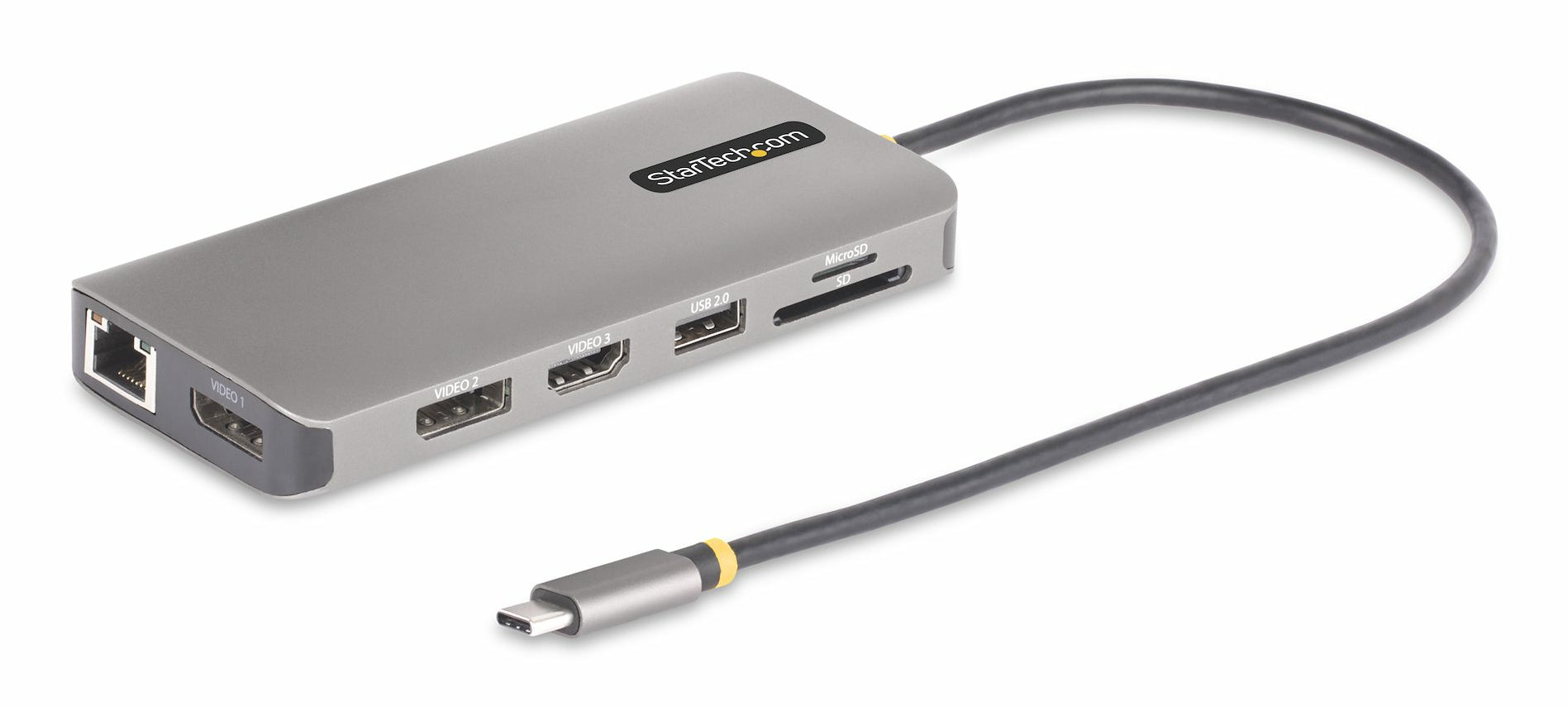

StarTech.com Triple-Monitor Multiport Adapter USB-C Docking Station

One cable, full desk: the StarTech.com Triple-Monitor Multiport Adapter turns your laptop into a workstation with triple displays, wired networking, 100W charging over a single USB-C connection.

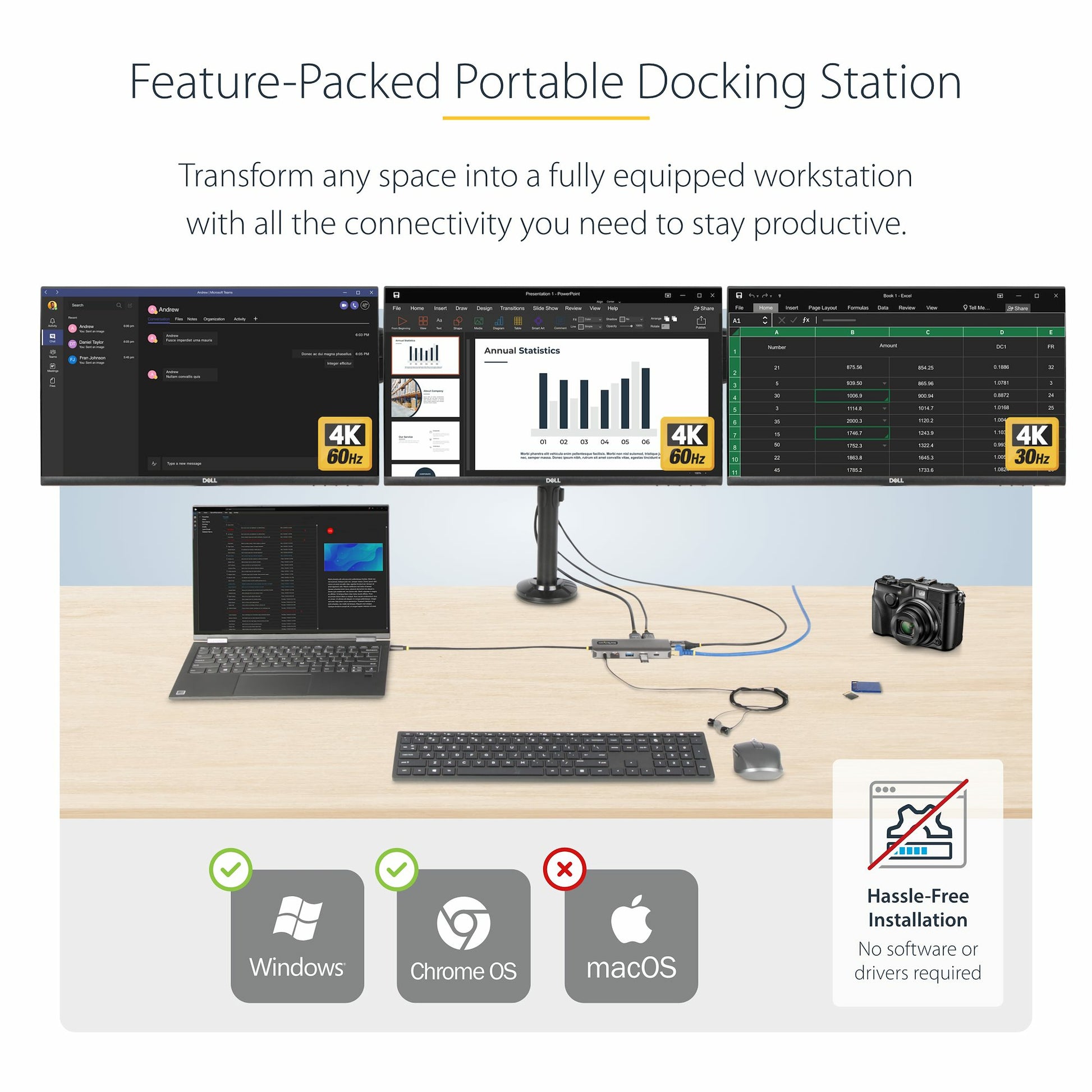

Create a workstation wherever you work with multiple displays, multiple USB ports, Gigabit Ethernet, and an SD slot

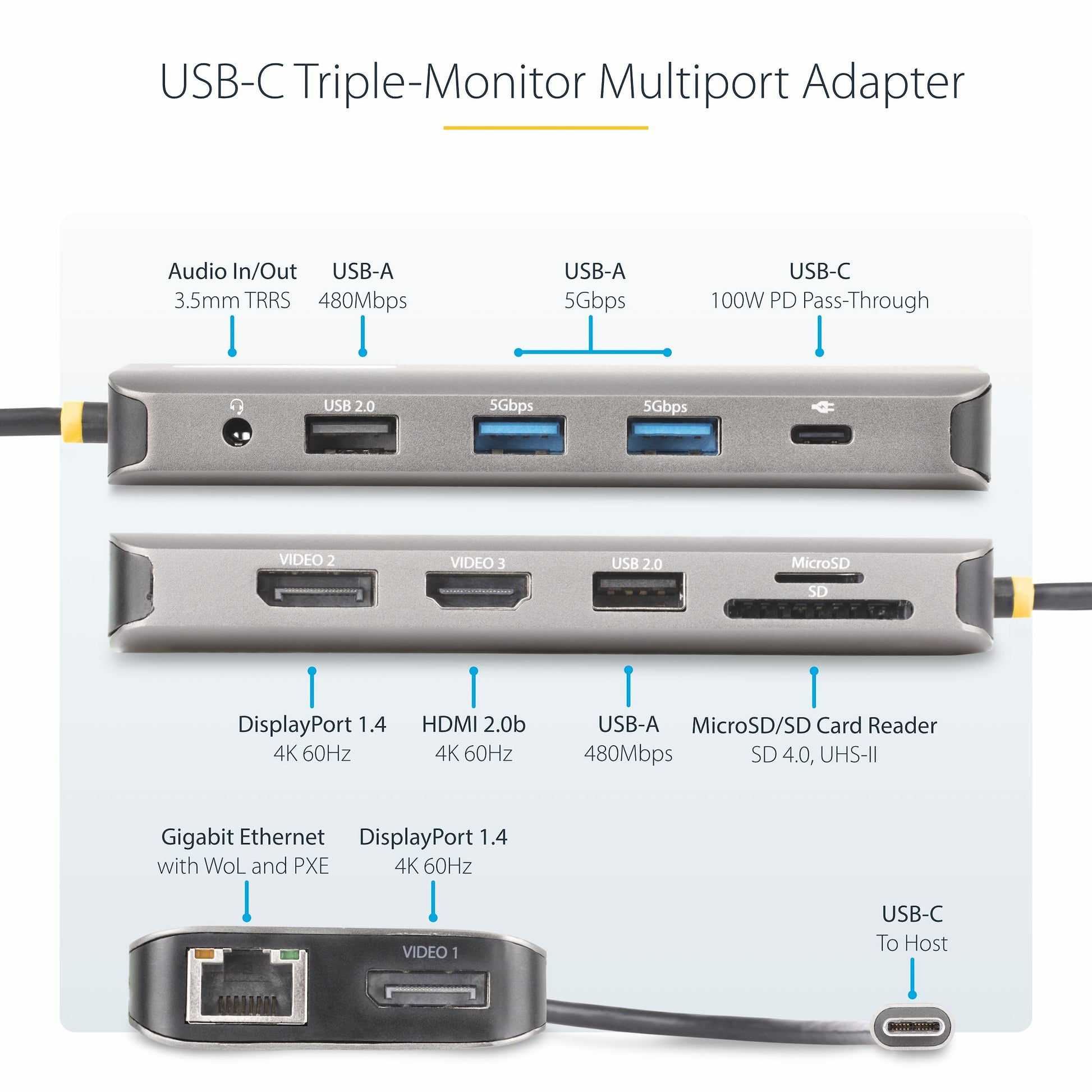

This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three displays. The USB-C dock provides 1x HDMI, 2x DisplayPort, a 4-Port USB Hub, SD and Micro SD Card Reader and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 1 ft. (30 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

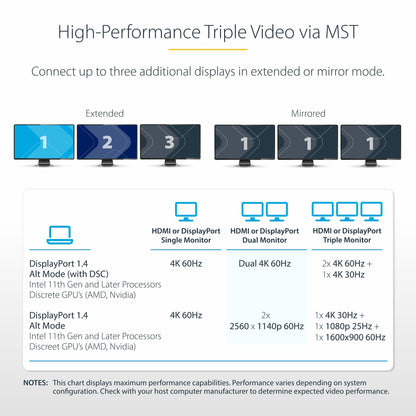

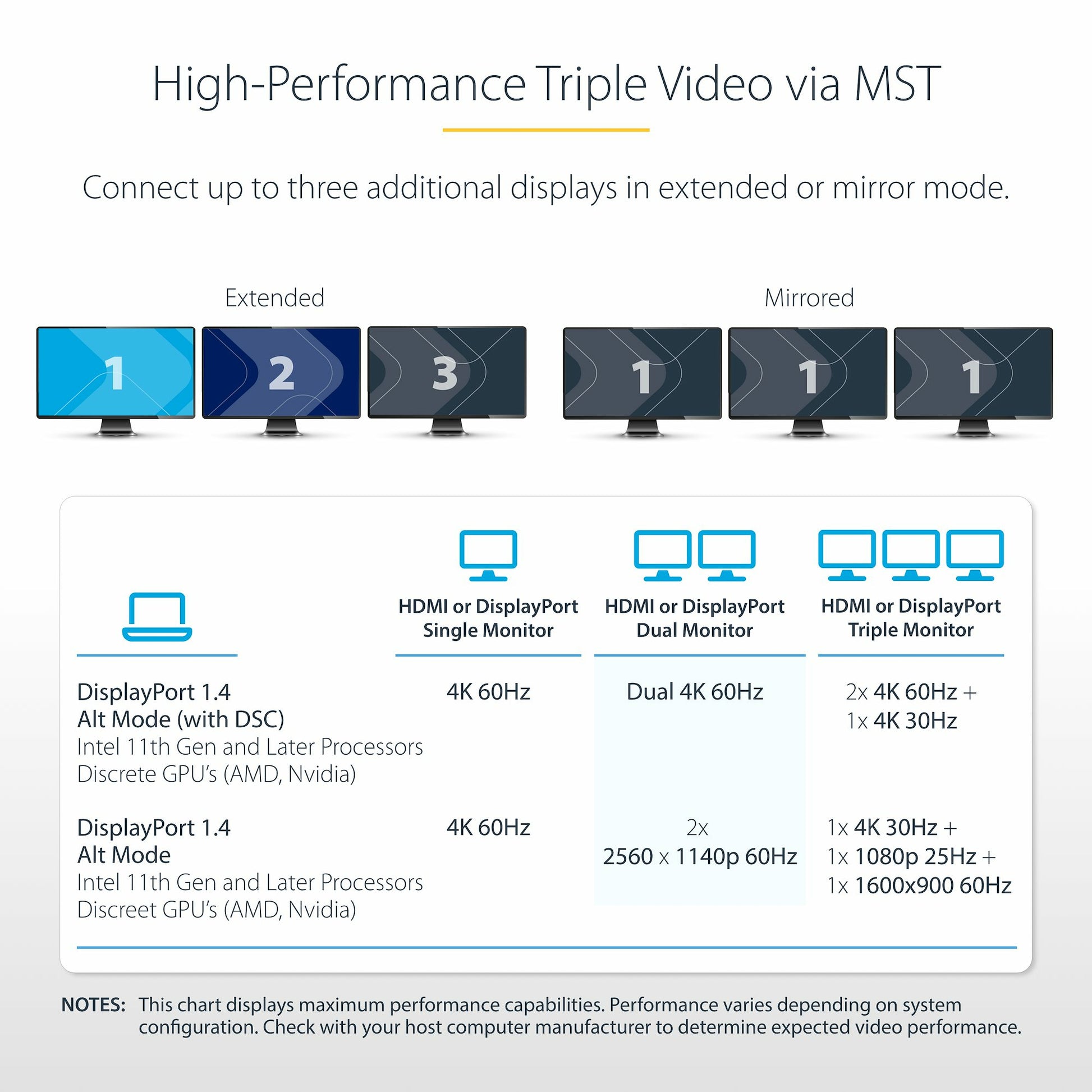

High-Performance Triple Video via MST

The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 30Hz and 2x 4K (3840 x 2160p) at 60Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features one HDMI 2.0b port and two DisplayPort 1.4 ports, providing a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.

Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.

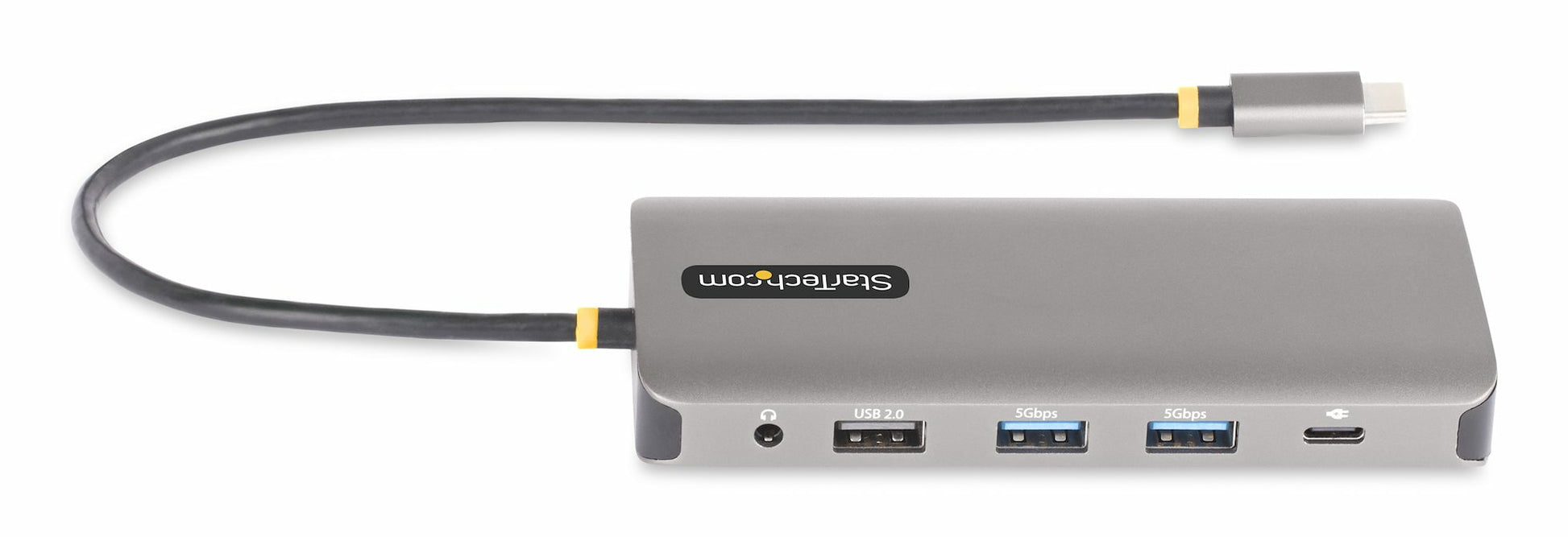

Connect USB Peripherals

The USB-C to USB 3.2 Gen 1 (5Gbps) hub features four USB-A ports (2x USB 5Gbps, 2x USB 2.0) for connecting USB HID devices and/or peripherals (e.g., storage devices).

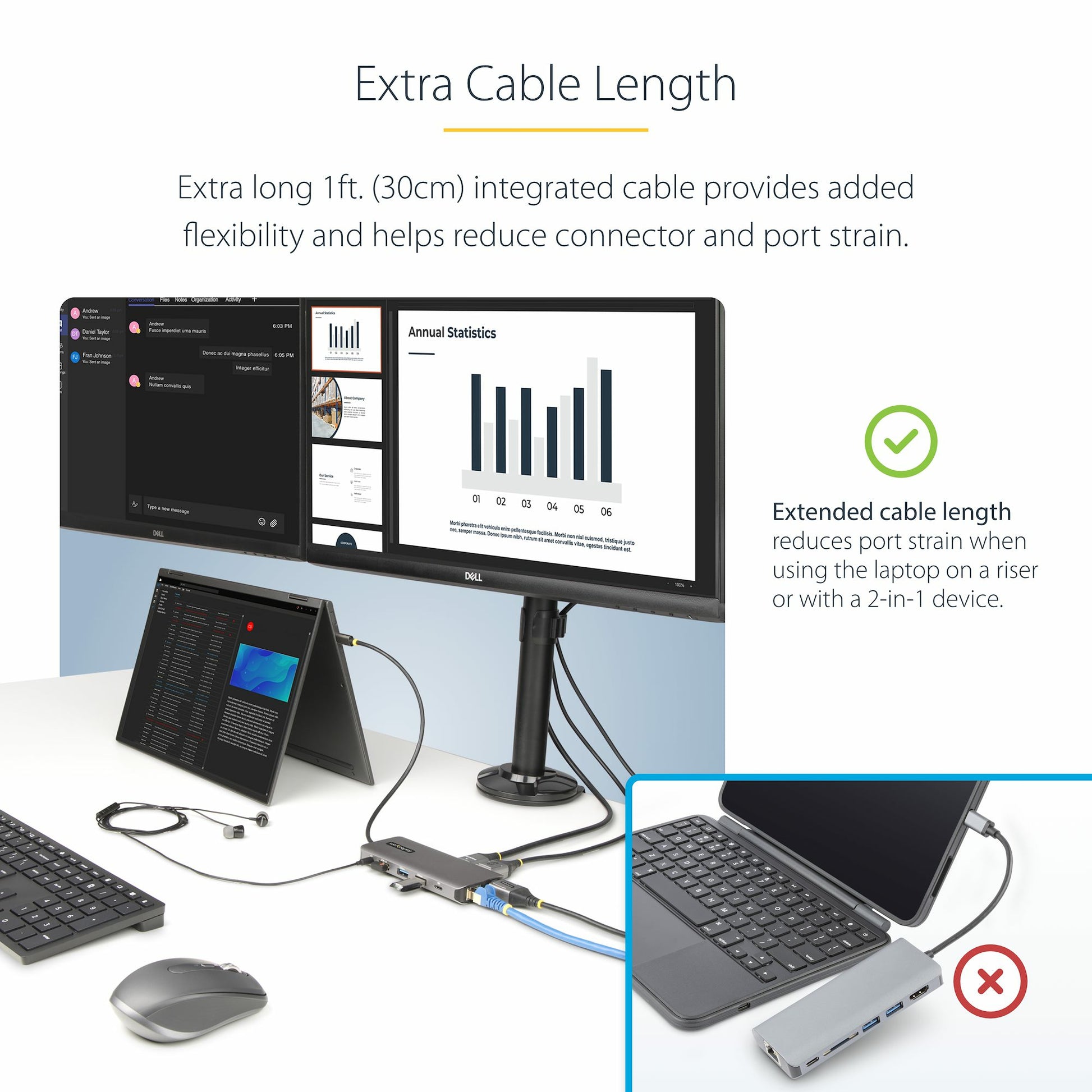

Extra Long Cable & Durable Build

The mini docking station features a built-in 1 ft. (30 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. It also features a durable aluminum housing.

Built-In SD/MicroSD Card Readers

Access your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHC™ / SDXC™ or microSD (uSD) memory cards.

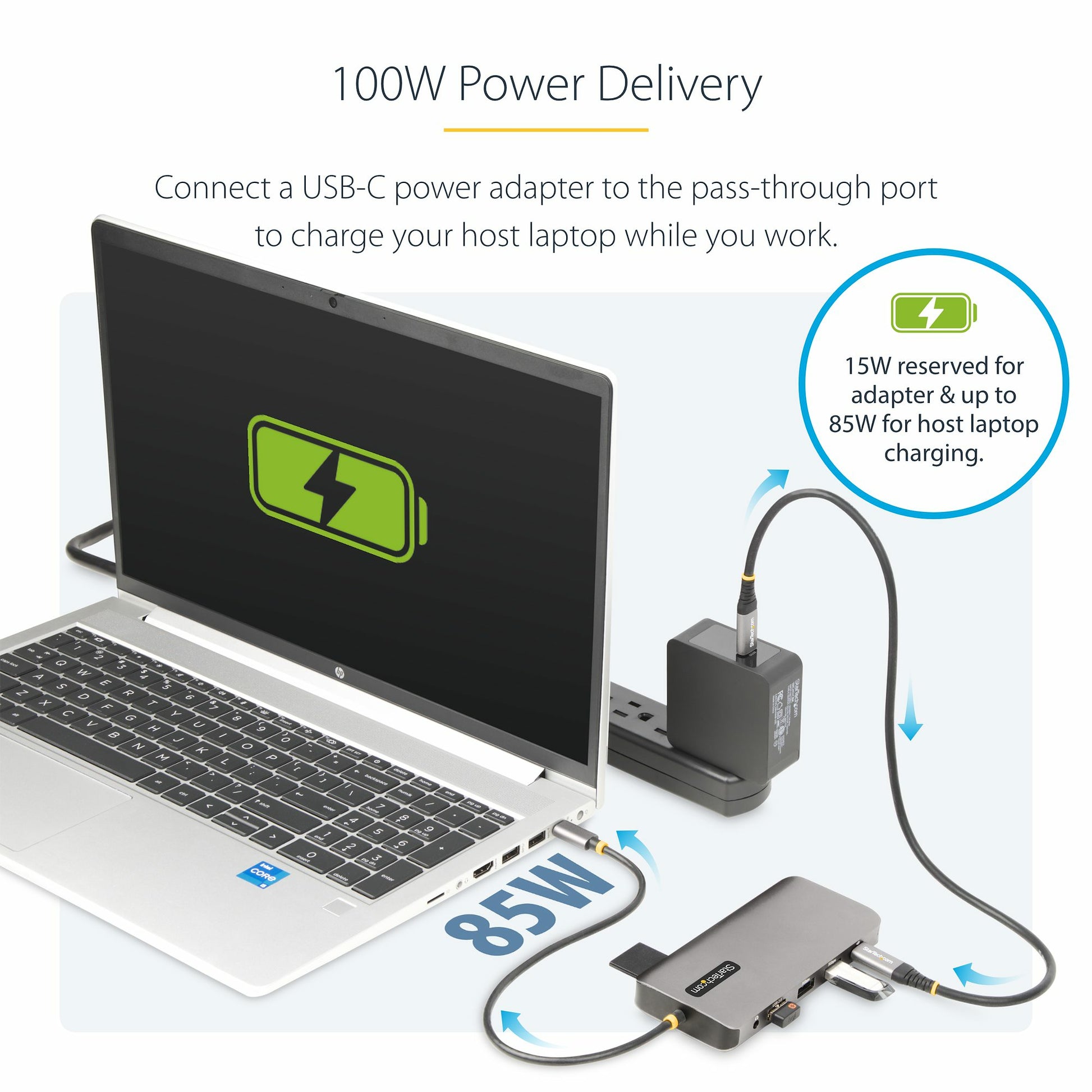

100W Power Delivery

Connect a USB-C power adapter to the pass-through port in order to charge the host laptop supporting 100W USB Power Delivery pass-through with 15W reserved for adapter & up to 85W for host laptop charging.

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• MAC Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	2
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Product colour	Grey
Card reader integrated	Yes
LED indicators	Activity
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium, Plastic
Maximum refresh rate	60 Hz
Technical details
Products per master (outer) case	24 pc(s)
Master (outer) case width	537 mm
Master (outer) case length	303 mm
Master (outer) case height	252 mm
Power
Power source type	USB
Power consumption (typical)	15 W
USB cable length	0.3 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

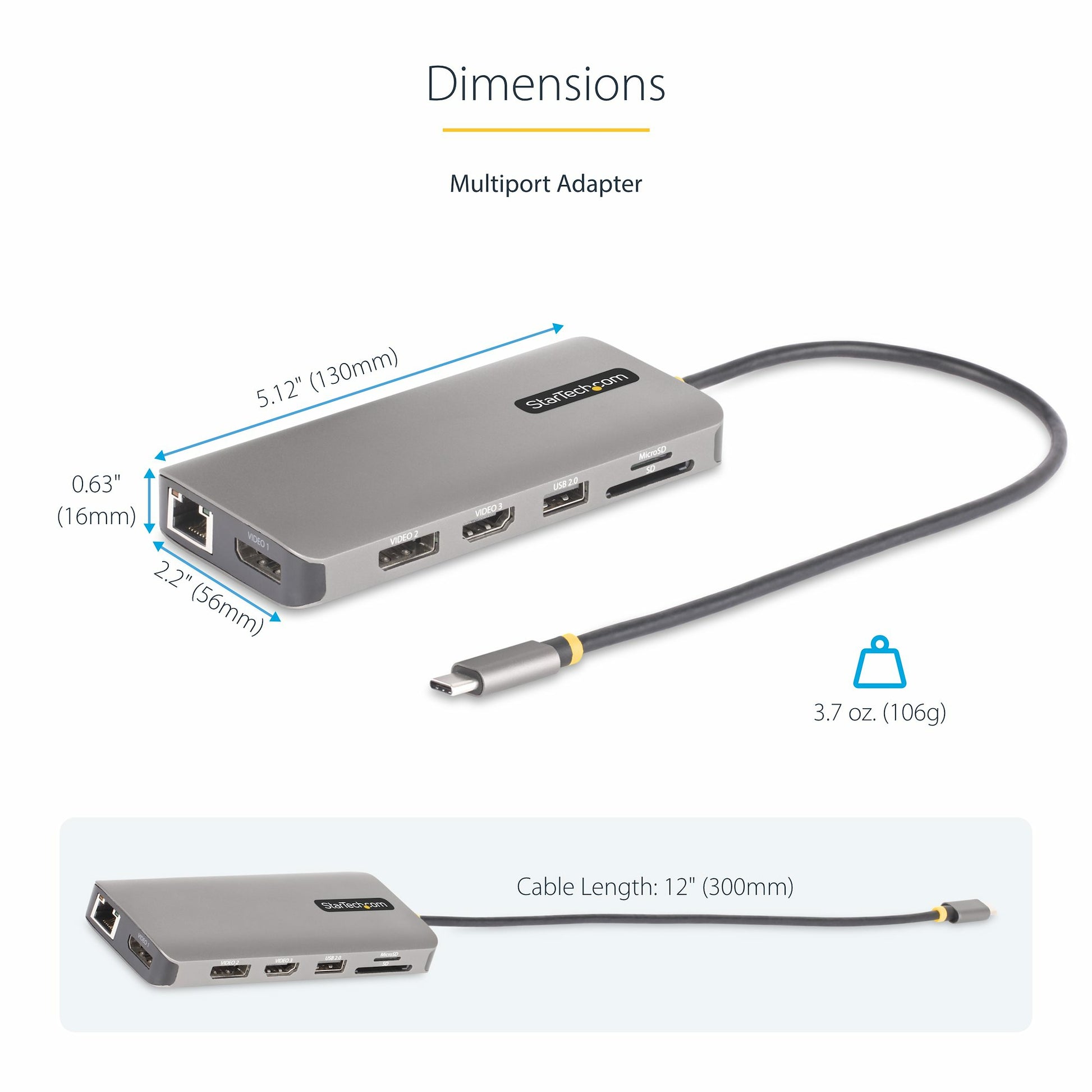

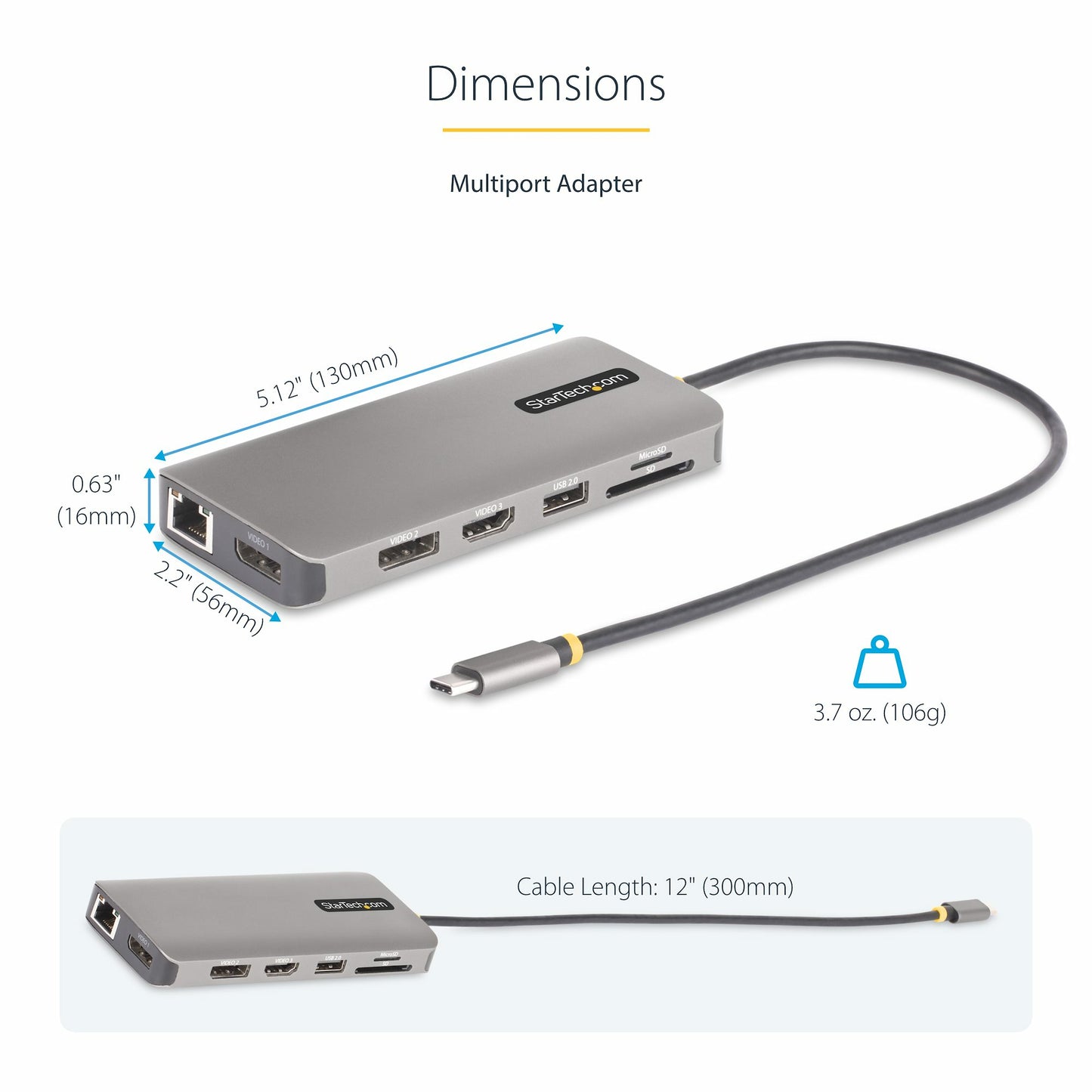

Weight & dimensions
Weight	106 g
Width	56 mm
Depth	130 mm
Height	16 mm
Package weight	120 g
Package width	245 mm
Package depth	129 mm
Package height	33 mm
Packaging content
Quick start guide	Yes
Other features
Chipset	VIA - VL102, VIA - VL817, Synaptics - VMM5320, Realtek - RTL8153, Solid State System - SSS1700, Genesys Logic - GL823K
