StarTech.com Travel A/V adapter: 3-in-1 Mini DisplayPort to DisplayPort DVI or HDMI Cable

Make the connection with the StarTech.com Travel A/V adapter: 3-in-1 — length and connector details are in the spec table.

Connect your mini DisplayPort® Device to a DisplayPort®, HDMI®or DVI Display, with this Compact, All-in-One Adapter

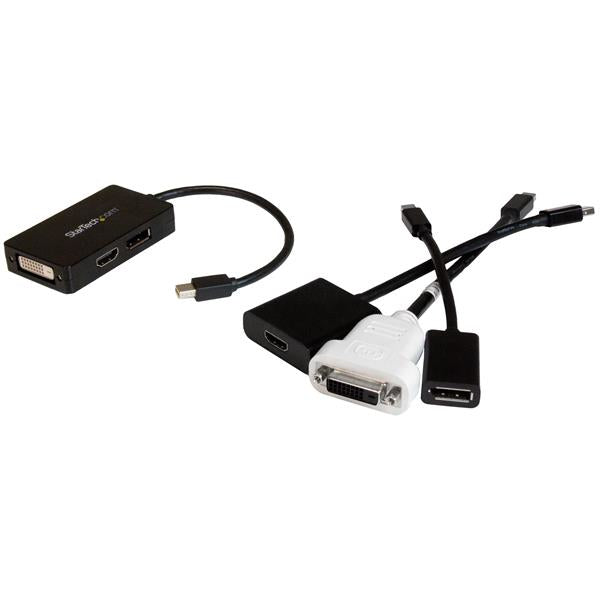

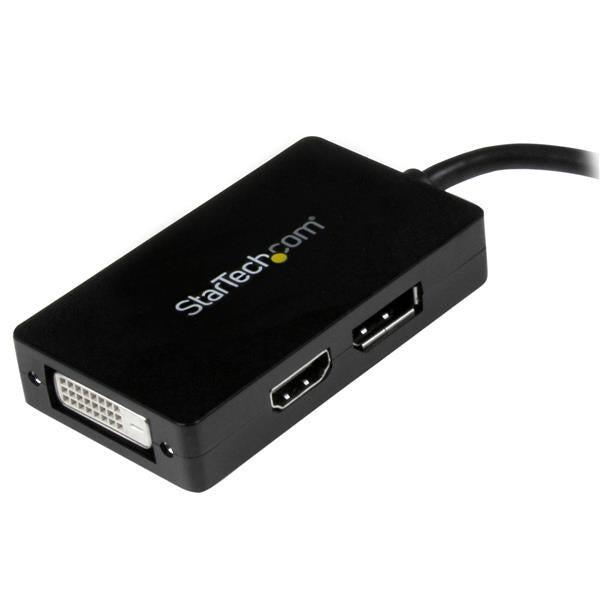

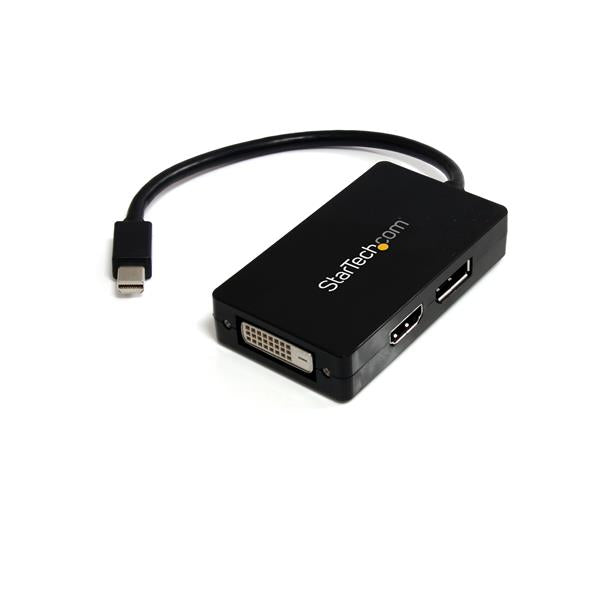

The MDP2DPDVHD mini DisplayPort® to DisplayPort®, DVI or HDMI® Multifunction Adapter converts a mini DisplayPort (mDP®) input to DisplayPort, DVI or HDMI output signals - all in a single compact adapter.

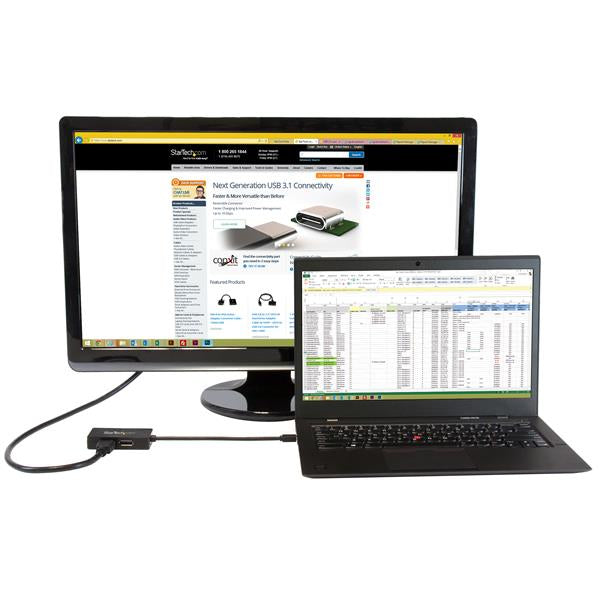

This multifunction adapter offers the unique ability to connect almost any display to your mini DisplayPort equipped PC or Mac, providing the perfect solution for business environments that have mixed display hardware - saving the expense of purchasing new displays for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook® or Microsoft® Surface™ Pro devices with mDP.

A plug-and-play solution that requires no software or drivers, this versatile mDP adapter offers a quick and simple installation for the utmost convenience.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications

Features
DisplayPort version	1.2
Product colour	Black
Cable length	0.15 m

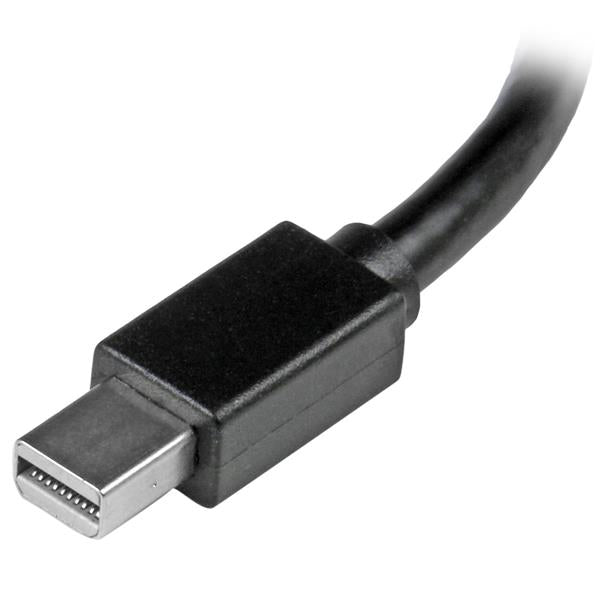

Connector 1	Mini DisplayPort
Connector 2	DisplayPort + DVI-D + HDMI
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2560 x 1600 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA)
Plug and Play	Yes
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Supported audio channels	5.1
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Other features
Width	45 mm
Height	15 mm
Depth	240 mm
Material	Plastic
Weight & dimensions
Weight	47 g
Package width	130 mm
Package depth	129 mm
Package height	30 mm
Package weight	56 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
Products per master (outer) case	100 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
