StarTech.com Server Rack Depth Extender - 1U - 4in / 10 cm - TAA Compliant

Build a tidy install with the StarTech.com Server Rack Depth Extender — dimensions and mounting details are in the spec table.

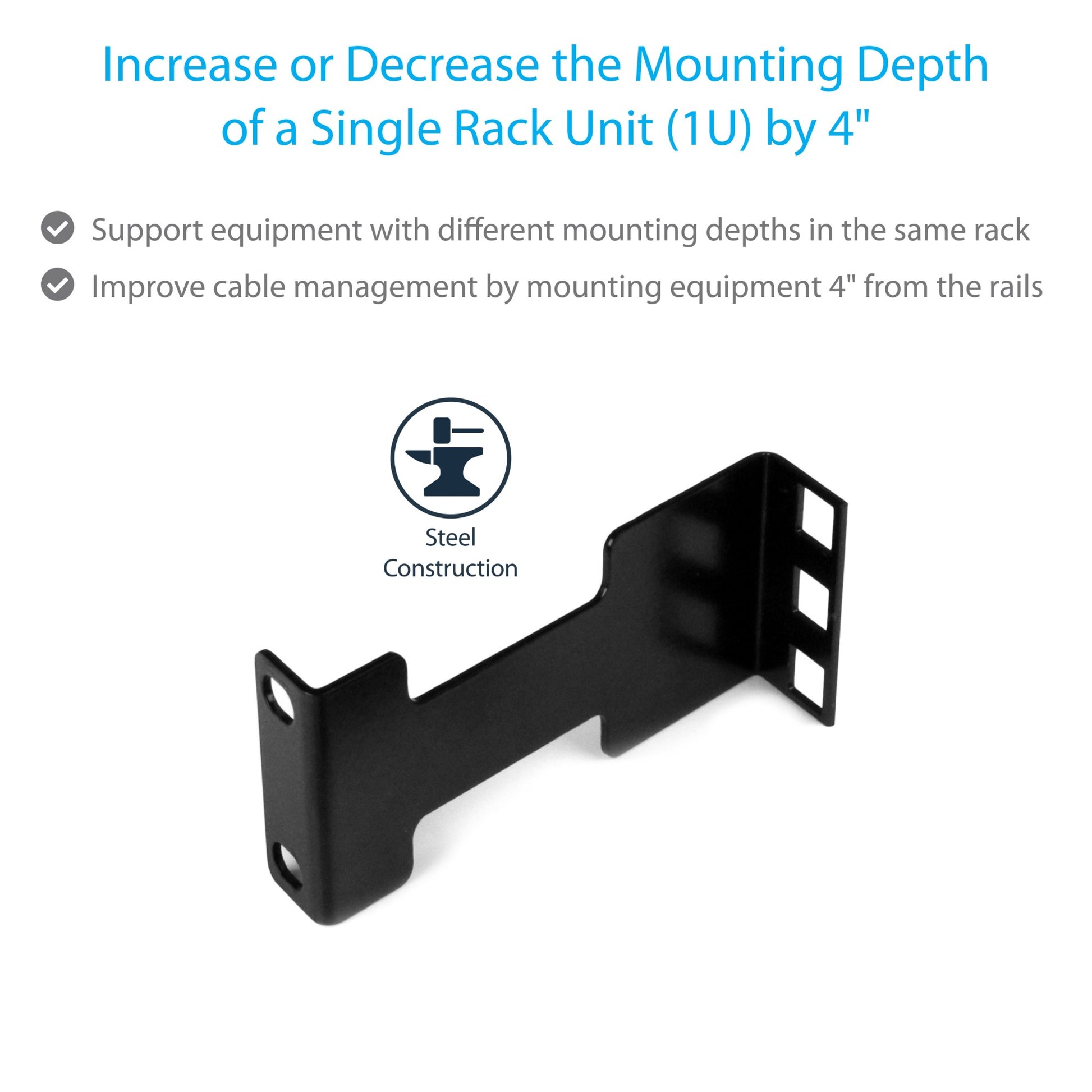

Add flexibility to your rack by expanding or reducing the equipment mounting depth by 4 inches

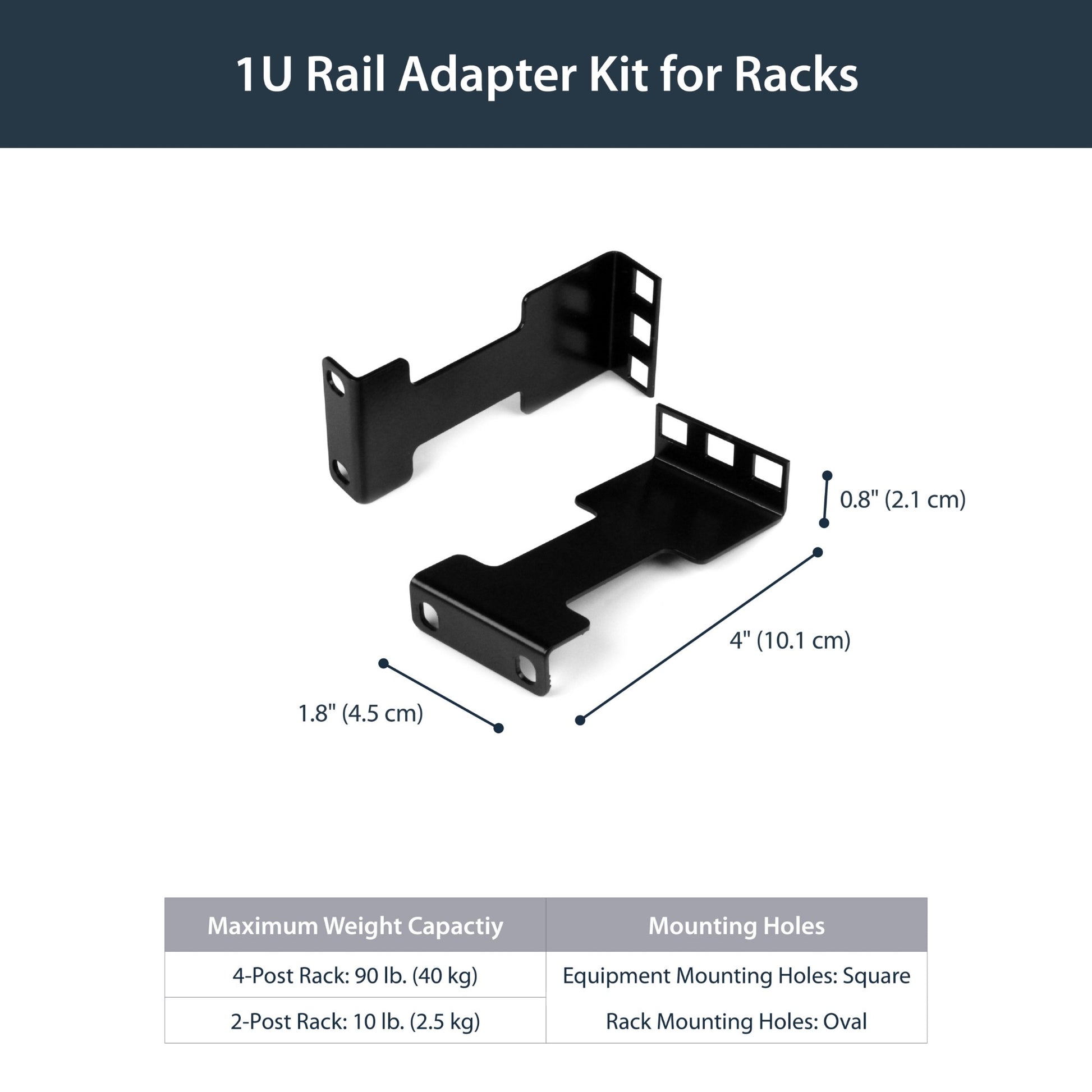

This depth adapter kit lets you extend or reduce the mounting depth of one rack unit (1U) in your server rack by up to four inches. If you're using the adapter kit in a two post installation the extenders can support a total weight load of 10 lbs. (4.5 kg). If you're using the adapter kit in a four post installation, the extenders can support a total weight load of 90 lbs. (40 kg), you can even use two sets of extender brackets in a four post installation and achieve the same weight capacity performance.

This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Mount equipment that's too long, or too short

You can use this adapter kit to mount equipment in your server rack that's up to four inches longer or shorter than the rack's mounting depth.

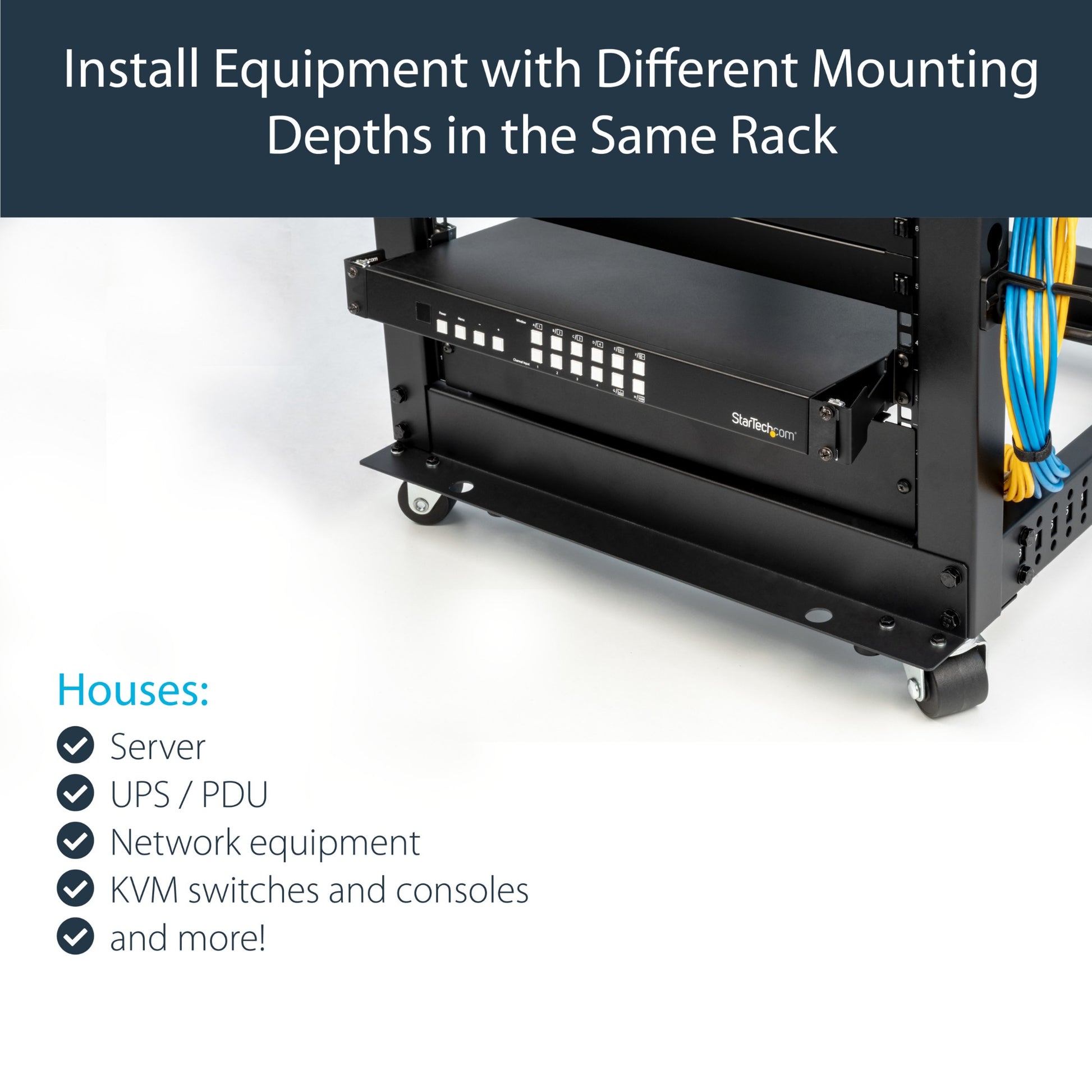

Save money by mounting all of your equipment in one rack

With this adapter kit, you can customize your server rack to support different mounting depths, so you have the freedom to mount equipment of different depths in the same rack. It’s a cost-saving, hassle-free way to consolidate your equipment into a single rack, so you have one server rack to manage instead of two.

Cable management flexibility

The depth adapter kit can also be used to help manage cables. You can mount equipment 4” in from the rails, to prevent cables from protruding from the rack. You can use the rail depth adapter to mount equipment that has high density cabling, such as patch panels, PDUs or network switches, to minimize the effects of cable strain and provide easier access to the cables.

The RDA1U is backed by a 2-year warranty and free lifetime technical support.

Specifications

Features
Certification	TAA, CE, REACH
Type	Depth adapter
Rack capacity	1U
Maximum weight capacity	40 kg
Product colour	Black
Harmonized System (HS) code	85389099
Weight & dimensions
Package width	125 mm
Package height	20 mm
Package depth	220 mm
Package weight	146.7 g
Width	45 mm
Weight	104.6 g
Height	21 mm
Depth	101 mm
Packaging data
Quantity per pack	2 pc(s)

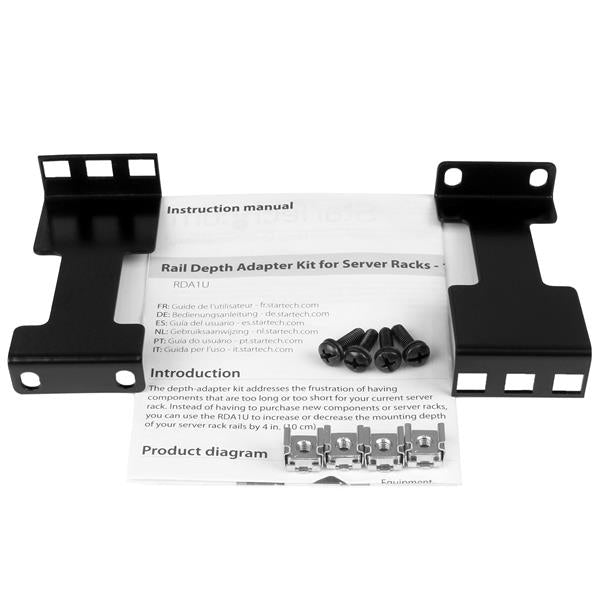

Packaging content

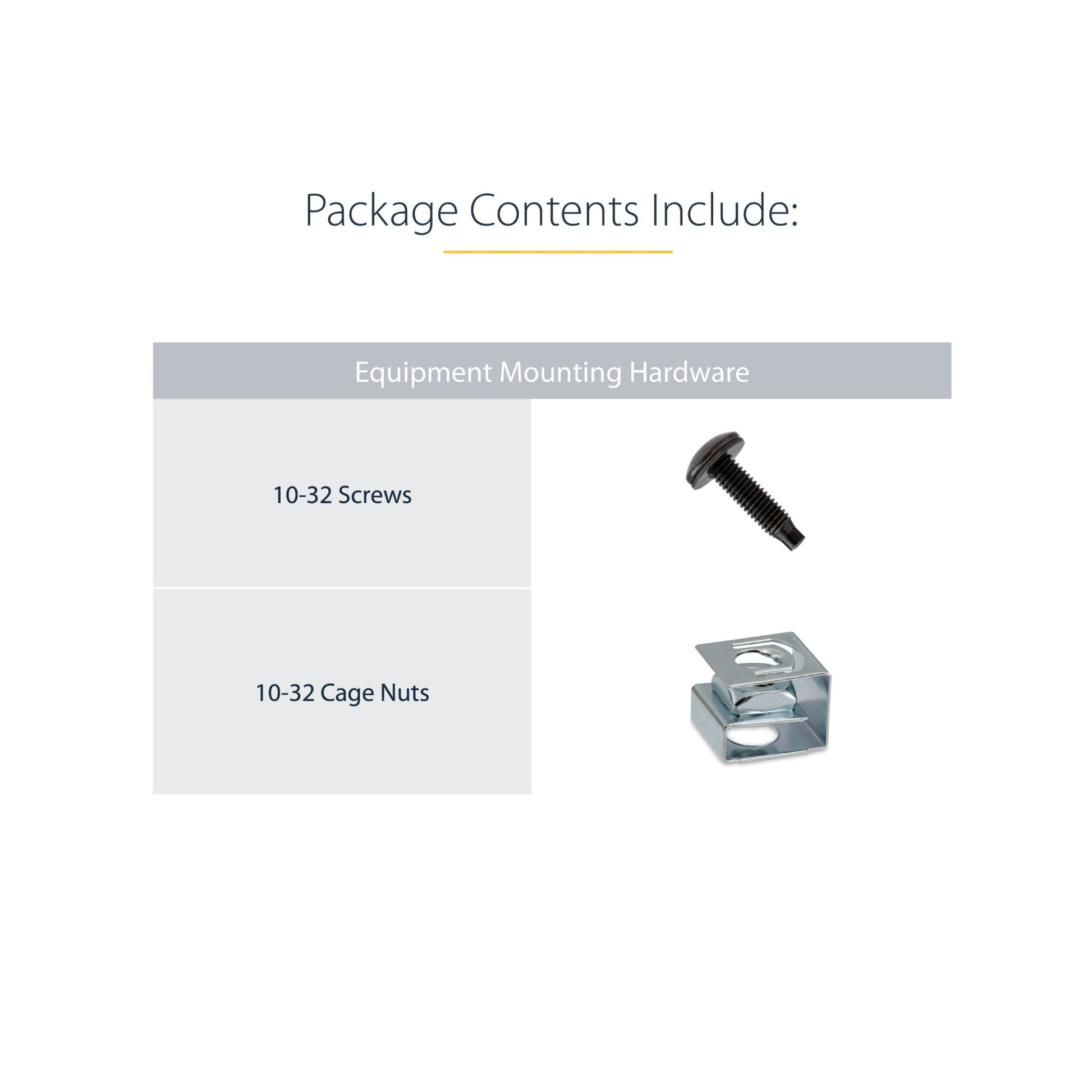

Screws included	Yes
Number of screws	4
Quick installation guide	Yes
Number of cage nuts	4
Cage nuts included	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	242 mm
Master (outer) case length	304 mm
Master (outer) case height	238 mm
Products per master (outer) case	60 pc(s)
