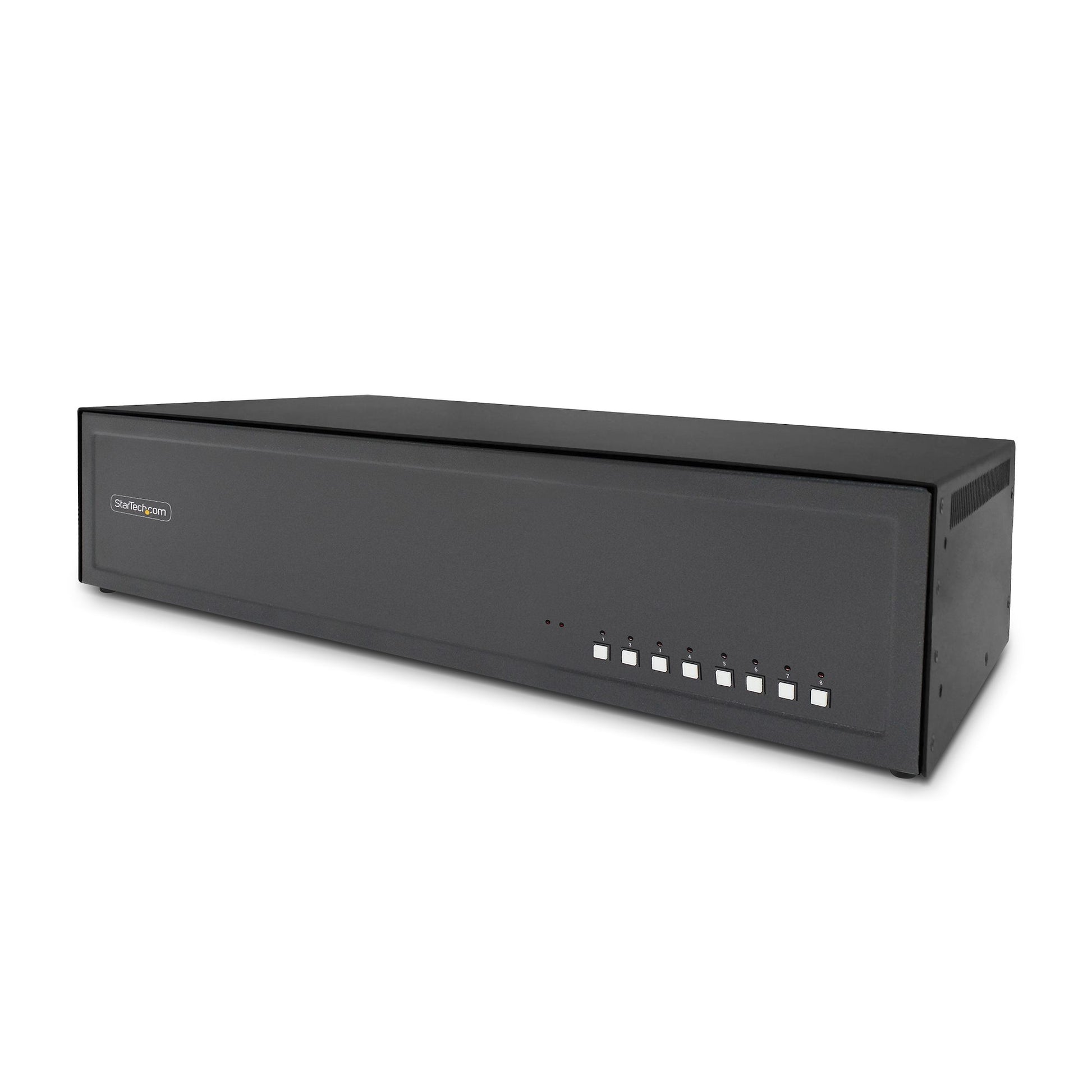

StarTech.com Secure 8-Port Dual-Monitor KVM Switch, DisplayPort, 4K 60Hz, NIAP 4.0

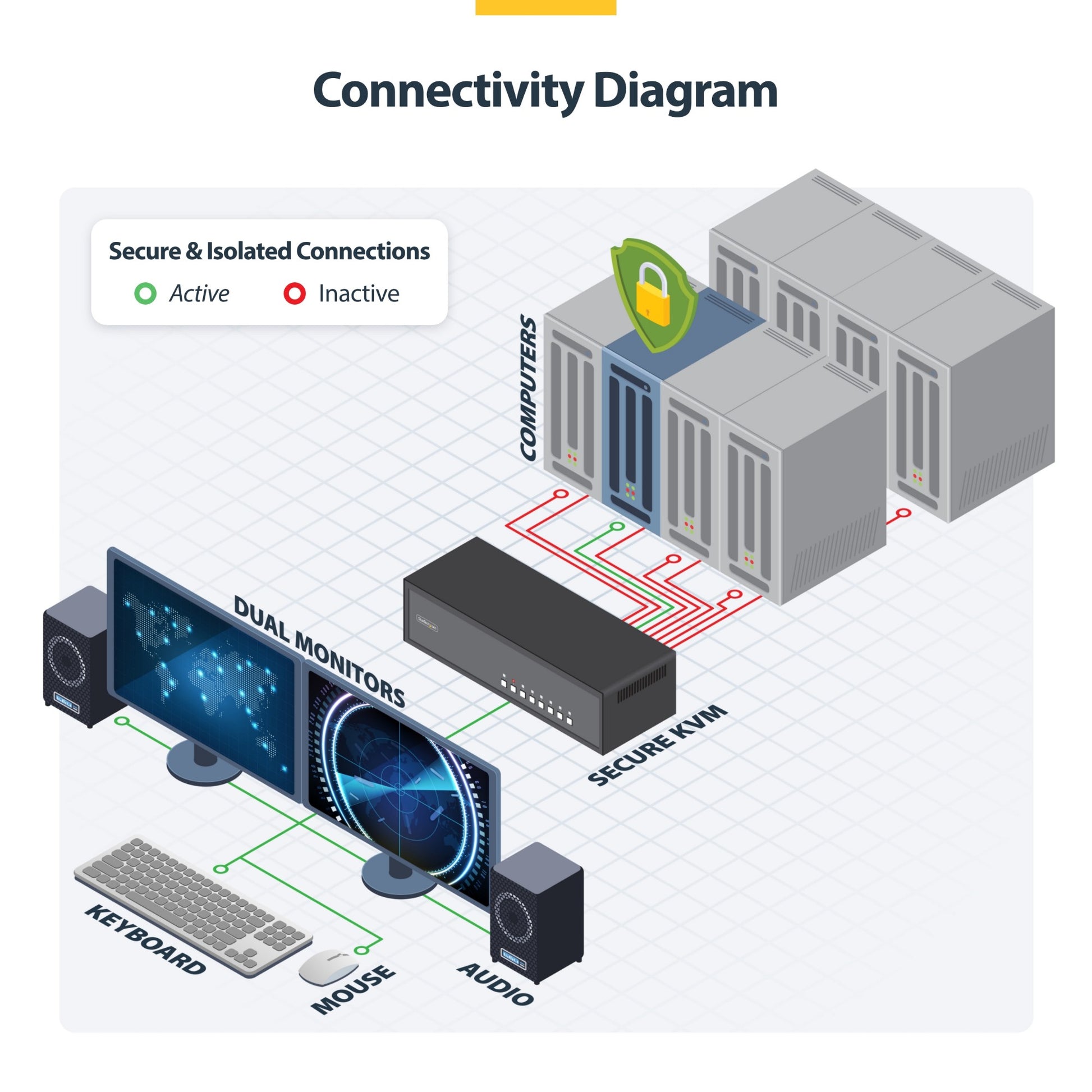

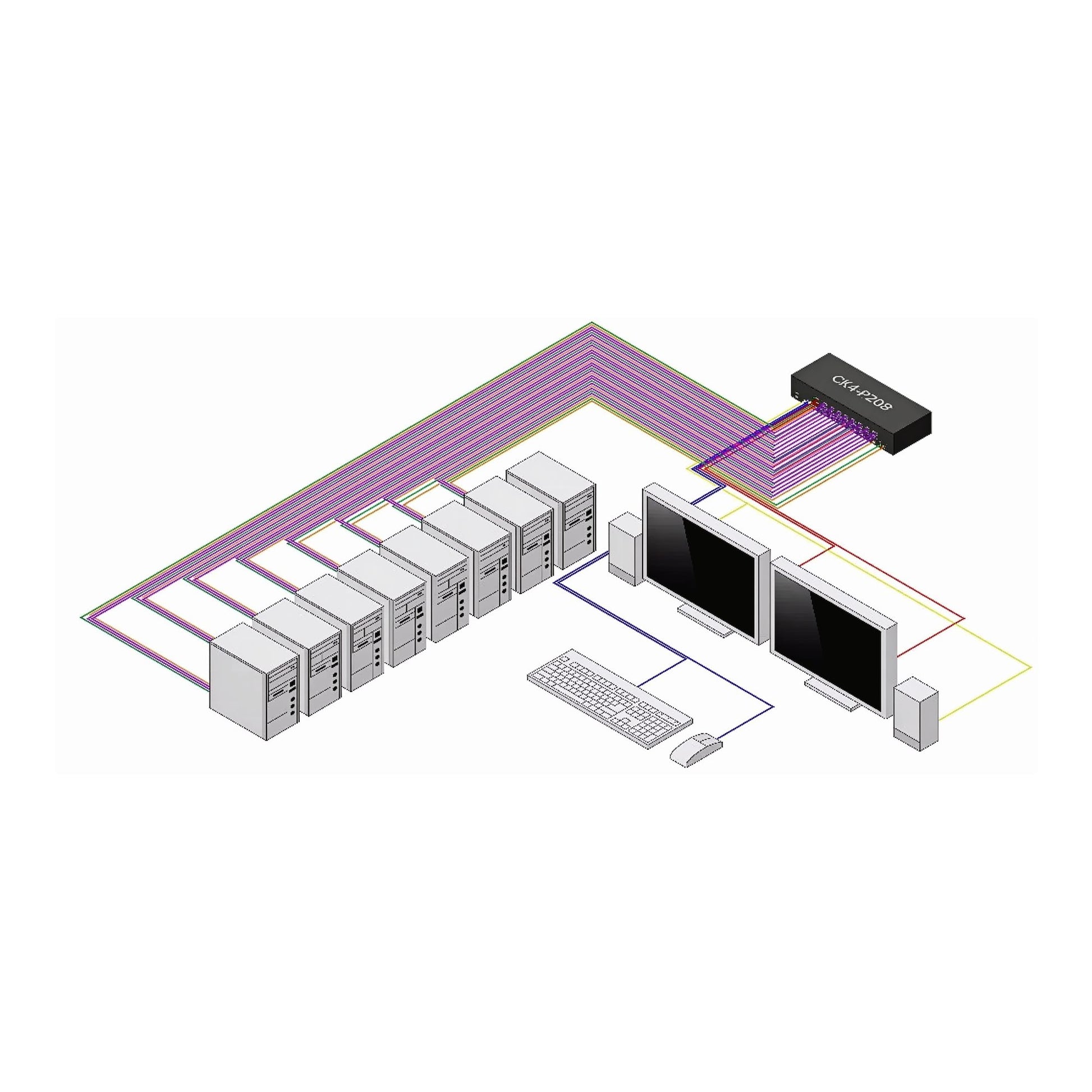

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com Secure 8-Port Dual-Monitor.

Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored

Operate multiple secure systems from a single workstation with the NIAP-Certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over eight computers with two 4K 60Hz displays.

NIAP Certified Multi-System Control

Manage up to eight DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and two 4K 60Hz monitors. Status LEDs on the console ports and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.

This secure KVM complies with the following protection profiles and modules:

Protection Profile for Peripheral Sharing Device (PSD), Version 4.0

PP-Module for Analog Audio Output Devices, Version 1.0

PP-Module for User Authentication Devices, Version 1.0

PP-Module for Keyboard/Mouse Devices, Version 1.0

PP-Module for Video/Display Devices, Version 1.0

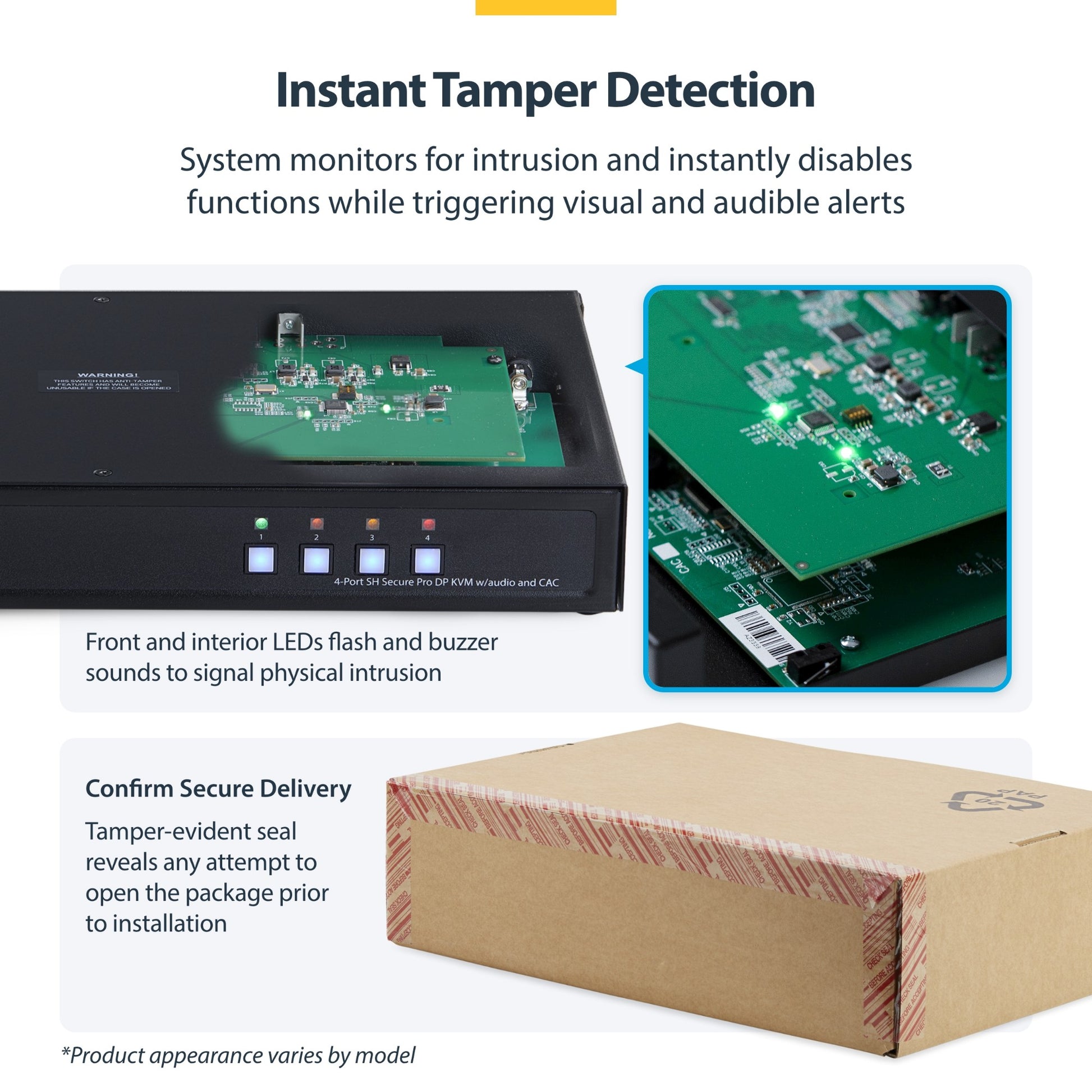

Anti-Tamper Switches

The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.

Enterprise-Grade Security and Reliability

Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.

Specifications

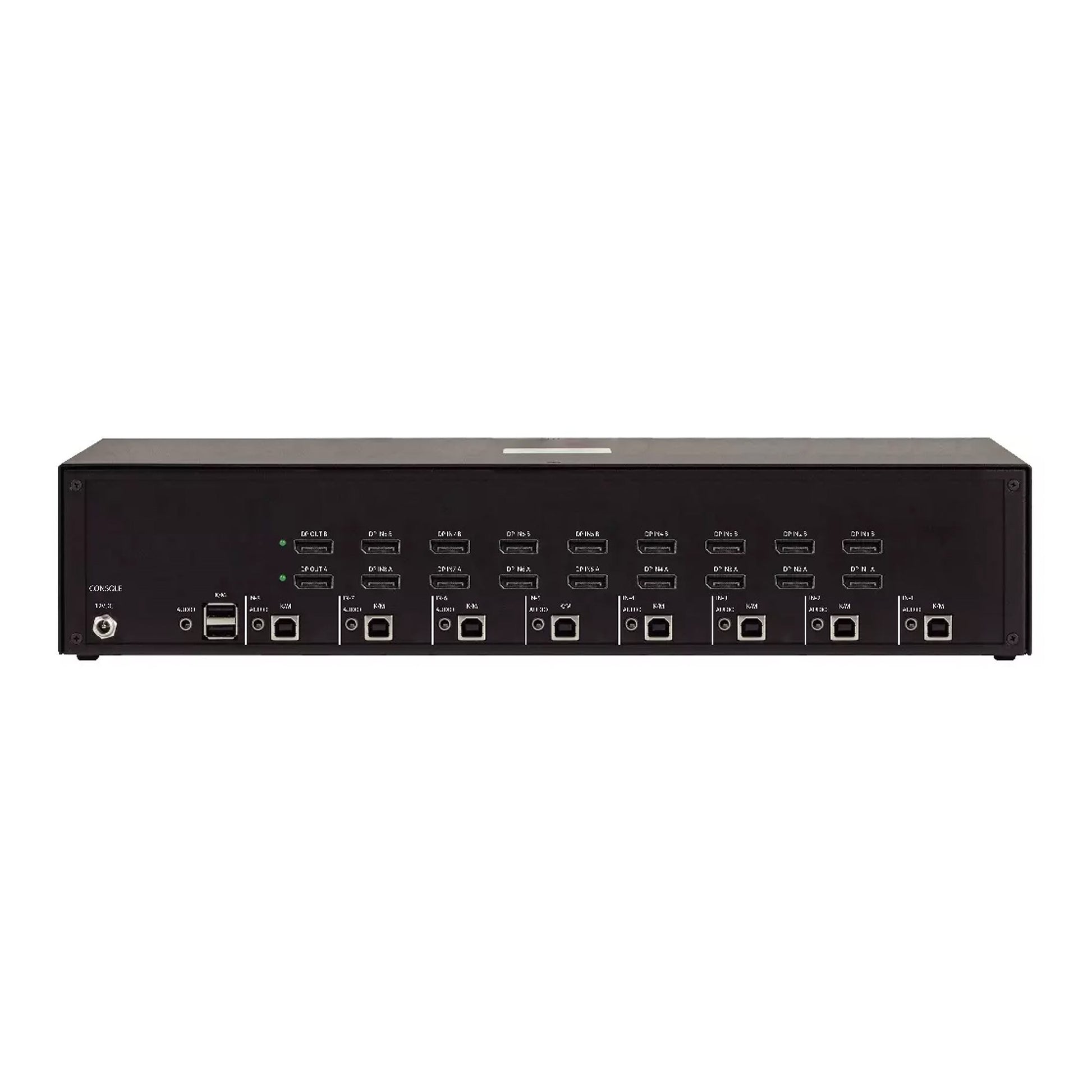

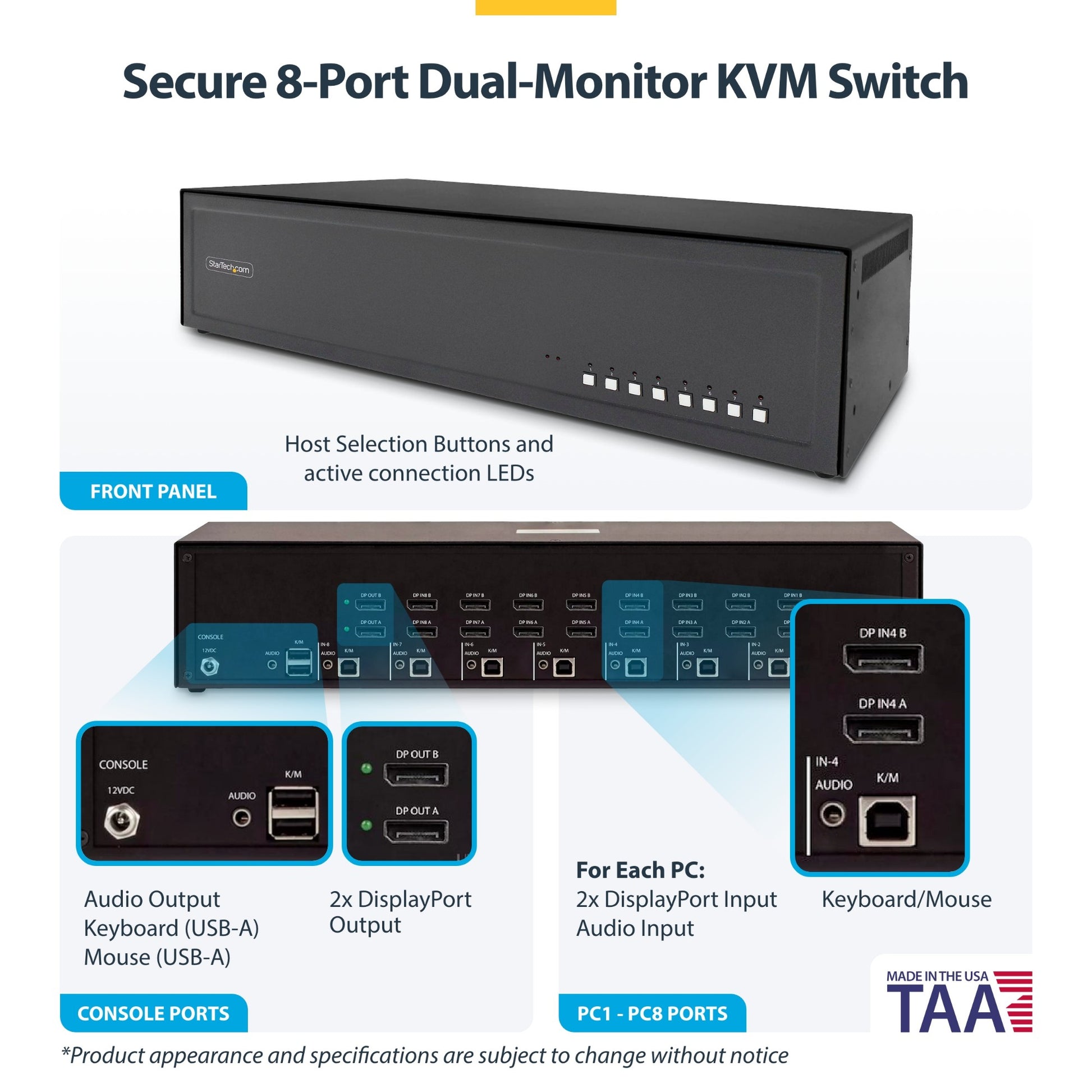

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
Number of microphone inputs	8
DisplayPorts quantity	16
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	1
DC-in jack	Yes
USB 2.0 Type-B ports quantity	8
Console DisplayPorts ports quantity	2
Performance
Daisy chain	No
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Audio channels	2.0
Number of displays supported	2
Maximum refresh rate	30 Hz
Maximum cable length	6 m
Technical details
Product colour	Black
Rack mounting	No
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	No
IP control	No
Compliance certificates	Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Design
Housing material	Metal
Display
Built-in display	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	220.7 mm
Depth	431.8 mm
Height	220.7 mm
Weight	3.1 kg
Package width	546 mm
Package depth	330 mm
Package height	1194 mm
Logistics data
Master (outer) case width	610 mm
Master (outer) case length	457 mm
Master (outer) case height	1194 mm
Products per master (outer) case	5 pc(s)
