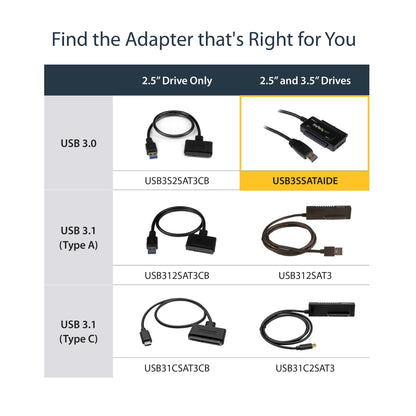

StarTech.com SATA to USB Cable, USB 10Gbps to 2.5in and 3.5in SATA I II III Hard Hub

The StarTech.com SATA to expands your ports in seconds — plug in and go.

SATA to USB Adapter Cable | SATA III 6Gbps | 2.5" or 3.5" SSD or HDD | Portable

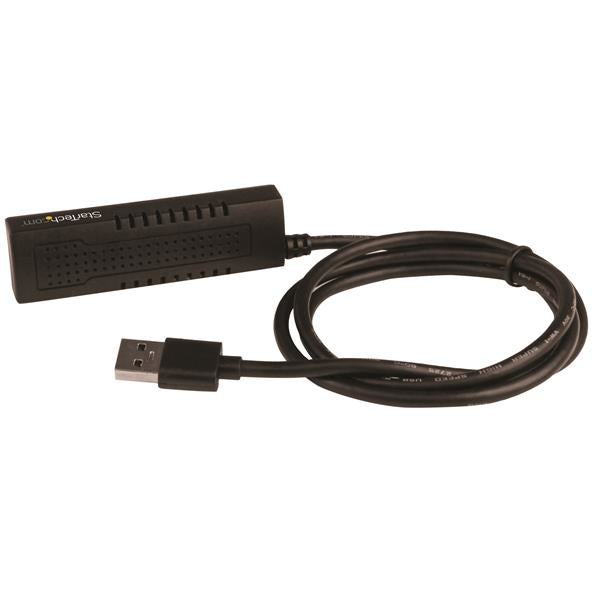

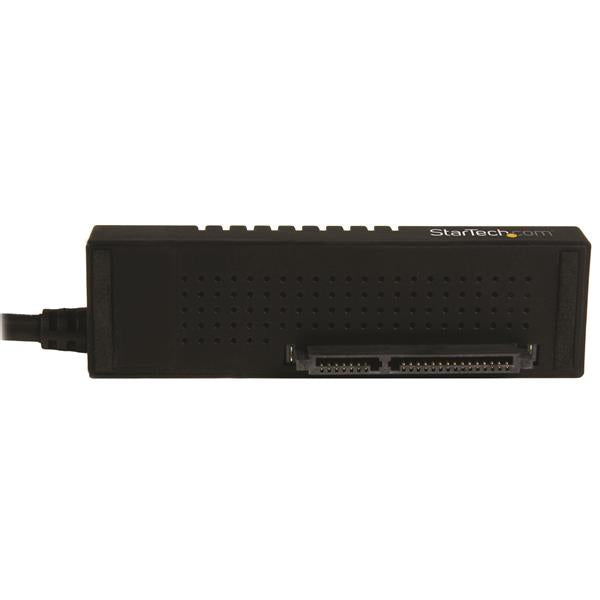

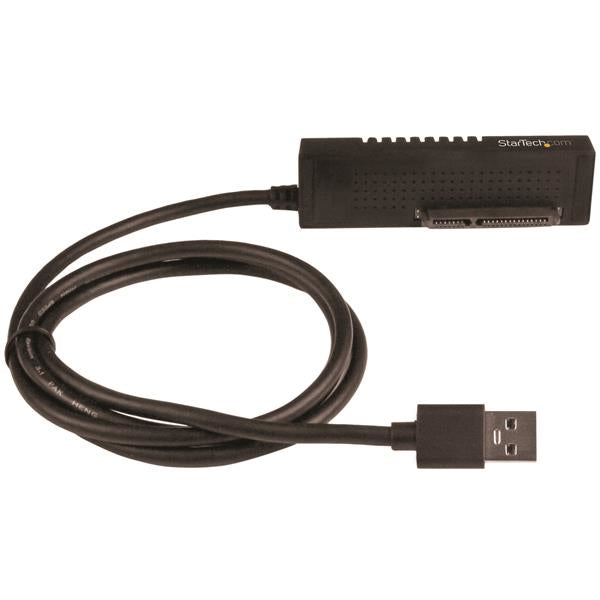

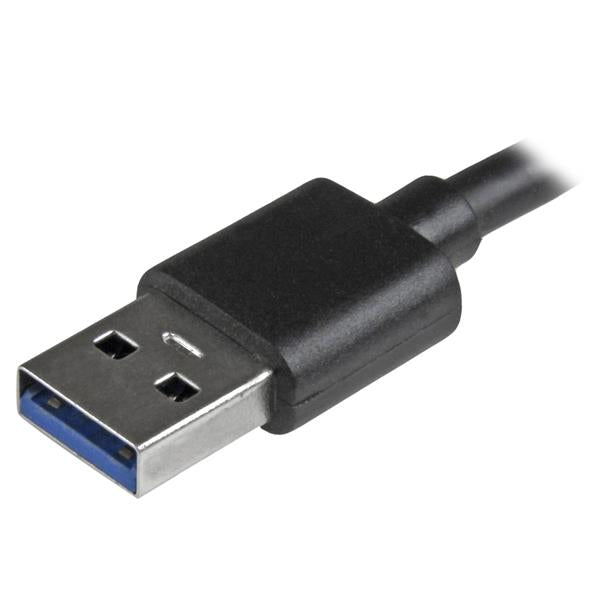

This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a USB 10Gbps desktop or laptop.

Faster Transfer Speeds with USB 10Gbps

The USB 10Gbps (also known as USB 3.2 Gen 2) to SATA adapter gives you greater bandwidth and speed with rates of up to 10Gbps. That's twice the speed of USB 5Gbps (also known as USB 3.2 Gen 1 or USB 3.0) and 20x faster than USB 2.0.

You can leverage the high performance of the latest SSDs and HDDs, while alleviating bottlenecks in your data transfers. Plus, you can experience transfer speeds up to 70% faster than conventional USB 10Gbps, when connected to a computer that supports UASP.

Convenient and Versatile Drive Access

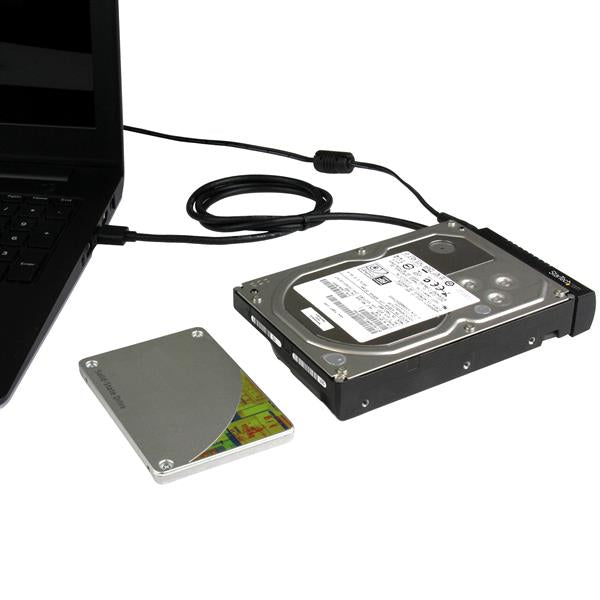

The SATA to USB adapter cable lets you swap between drives so that you can copy or retrieve data from an external 2.5" or 3.5" SATA solid-state drive (SSD) or hard drive (HDD). The cable is ideal for IT technicians who need fast access to SATA drives.

It's the perfect solution for:

• Data migrations
• Adding drive space
• Cloning drives
• Creating disk images
• Performing backups and data recoveries

Connect from Anywhere

The SATA to USB adapter is a portable solution that includes an integrated cable so you never have to worry about forgetting to bring your cable with you.

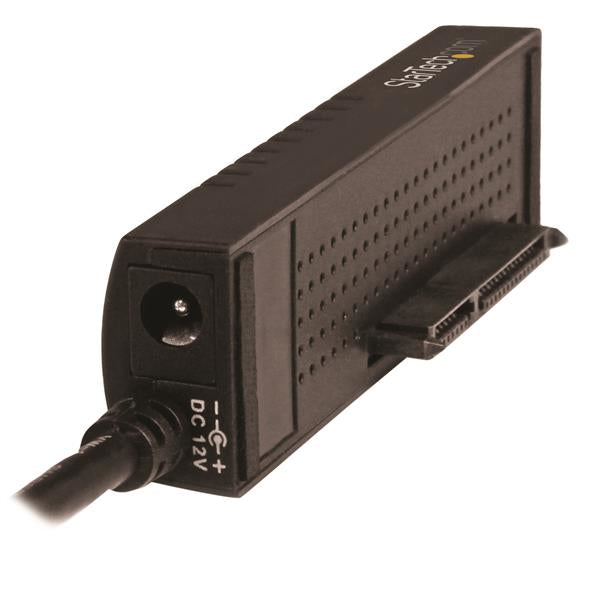

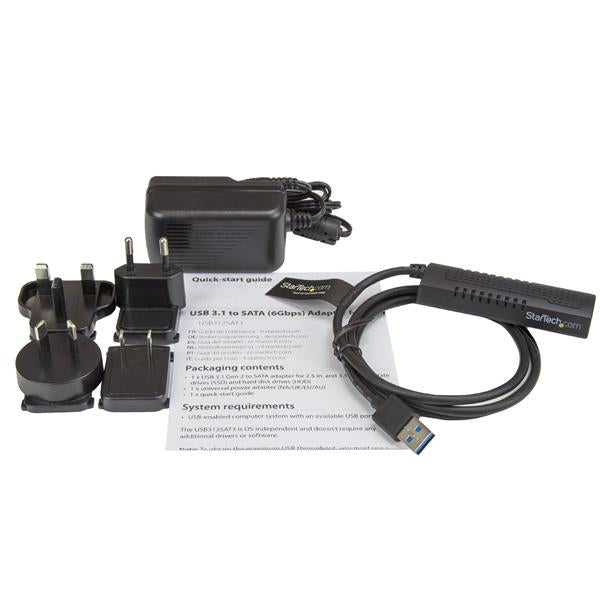

You can easily connect to a 2.5" SSD or HDD using USB power. A universal power adapter is also included for connecting to a 3.5" drive, or for connecting to any 2.5" drive that requires additional power. The adapter is plug-and-play and does not require drivers.

Specifications

Technical details
Plug and Play	Yes
Chipset	ASMedia - ASM1351
Compliance certificates	RoHS
Network
Data transfer rate	10 Gbit/s
Performance
UASP support	Yes
Hot-swap	Yes
Product colour	Black
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC
Design
LED indicators	Activity, Power
Power
Output voltage	12 V
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Weight & dimensions
Width	14 mm
Depth	85 mm
Height	15 mm
Weight	57 g
Package width	144 mm
Package depth	177 mm
Package height	52 mm
Package weight	323 g
Packaging data
Manual	Yes
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	483 mm
Master (outer) case length	274 mm
Master (outer) case height	378 mm
Other features
Relative humidity	0 - 80%
