StarTech.com SATA Cable USB-C Docking Station

One cable, full desk: the StarTech.com SATA Cable turns your laptop into a workstation with all your peripherals connected over a single USB-C connection.

SATA to USB Adapter Cable | SATA III 6Gbps | 2.5" SSD or HDD | USB 3.0 | Portable

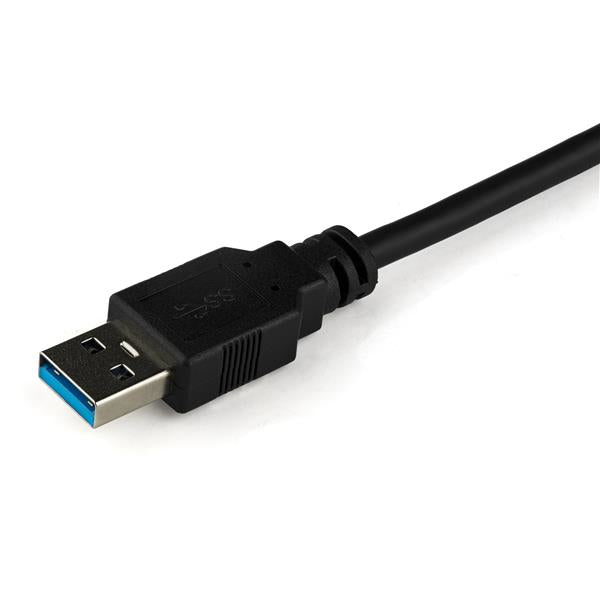

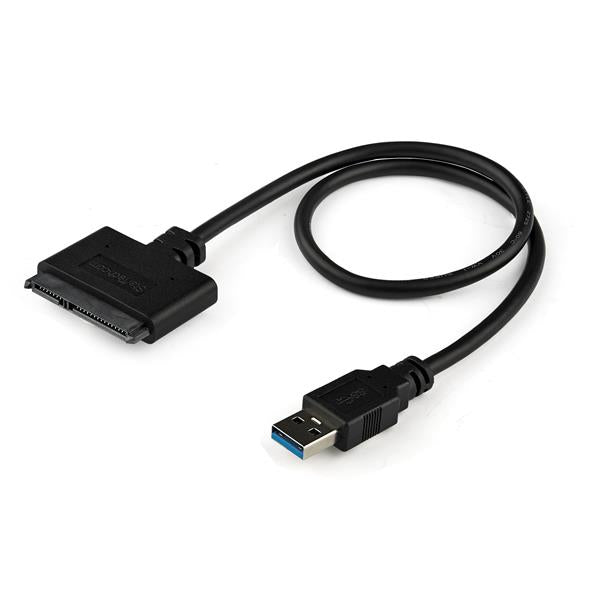

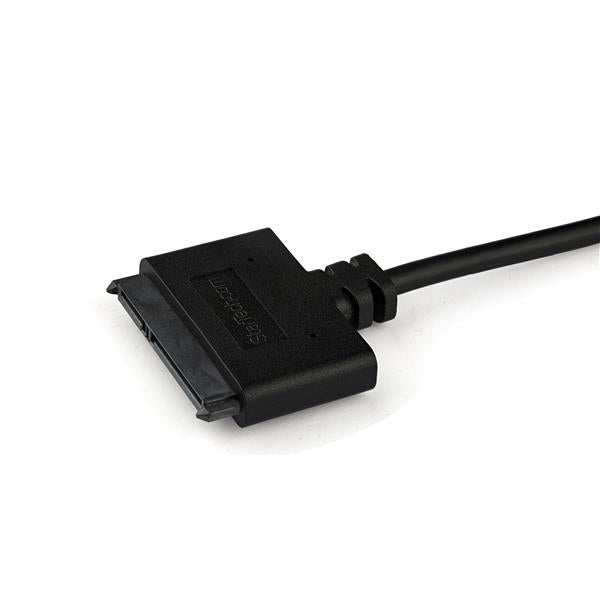

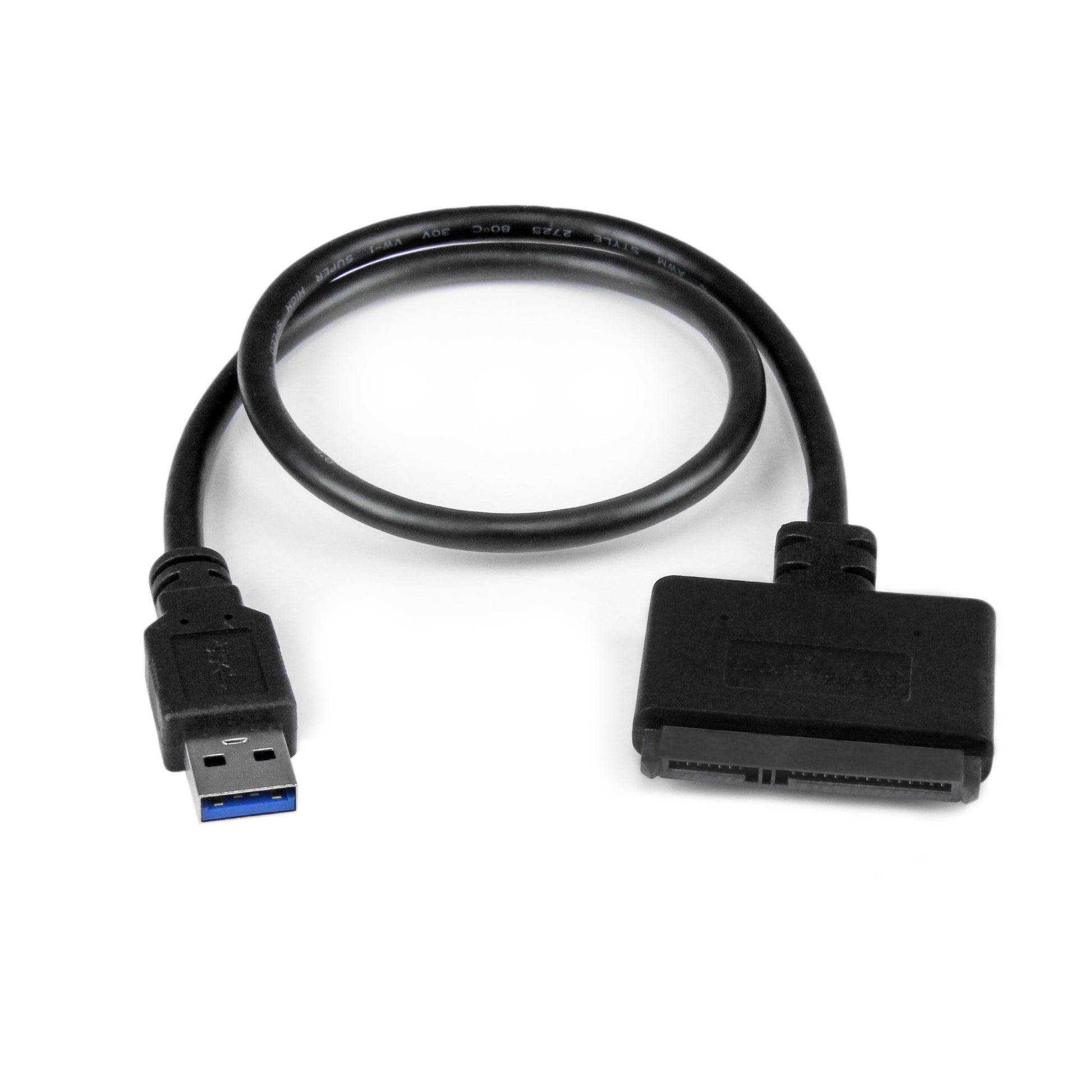

This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a laptop.

Upgrade the Drive on Your Laptop

This SATA solid-state (SSD) or hard drive (HDD) adapter lets you upgrade to an external 2.5" SATA SSD or HDD.

The cable lets you:

• Add drive space
• Perform backups
• Create disk images
• Implement data recovery
• Transfer content between the drive and the laptop

Faster Transfer Speeds with UASP

The cable supports USB 5Gbps data transfer speeds. But, you can experience transfer speeds up to 70% faster than conventional USB 5Gbps, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, Mac OS X (10.8 or above), and Linux®.

In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 5Gbps at peak performance.

At the same peak in testing, UASP also shows an 80% reduction in required processor resources.

Connect from Anywhere

The SATA to USB cable is a portable solution that tucks away nicely in a laptop bag -- no external power is required. The cable lets you easily swap between drives with no need to install the drive inside an enclosure. It's plug-and-play and doesn't require drivers.

Note: This product is not compatible with 3.5 in. hard drives. For 3.5 in. drive support, please see our USB to SATA Cable with Supplemental Power (USB312SAT3).

Specifications

Performance
UASP support	Yes
Product colour	Black
Plug and Play	Yes
Data transfer rate	6 Gbit/s
Certification	CE, FCC
Technical details
Cable length	0.5 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	200 pc(s)
Master (outer) case width	447 mm
Master (outer) case length	428 mm
Master (outer) case height	434 mm
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Weight & dimensions
Weight	42.5 g
Width	49 mm
Depth	500 mm
Height	9 mm
Package weight	61 g
Package width	199 mm
Package depth	145 mm
Package height	25 mm

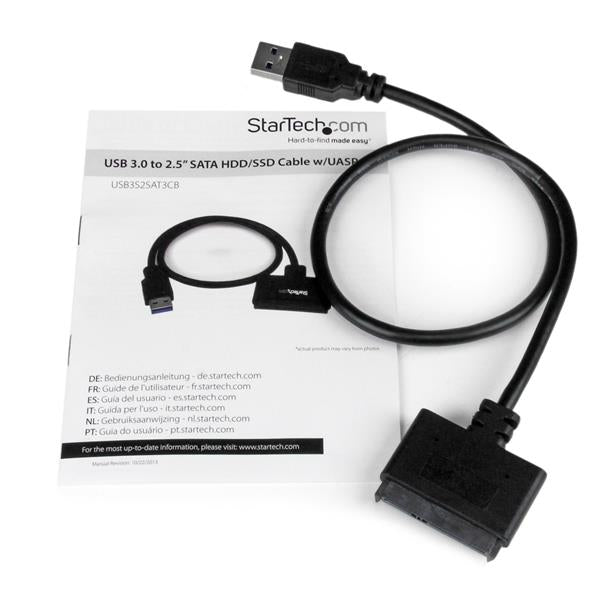

Packaging content
Manual	Yes
Other features
Interface	USB 3.0
Compatible operating systems	Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit), Mac OS X, Linux
Chipset	ASMedia - ASM1153E

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
