StarTech.com Redundant Power Supply Unit for MCM15-MEDIA-CHASSIS, 130W AC, 100-240V

Reliable power for your system: the StarTech.com Redundant Power Supply Unit — wattage and connector details are in the spec table.

Add a second power supply to your media chassis to connect a redundant power supply for uninterrupted operation.

Continuous, Reliable Power

The redundant power supply unit delivers 130W AC to maintain uninterrupted operation across all fifteen media converter slots. It is ideal for enterprise, ISP, and metro networks where continuous uptime and stable performance are essential.

Hot-Swappable Redundancy

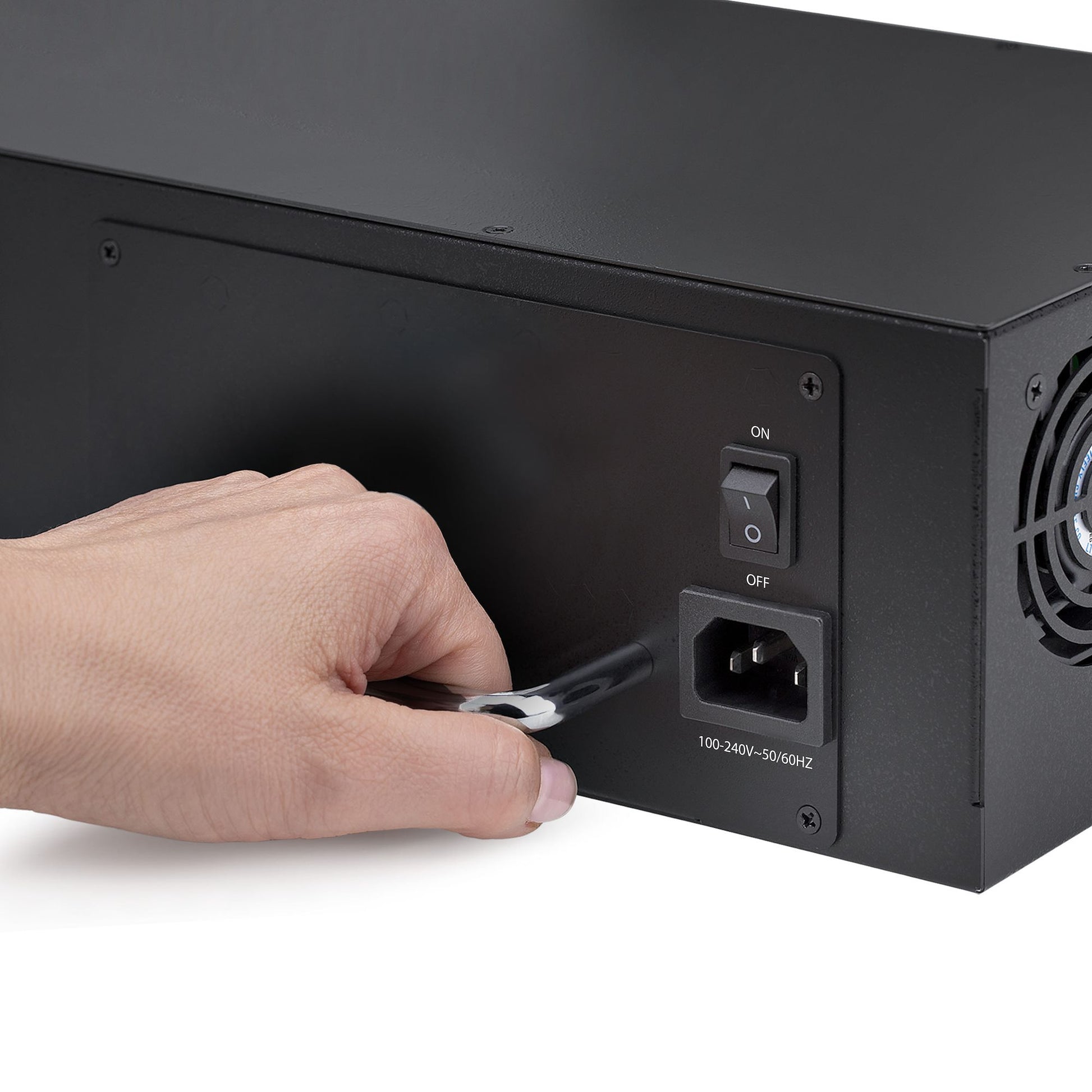

The unit installs easily into the redundant power bay of the MCM15-MEDIA-CHASSIS, providing automatic failover protection during replacement or failure. Hot-swappable design enables true zero-downtime power management for mission-critical systems.

Universal Input and Fanless Efficiency

Supporting 100-240V AC input, the power supply offers global compatibility with plug-and-play, tool-free installation. Fanless cooling uses chassis airflow for quiet, reliable operation across a wide temperature range.

TAA-Compliant and Built for Longevity

Fully TAA-compliant and engineered for durability, the power supply ensures dependable performance for high-density fiber and media-conversion systems in data centers, metro backbones, and other critical networks.

Specifications

Cooling
Number of fans	0 fan(s)
Power
Total power	130 W
AC input voltage	100 - 240 V
Input current	2.5 A
Ports & interfaces
Peripheral (Molex) power connectors (4-pin)	0
Performance
Purpose	Network media converter
Mean time between failures (MTBF)	50000 h
Compatible products	MCM15-MEDIA-CHASSIS
Design
Product colour	Black
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 95%
Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Weight & dimensions
Width	50.8 mm
Depth	101.6 mm
Height	25.4 mm
Packaging data
Package depth	220 mm
Package width	215 mm
Package height	102 mm
Package weight	300 g
Manual	Yes
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	580 mm
Master (outer) case height	510 mm
Products per master (outer) case	14 pc(s)
Other features
Product type	Power supply unit (PSU)

Downloads

• Datasheet (PDF)
