StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for

Build a tidy install with the StarTech.com Rackmount — dimensions and mounting details are in the spec table.

KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

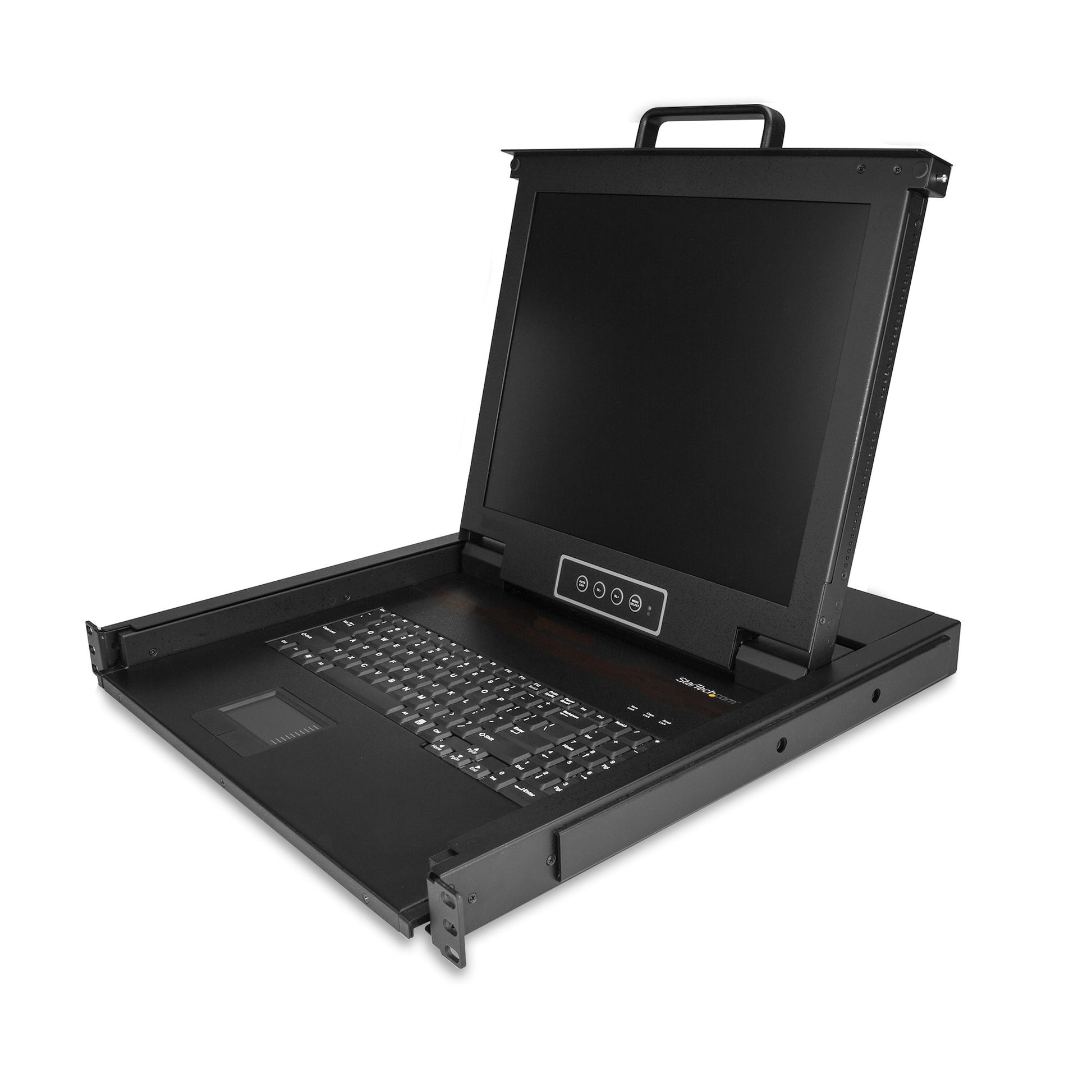

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

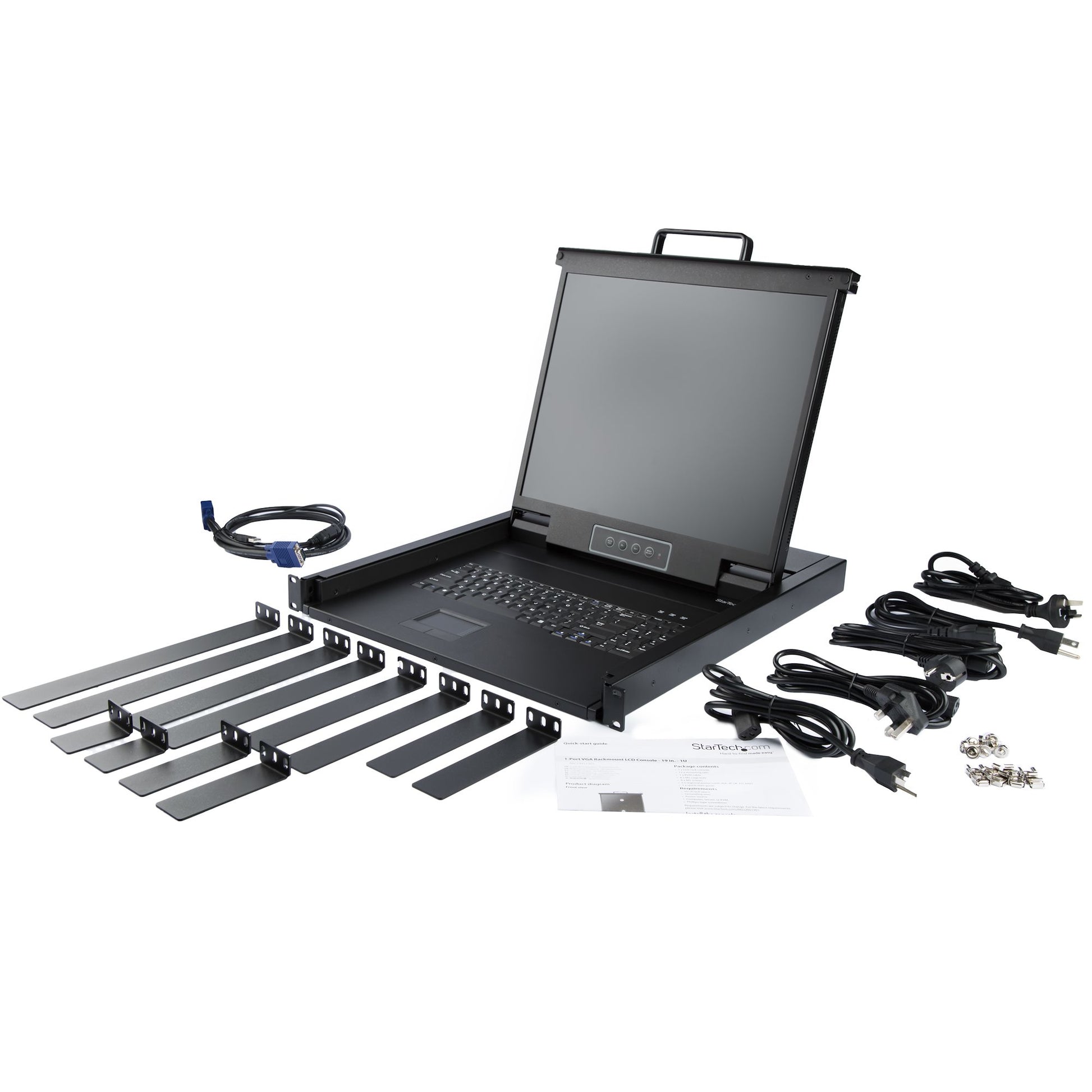

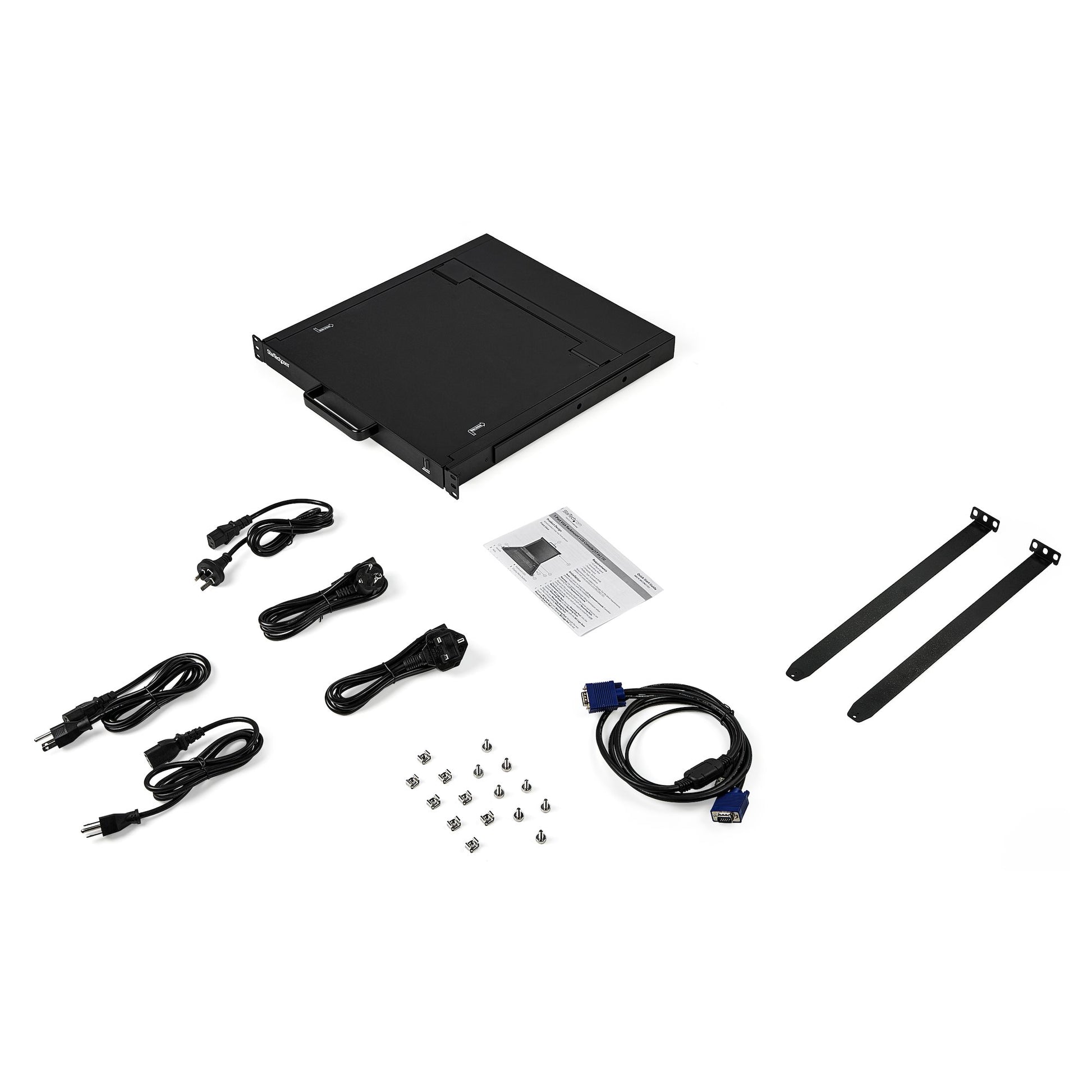

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Display
Response time	5 ms
Display number of colours	16.78 million colours
Display type	LCD
Display diagonal	43.2 cm (17")
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
Pixel pitch	0.264 x 0.264 mm
Display resolution	1280 x 1024 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Aspect ratio	5:4
Colour depth	8 bit
Technical details
Key lock	No
Daisy chain	No
LED indicators	Power, Status
Rack mounting	Yes
Rack capacity	1U
Operating relative humidity (H-H)	10 - 80%
Mean time between failures (MTBF)	50000 h
Material	Steel
Cables included	KVM
IP control	No
Cable length	1.82 m
Compliance certificates	RoHS
Ports & interfaces
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
Power
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Power consumption (typical)	13 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	CE, FCC, PSE, UL
Weight & dimensions
Mounting depth (min)	45 cm
Mounting depth (max)	79 cm
Weight	11.6 kg
Width	448 mm
Height	471 mm
Depth	42.5 mm
Packaging data
Package width	781 mm
Package depth	624 mm
Package height	196 mm
Package weight	17.1 kg
Packaging content
Screws included	Yes
Mounting brackets included	Yes
Quick installation guide	Yes
Rack mount kit	Yes
Number of screws	8
Number of cage nuts	8
Included power plug types	ANZ, EU, JP, NA, UK
Cage nuts included	Yes
Logistics data
Master (outer) case width	781 mm
Master (outer) case length	624 mm
Master (outer) case height	196 mm
Products per master (outer) case	1 pc(s)
