StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD

Build a tidy install with the StarTech.com Rackmount — dimensions and mounting details are in the spec table.

Control your server or KVM switch from a centralized HD KVM console

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

High-Definition LCD Monitor

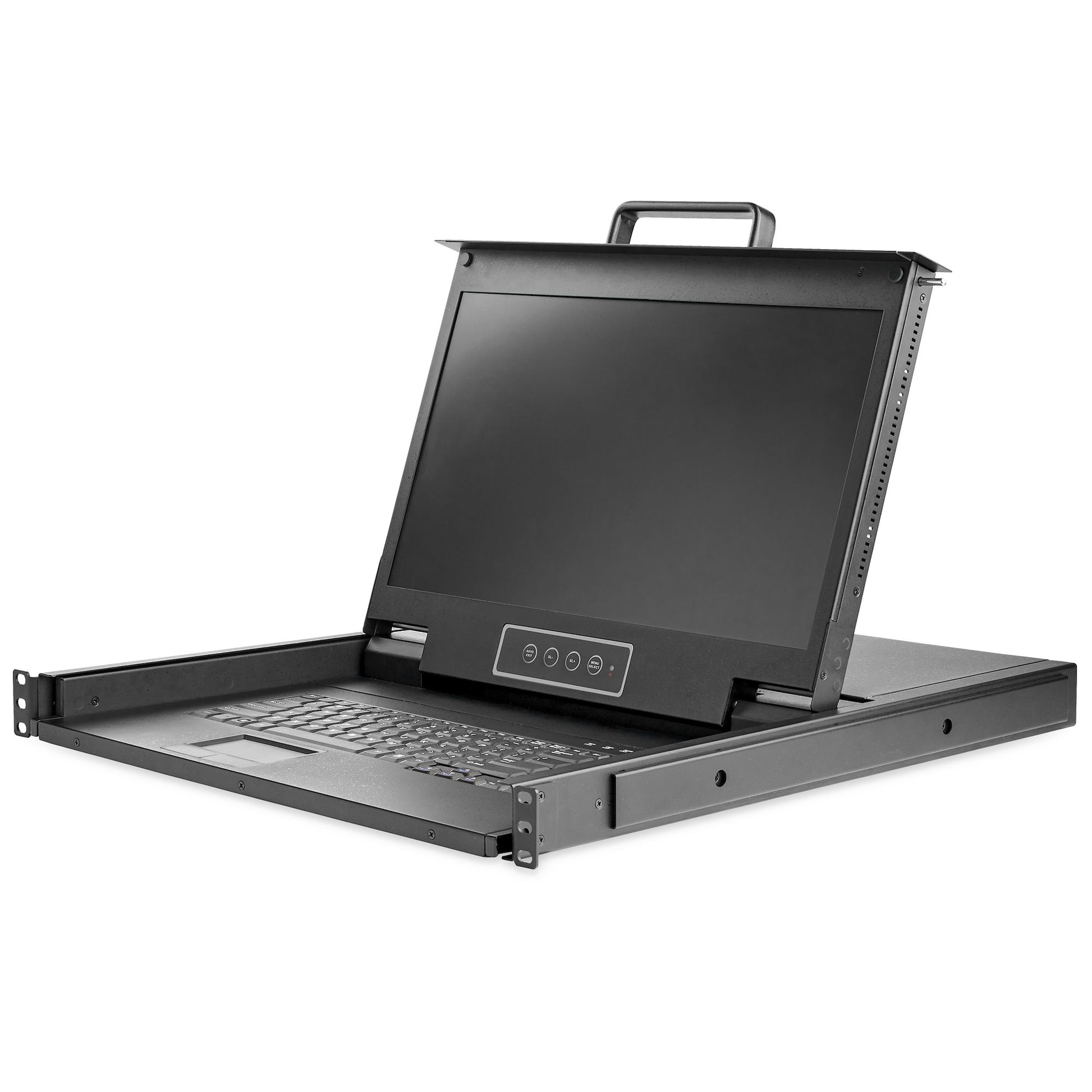

The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

Clutter-Free Monitoring

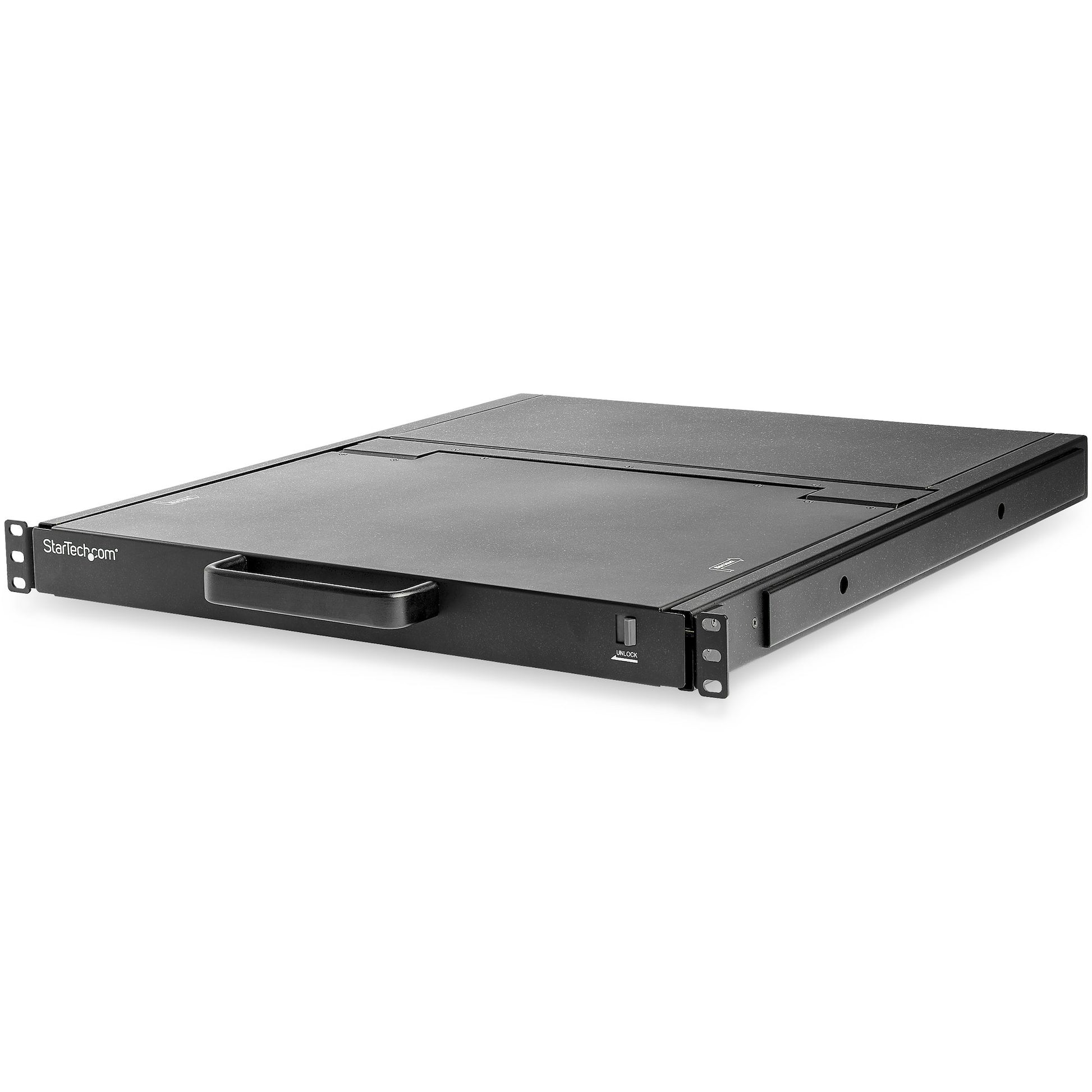

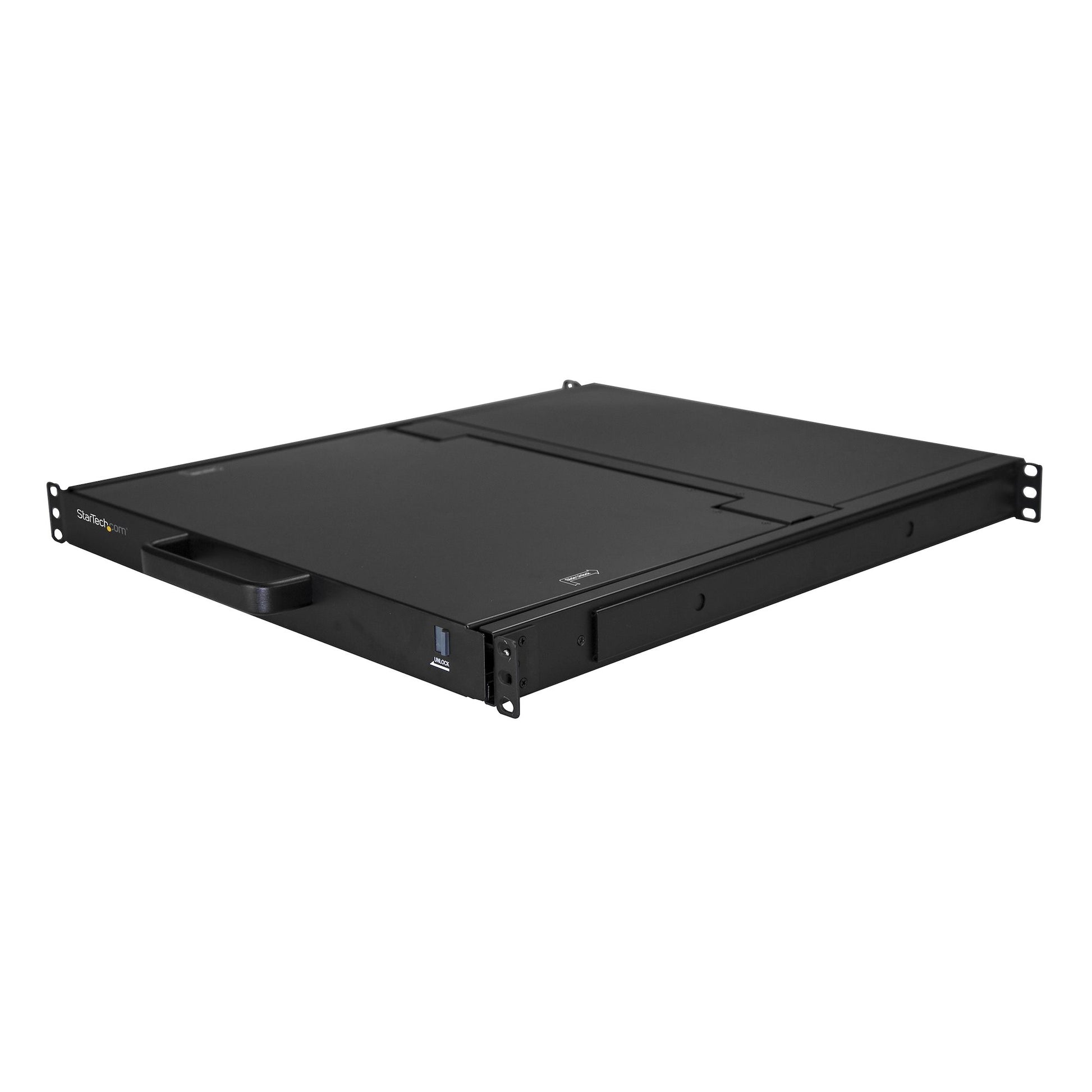

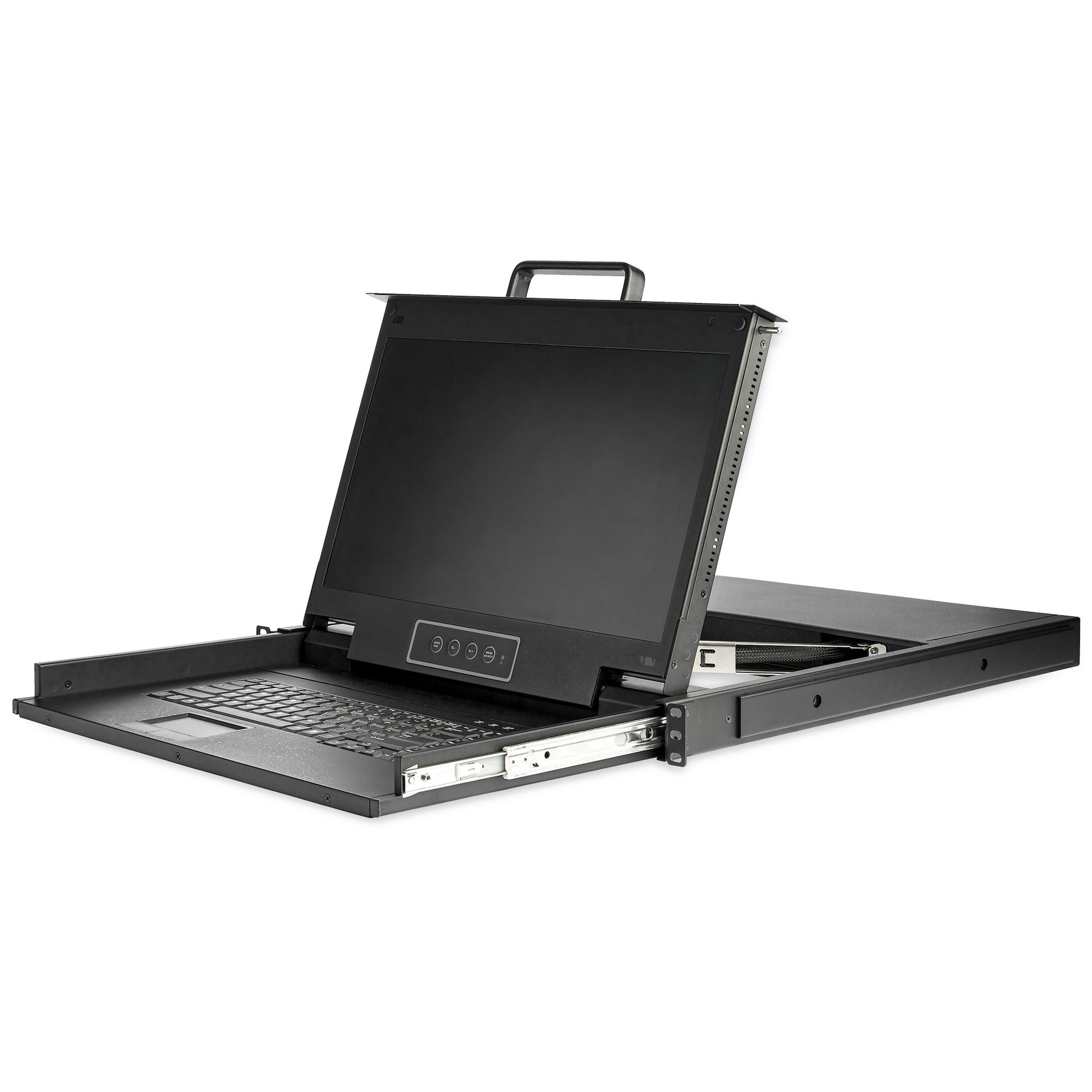

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Simple Setup

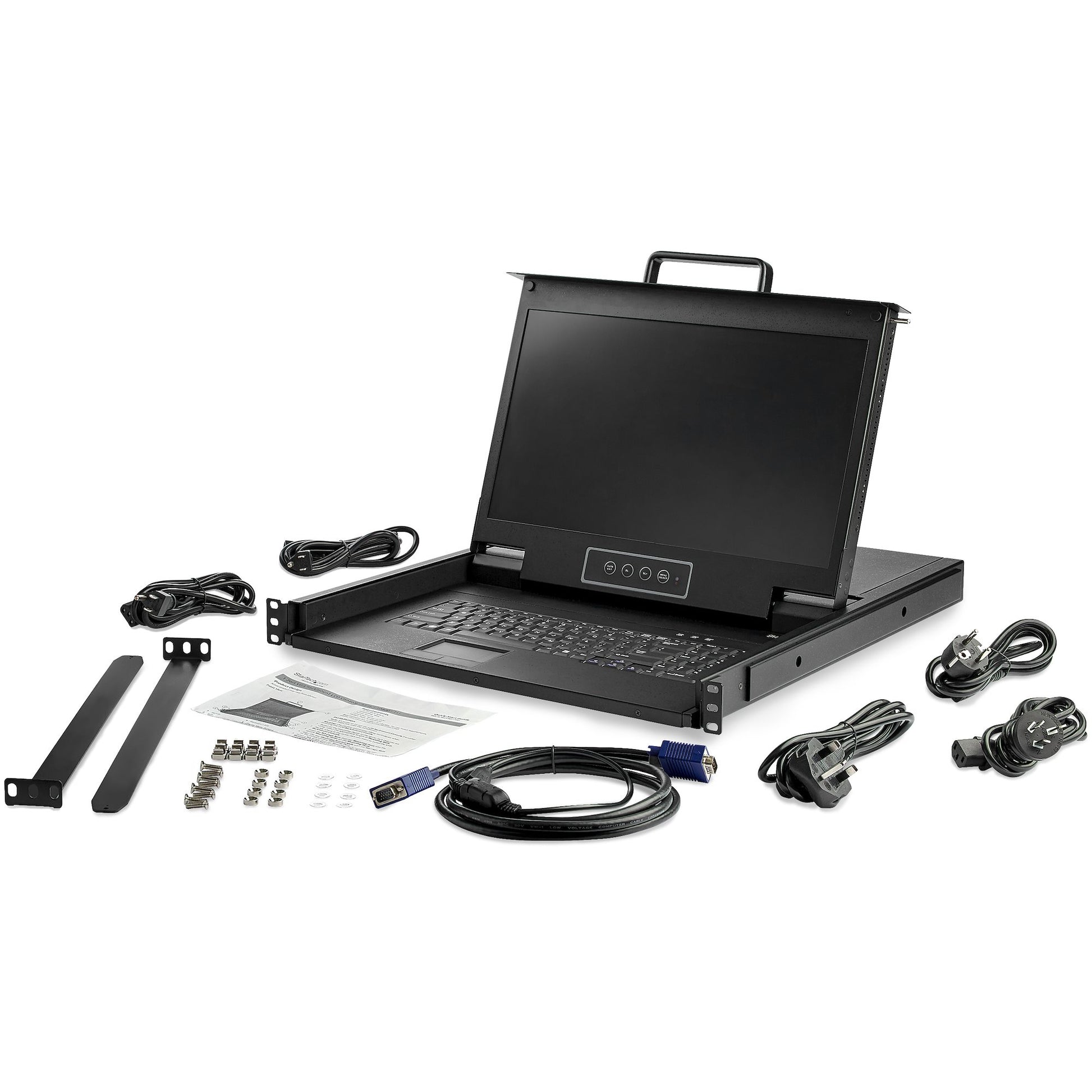

This single-port KVM console comes with everything you need to set up:

• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws

Cost Effective Solution

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.

Specifications

Display
Display number of colours	262144 colours
Display type	LCD
Display	TFT LCD
Display diagonal	43.9 cm (17.3")
Viewing angle, vertical	170°
Viewing angle, horizontal	170°
Pixel pitch	0.1989 x 0.1989 mm
Display resolution	1920 x 1080 pixels
Display brightness	300 cd/m²
Contrast ratio (typical)	800:1
Aspect ratio	16:9
Colour depth	6 bit
Technical details
Daisy chain	No
LED indicators	Power, Status
Rack mounting	Yes
Rack capacity	1U
Operating relative humidity (H-H)	10 - 80%
Mean time between failures (MTBF)	50000 h
Material	Steel
Product colour	Black
Cables included	KVM
IP control	No
Audio support	No
Cable length	1.8 m
Compliance certificates	RoHS
Ports & interfaces

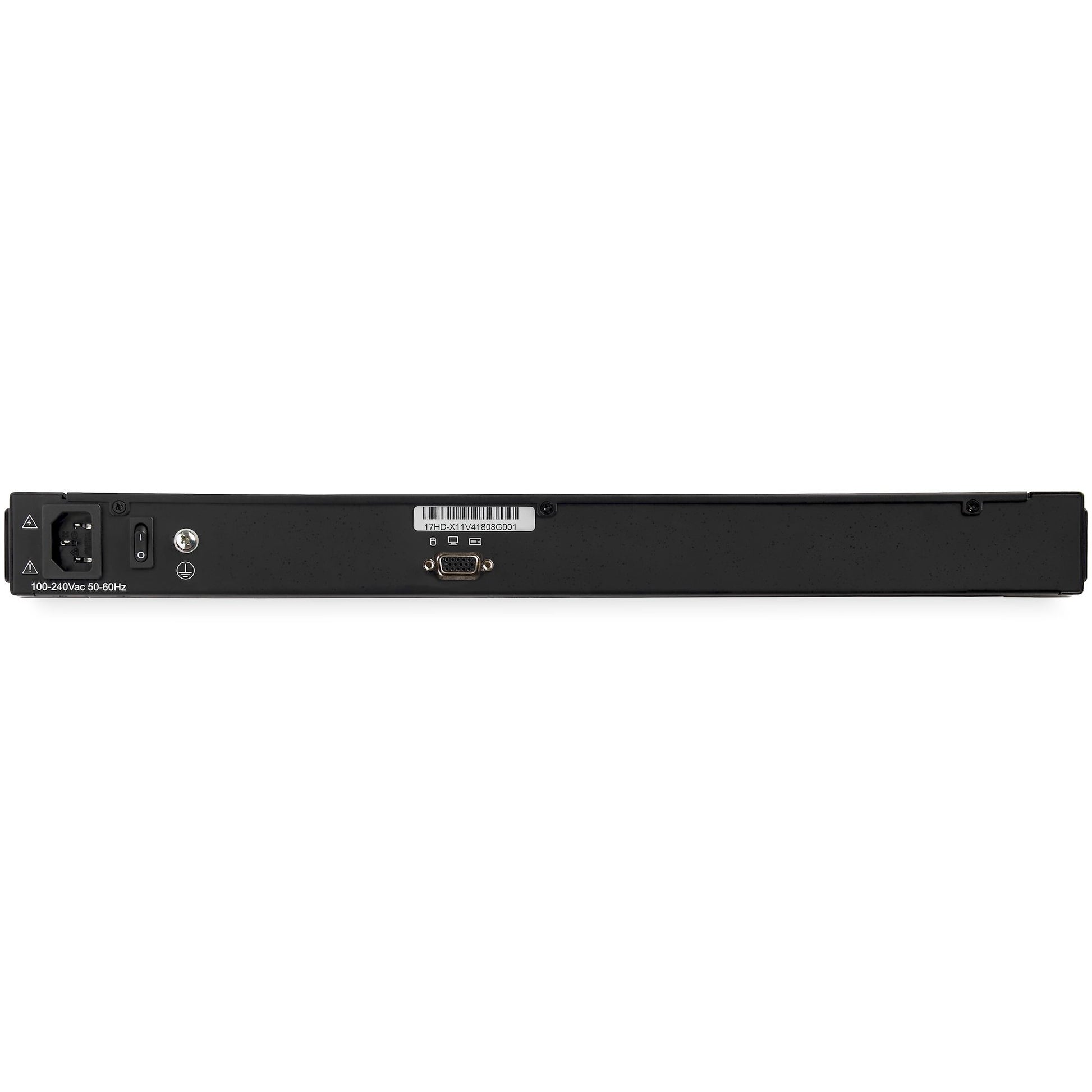

Video port type	VGA
Keyboard
Built-in touchpad	Yes
Power
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Power consumption (typical)	13 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	CE, FCC, PSE, UL, REACH
Weight & dimensions
Mounting depth (min)	51 cm
Mounting depth (max)	85 cm
Weight	11.2 kg
Width	483 mm
Height	565 mm
Depth	43 mm
Packaging data
Package width	780 mm
Package depth	616 mm
Package height	191 mm
Package weight	16 kg
Packaging content
Screws included	Yes
Quick installation guide	Yes
Number of screws	8
Number of cage nuts	8
Included power plug types	ANZ, EU, JP, NA, UK
Cage nuts included	Yes
Logistics data
Master (outer) case width	780 mm
Master (outer) case length	616 mm
Master (outer) case height	191 mm
Products per master (outer) case	1 pc(s)
