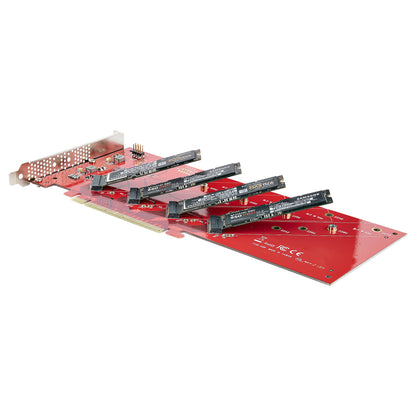

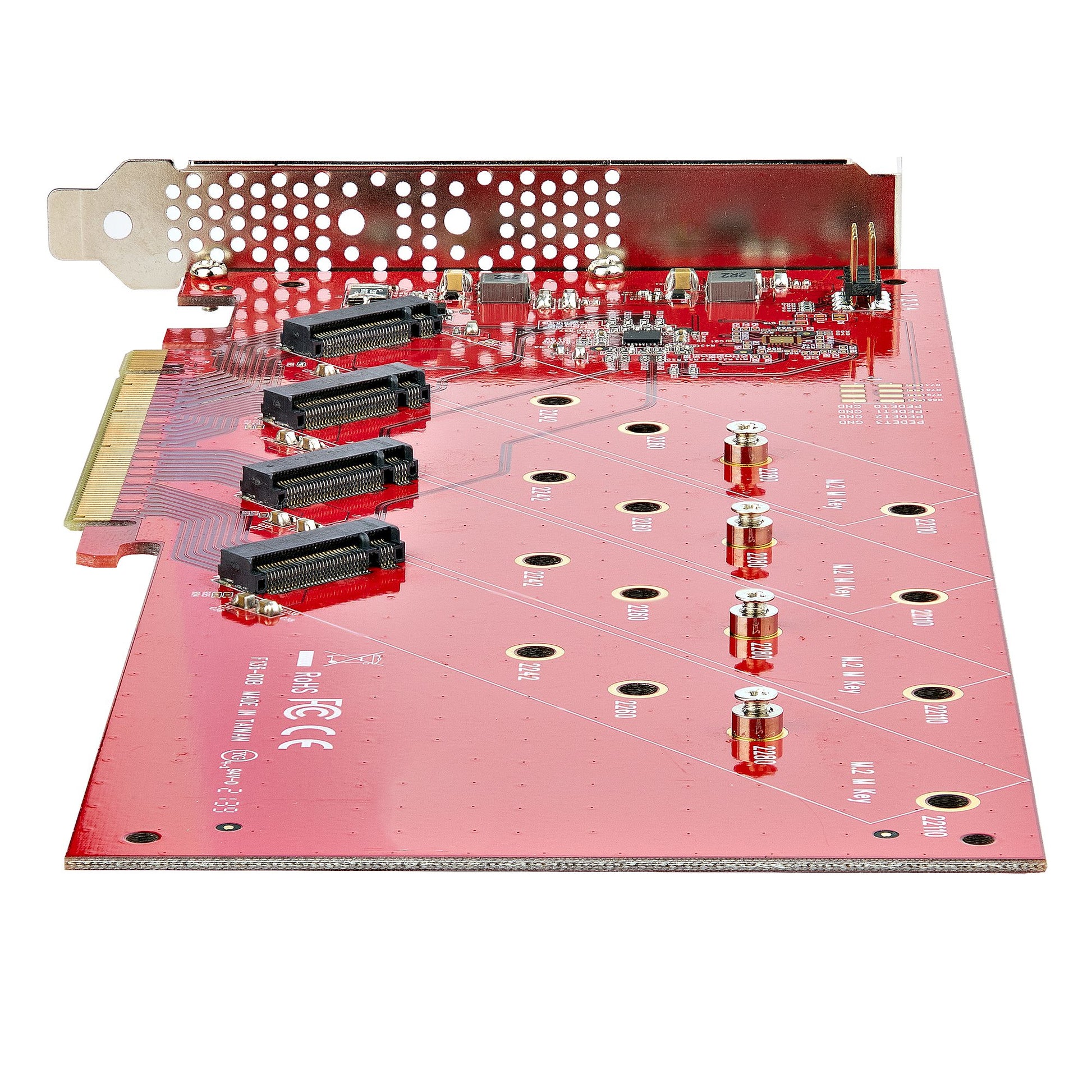

StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Hub

The StarTech.com Quad M.2 PCIe Adapter expands your ports in seconds — plug in and go.

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation

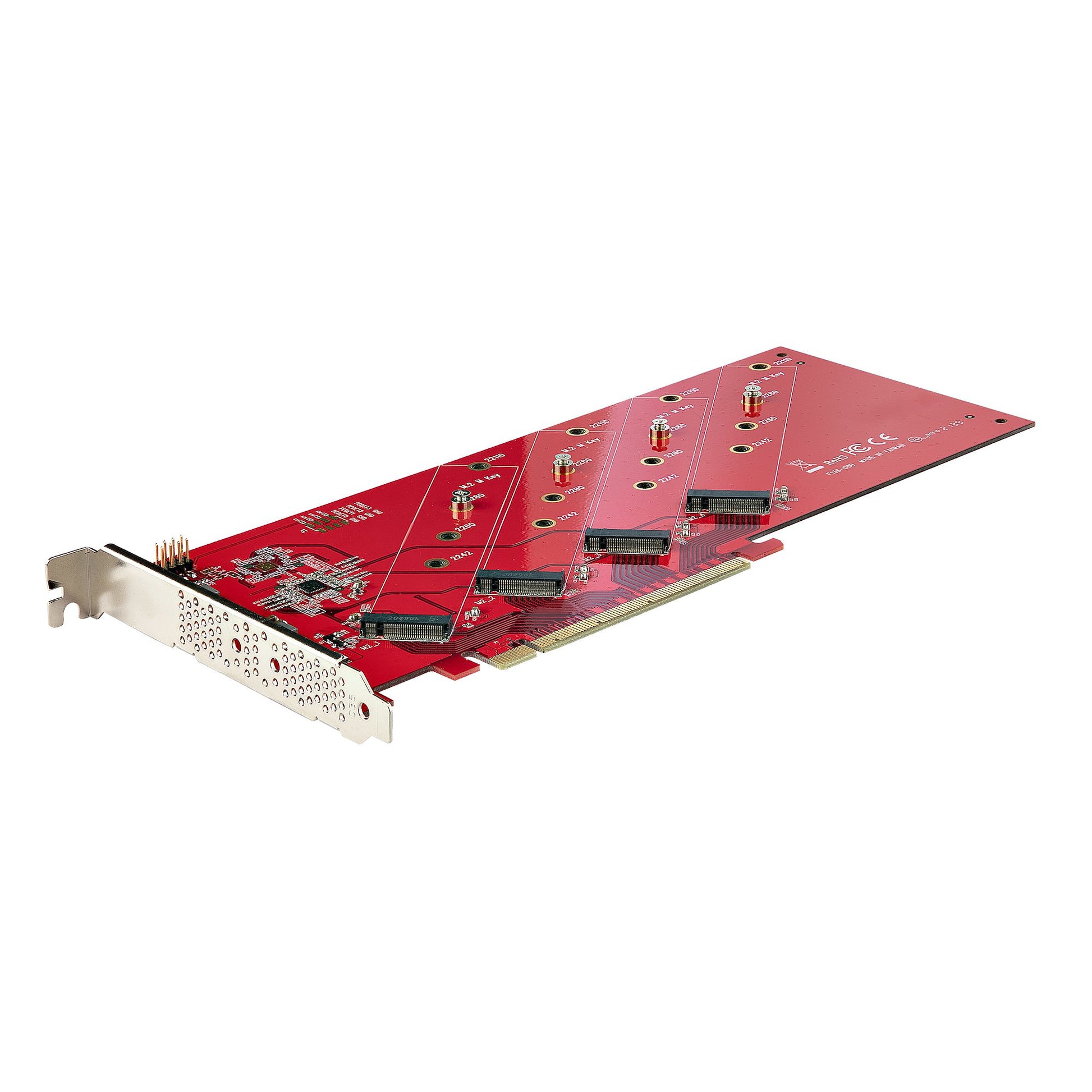

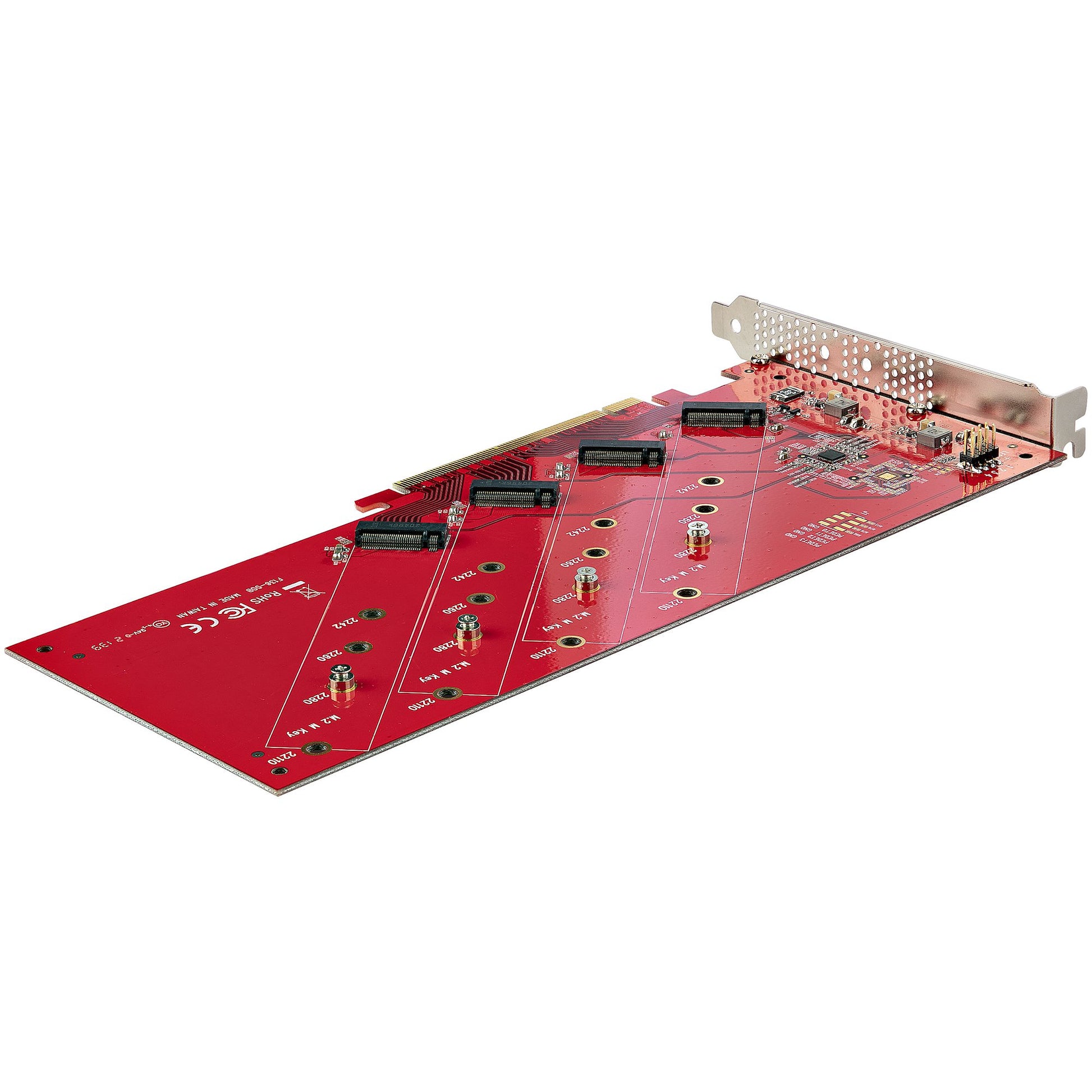

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

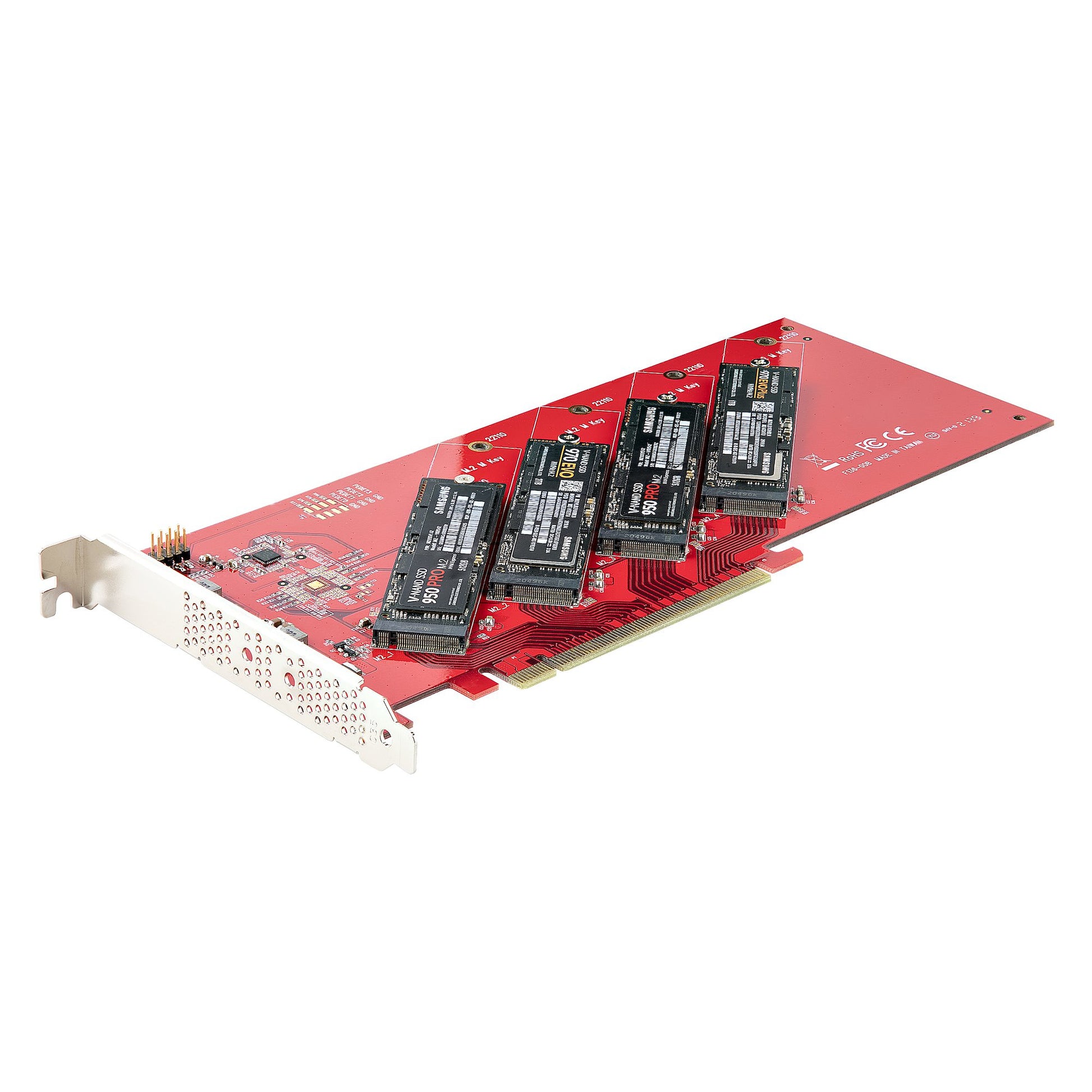

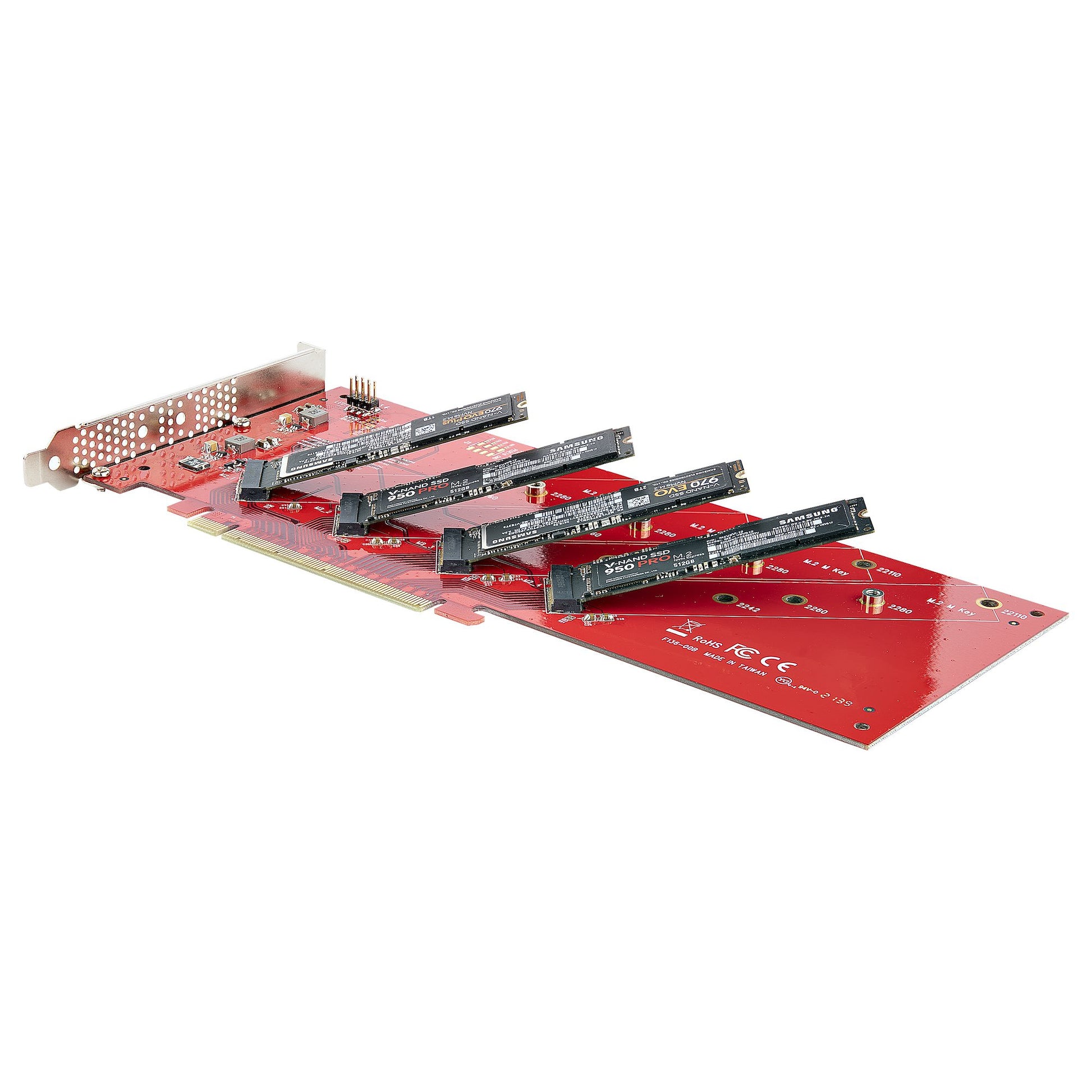

Access Four M.2 PCIe SSDs Simultaneously

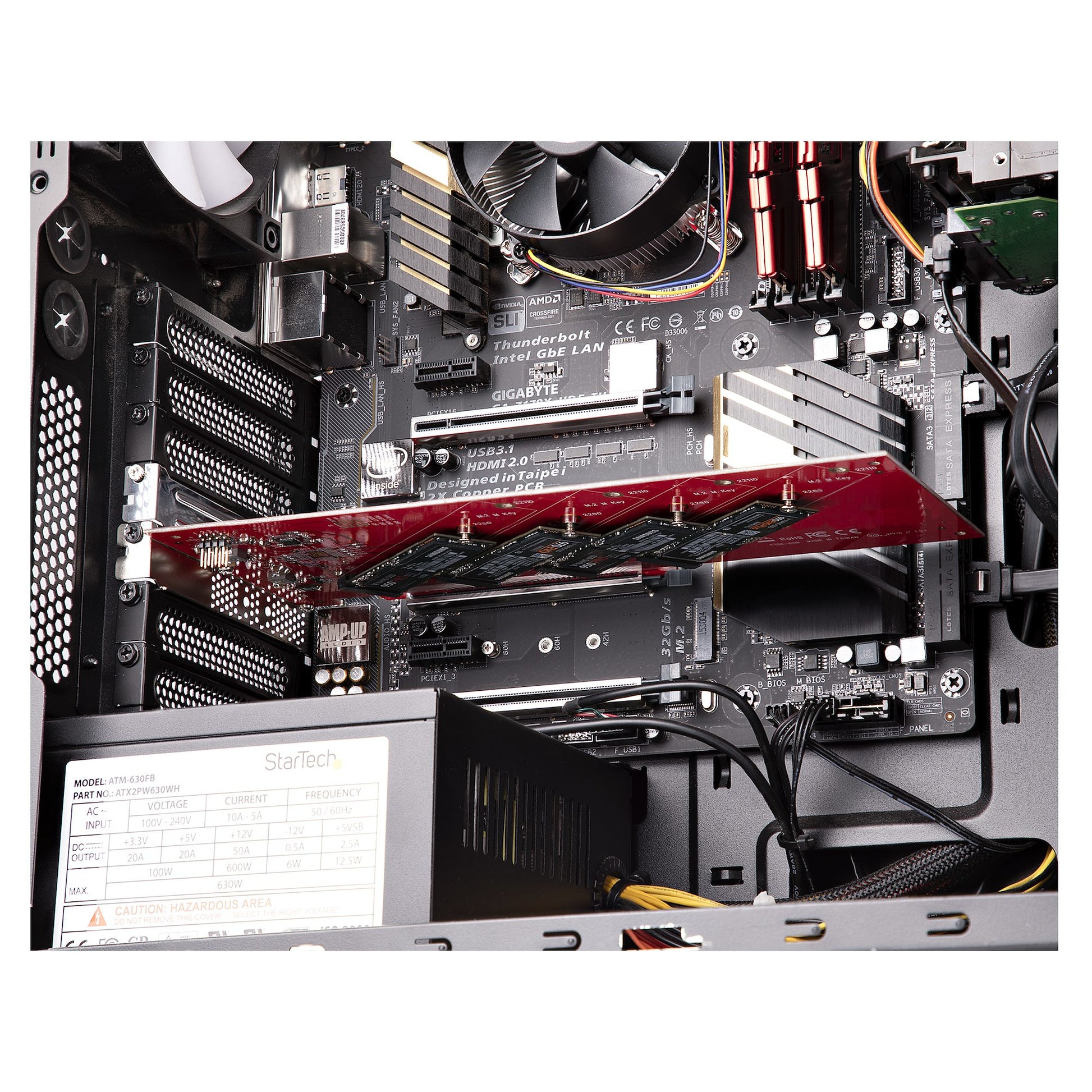

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.

Wide Compatibility

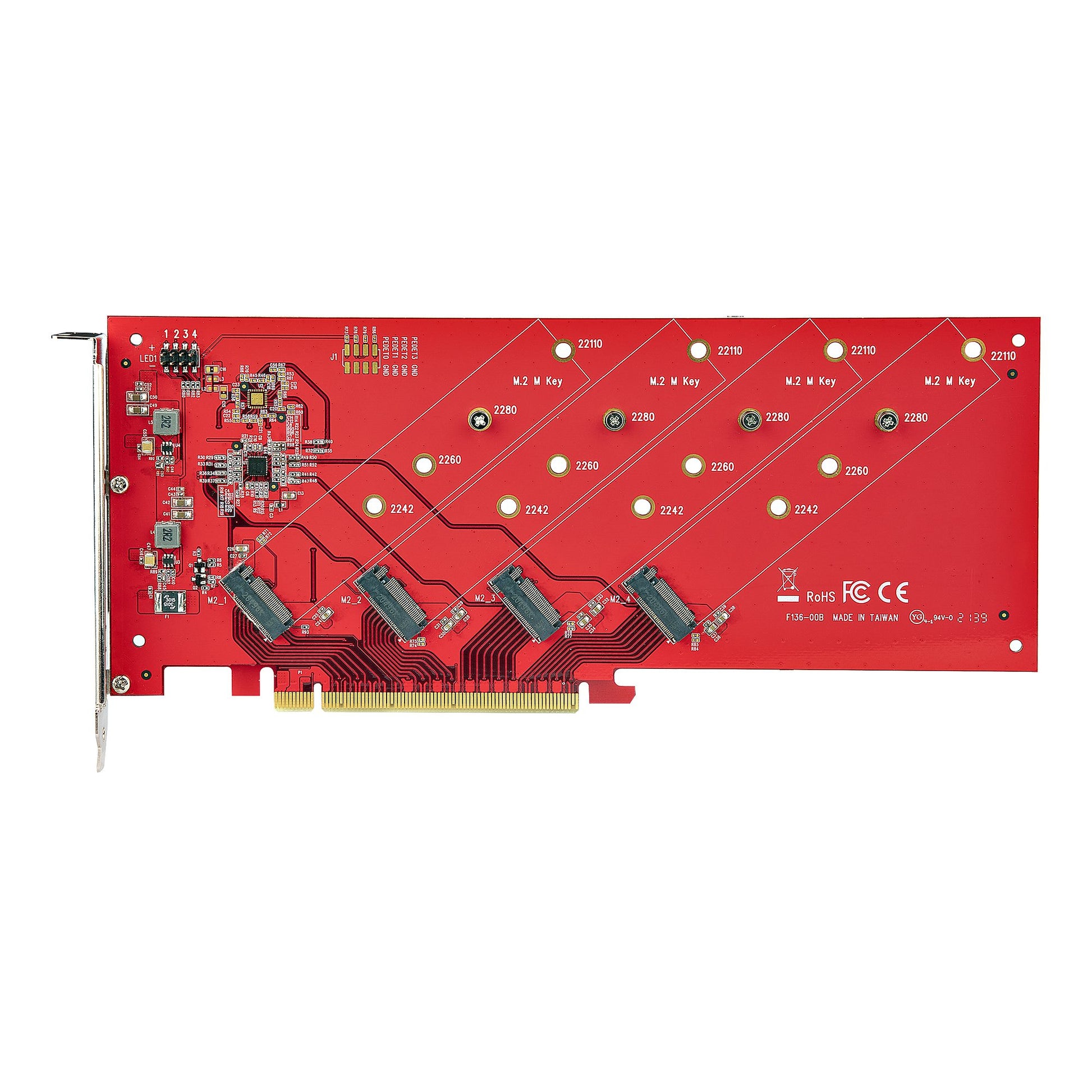

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.

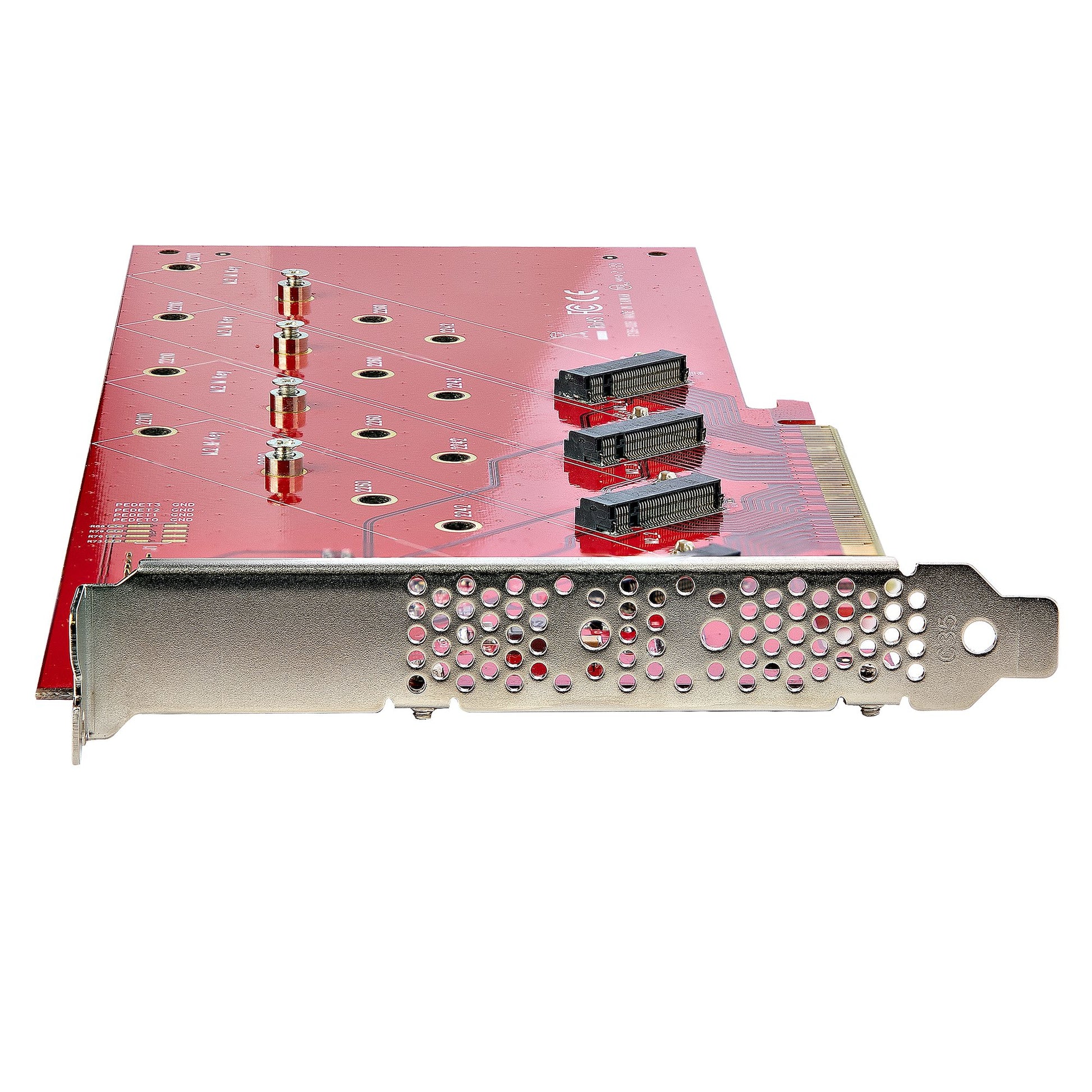

Vented Brackets

The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

Specifications

Ports & interfaces
Internal	Yes
Output interface	M.2
Host interface	PCIe
Number of M.2 (M) slots	4
Expansion card standard	PCIe 4.0
Technical details
Plug and Play	Yes
Data transfer rate (max)	7.8 Gbit/s
Performance
Product colour	Red
Design
Mean time between failures (MTBF)	4353192 h
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	15 - 90%
Weight & dimensions
Width	290 mm
Depth	170 mm
Height	30 mm
Weight	150 g
Package width	174 mm
Package depth	292 mm
Package height	33 mm
Package weight	150 g
Packaging data
Quick installation guide	Yes
Screws included	Yes
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	501 mm
Master (outer) case length	382 mm
Master (outer) case height	328 mm
