StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Mini/Compact Size - IP-30/ -40 to +75C - TAA Networking

The StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Mini/Compact Size - IP-30/ -40 to +75C - TAA is a dependable addition to any modern network installation.

Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mountable

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.

Designed for Small Spaces & Harsh Environments

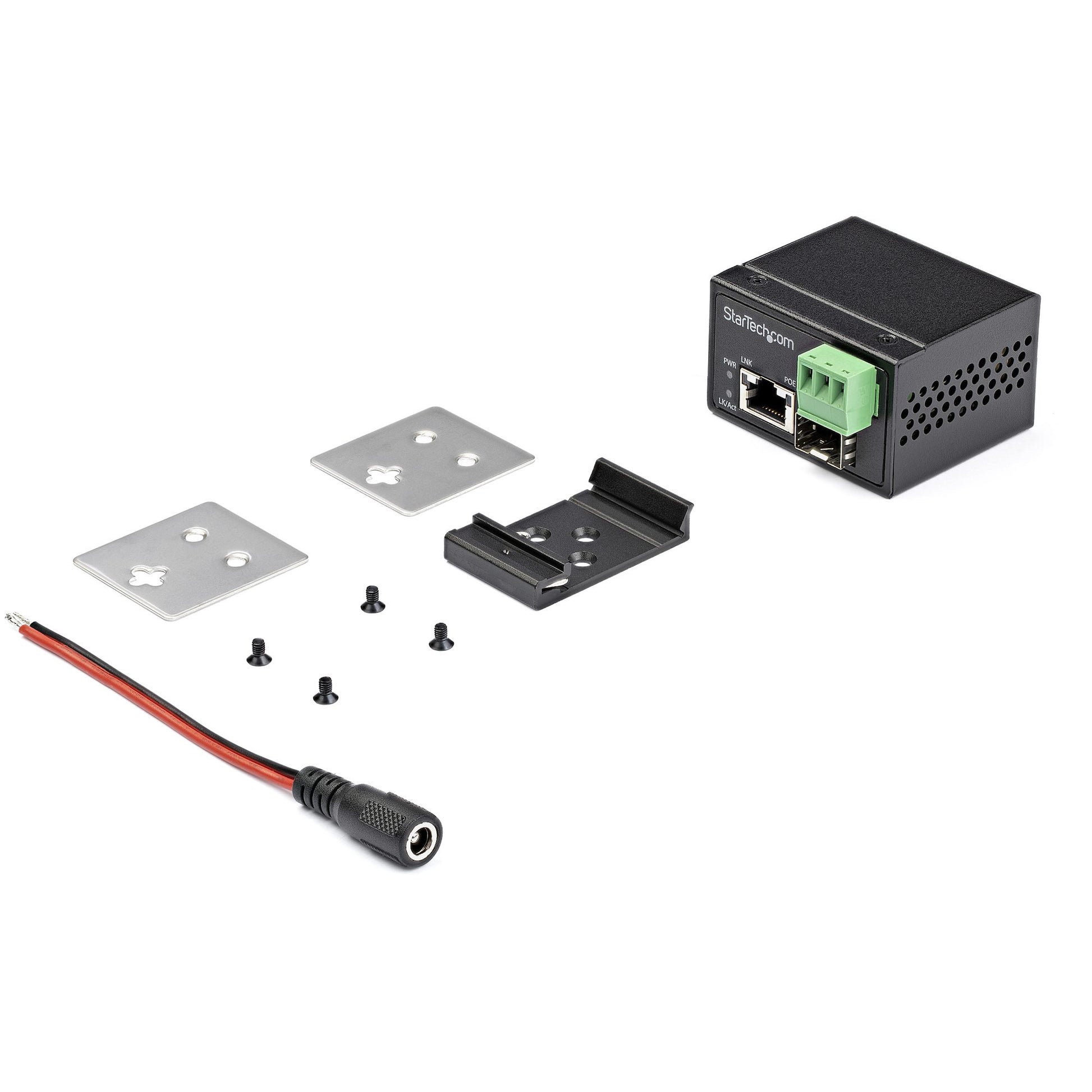

At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

Up to 30 Watts of Power for Connected Devices

30 watts of available support a wide range of devices such as:

• Surveillance Cameras
• Wireless Access Points
• Locks & Sensors
• Lighting

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Industrial IoT and Bringing Connectivity Outside of the Data Center

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Network
Jumbo frames support	Yes
Flow control support	Yes
Jumbo frames	16000
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Duplex system	Full
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	SFP
Performance
Maximum transfer distance	100 m
Fiber mode structure	Multi-mode, Single-mode
Buffer size	512 KB
Mean time between failures (MTBF)	500000 h
Features
DIN rail mounting	Yes
International Protection (IP) code	IP30
Housing material	Aluminium
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power
Power plug type	Type N
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	30 W
Input voltage	48 - 56 V
Weight & dimensions
Width	36 mm
Depth	59 mm
Weight	80 g
Height	49 mm
Package depth	108 mm
Package width	161 mm
Package height	66 mm
Package weight	204.9 g
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Quick installation guide	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Certification	CE, FCC
Logistics data
Master (outer) case width	364 mm
Master (outer) case length	372 mm
Master (outer) case height	250 mm
Products per master (outer) case	20 pc(s)
