StarTech.com PCI to PCI Express Adapter Card - TAA Hub

The StarTech.com PCI to PCI Express expands your ports in seconds — plug in and go.

Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

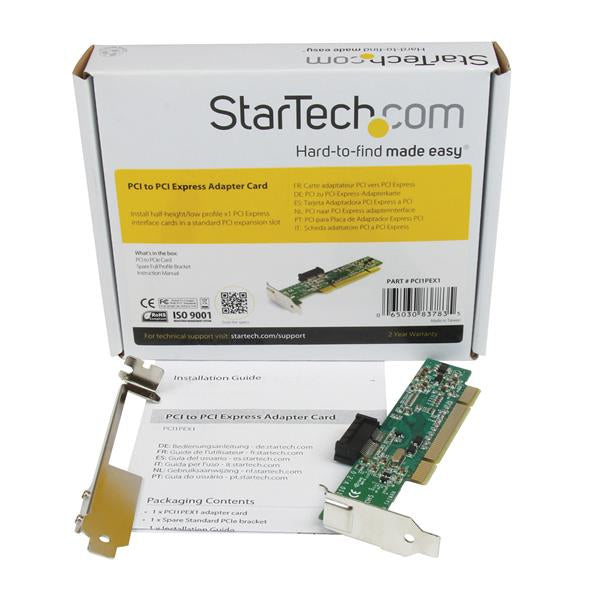

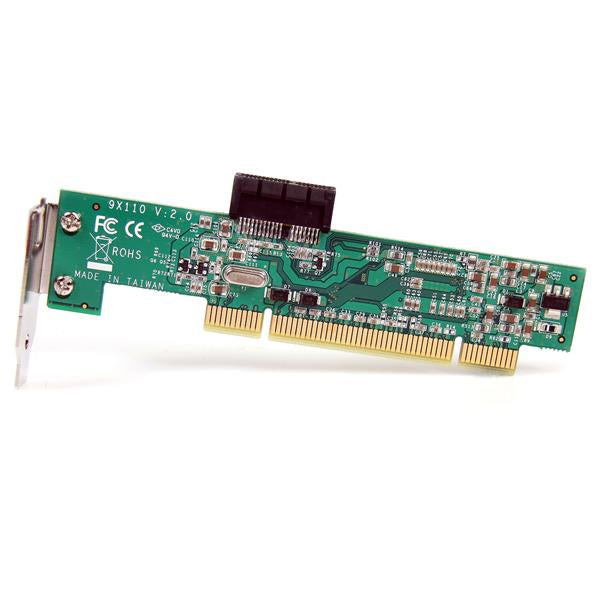

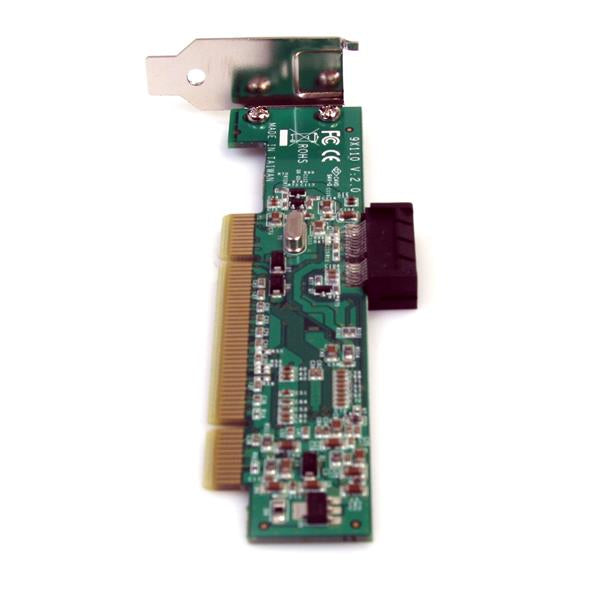

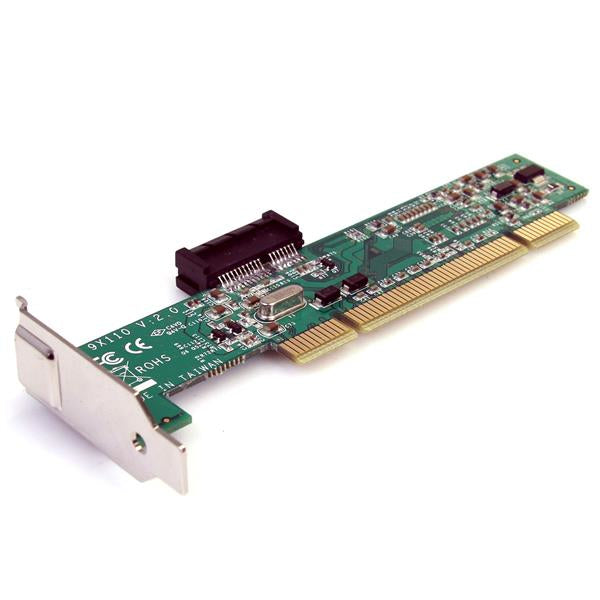

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

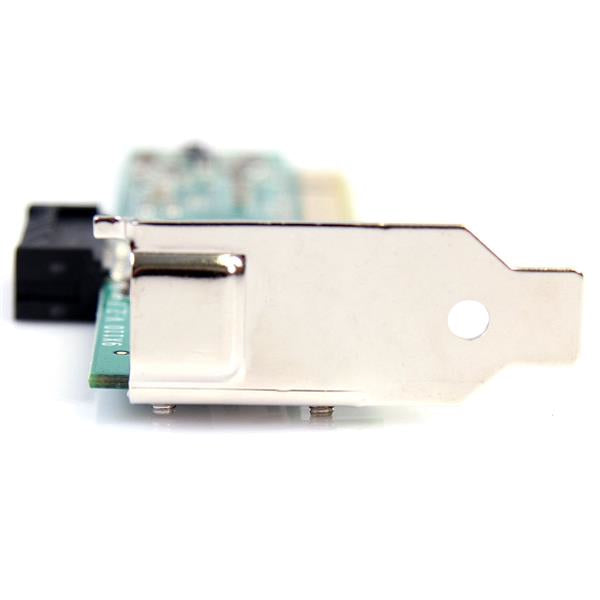

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

Specifications

Ports & interfaces
Internal	Yes
Output interface	PCIe
Host interface	PCI
Expansion card standard	PCI 2.3
Technical details
Chipset	Pericom - PI7C9X111SL
Compliance certificates	RoHS
Performance
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, TAA
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-10 - 95 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	60 mm
Depth	135 mm
Height	20 mm
Weight	32 g
Package width	143 mm
Package depth	175 mm
Package height	33 mm
Package weight	102 g
Packaging data
Manual	Yes
Quantity	1
Logistics data
Products per master (outer) case	75 pc(s)
Master (outer) case width	352 mm
Master (outer) case length	690 mm
Master (outer) case height	314 mm

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
