StarTech.com PCI Express X1 to X16 Low Profile Slot Extension Adapter - TAA Hub

The StarTech.com PCI Express X1 to expands your ports in seconds — plug in and go.

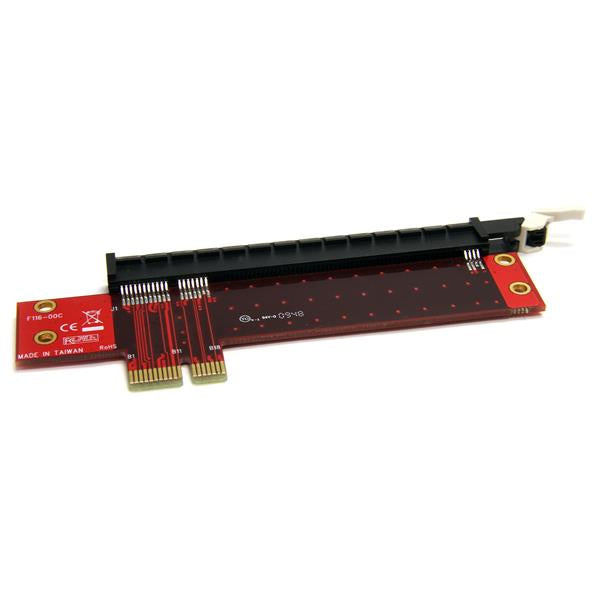

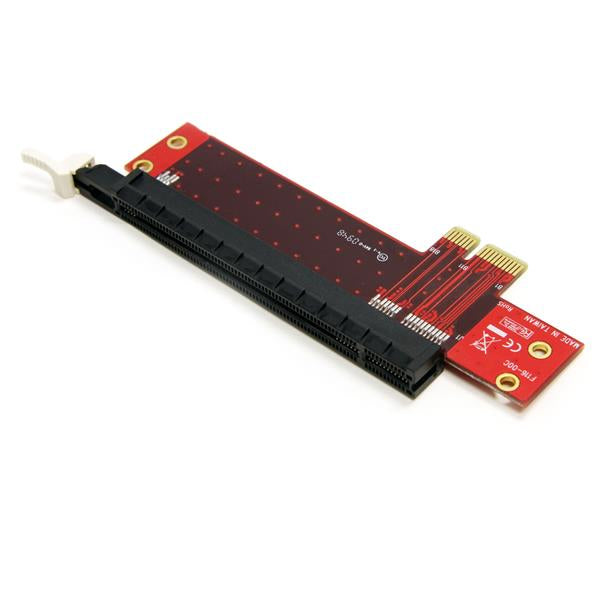

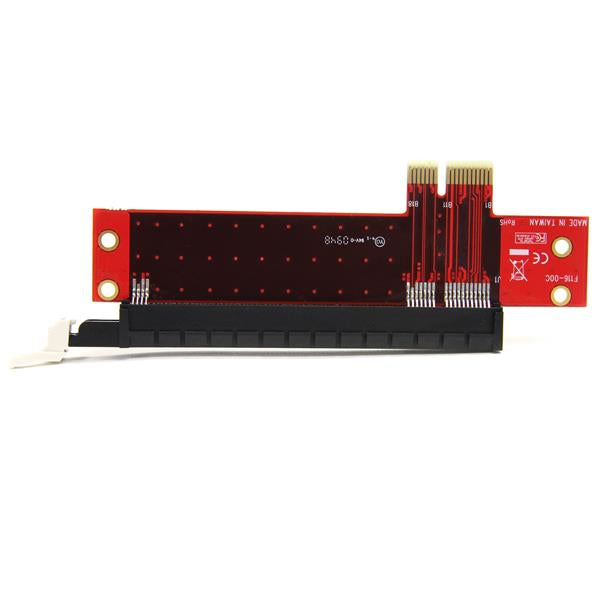

Connect a low profile x16 PCI Express Card to an x1 slot

This PCIe x1 to PCIe x16 Slot Extension adapter provides enhanced compatibility between motherboards and a variety of PCI Express expansion cards, allowing you to install a PCIe card (x1 - x16) in an x1 slot.

The PCI Express x1 to x16 adapter accommodates low profile x2, x4, x8, x12 or x16 PCI Express cards, eliminating the cost and hassle of upgrading a PCIe card or replacing the motherboard for the sake of compatibility.

Specifications

Ports & interfaces
Internal	Yes
Output interface	PCIe
Host interface	PCIe
Technical details
Data transfer rate (max)	2.5 Gbit/s
Performance
Product colour	Red
Harmonized System (HS) code	84733020
Certificates
Certification	CE, REACH, TAA
Weight & dimensions
Width	44.3 mm
Depth	127 mm
Height	8 mm
Weight	12 g
Package width	143 mm
Package depth	175 mm
Package height	33 mm
Package weight	80 g
Packaging data
Manual	Yes
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	370 mm
Master (outer) case height	322 mm

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
