StarTech.com PCI Express to 4 Slot PCI Expansion System - TAA Hub

The StarTech.com PCI Express to 4 expands your ports in seconds — plug in and go.

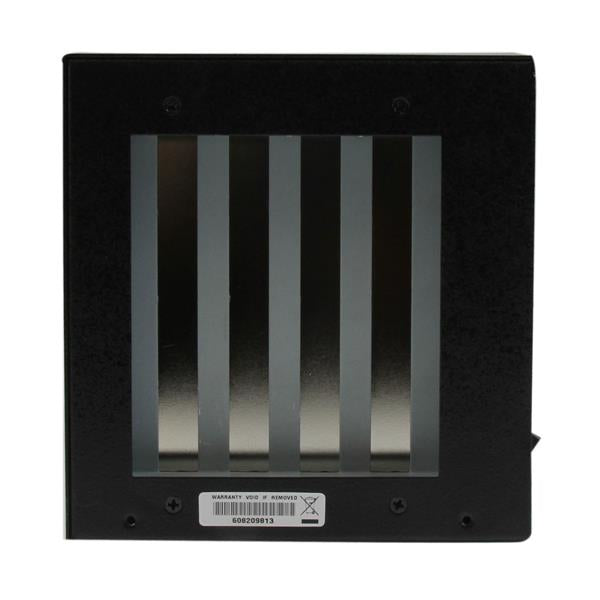

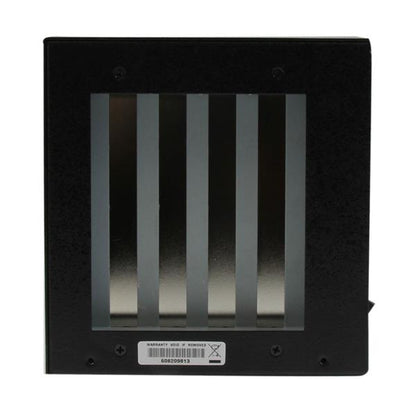

Add four external PCI expansion card slots to a desktop computer

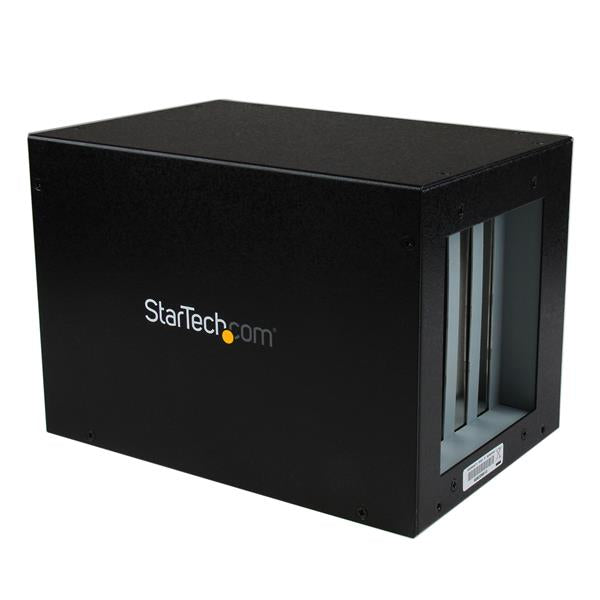

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

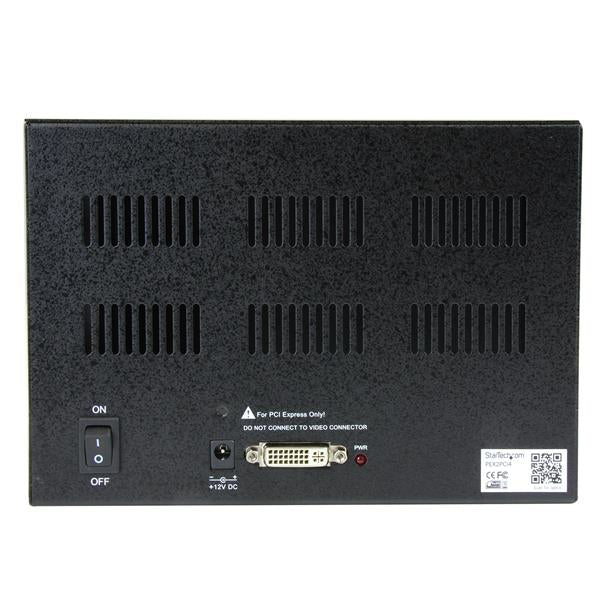

The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. The PCIe controller card connects directly to the PCI Expansion box with an included DVI cable for a reliable, high quality connection.

A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.

Specifications

Technical details
Plug and Play	Yes
Performance
Product colour	Black
Harmonized System (HS) code	84719000
Certificates
Certification	CE, FCC, RoHS
Power
Output voltage	12 V
Output current	3 A
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Weight & dimensions
Width	137 mm
Depth	204 mm
Height	142 mm
Weight	2.4 kg
Package width	200 mm
Package depth	250 mm
Package height	240 mm
Package weight	2.4 kg
Packaging data
Manual	Yes

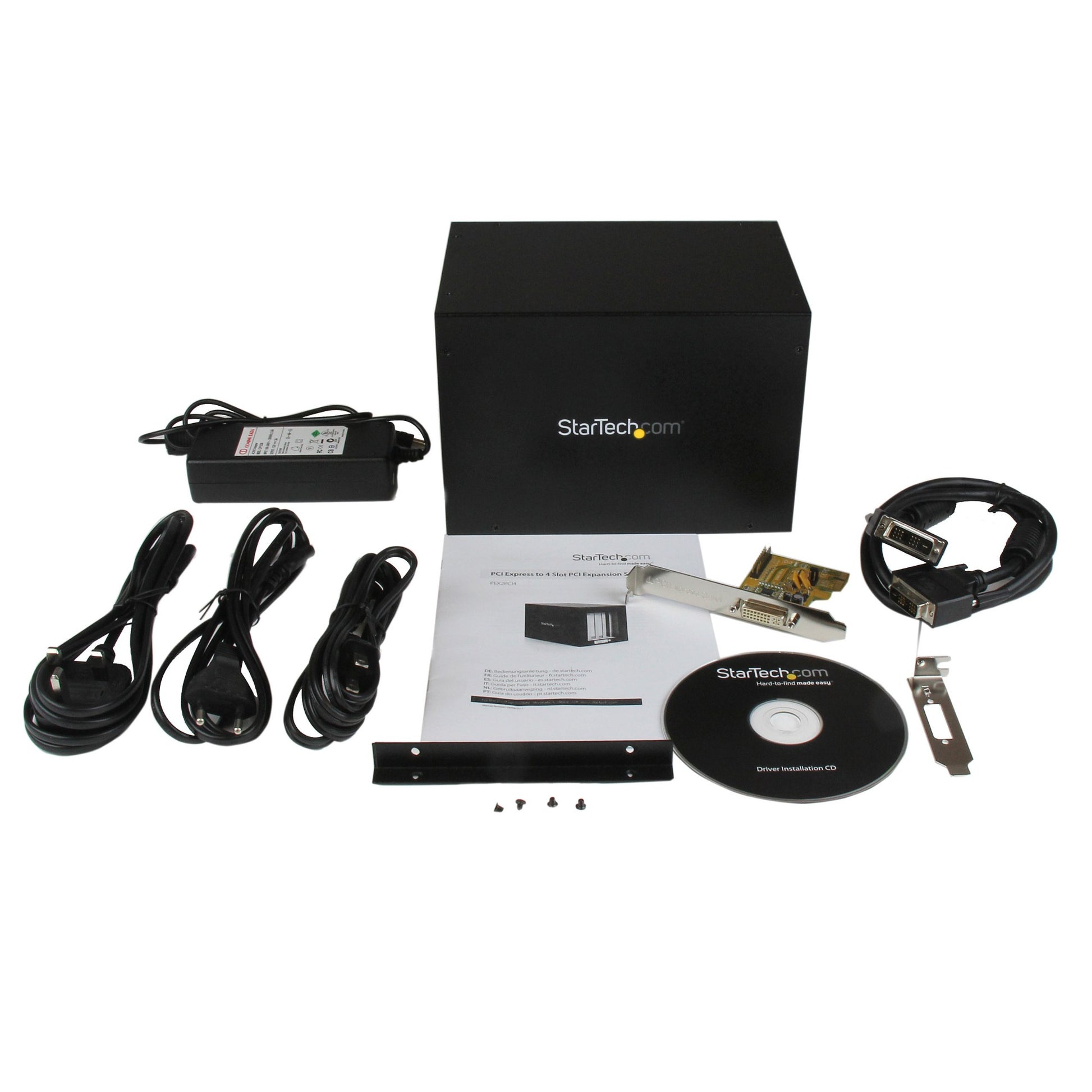

Cables included	AC, DVI
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	430 mm
Master (outer) case length	520 mm
Master (outer) case height	270 mm
Other features
Ports quantity	4

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
