StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Network Adapter

Upgrade your connectivity with the StarTech.com PCI Express (PCIe) Gigabit — ports, speeds and interface details are in the spec table.

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

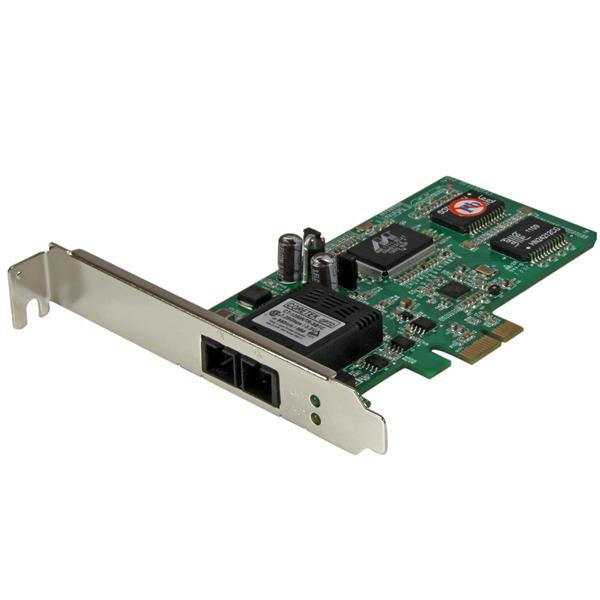

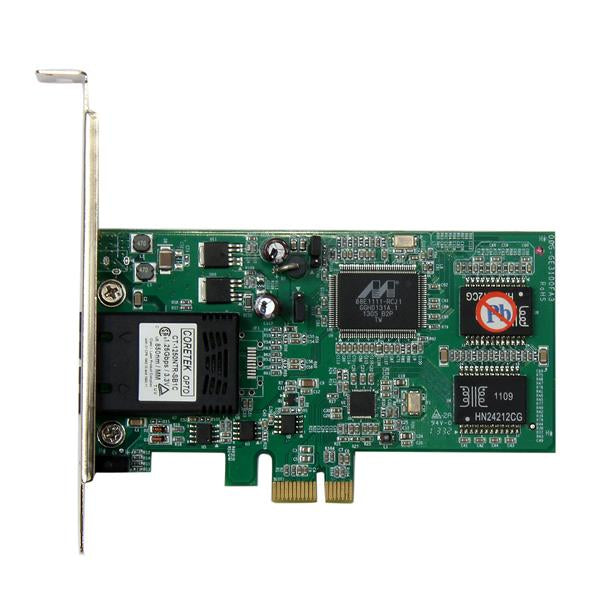

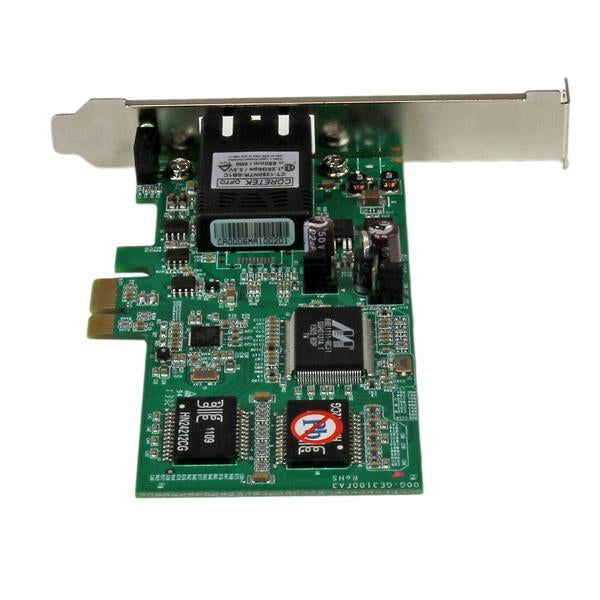

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Fiber optic connector	SC
Interface	Ethernet / Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Buffer size	48 KB
Full duplex	Yes
Maximum data transfer rate	2000 Mbit/s
Network
Chipset	RTL8168E
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z
Wake-on-LAN ready	Yes
Maximum operating distance	550 m
LAN controller	Realtek RTL8168E
Jumbo frames support	Yes
Fiber ethernet cabling technology	1000BASE-SX
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Power
Power supply	3.2 W
Design

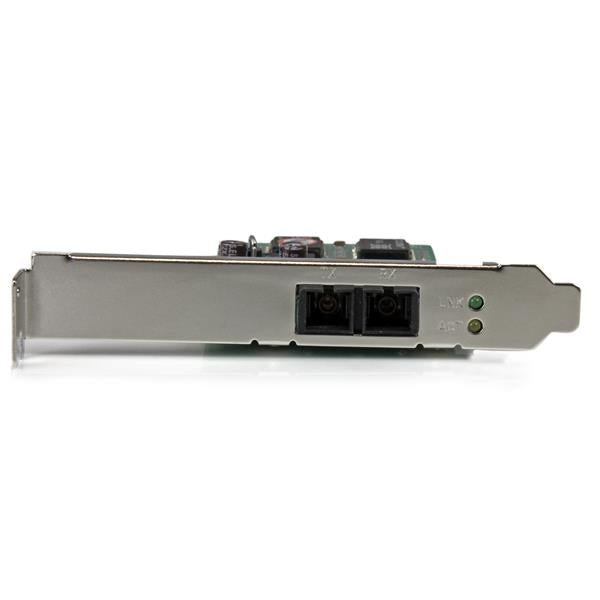

LED indicators	Activity, Link
Component for	PC
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	118 mm
Depth	120 mm
Height	18 mm
Weight	66 g
Package width	215 mm
Package depth	175 mm
Package height	51 mm
Package weight	208 g
Packaging data
Manual	Yes
Logistics data
Master (outer) case width	550 mm
Master (outer) case length	595 mm
Master (outer) case height	367 mm
Products per master (outer) case	50 pc(s)
