StarTech.com Multiport Adapter Travel Thunderbolt 3 Docking Station

One cable, full desk: the StarTech.com Multiport Adapter Travel turns your laptop into a workstation with external displays, wired networking, 60W charging over a single Thunderbolt 3 connection.

Portable Docking Station | Mac & Windows® | 4K | GbE | Thunderbolt™ 3 Compatible

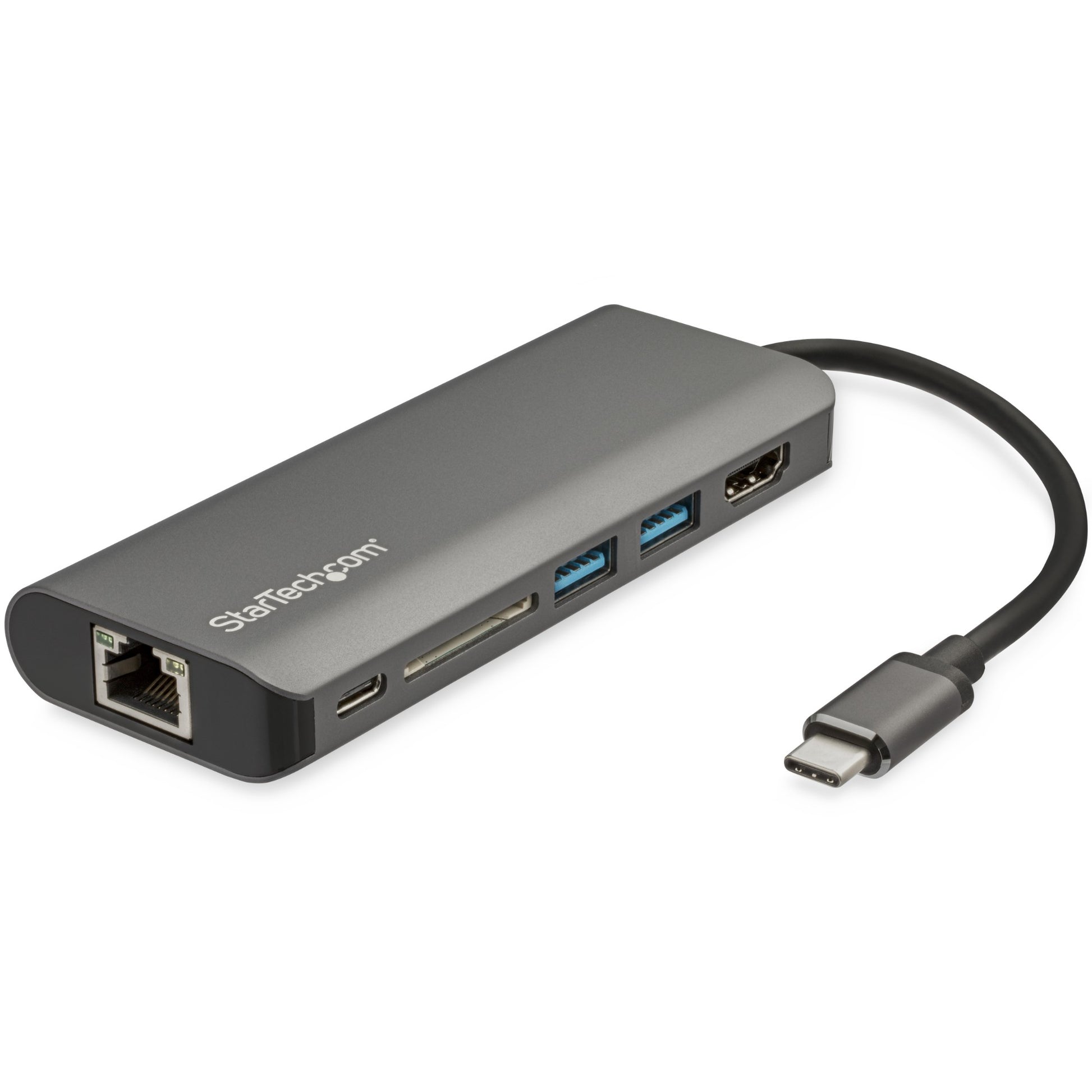

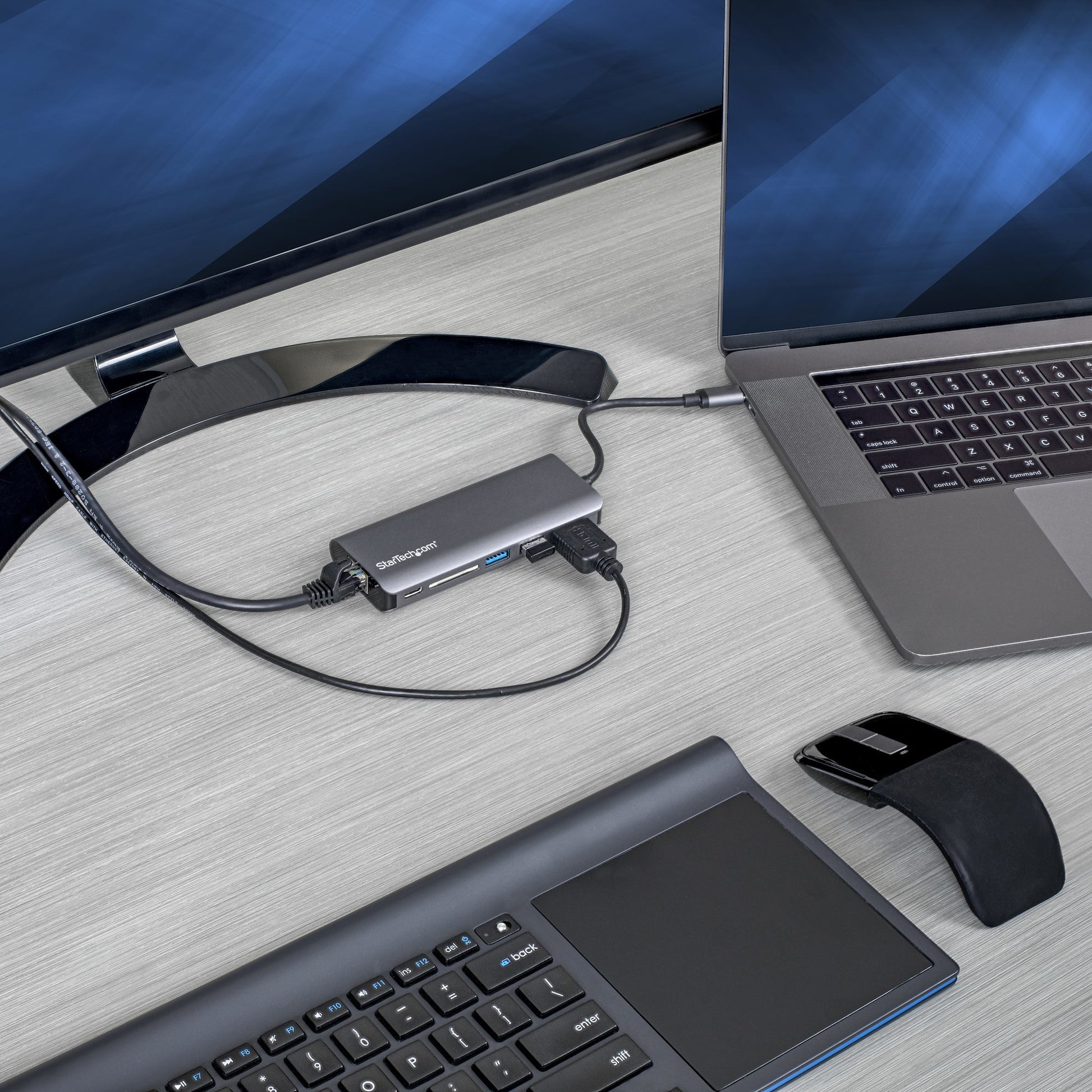

This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptop into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-C™ port (data/power), two USB 3.0 Type-A ports, a Gigabit Ethernet port and an SD card reader slot, all through one connection to your laptop’s USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0.

Enhance Productivity

The portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.

Connect Your Devices

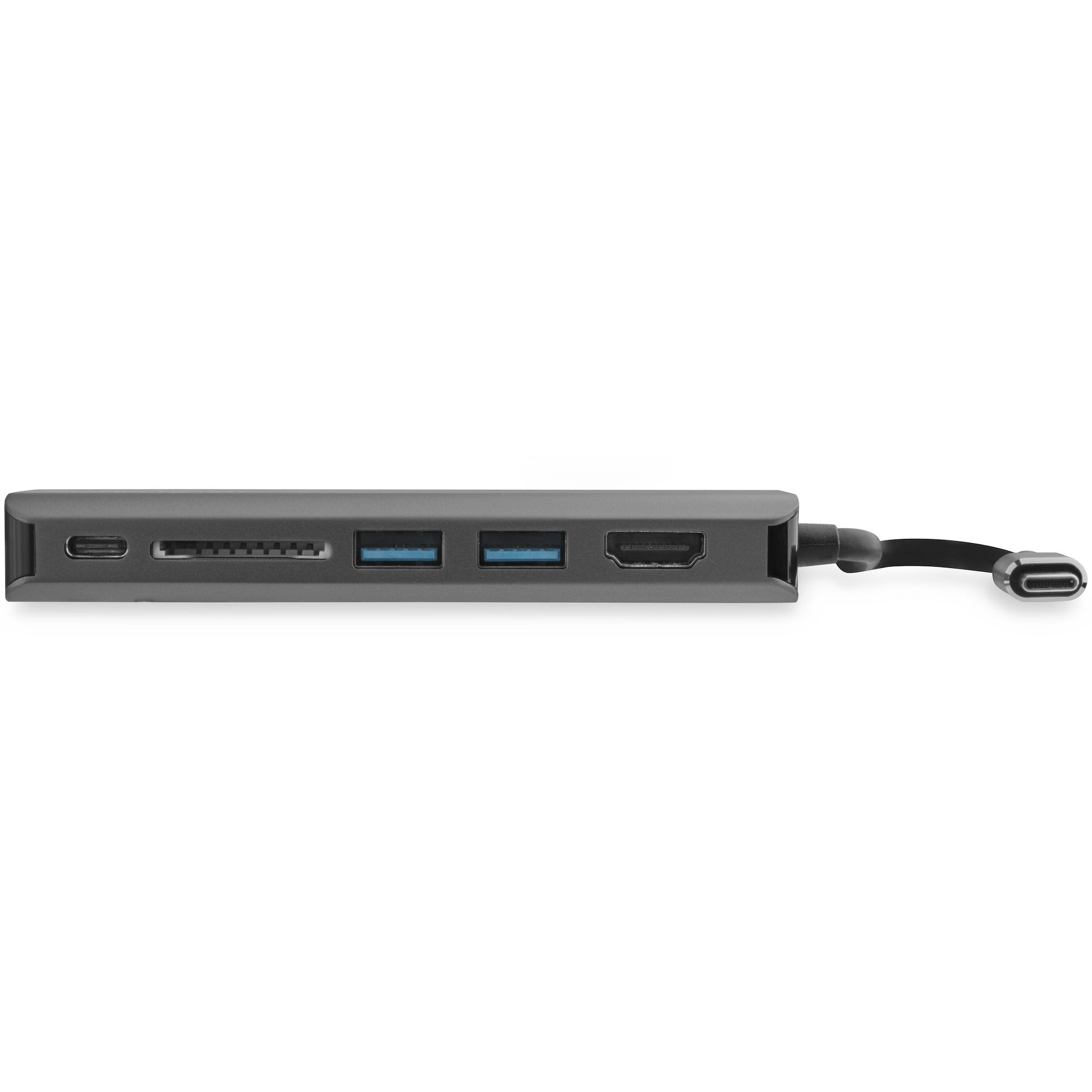

The USB-C to USB 3.0 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.

Built-In SD Card Reader

Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD cards (with adapter, sold separately).

Charge Your Laptop and Peripherals

With support for USB PD 3.0 (up to 60W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

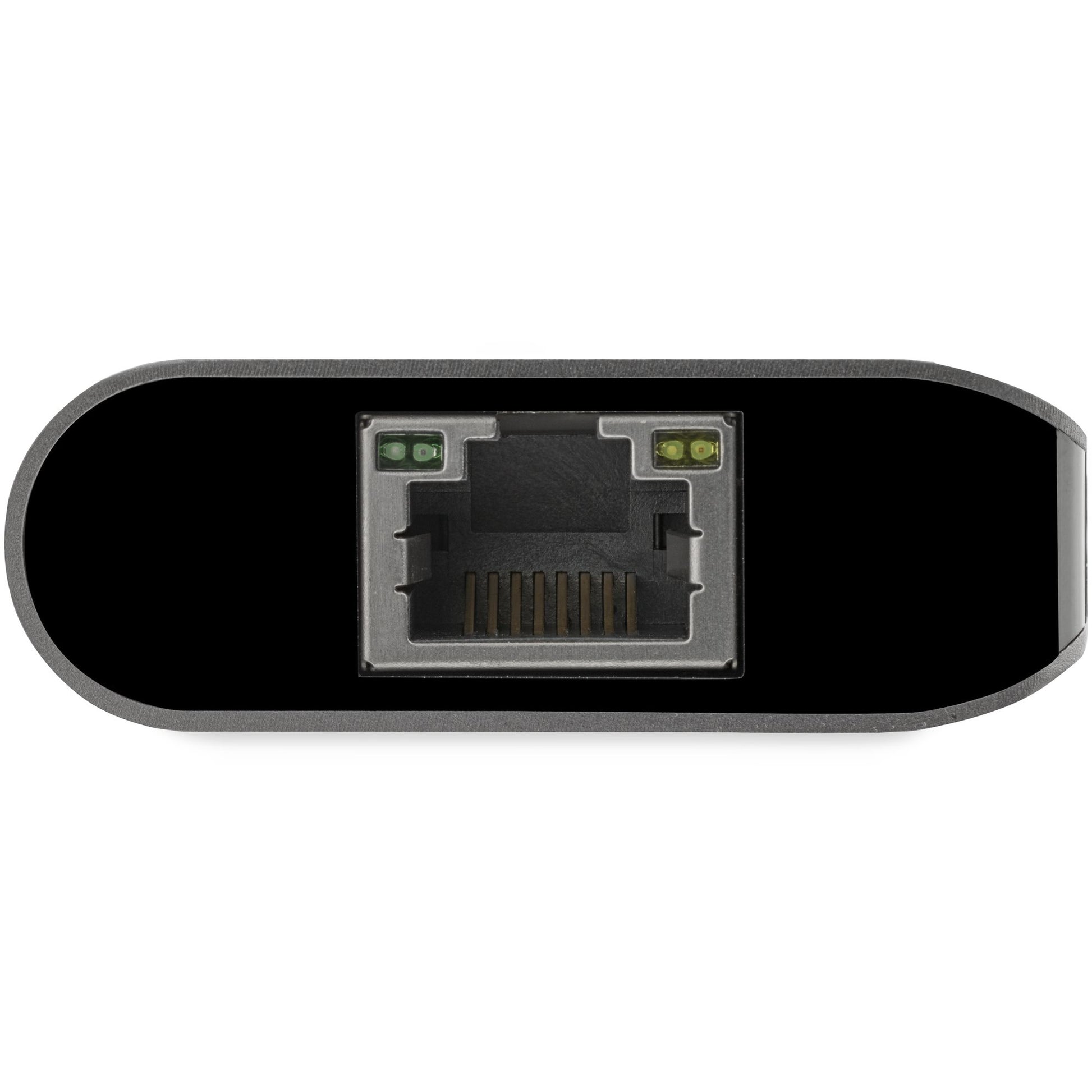

The Gigabit Ethernet port ensures reliable wired network access.

The DKT30CSDHPD3 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black, Grey
Card reader integrated	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC
Certification	CE, FCC
Maximum refresh rate	60 Hz
Technical details
Cable length	0.27 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	80 pc(s)
Master (outer) case width	484 mm
Master (outer) case length	343 mm
Master (outer) case height	447 mm
Power
Power source type	USB
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Mac compatibility	Yes

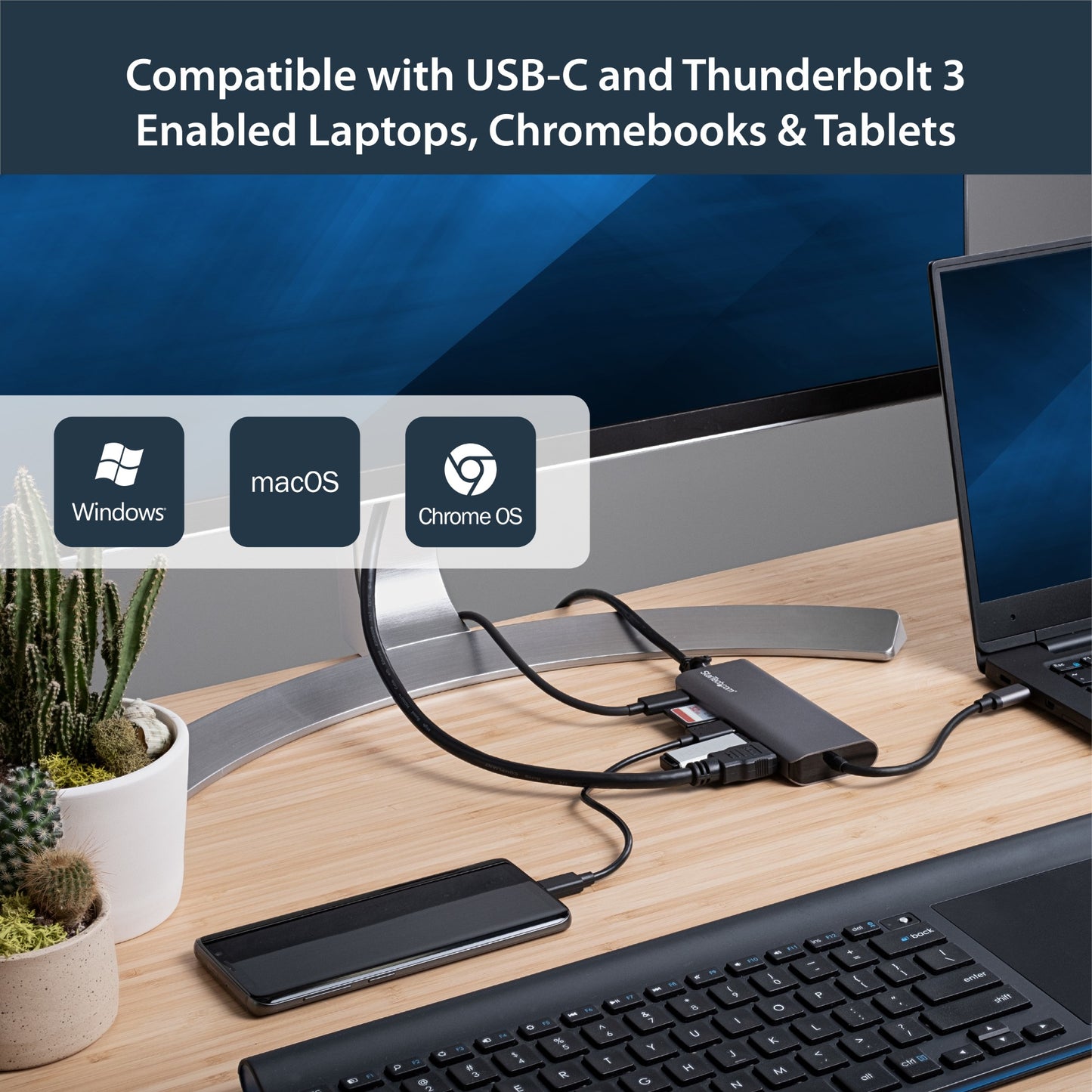

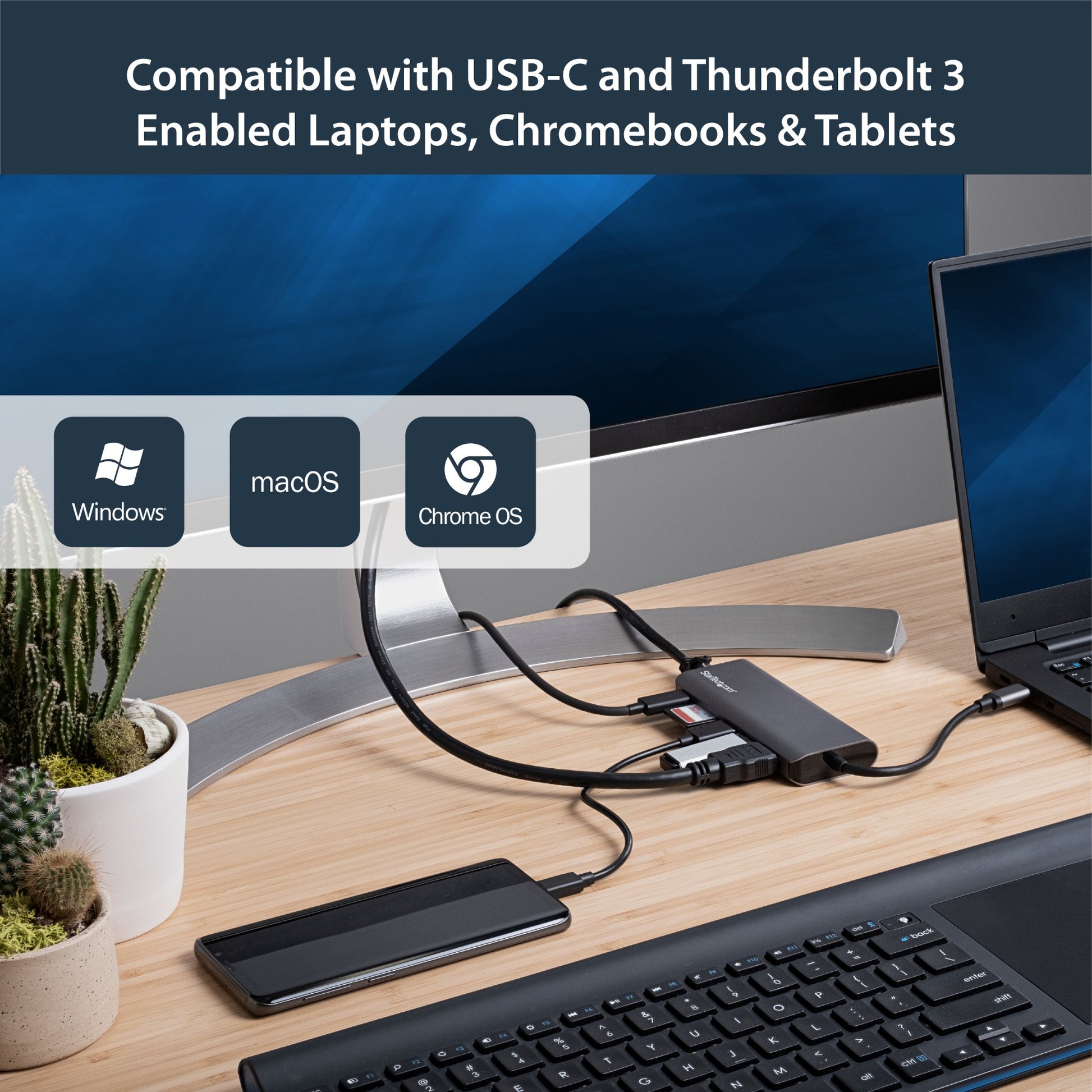

Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	85 g
Width	45 mm
Depth	270 mm
Height	15 mm
Package weight	157 g
Package width	163 mm
Package depth	122 mm
Package height	35 mm
Packaging content

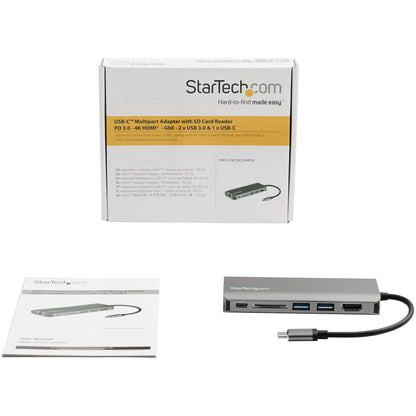

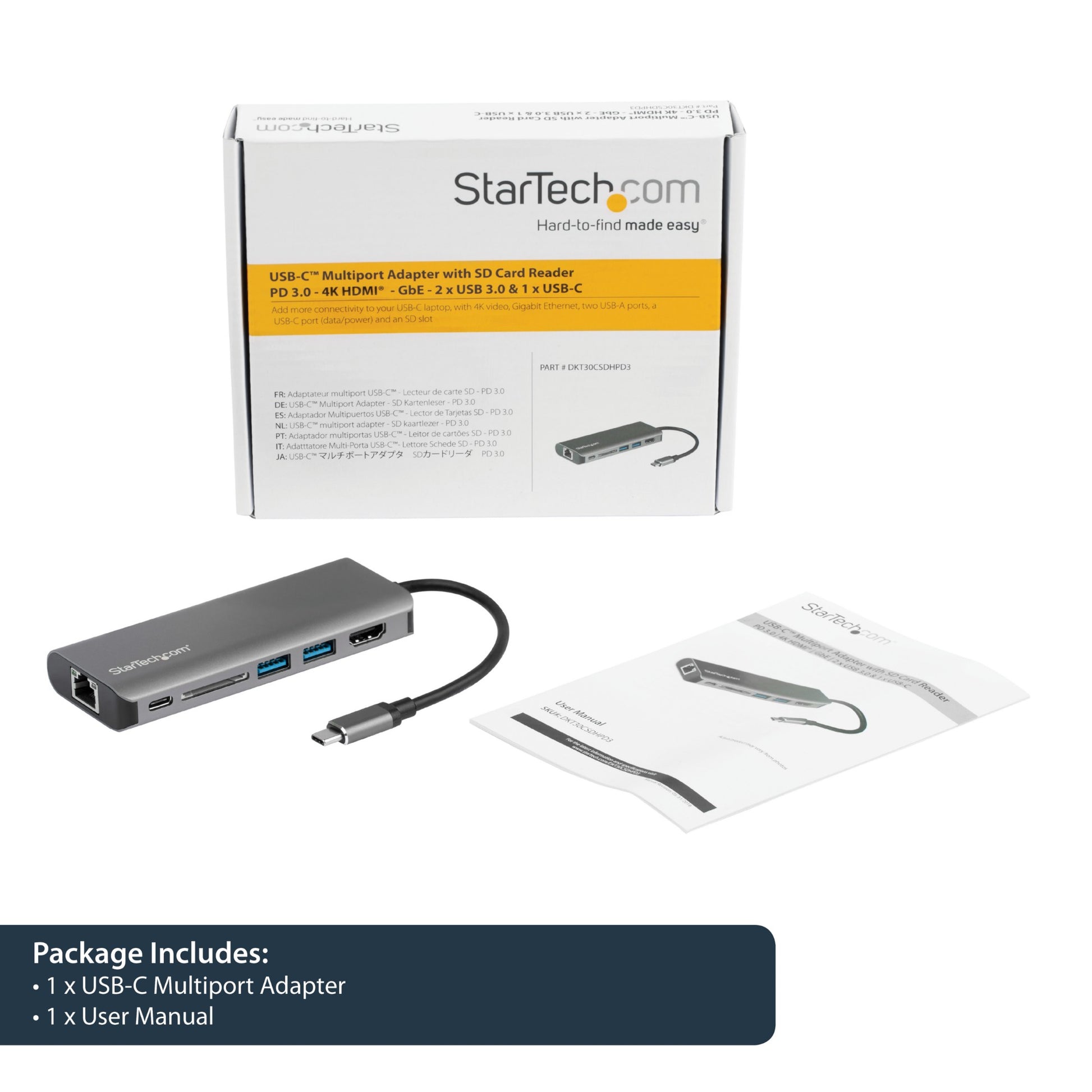

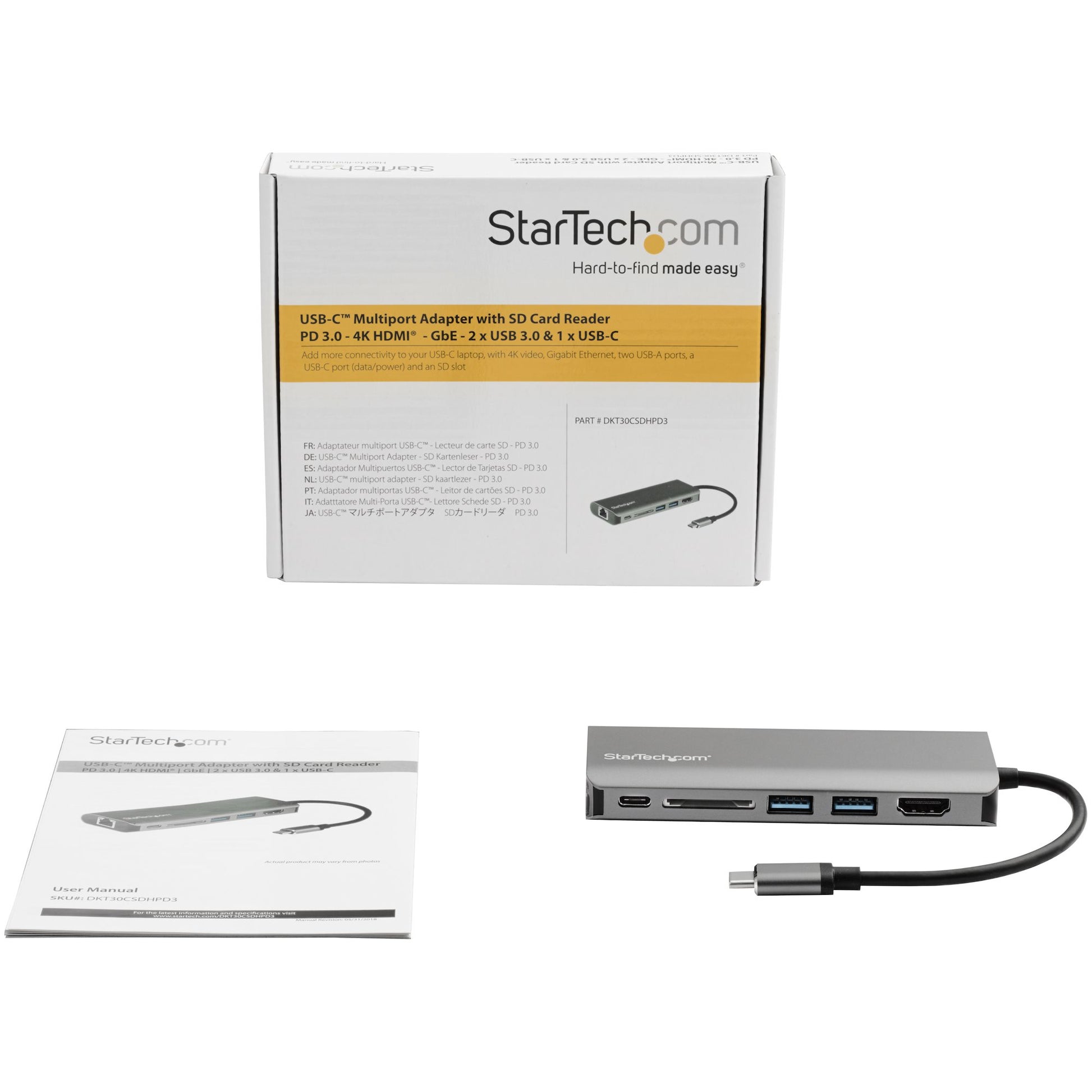

Quick start guide	Yes
Other features
Chipset	VIA/VLI - VL102, VIA/VLI - VL817, Genesys Logic - GL823K, Parade - PS176, Realtek - RTL8153
