StarTech.com Multiport Adapter Portable Thunderbolt 3 Docking Station
StarTech.com Multiport Adapter Portable Thunderbolt 3 Docking Station
Regular price
£42.94 GBP
Regular price
Sale price
£42.94 GBP
Taxes included.
Quantity
Couldn't load pickup availability
One cable, full desk: the StarTech.com Multiport Adapter Portable turns your laptop into a workstation with external displays, wired networking, 100W charging over a single Thunderbolt 3 connection.
Portable Docking Station | Mac & Windows® | 4K | GbE | Wrap-Around CableHere’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C™ laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.

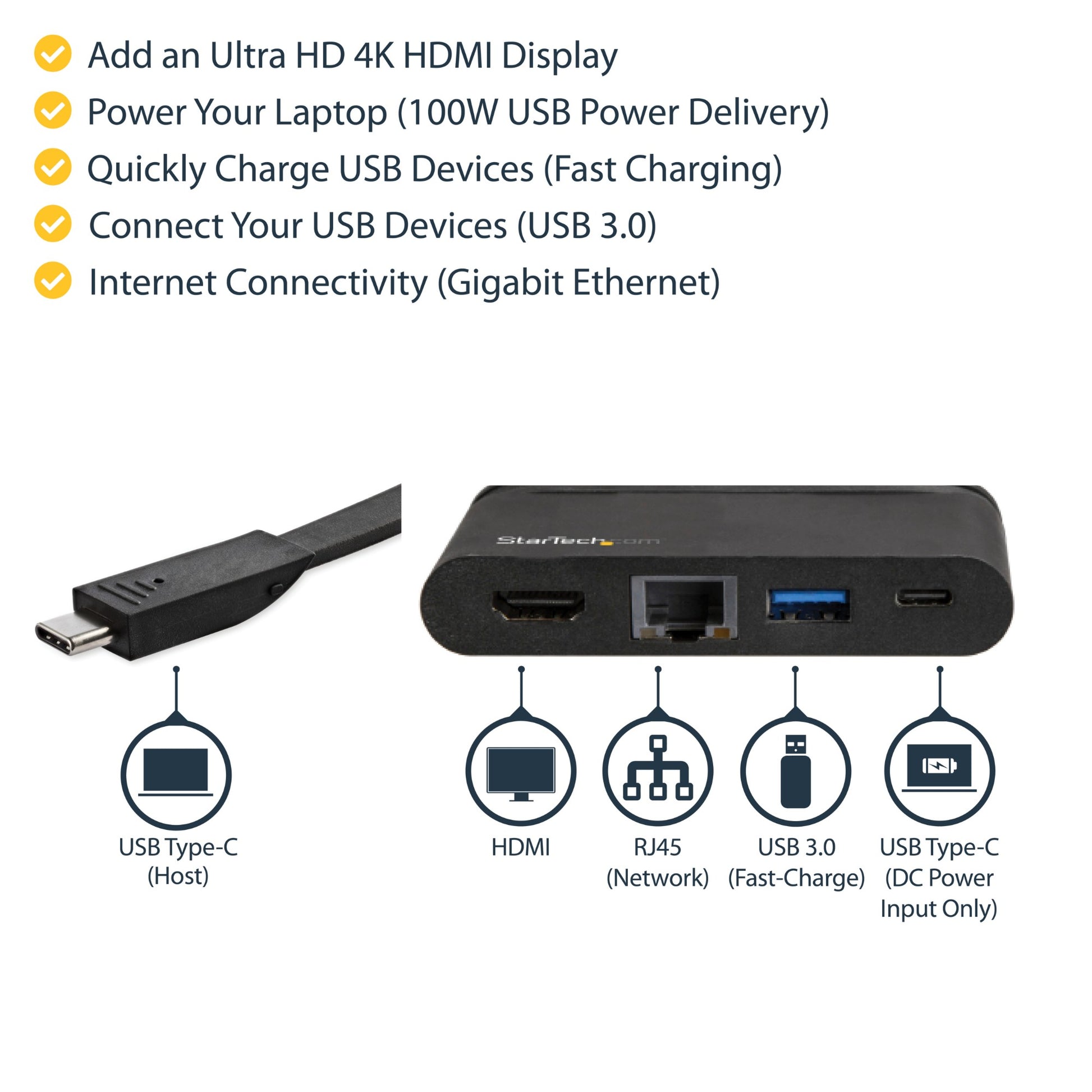

Connect a UHD 4K HDMI Monitor
Use the USB-C adapter as a portable docking station, connecting your laptop to a 4K HDMI monitor (4096 x 2160p) to create a workstation or make presentations. It also connects to an ultrawide monitor.
Connect Your Devices
The USB-C adapter gives you one USB-C port to connect a USB-C device, and one USB-A port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.
Laptop Charging with PD 3.0
With support for 100W Power Delivery 3.0, the USB Type-C multiport adapter provides up to 92W laptop charging, and powers your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power).

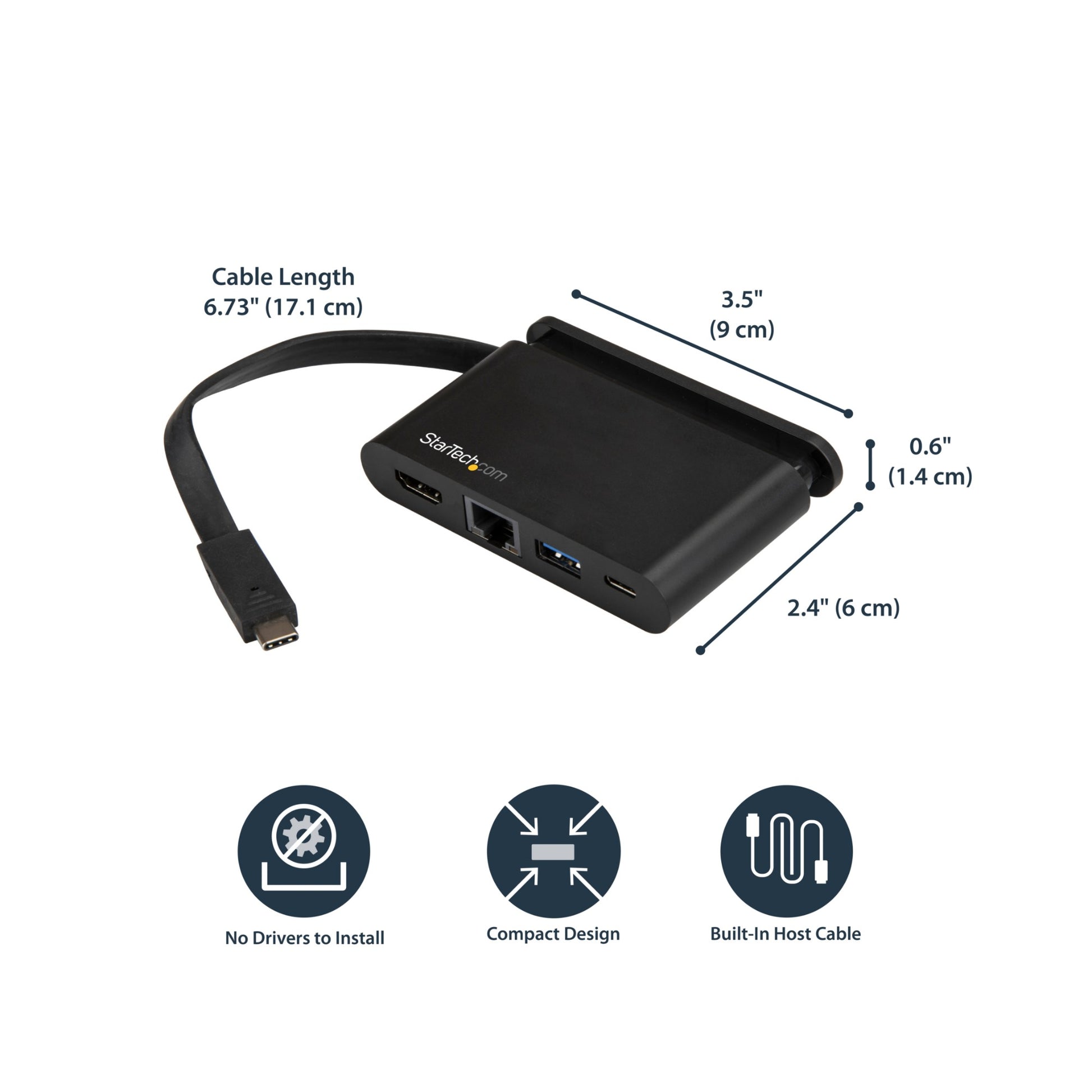

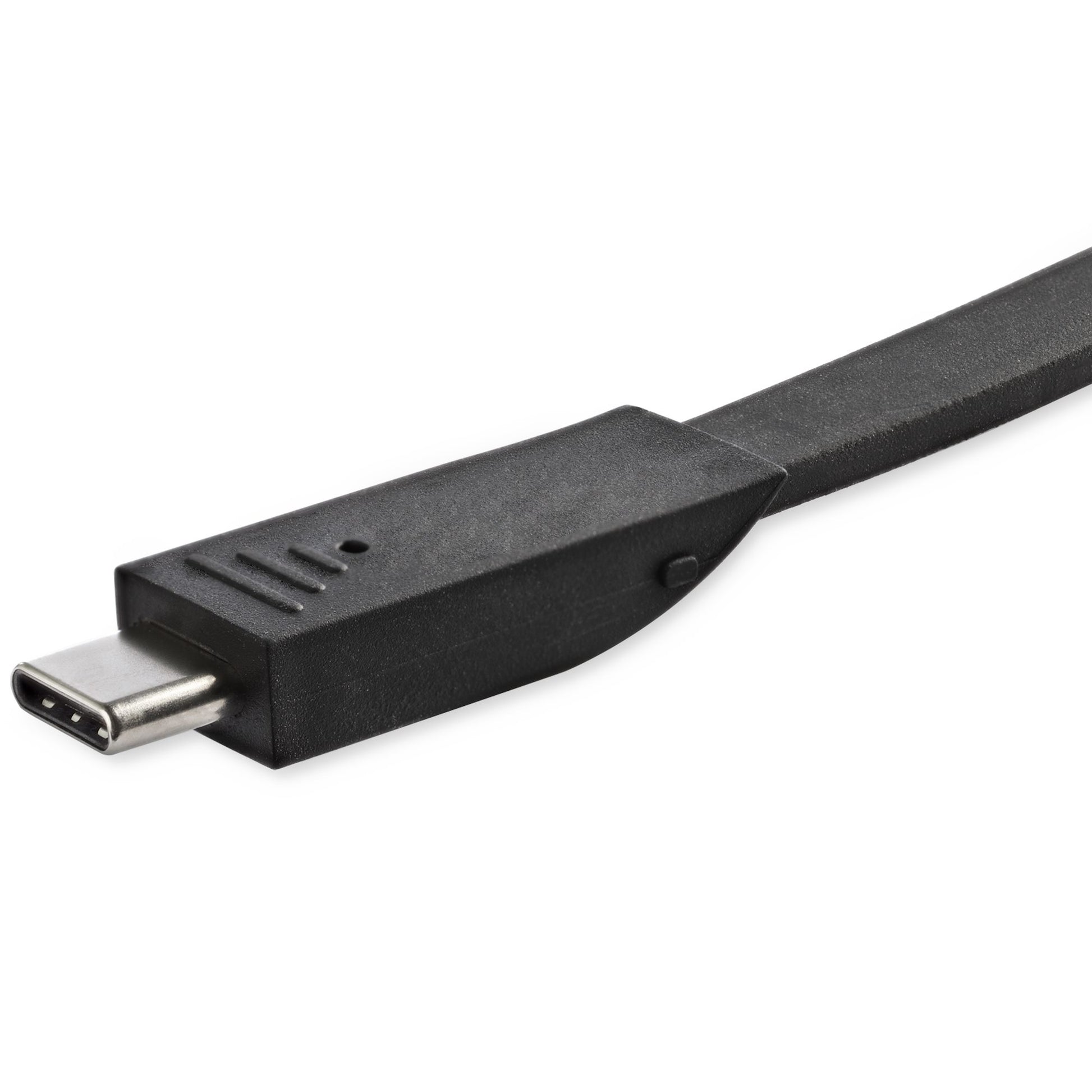

Wrap-Around Cable
The USB Type-C™ multiport adapter has a built-in wrap-around cable for easy connection and portability.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
DKT30CHCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, REACH |
| HD type | 4K Ultra HD |
| Housing material | Plastic |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 506 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 276 mm |
| Power | |
| Power source type | USB |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 127 g |
| Width | 38 mm |
| Depth | 167 mm |
| Height | 7.5 mm |
| Package weight | 135 g |
| Package width | 107 mm |
| Package depth | 86 mm |
| Package height | 18 mm |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Chipset | VIA/VLI - VL102, VIA/VLI - VL817, Parade Technologies - PS176, RealTek - RTL8153 |
