StarTech.com Multiport Adapter PD USB-C Docking Station 140W (164B)

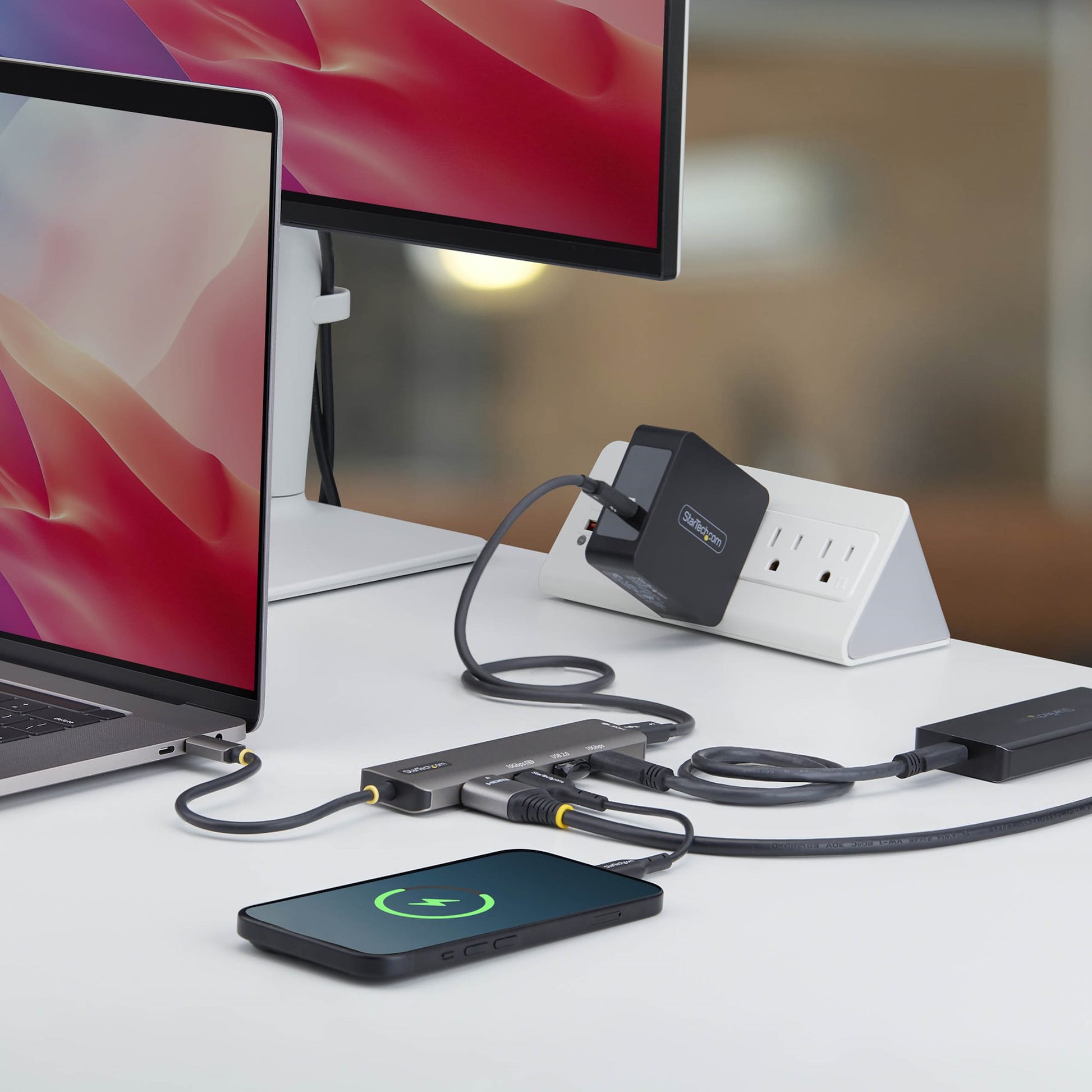

One cable, full desk: the StarTech.com Multiport Adapter PD turns your laptop into a workstation with external displays, 140W charging over a single USB-C connection.

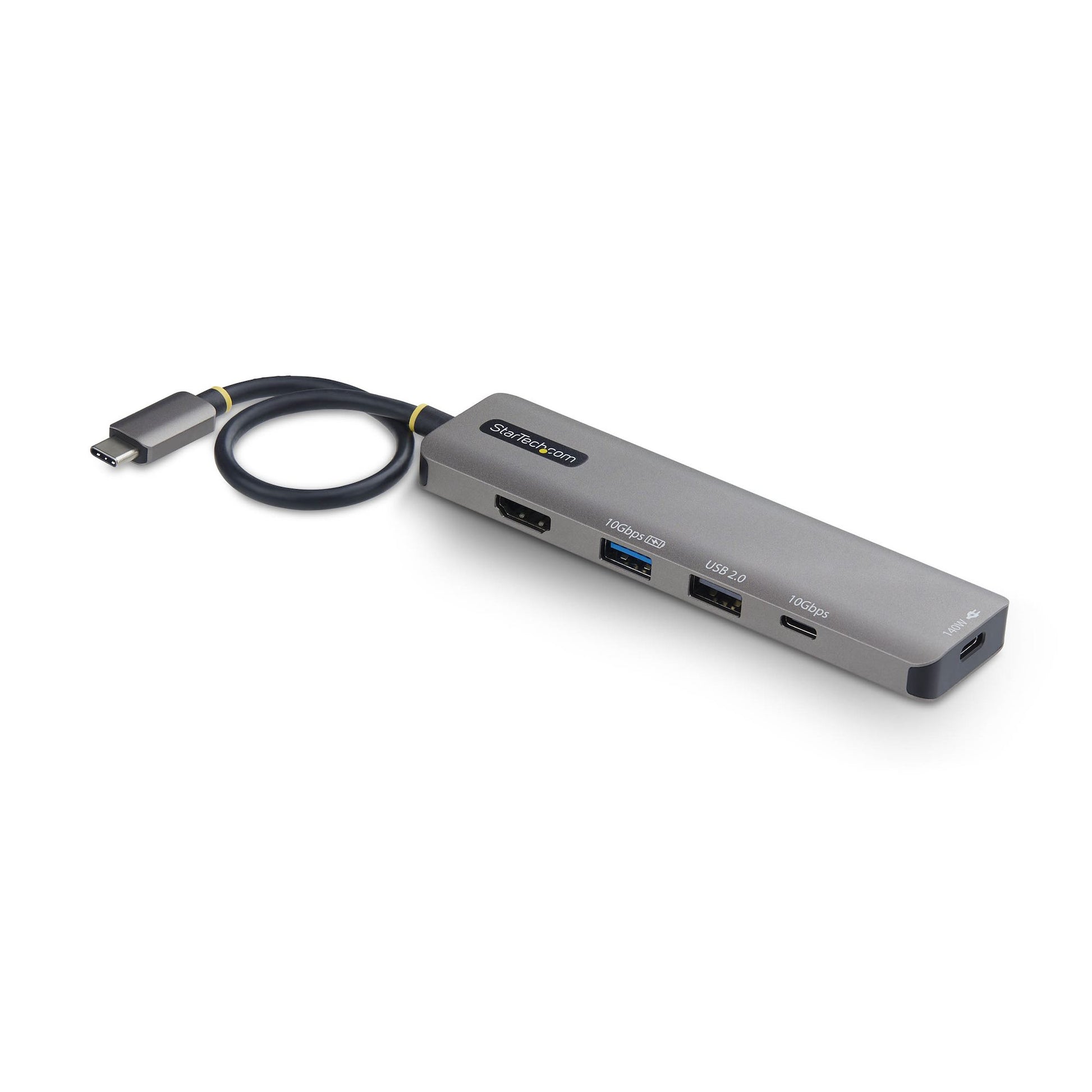

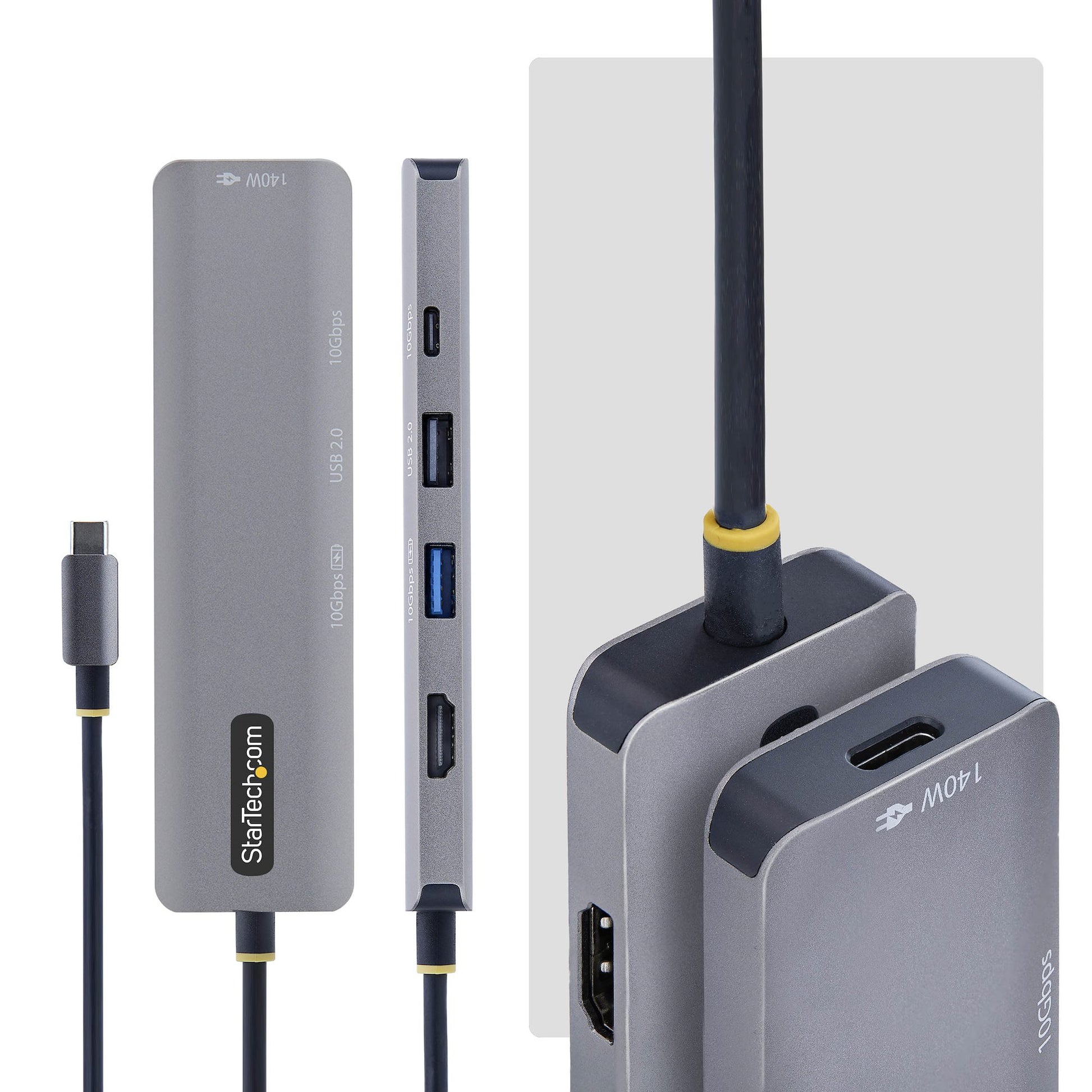

Turn a USB-C laptop into a workstation with 4K 60Hz HDMI, three USB ports (2x USB-A, 1x USB-C) and pass-through USB Power Delivery to charge your laptop or tablet

Turn one USB-C port into a complete mobile workstation with 4K video, 140W power delivery, and high-speed USB connectivity in a single compact adapter.

Build a Clean, High-Performance Workspace Anywhere

Drive a 4K 60Hz HDMI display while adding USB-C and USB-A data ports through one adapter. Replace multiple dongles in shared desks, hoteling stations, travel kits, and field deployments. Fewer accessories reduce setup time and cable clutter.

Charge High-Powered Laptops Without Compromise

Deliver up to 140W USB-C Power Delivery passthrough to support high-powered and AI-focused laptops under load. A dedicated USB-A 2.0 port connects essential peripherals without consuming critical host ports.

Expand with High-Speed, Driverless Connectivity

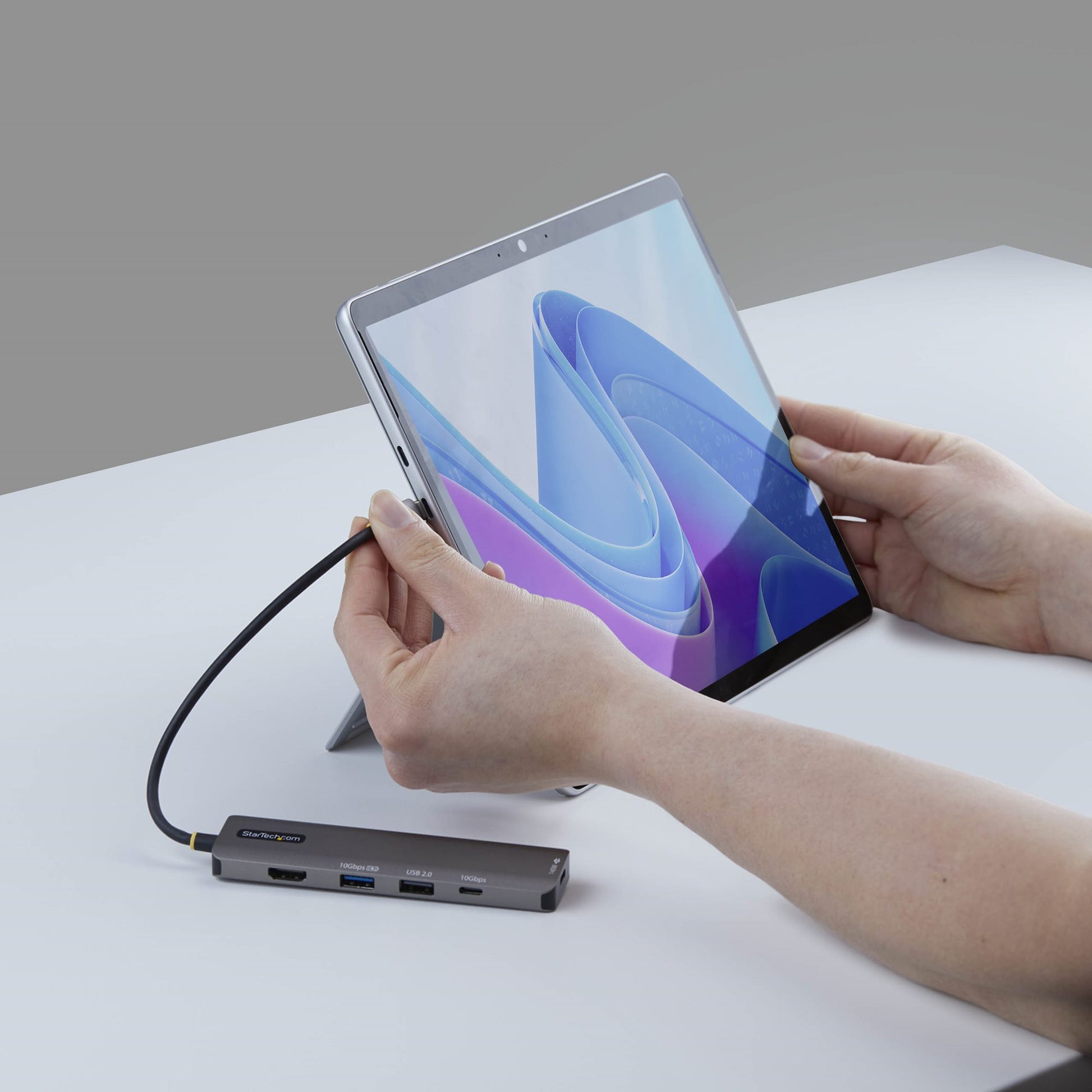

Add a 10Gbps USB-A port with BC 1.2 for fast data transfers and optimized device charging, plus a 10Gbps USB-C port for modern peripherals and storage. Deploy instantly with driverless plug-and-play installation. The compact design fits easily into laptop bags, simplifying rollouts for hybrid teams and remote users.

Built for Sustainability, Designed for Performance

This hub features a housing made from 75% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.2
USB Power Delivery up to	140 W
Network
Ethernet LAN	No
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Product colour	Grey
Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Housing material	Aluminium, Plastic
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
User guide	Yes
Products per master (outer) case	30 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	330 mm
Master (outer) case height	310 mm
Power
Power source type	USB
Power consumption (typical)	15 W
Output voltage	5 V
USB cable length	0.2 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	78 g
Width	34 mm
Depth	127 mm
Height	11 mm
Package weight	106 g
Package width	170 mm
Package depth	142 mm
Package height	30 mm
Other features
Chipset	Parade - PS188
