StarTech.com Multiport Adapter PD Thunderbolt 3 Docking Station 60W

One cable, full desk: the StarTech.com Multiport Adapter PD turns your laptop into a workstation with external displays, 60W charging over a single Thunderbolt 3 connection.

USB-C™ Video Adapter | Mac & Windows® | 4K 30Hz | Thunderbolt™ 3 Compatible

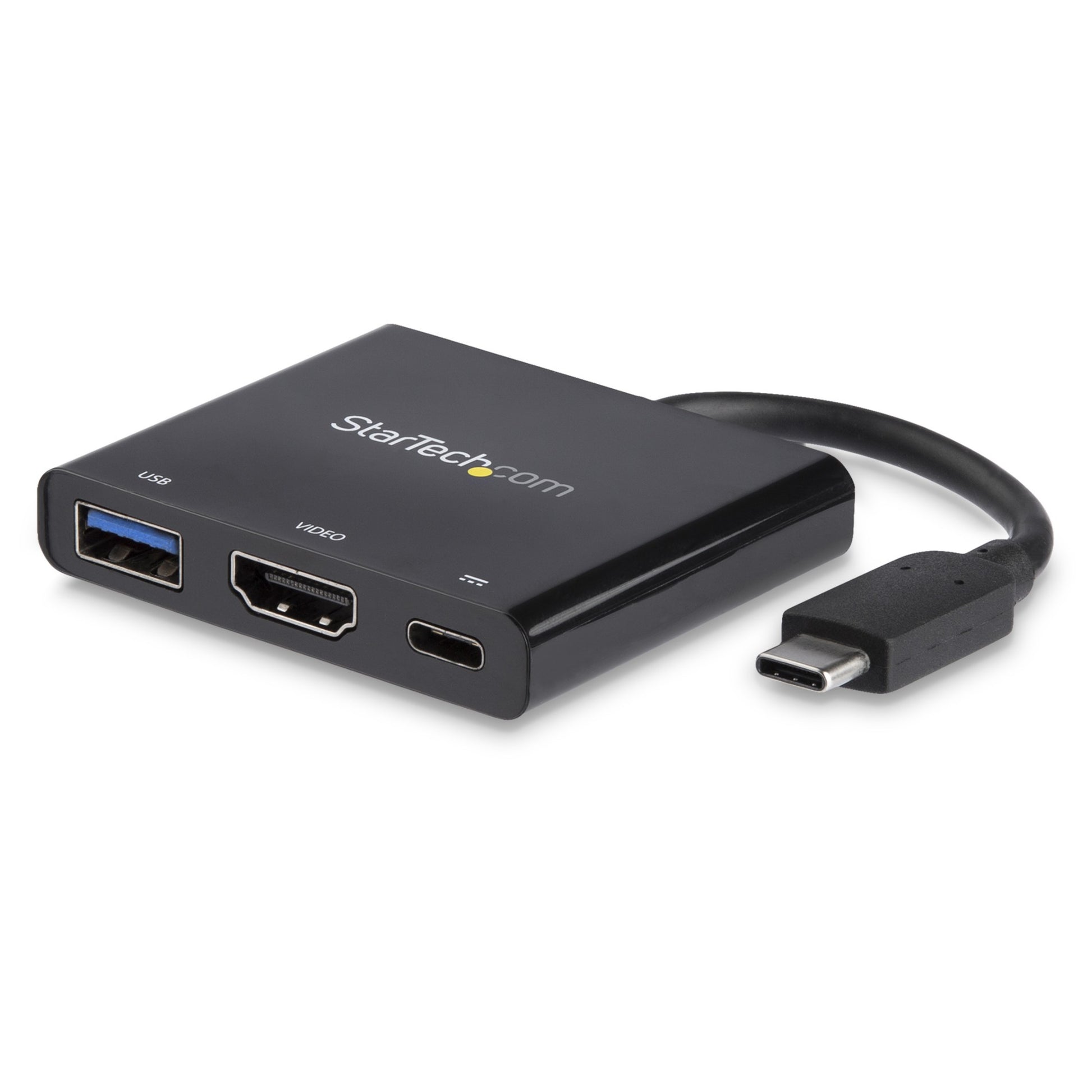

This USB-C™ multiport adapter with HDMI lets you add vital connections to your MacBook or Windows laptop, through a single USB-C port.

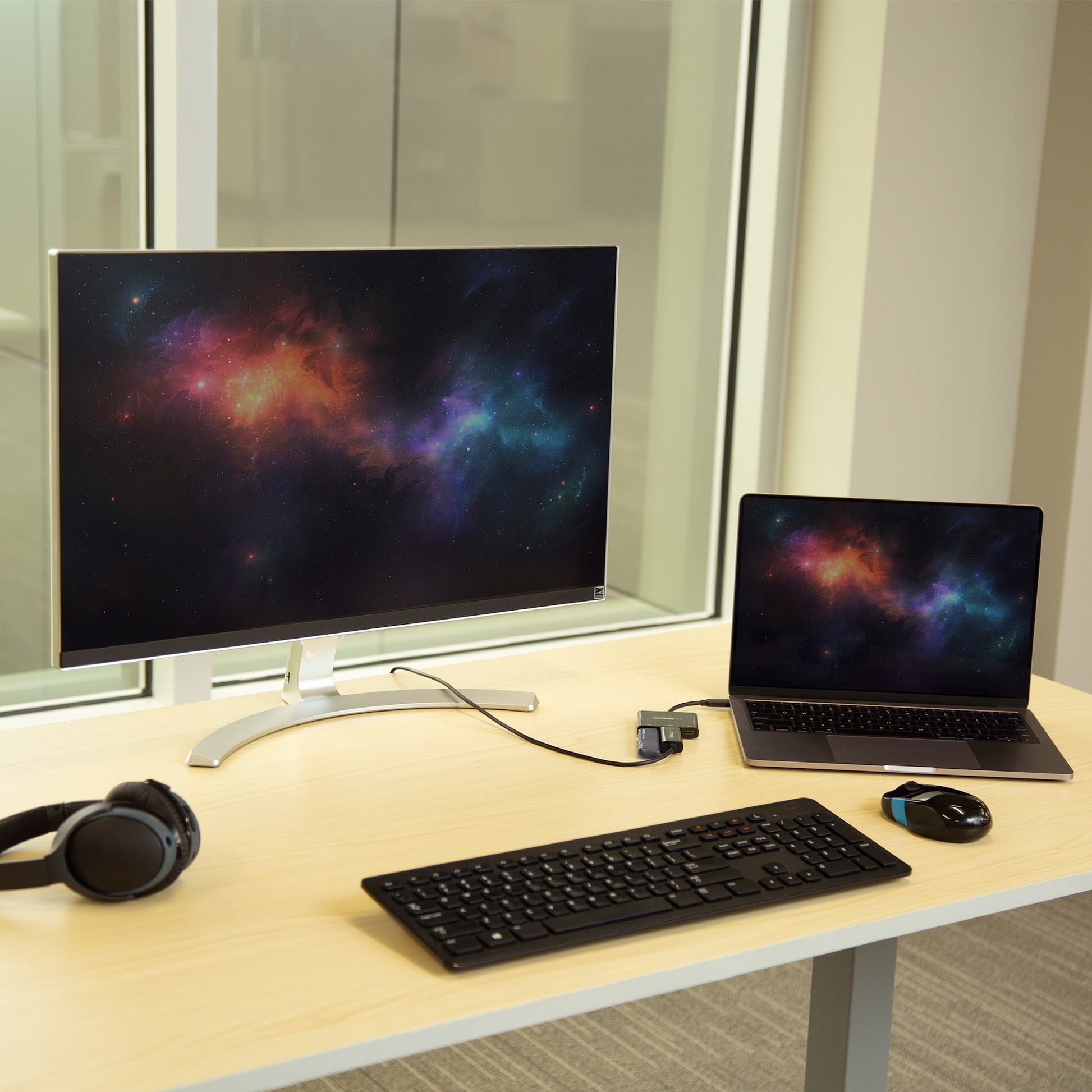

Connect a UHD 4K HDMI Monitor

For maximum productivity, connect your USB-C or Thunderbolt 3 laptop to a 4K 30Hz monitor, using this USB-C to 4K HDMI adapter. You can also connect to an HDMI projector or TV in a boardroom or other meeting space, to deliver presentations on a shared screen.

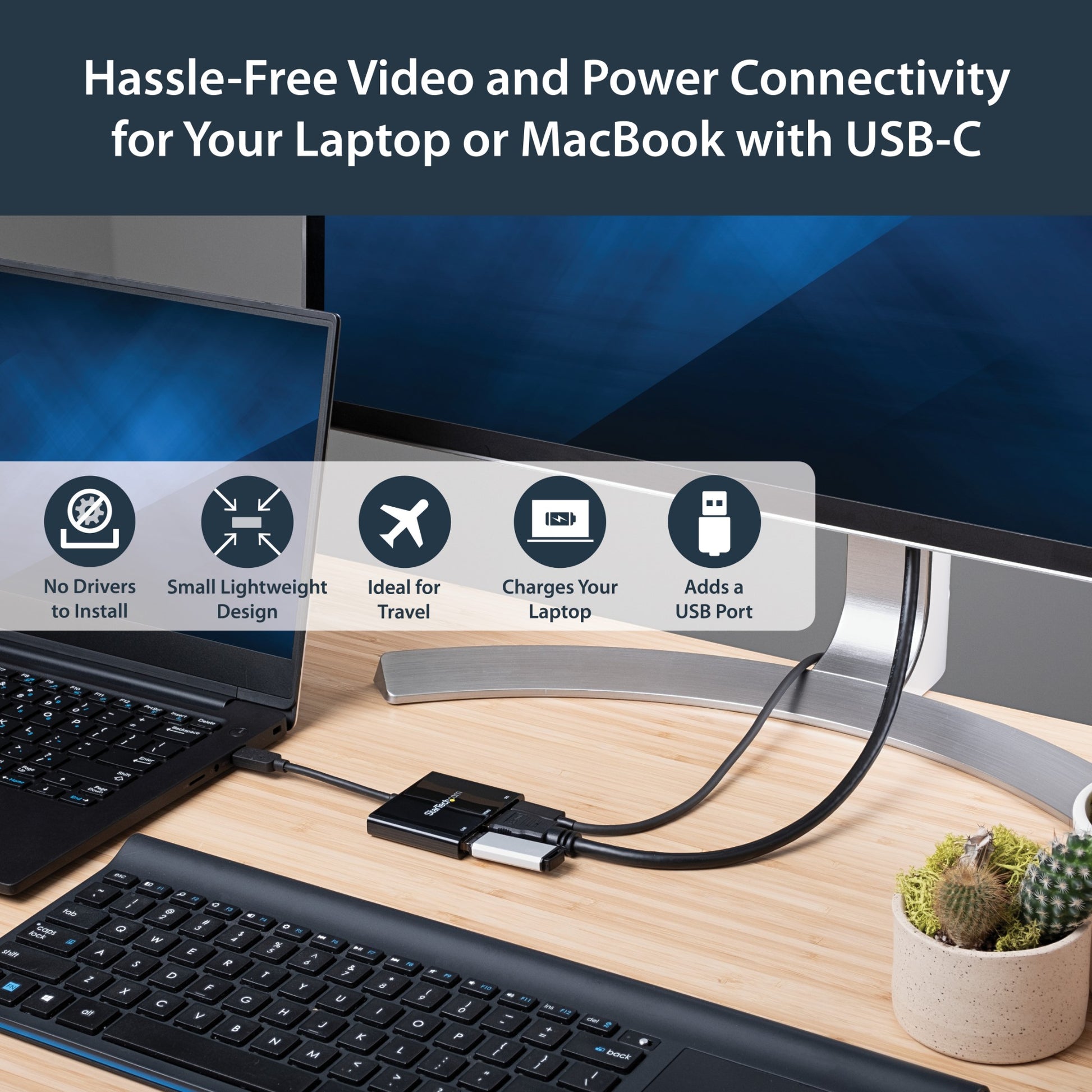

Charge Your Laptop

The USB-C adapter lets you power and charge your USB-C laptop during a presentation or while you’re working, with a USB-C Power Delivery port. Even if your laptop has only a single USB-C port available, you can keep your laptop powered.

Add a USB 3.0 Port

This USB-C multiport adapter offers a USB 3.0 port that's backward compatible with older USB devices - ideal for data transfers, syncing, or charging your mobile devices.

Travel-Friendly Design

The compact all-in-one adapter is a vital accessory for your USB-C laptop. With its small-footprint design, you can take it with you anywhere you would use your laptop.

CDP2HDUACP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	No
Connectivity technology	Wired
Network
Ethernet LAN	No
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Housing material	Plastic
Technical details
Cable length	0.1 m
Sustainability compliance	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Products per master (outer) case	40 pc(s)
Master (outer) case width	358 mm
Master (outer) case length	362 mm
Master (outer) case height	319 mm
Power
Power source type	USB
Power supply	60 W
Wireless charging	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%

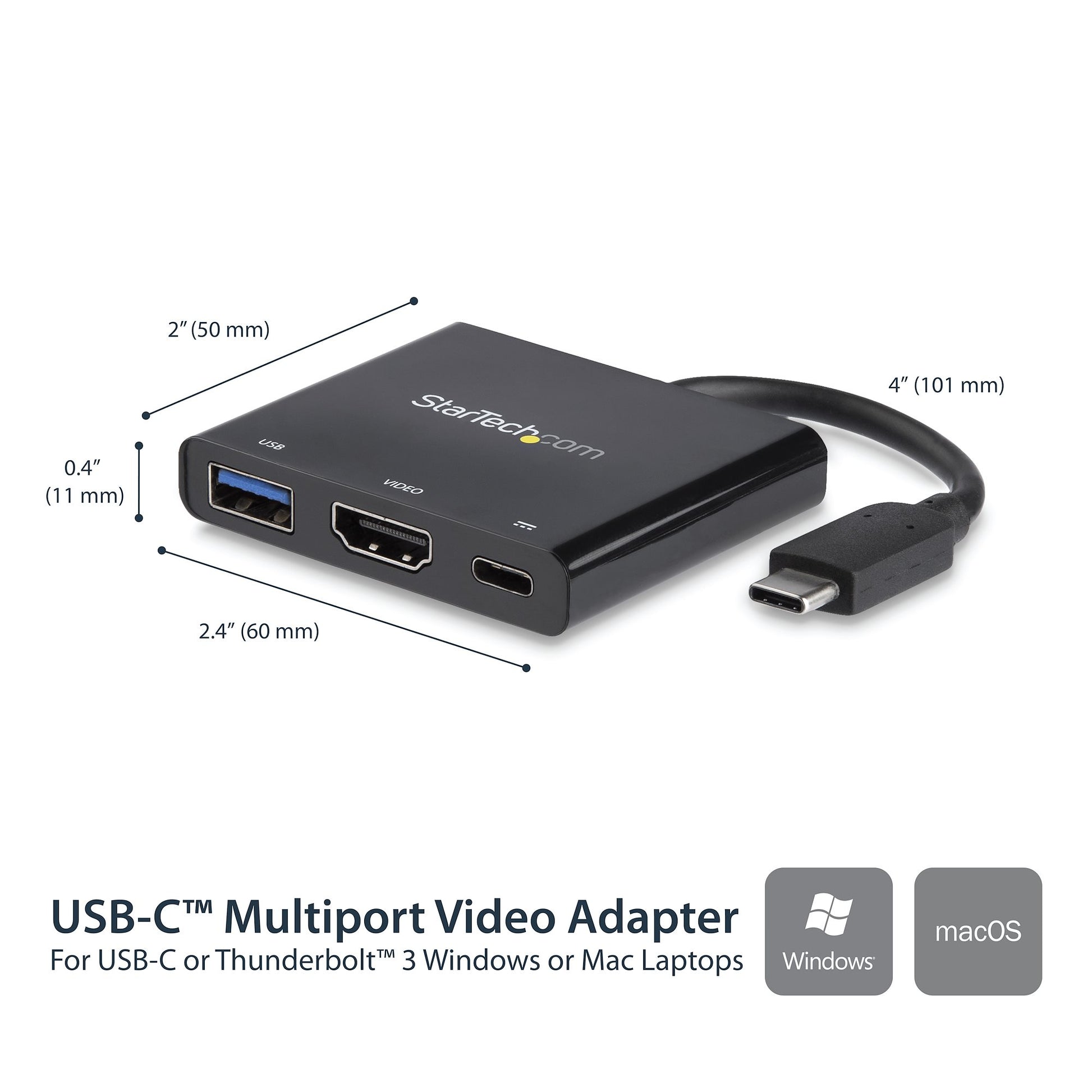

Weight & dimensions
Weight	35 g
Width	50 mm
Depth	60 mm
Height	11 mm
Package weight	118 g
Package width	146 mm
Package depth	175 mm
Package height	32 mm
Other features
Chipset	VIA/VLI - VL100, VIA/VLI - VL210, Parade - PS176
