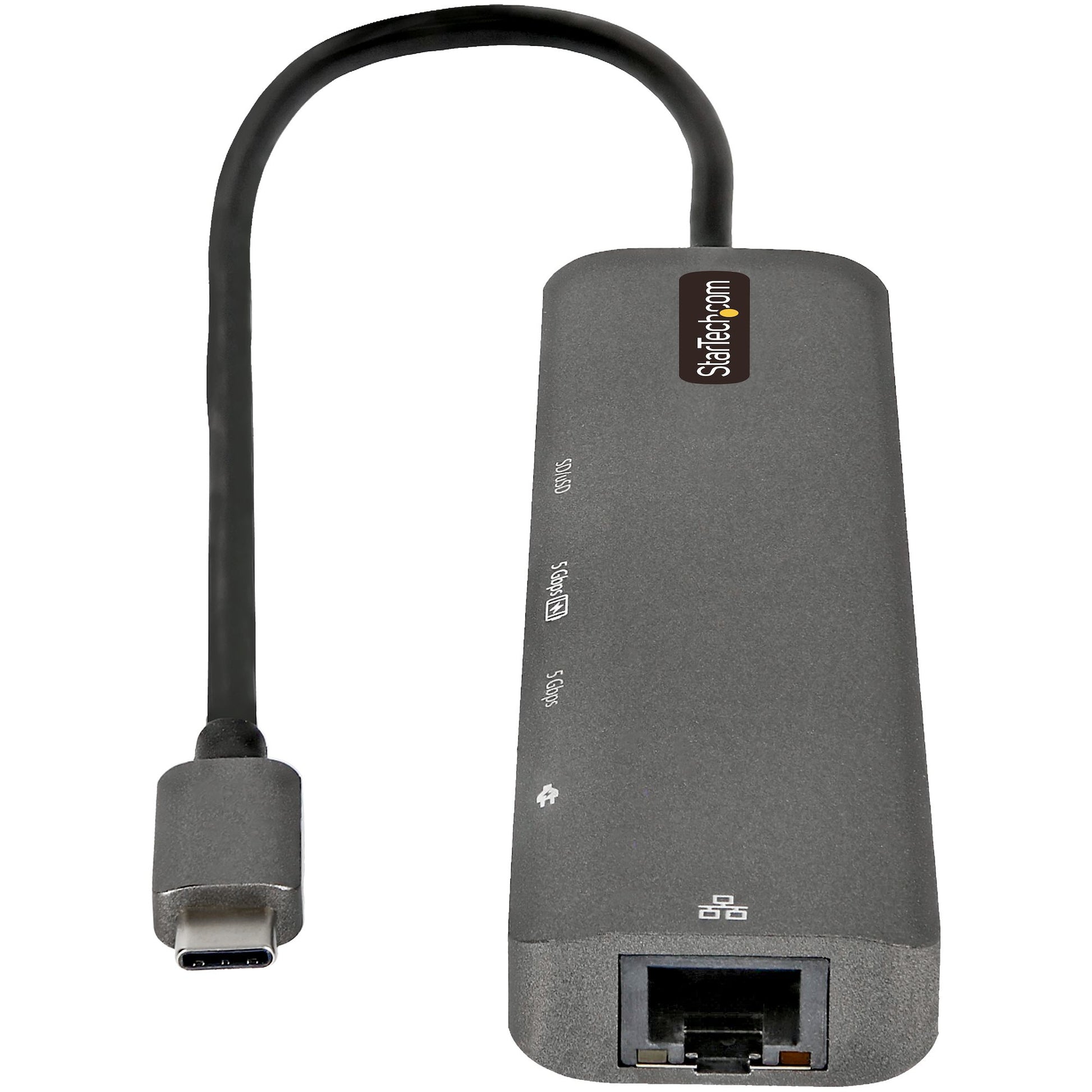

StarTech.com Multiport Adapter Hub USB-C Docking Station 100W

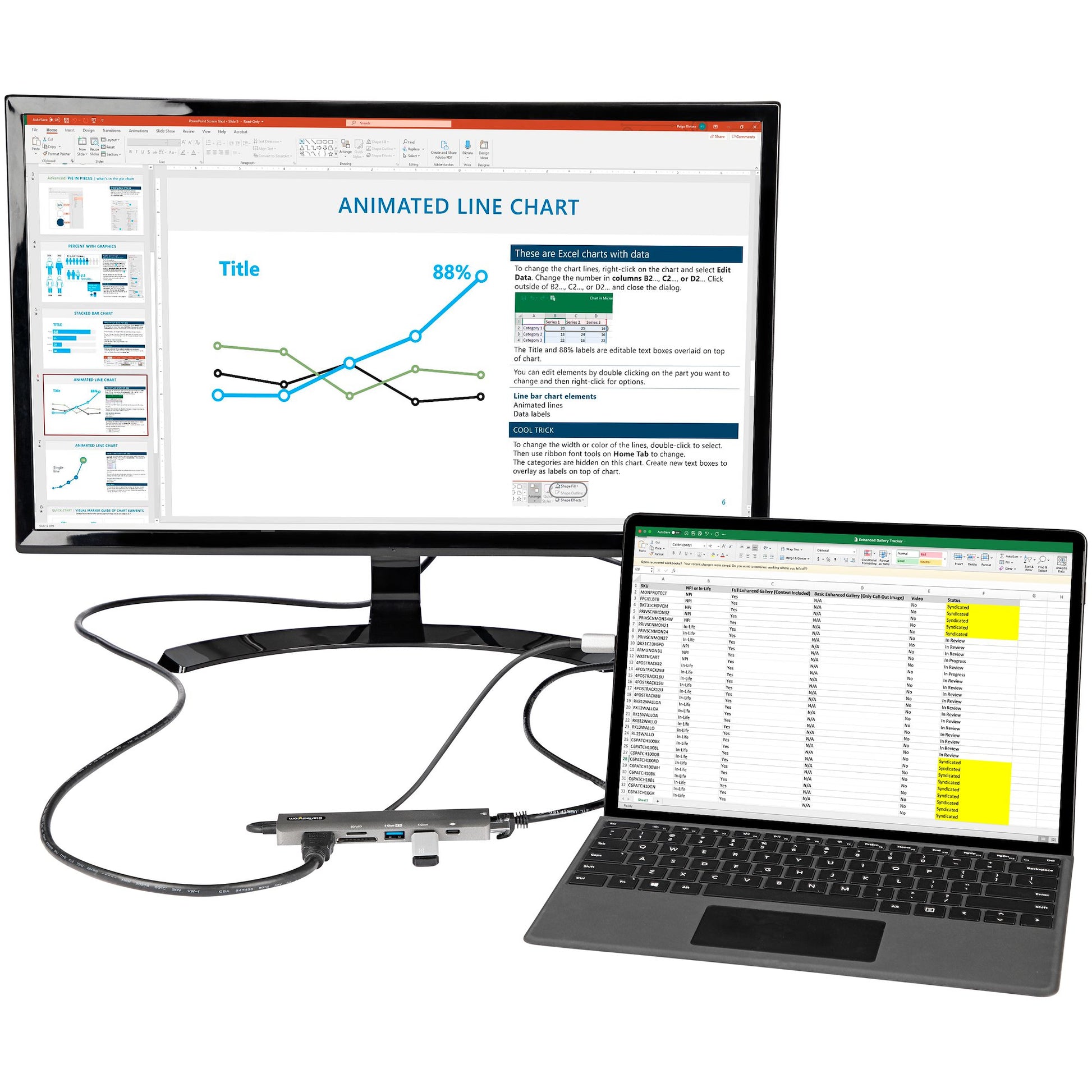

One cable, full desk: the StarTech.com Multiport Adapter Hub turns your laptop into a workstation with external displays, wired networking, 100W charging over a single USB-C connection.

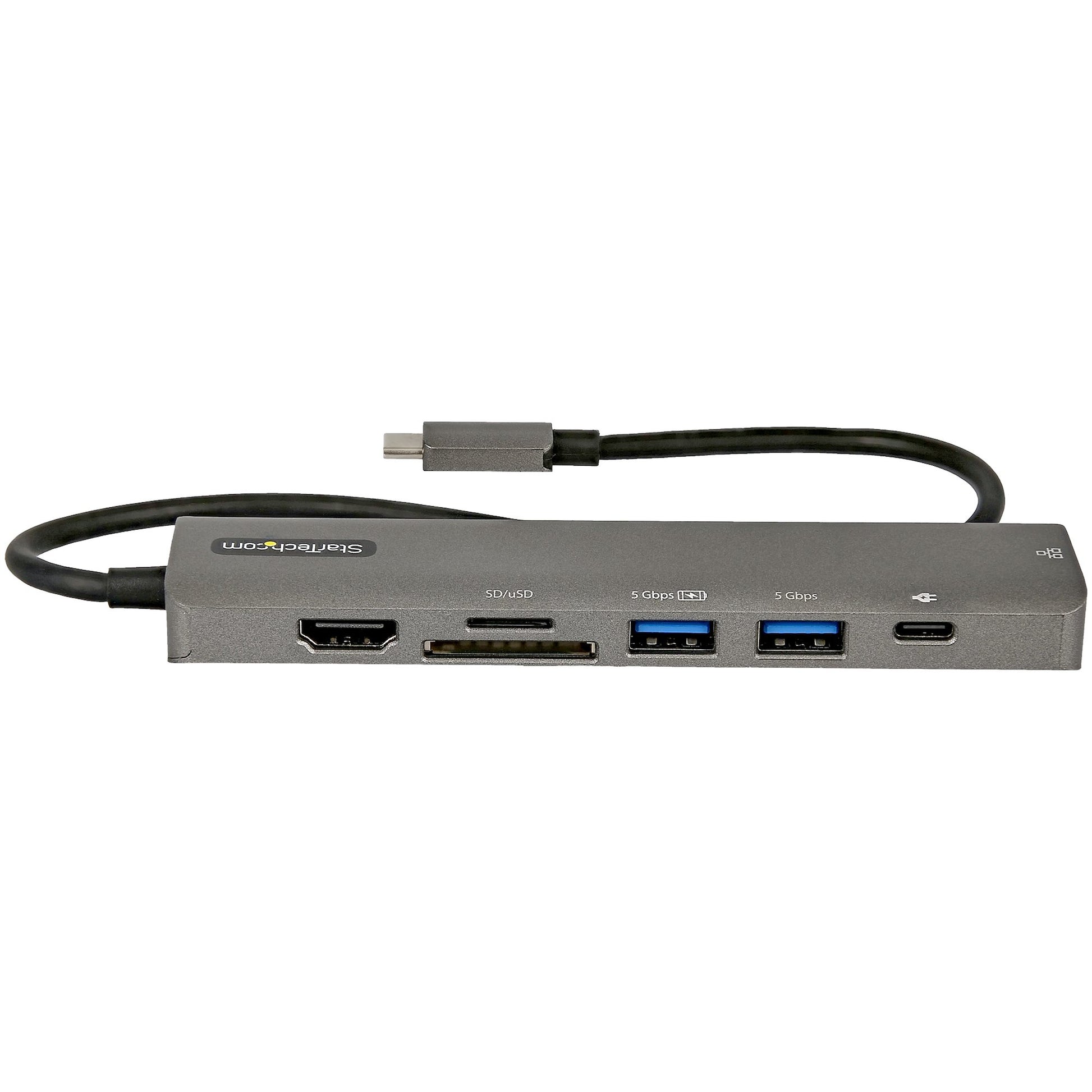

4K 60Hz HDMI, 2x USB 5Gbps, GbE, SD/microSD, and 100W Power Delivery Pass-Through, all from one USB-C connection

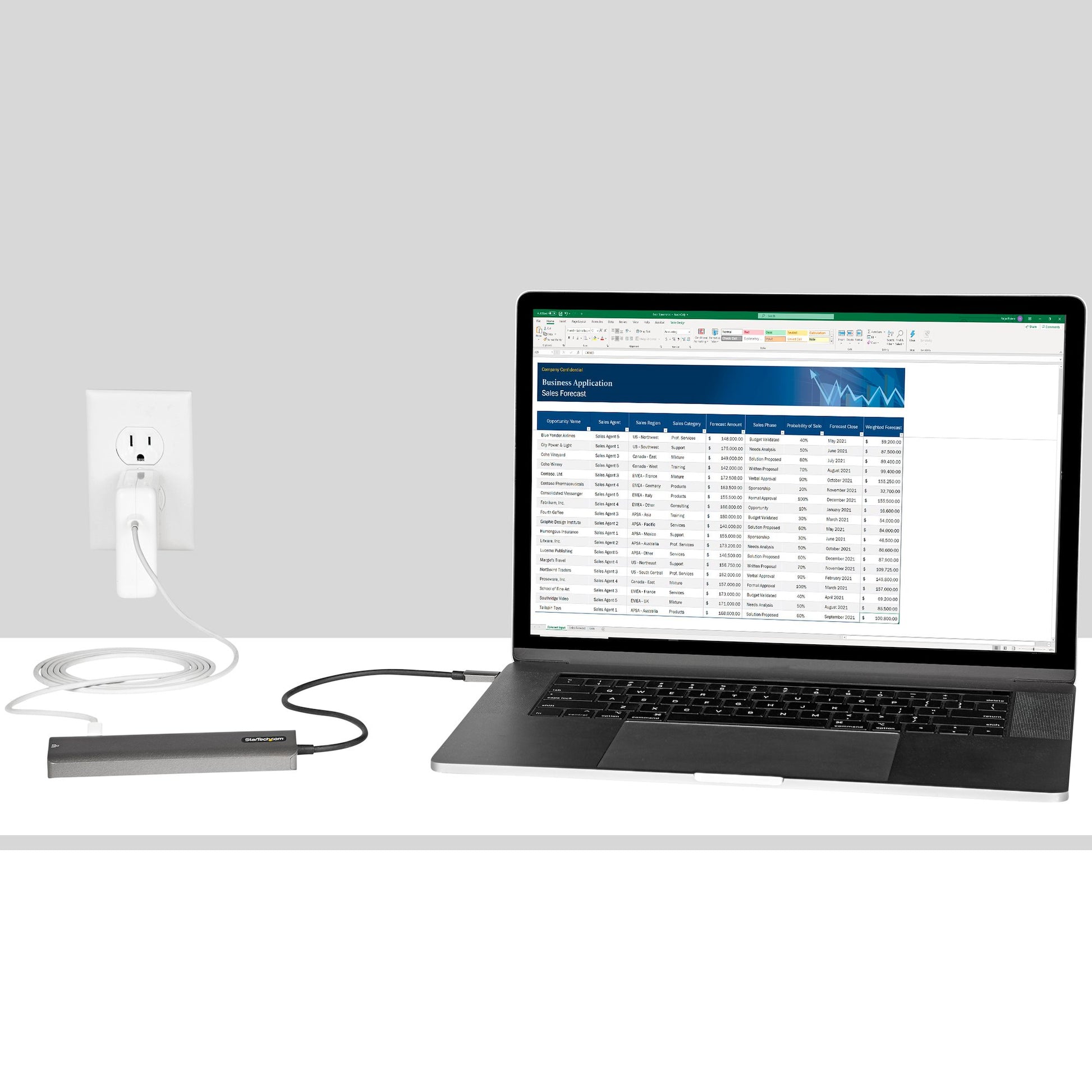

If you're working from a single USB-C port, this compact travel docking station delivers everything you need. It transforms your USB-C or Thunderbolt™ laptop into a fully connected, portable workstation, supporting 4K 60Hz HDMI™ (via DP 1.4), dual USB-A 5Gbps ports, Gigabit Ethernet, SD/microSD slots, and up to 100W USB Power Delivery 3.0 Pass-Through.

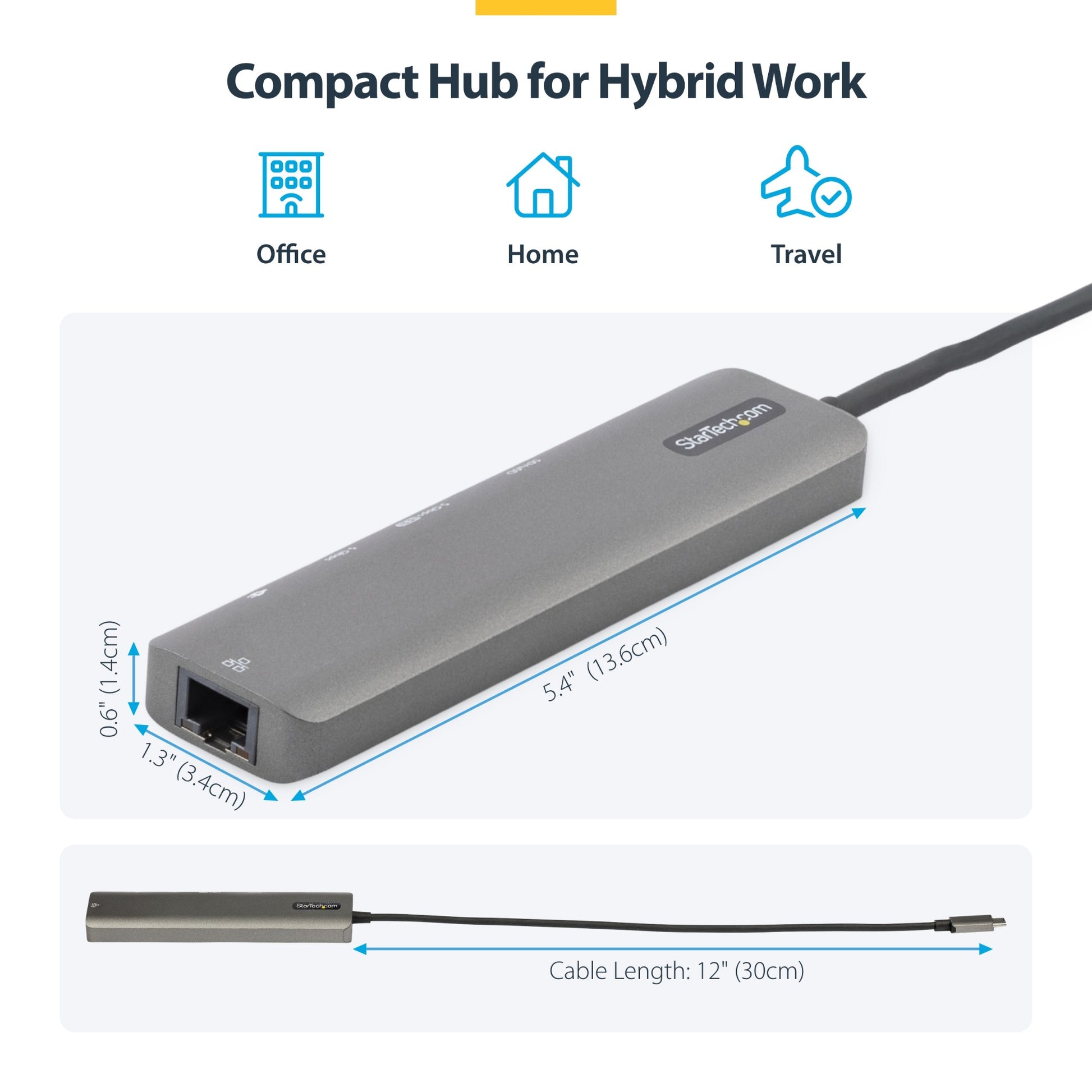

Extra-Long Cable

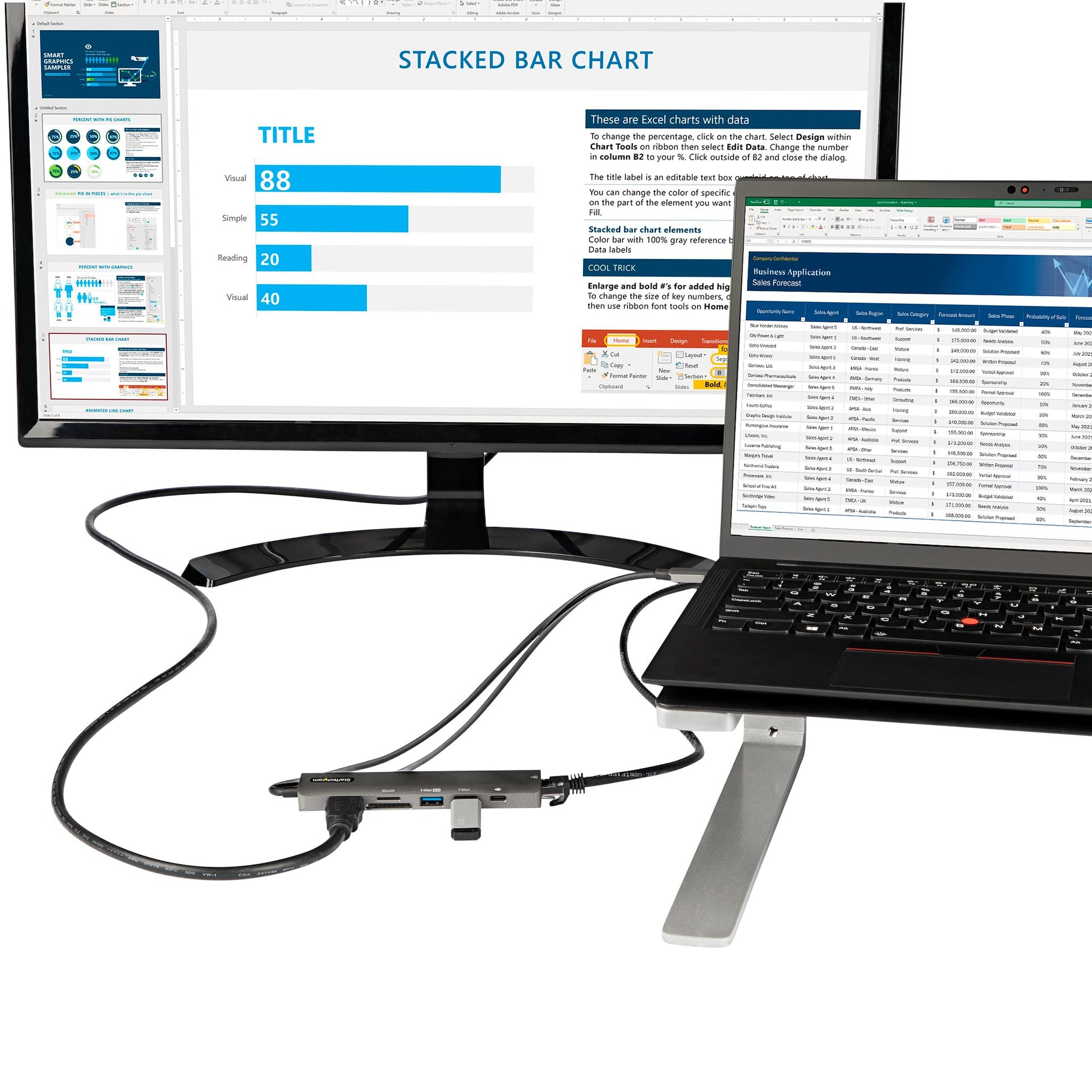

The attached 12" (30cm) cable gives you extra flexibility in tight or mobile setups. It reduces port strain on devices like 2-in-1s and tablets and works seamlessly with riser stands or adjustable desk environments.

Universal Compatibility

Enjoy plug-and-play functionality across a broad range of USB-C and Thunderbolt devices including laptops, tablets, and even USB-C-enabled phones. It works reliably across all major operating systems including Windows, macOS, iPadOS, iOS, Android, and Chrome OS.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.

Visit www.StarTech.com/Connectivity-Tools to download the StarTech.com Connectivity Tools.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Product colour	Black, Grey
Card reader integrated	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	MMC, MicroSD (TransFlash), SD
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Products per master (outer) case	30 pc(s)
Master (outer) case width	477 mm
Master (outer) case length	339 mm
Master (outer) case height	251 mm
Power
Power consumption (max)	12 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iPadOS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	99 g
Width	352 mm
Depth	34 mm
Height	14 mm
Package weight	180 g
Package width	216 mm
Package depth	152 mm
Package height	34 mm
Packaging content
Quick start guide	Yes
Other features
Chipset	VIA Labs - VL102, VIA Labs - VL817, Parade - PS186, Realek - RTL8153, Genysis Logic - GL3224

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
